Toyota CAMRY 制动总泵 — Figure 4702

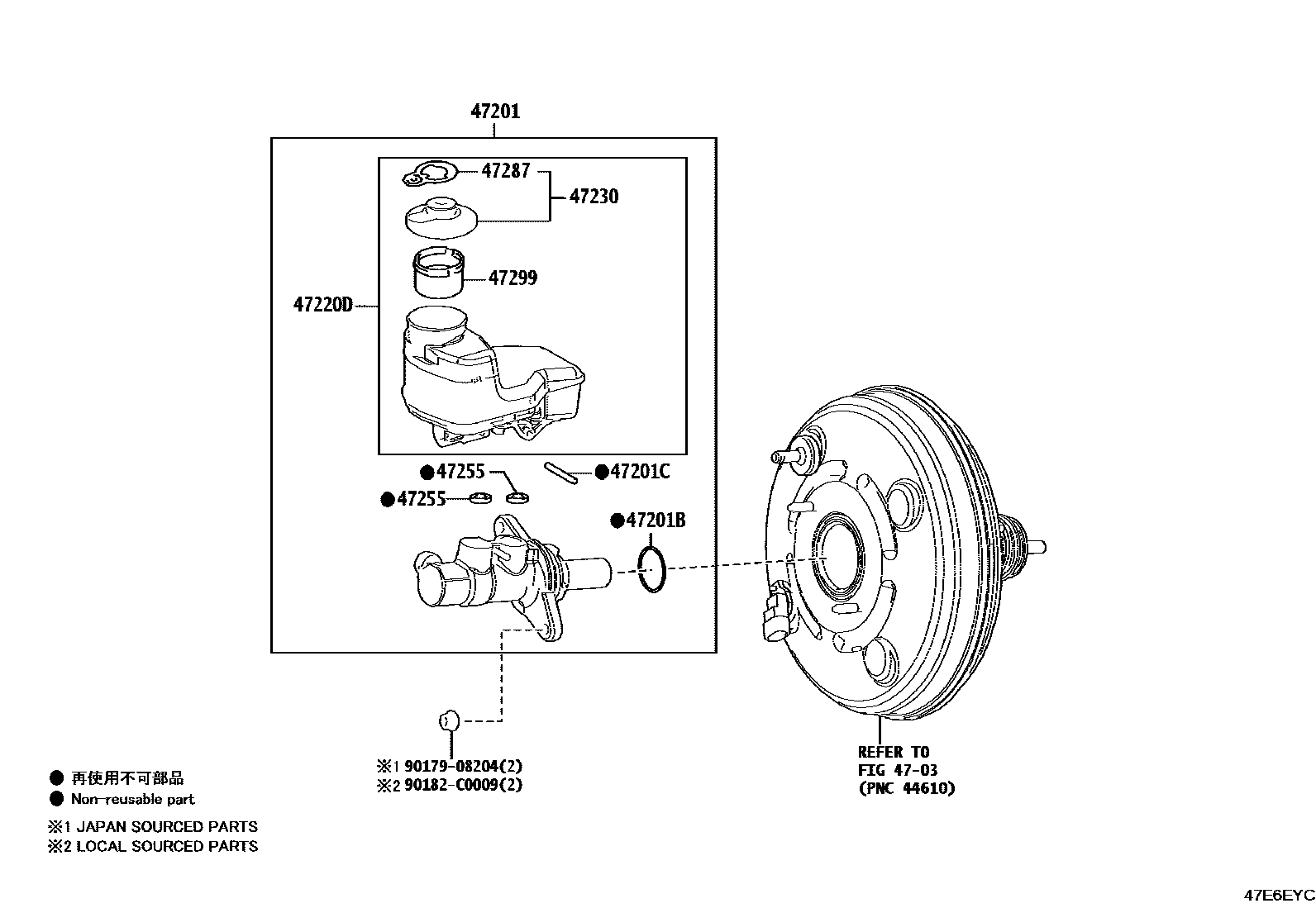

Toyota CAMRY EPC diagram 4702, 制动总泵, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47201 | Brake master cylinder sub-assembly | 47201-06570 |
| 47201B | O-ring (for brake master cylinder) | 90016-AH902 |
| 47201C | Brake master cylinder ring pin | 90029-15803 |
| 47210L | Brake booster assembly with master cylinder | 47050-06020 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-06350 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-0R030 · 47230-47090 |
| 47255 | Master pump reservoir seal | 90016-AT002 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-42030 |
| 47287 | brake fluid information label | 47287-02360 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 |
