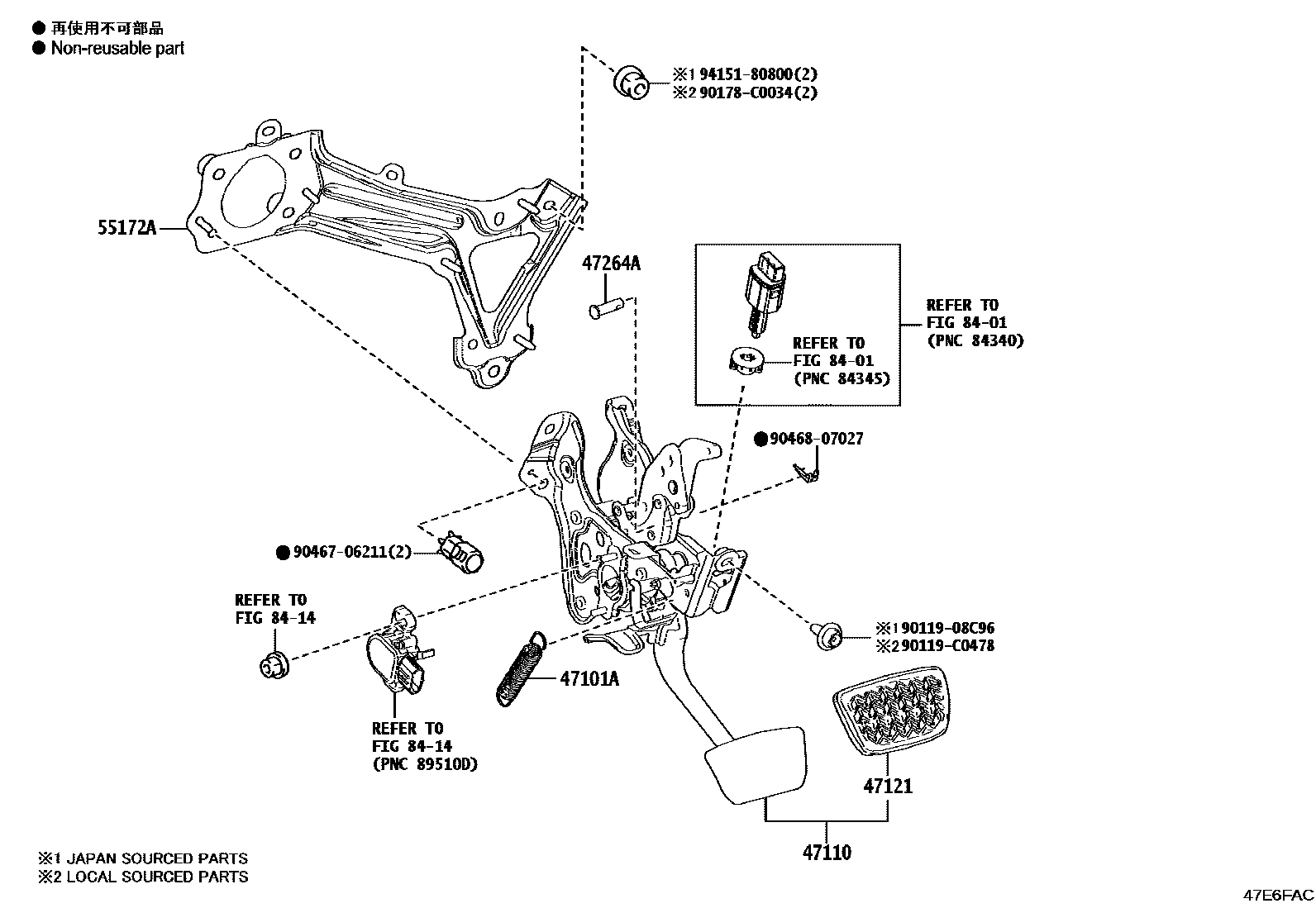

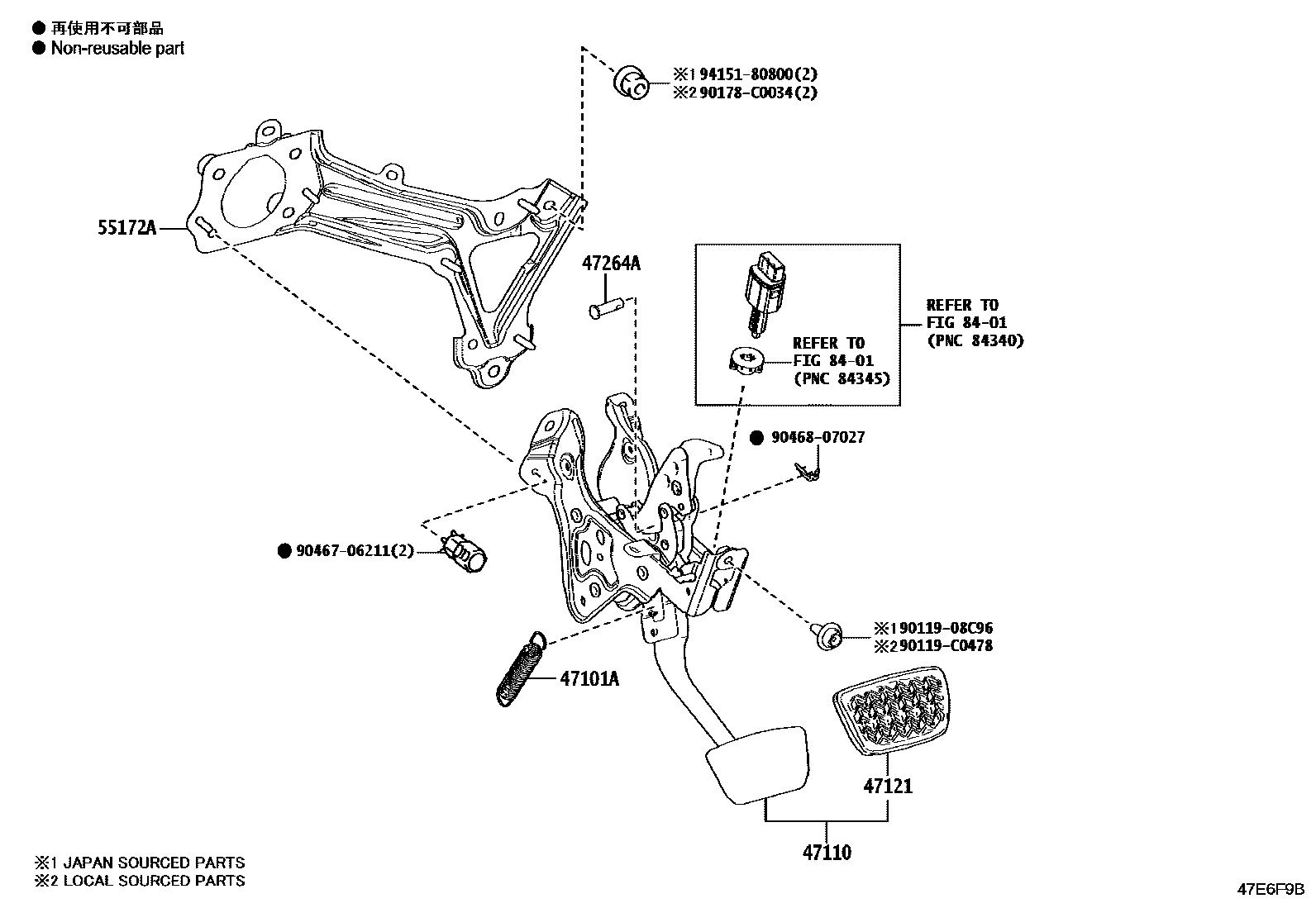

Toyota CAMRY Brake Pedal & Bracket — Figure 4701
Toyota CAMRY EPC diagram 4701, Brake Pedal & Bracket, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101A | Spring (for brake pedal return) | 90507-12046 · 90507-C0002 · 90507-C0012 |
| 47110 | Brake pedal bracket assembly | 47110-06530 · 47110-06540 · 47110-06550 · 47110-06560 |
| 47121 | brake pedal pad | 47121-0R050 · 47121-34010 |
| 47264A | Pin (for push rod) | 90240-C0001 |
| 55172A | Brake pedal bracket base | 55172-06110 |
