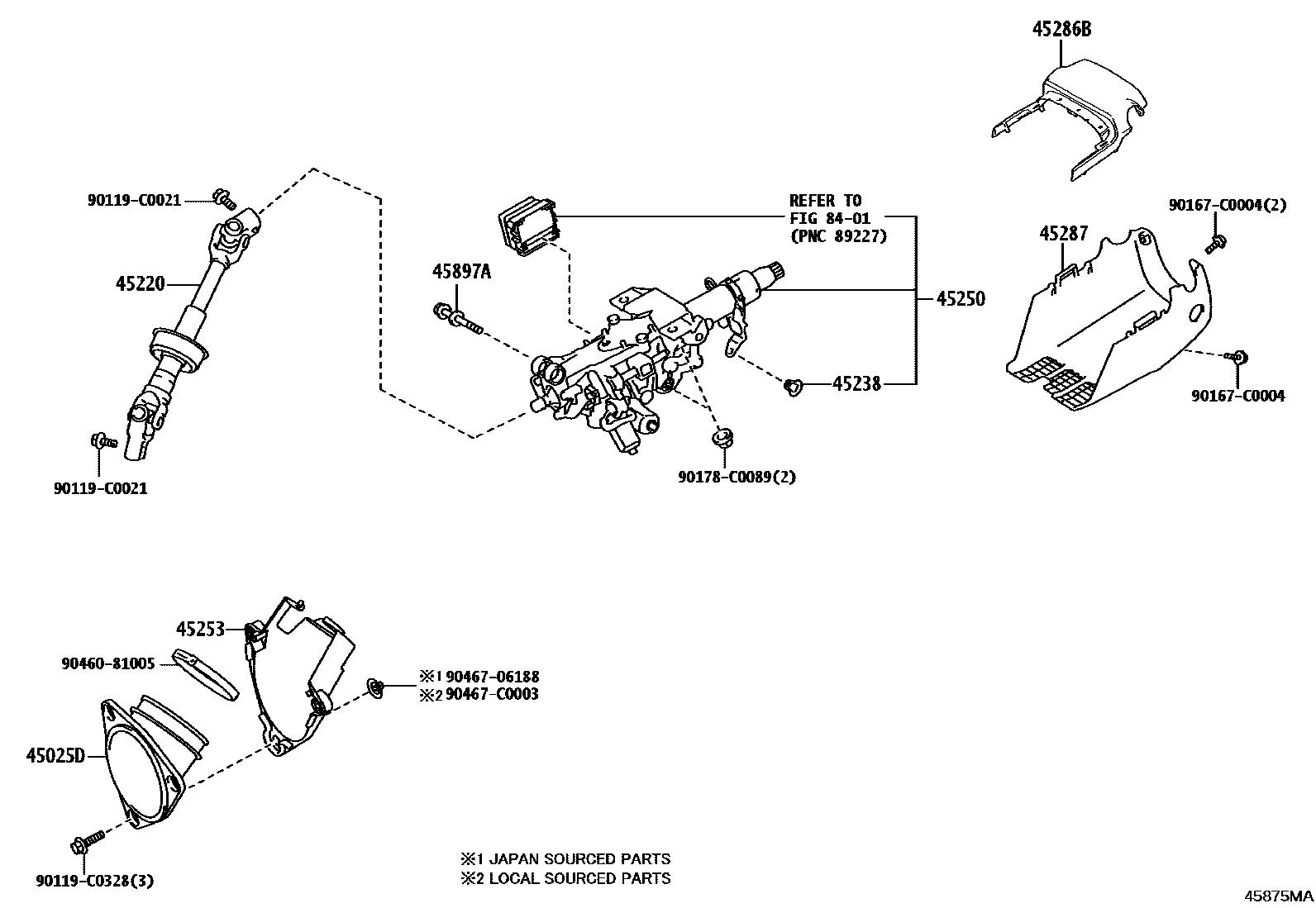

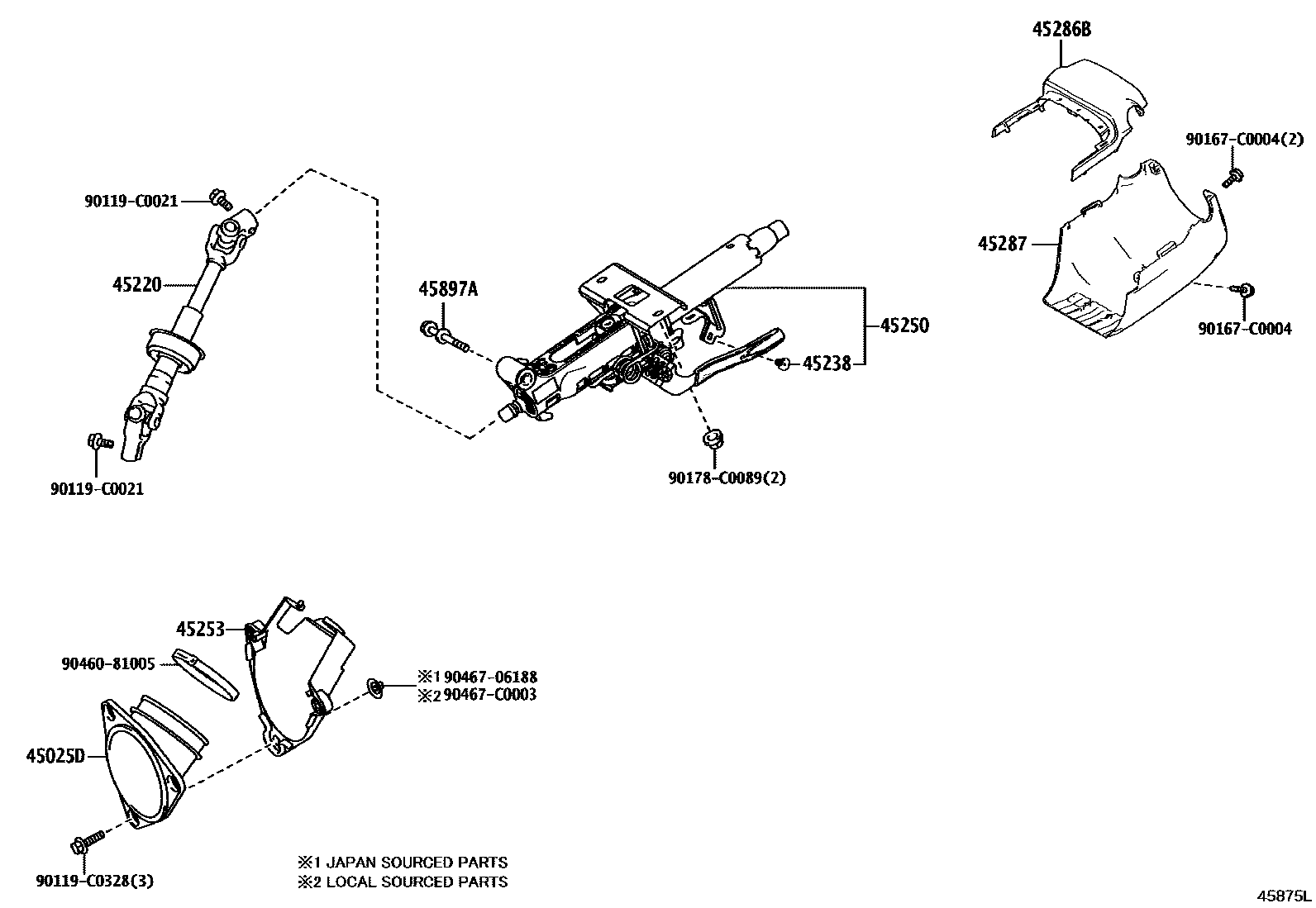

Toyota CAMRY Steering Column & Shaft — Figure 4501
Toyota CAMRY EPC diagram 4501, Steering Column & Shaft, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-06210 |
| 45220 | Steering intermediate shaft assembly | 45220-06310 · 45220-06330 |
| 45238 | Bolt clamp (for steering flex coupling) | 45238-11010 · 45238-52010 |
| 45250 | Steering column assembly | 45250-06C10 · 45250-0R090 |
| 45253 | Steering column hole cover | 45253-06190 |
| 45286B | Steering column upper cover | 45286-06380 · 45286-06390 |
| 45287 | Steering column lower cover | 45287-06530 · 45287-06540 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 90119-10980 · 90119-C0427 |
