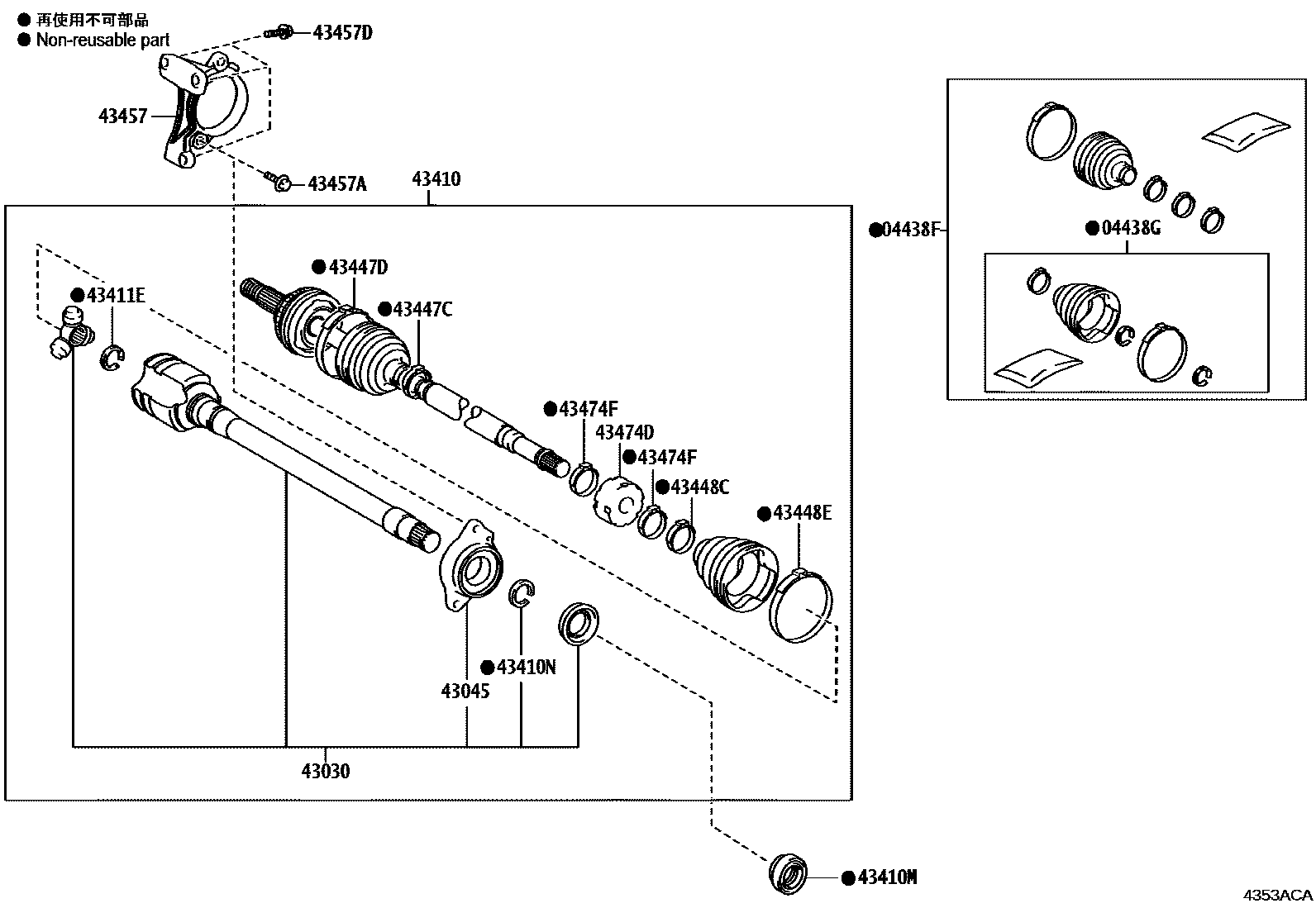

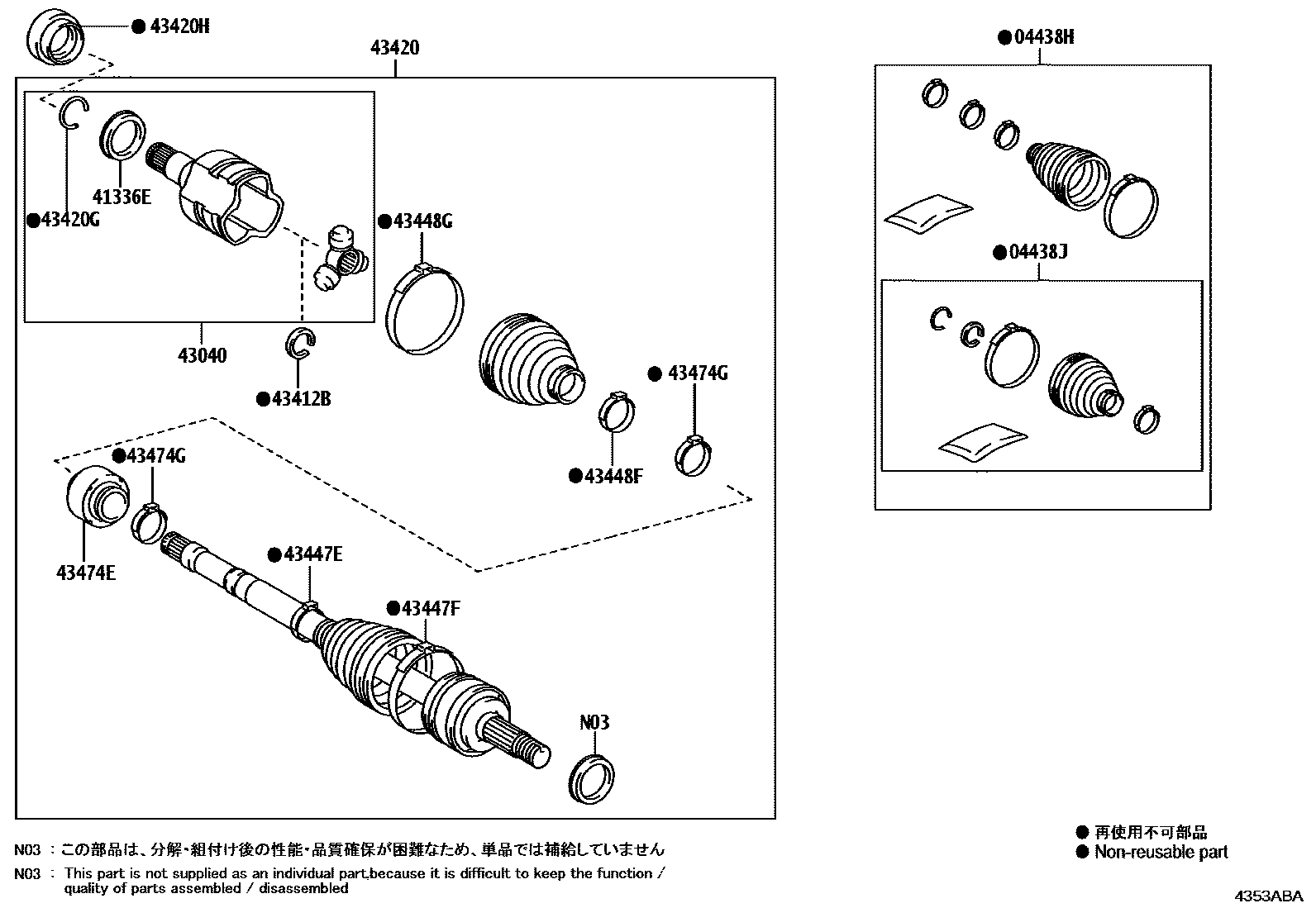

Toyota CAMRY Front Drive Shaft — Figure 4302
Toyota CAMRY EPC diagram 4302, Front Drive Shaft, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-02710 · 04427-02A71 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-02640 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-02740 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-02670 |
| 41336E | Left front driveshaft dust cover | 41336-06340 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-06530 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-06350 |
| 43045 | Drive shaft bearing shell sub-assembly | 43045-0R010 |
| 43410 | Right front driveshaft assembly | 43410-06C40 · 43410-07100 |
| 43410M | Front drive shaft right oil seal | 90311-40047 · 90311-C0048 |
| 43410N | Hole snap ring (for right front driveshaft) | 90520-38015 · 90520-C0032 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-28010 · 90520-C0030 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-28010 · 90520-C0030 |
| 43420 | Left front drive shaft assembly | 43420-06B60 · 43420-07110 |
| 43420G | Hole snap ring (for left front driveshaft) | 90520-C0040 · 90521-33002 |
| 43420H | Front drive shaft left oil seal | 90311-50058 · 90311-C0045 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-42100 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-42090 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-42100 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-42090 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-28090 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-33140 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-28090 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-33140 |
| 43457 | drive shaft bearing bracket | 43457-06170 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90105-C0124 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-C0014 |
| 43474D | Right front driveshaft shock absorber | 43474-06500 |
| 43474E | Left front driveshaft shock absorber | 43474-06190 · 43474-0R110 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-06420 · 42345-12090 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-06420 · 42345-12090 |
