Toyota CAMRY 车轮和车轮盖 — Figure 4103

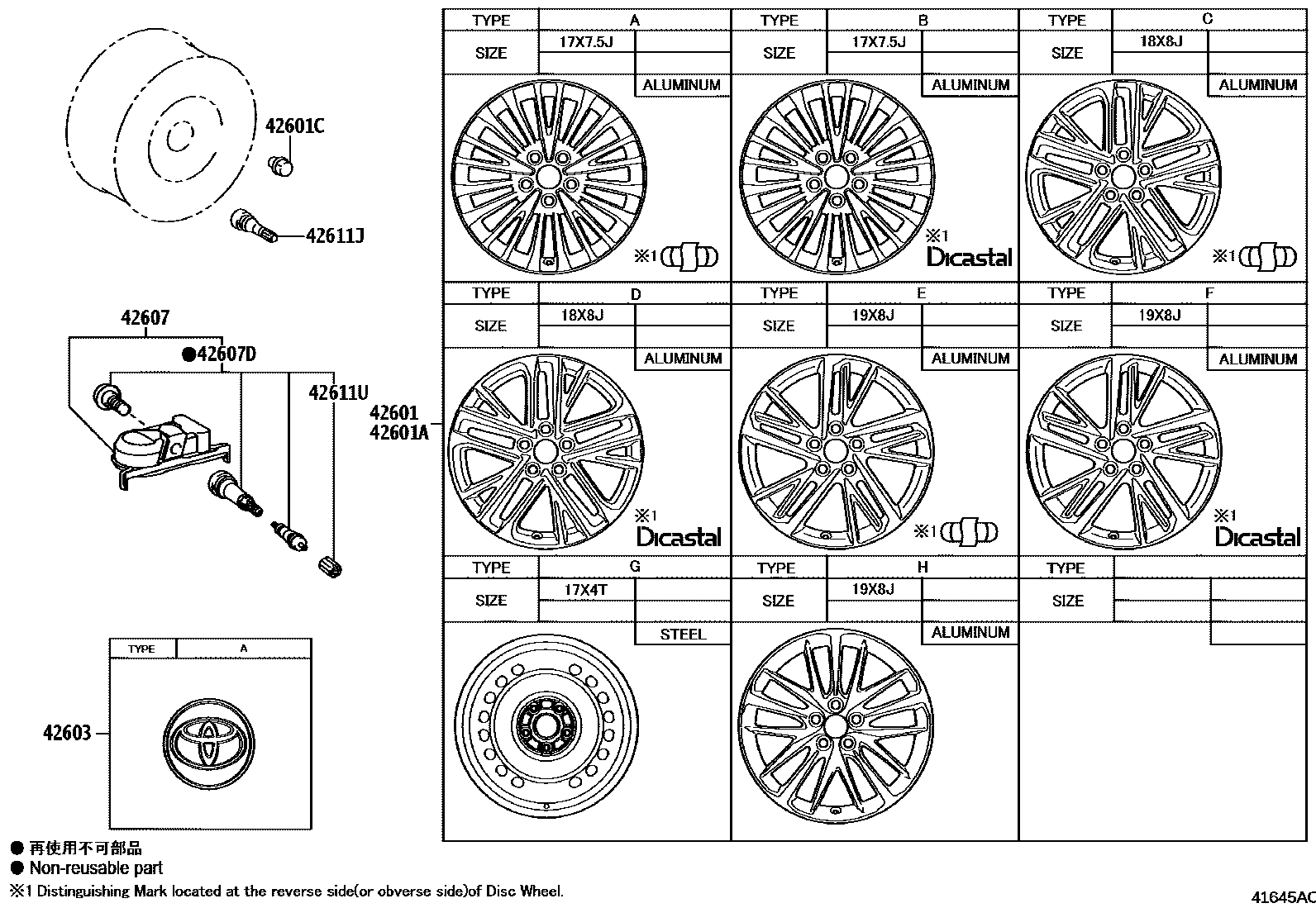

Toyota CAMRY EPC diagram 4103, 车轮和车轮盖, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-06M60 · 42611-06M70 · 42611-06M80 · 42611-06M90 · 42611-06N00 · 42611-06N10 · 4261A-YY080 |
| 42601A | Spoke wheel (for spare tire) | 42611-06G51 |
| 42601C | Hub nut (for axle) | 90942-C1001 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-0R020 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-02110 |
| 42607D | tire pressure monitoring valve | 90942-C5009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 · 90942-C5005 |
| 42611U | tire valve cover | 90942-C5001 |
