Toyota CAMRY 传动桥总成(HEV 或 BEV 或 FCEV) — Figure 3901

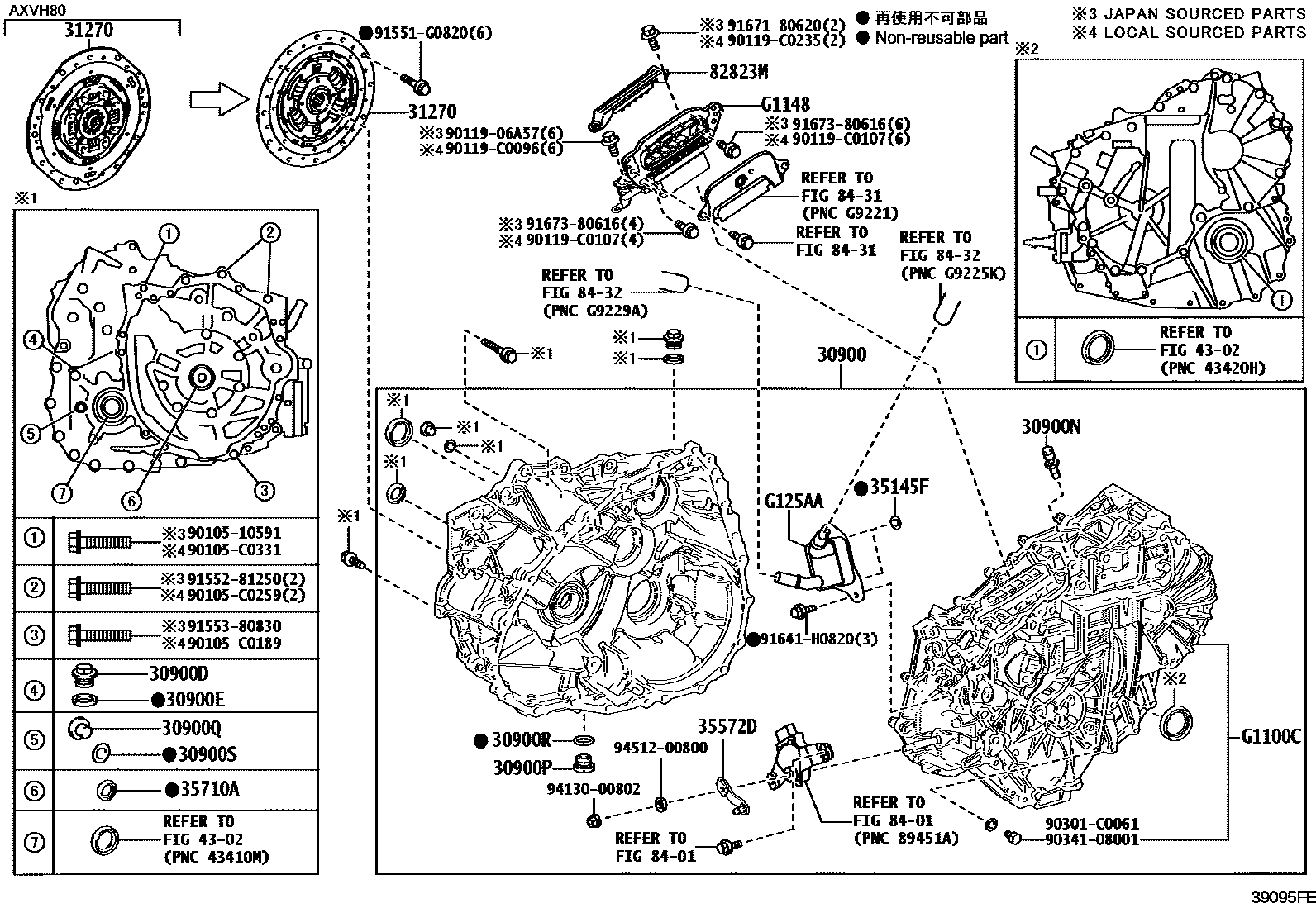

Toyota CAMRY EPC diagram 3901, 传动桥总成(HEV 或 BEV 或 FCEV), with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30900 | Hybrid vehicle transmission axle assembly | 30900-06030 · 30900-06031 · 30900-06040 · 30900-06041 |
| 30900D | Headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18060 · 90341-C0022 |
| 30900E | Gasket (for transaxle housing and transaxle housing) | 90430-18008 |
| 30900N | Breather plug (for transaxle) | 90930-03201 |
| 30900P | Drain plug (HEV) | 90341-18016 |
| 30900Q | Oil filling plug (HEV) | 90341-18090 |
| 30900R | Drain plug gasket (HEV) | 90430-18008 · 90430-C0007 |
| 30900S | Oil filling plug gasket (HEV) | 90430-18008 · 90430-C0007 |
| 31270 | Transmission input damper assembly | 31270-06020 · 31270-06030 · 31270-0A010 |
| 35145F | Transmission axle housing gasket | 35697-0A010 |
| 35572D | transmission control lever | 35572-0A010 · 35572-63020 |
| 35710A | T-type oil seal (for input shaft) | 90311-C0063 |
| 82823M | Terminal cover | 82823-02060 |
| G1100C | Hybrid vehicle motor assembly | G1100-06020 · G1100-06030 |
| G1148 | Motor cable | G1148-0A020 · G1148-0A021 |
| G125AA | Motor cooler | G125A-0A010 |
