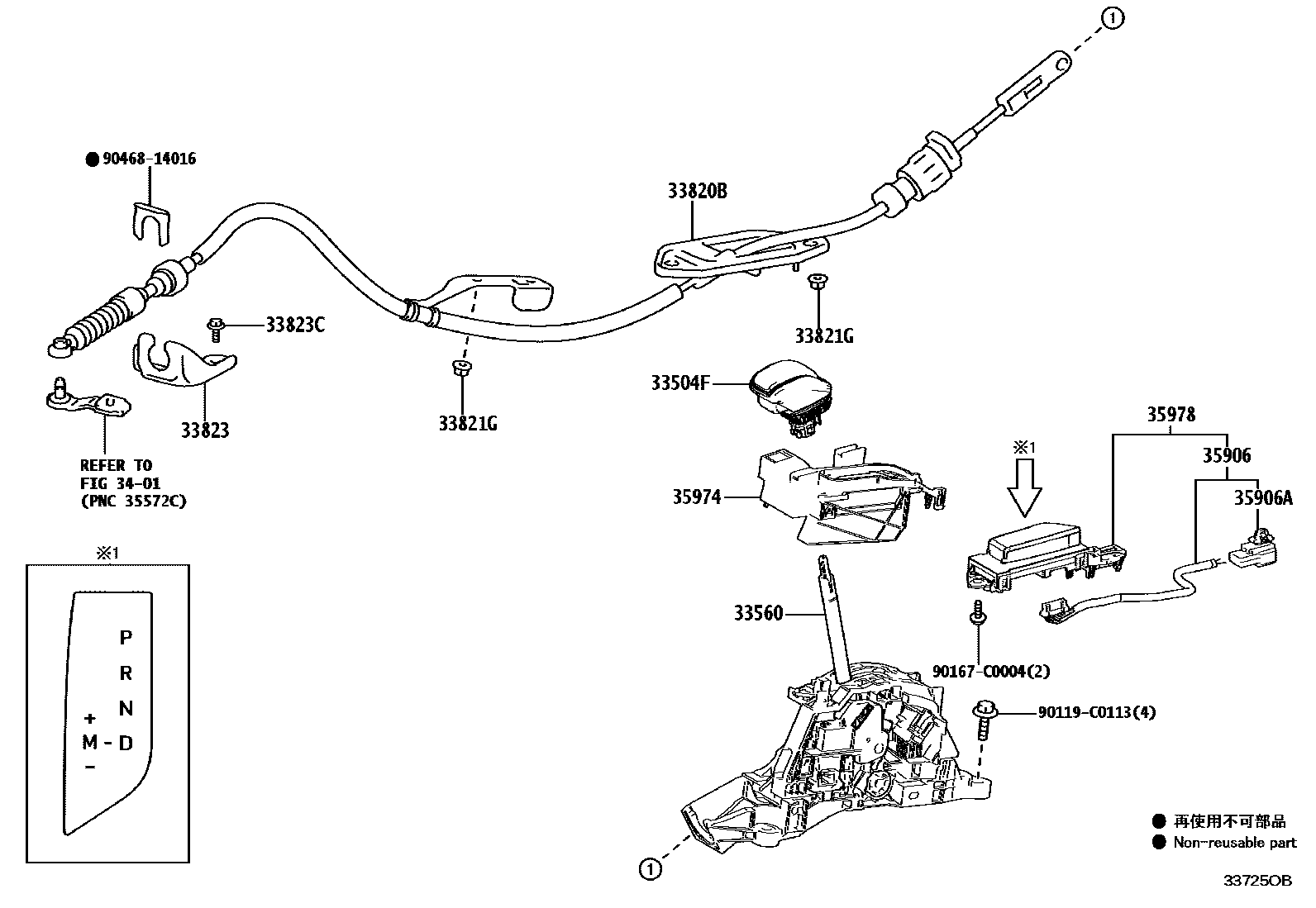

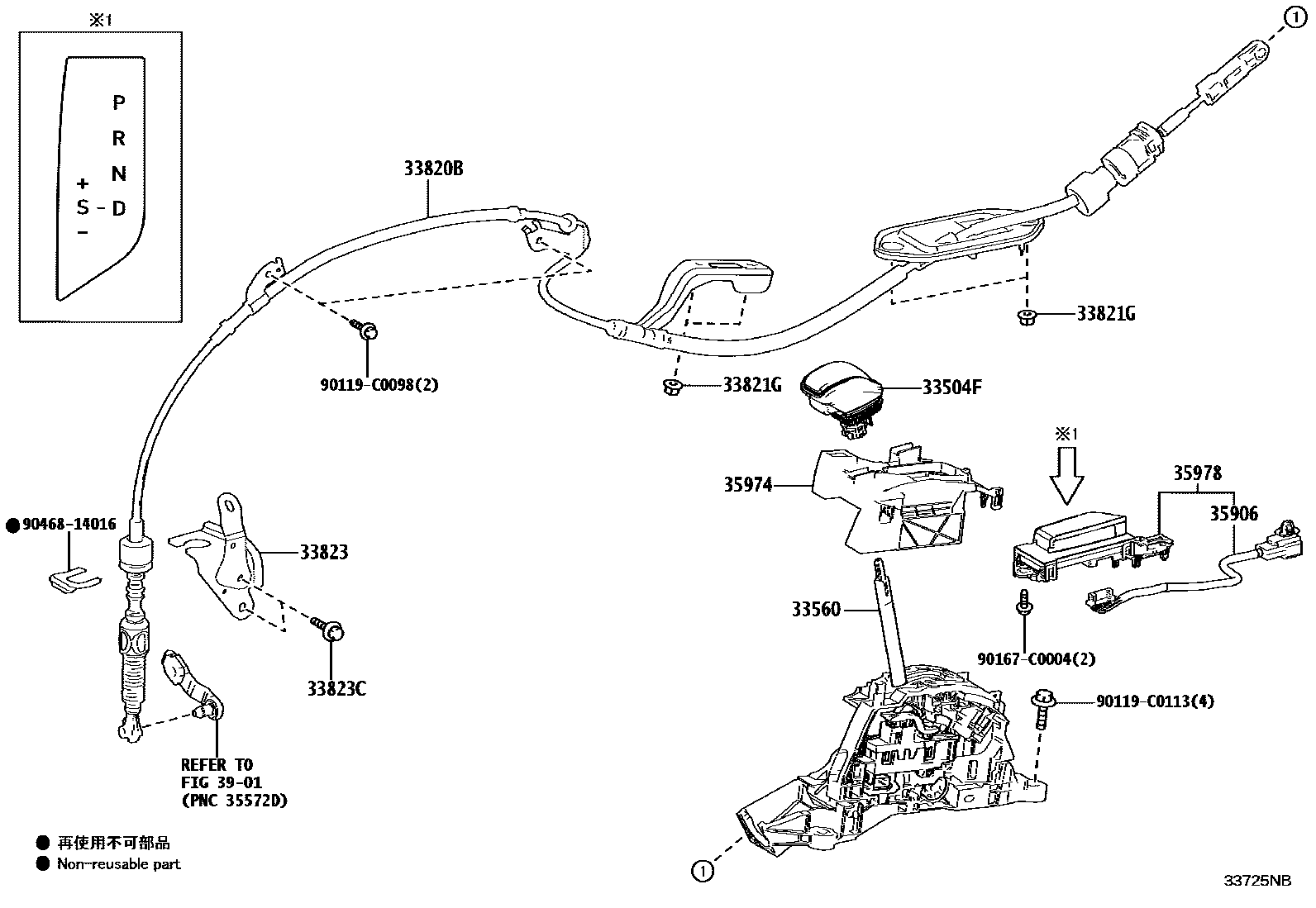

Toyota CAMRY Shift Lever & Retainer — Figure 3312
Toyota CAMRY EPC diagram 3312, Shift Lever & Retainer, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33560 | Shift lock control unit assembly | 33560-06500 · 33560-06510 |
| 33820B | Transmission control cable assembly | 33820-06690 · 33820-06700 · 33820-06701 |
| 33821G | Nut (for transmission control cable) | 90178-C0011 |
| 33823 | No. 1 transmission control cable bracket | 33823-0A060 · 33823-F4050 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-C0132 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-06380 · 35906-06390 |
| 35906A | Male connector housing (for indicator light harness) | 90980-12367 |
| 35974 | Position indicator light lower shell | 35974-06230 · 35974-06240 |
| 35978 | Shift lever position indicator light | 35978-06470 · 35978-06480 |
