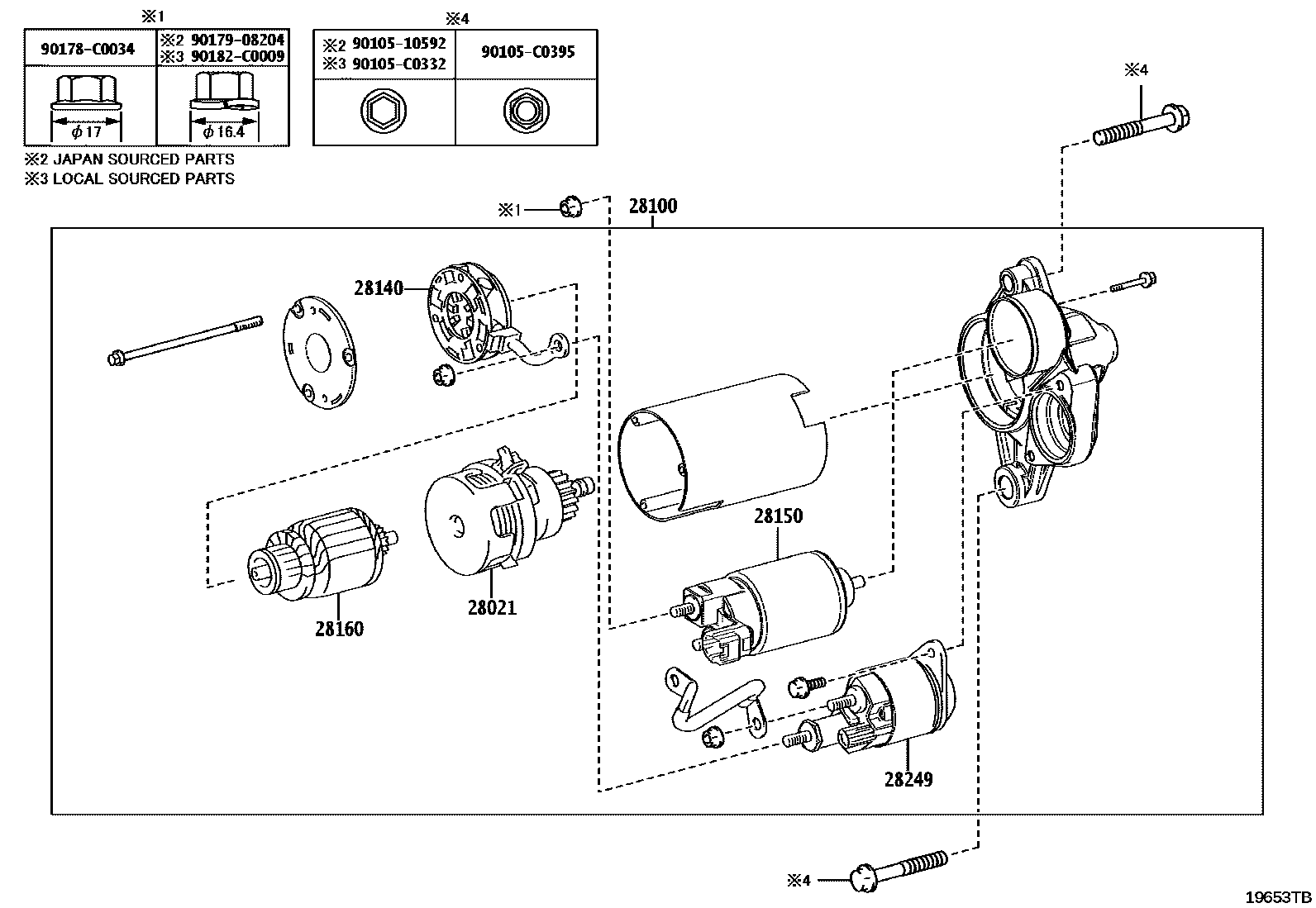

Toyota CAMRY 起动机 — Figure 1904
Toyota CAMRY EPC diagram 1904, 起动机, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-F2170 |
| 28100 | Starter assembly | 28100-F2170 |
| 28140 | Starter brush holder assembly | 28140-F2170 |
| 28150 | Starter electromagnetic switch assembly | 28150-F2170 |
| 28160 | Starter armature assembly | 28160-F2170 |
| 28249 | Starter starting current deceleration relay | 28249-F0020 |
