Toyota CAMRY vacuum tube — Figure 1708

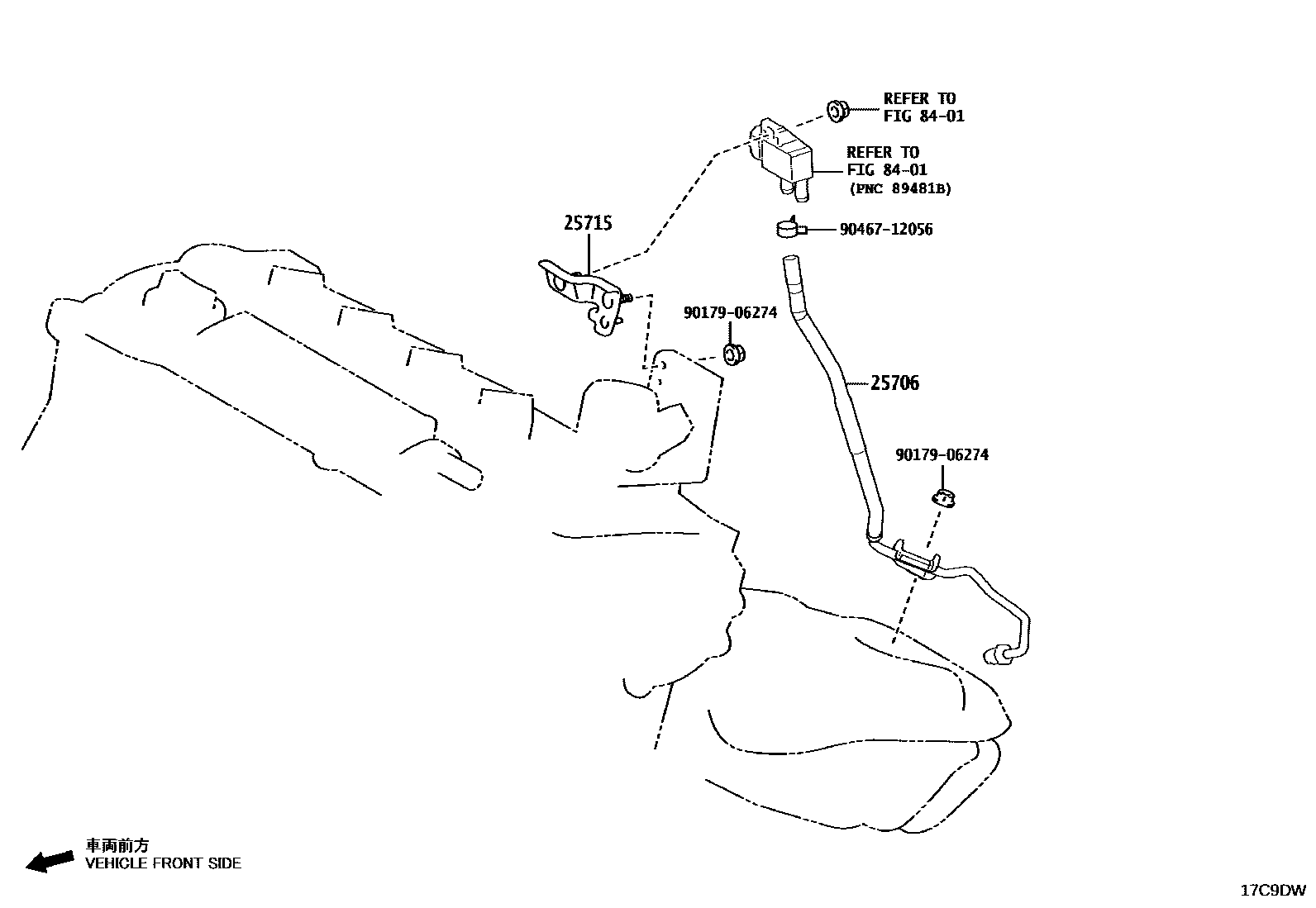

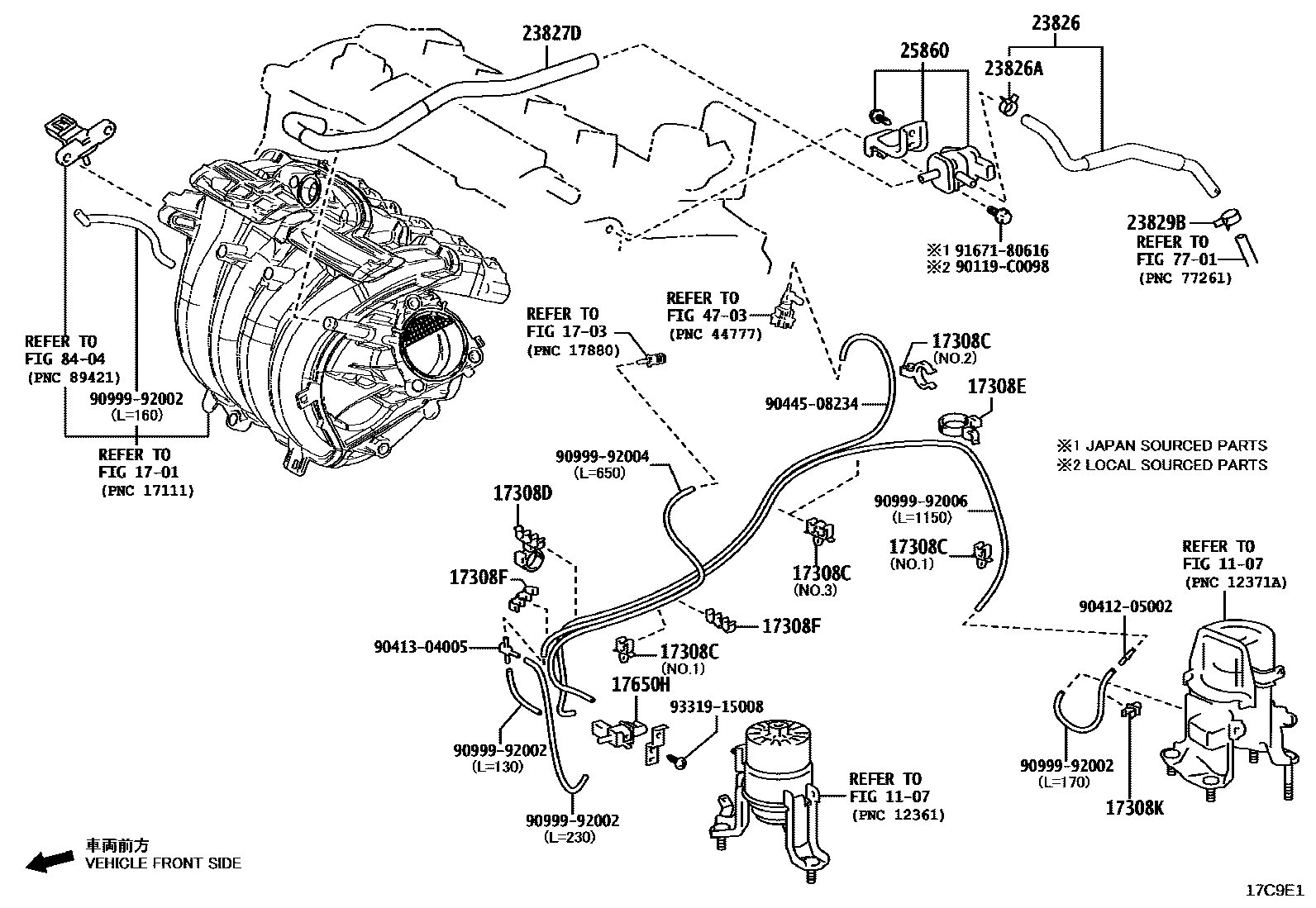

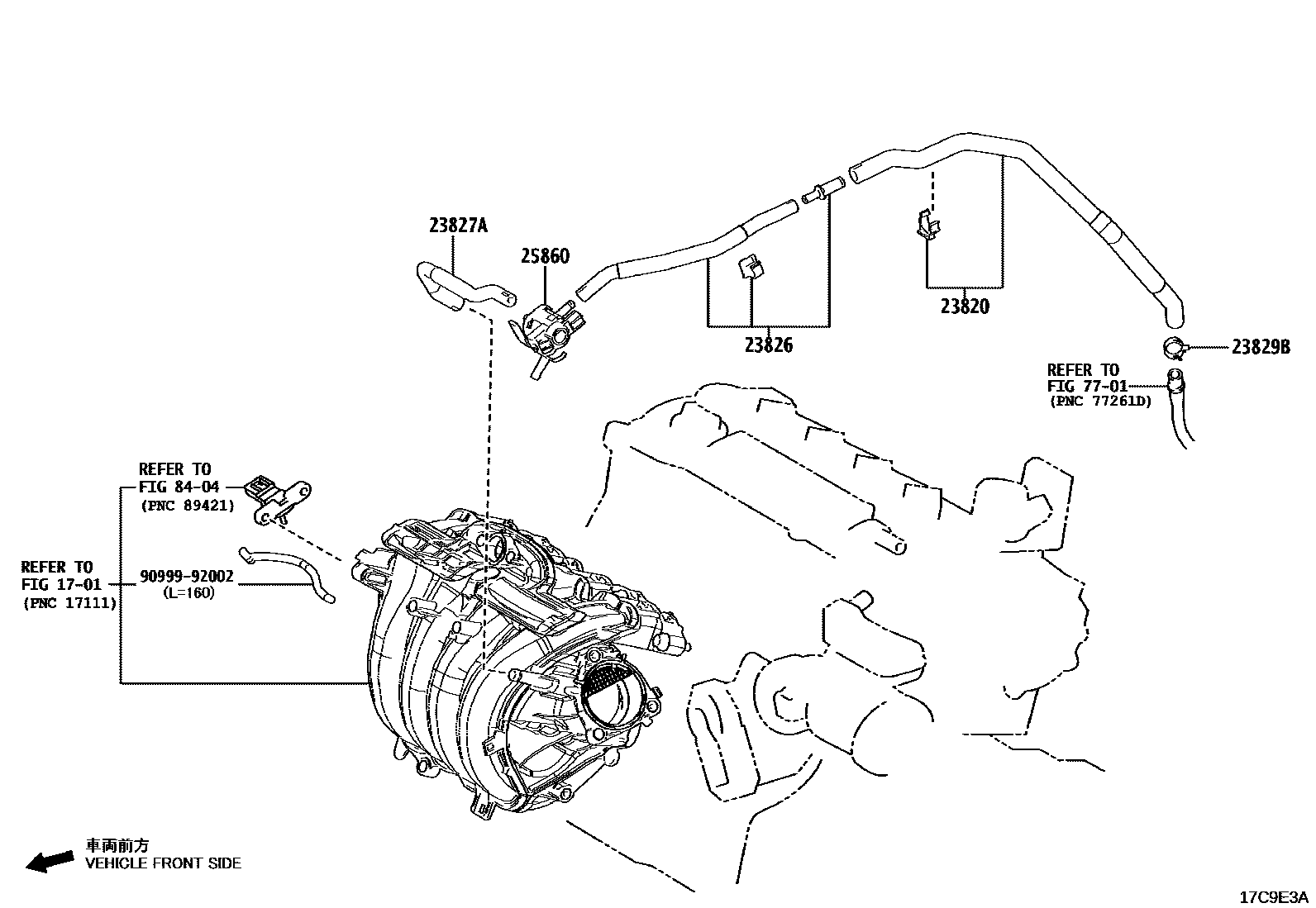

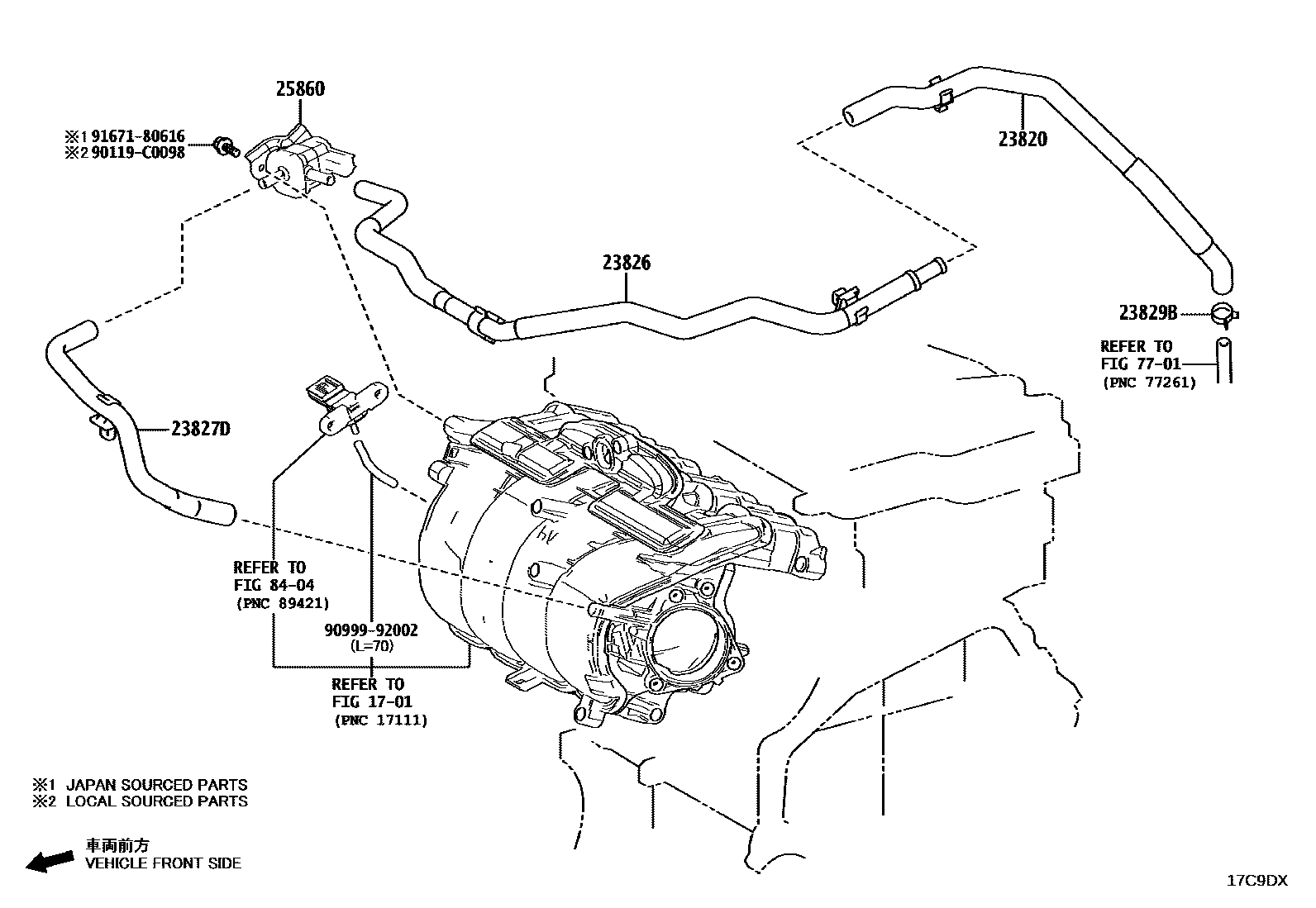

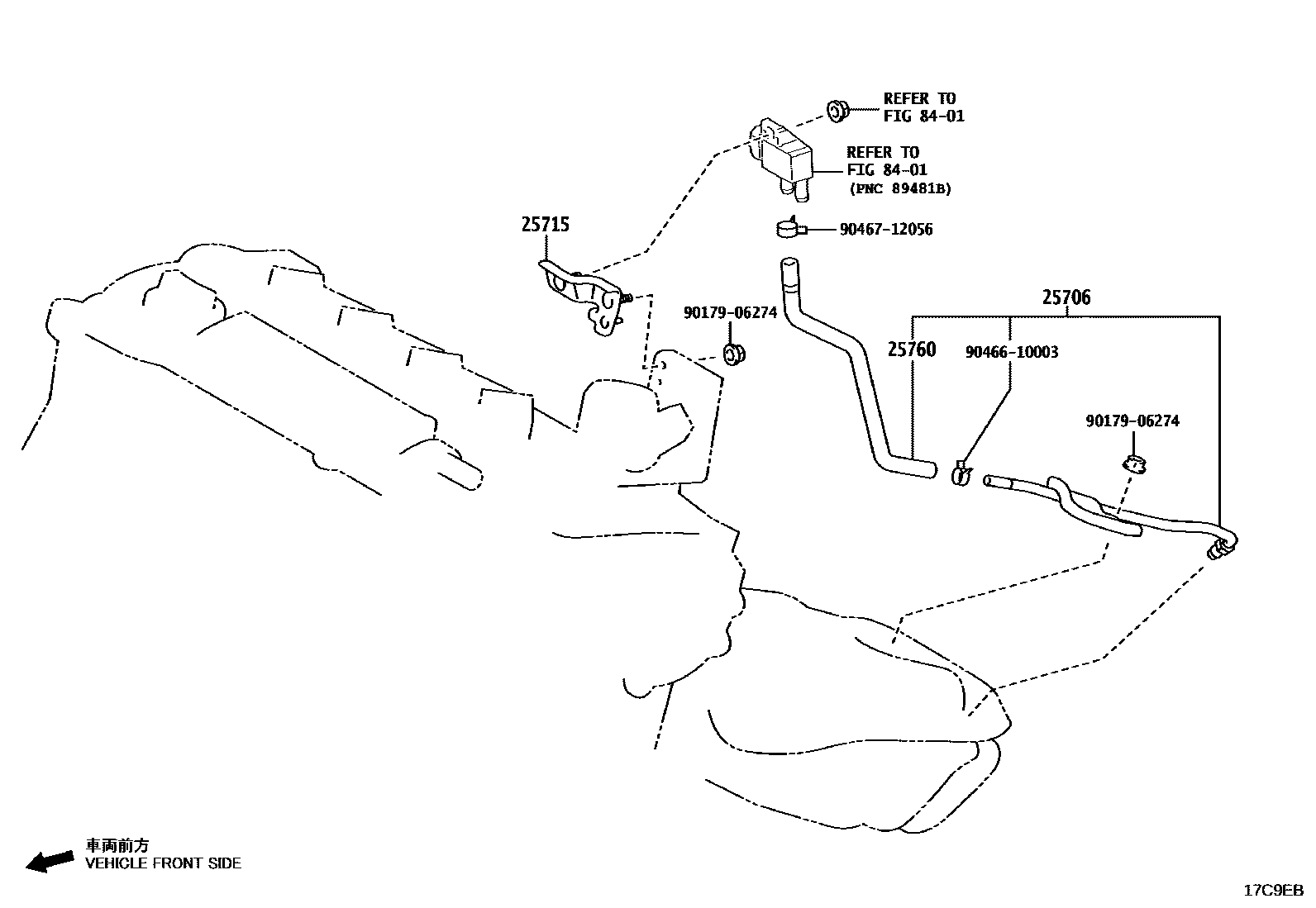

Toyota CAMRY EPC diagram 1708, vacuum tube, with 5 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308C | Clamp (for vacuum hose) | 44783-42040 · 44783-42070 · 44783-42080 |
| 17308D | Clamp No. 2 (for vacuum hose) | 44783-42100 |
| 17308E | Clamp No. 3 (for vacuum hose) | 44783-42090 |
| 17308F | No. 4 clamp (for vacuum hose) | 90464-00074 |
| 17308K | No. 7 clamp (for vacuum hose) | 44783-42040 |
| 17650H | Vacuum switch valve | 90910-12059 |
| 23820 | Fuel vapor supply hose assembly | 23820-F0340 · 23820-F0341 |
| 23826 | No. 1 fuel vapor supply hose | 23820-25620 · 23820-F0631 · 23820-F0690 · 23826-F0610 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96133-41501 |
| 23827A | No. 2 fuel vapor supply hose | 23826-F2411 |
| 23827D | No. 2 fuel vapor supply hose | 23820-25130 · 23820-F0450 · 23820-F2040 |
| 23829B | Clamp (for fuel vapor supply hose) | 90466-C0021 · 90466-C0039 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-F0030 · 25706-F2020 |
| 25715 | Emission control valve bracket | 25715-25010 · 25715-F0030 |
| 25760 | Vacuum transfer hose assembly | 25760-F2020 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-25020 · 25860-F0070 · 25860-F0081 · 25860-F2050 |
