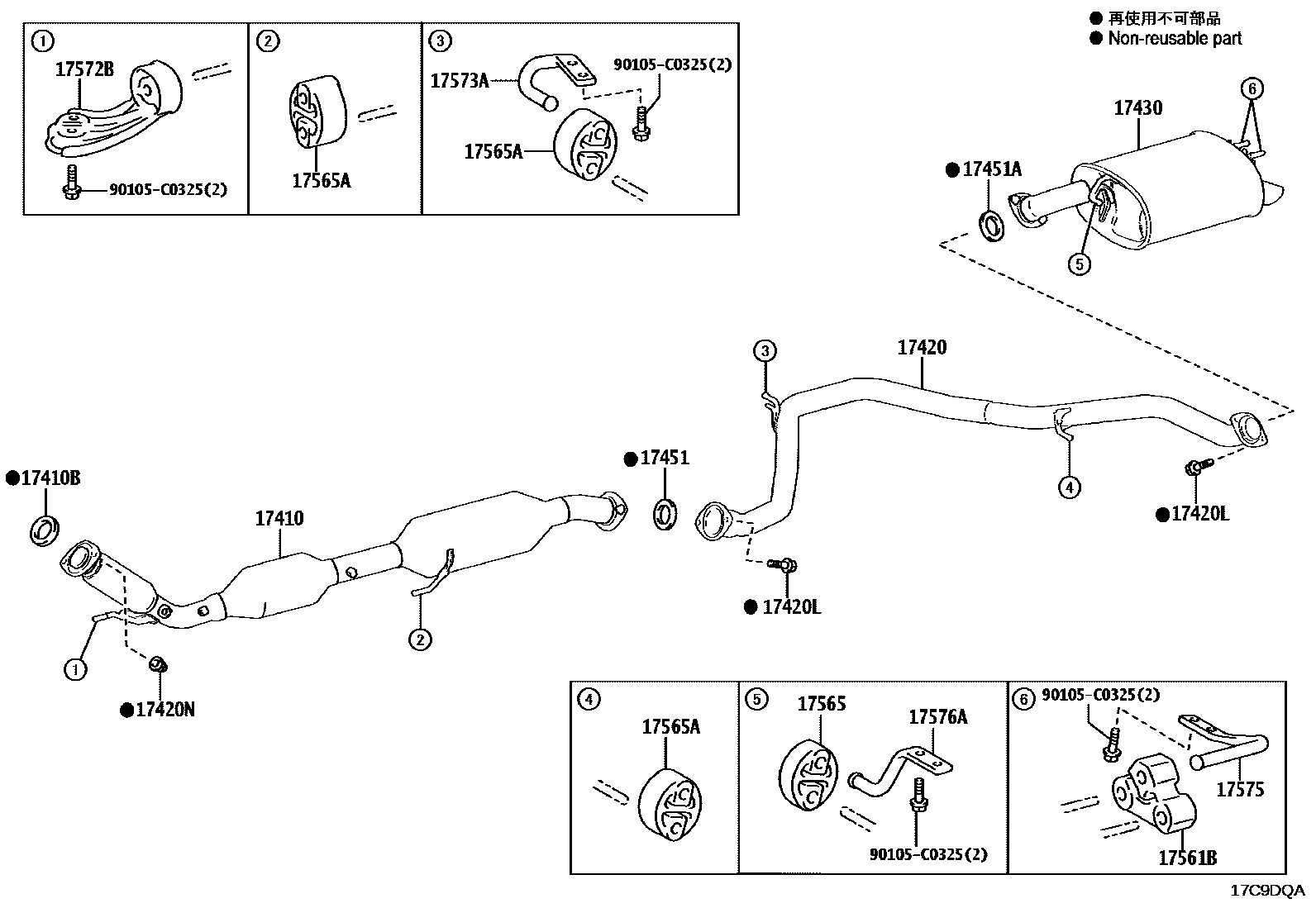

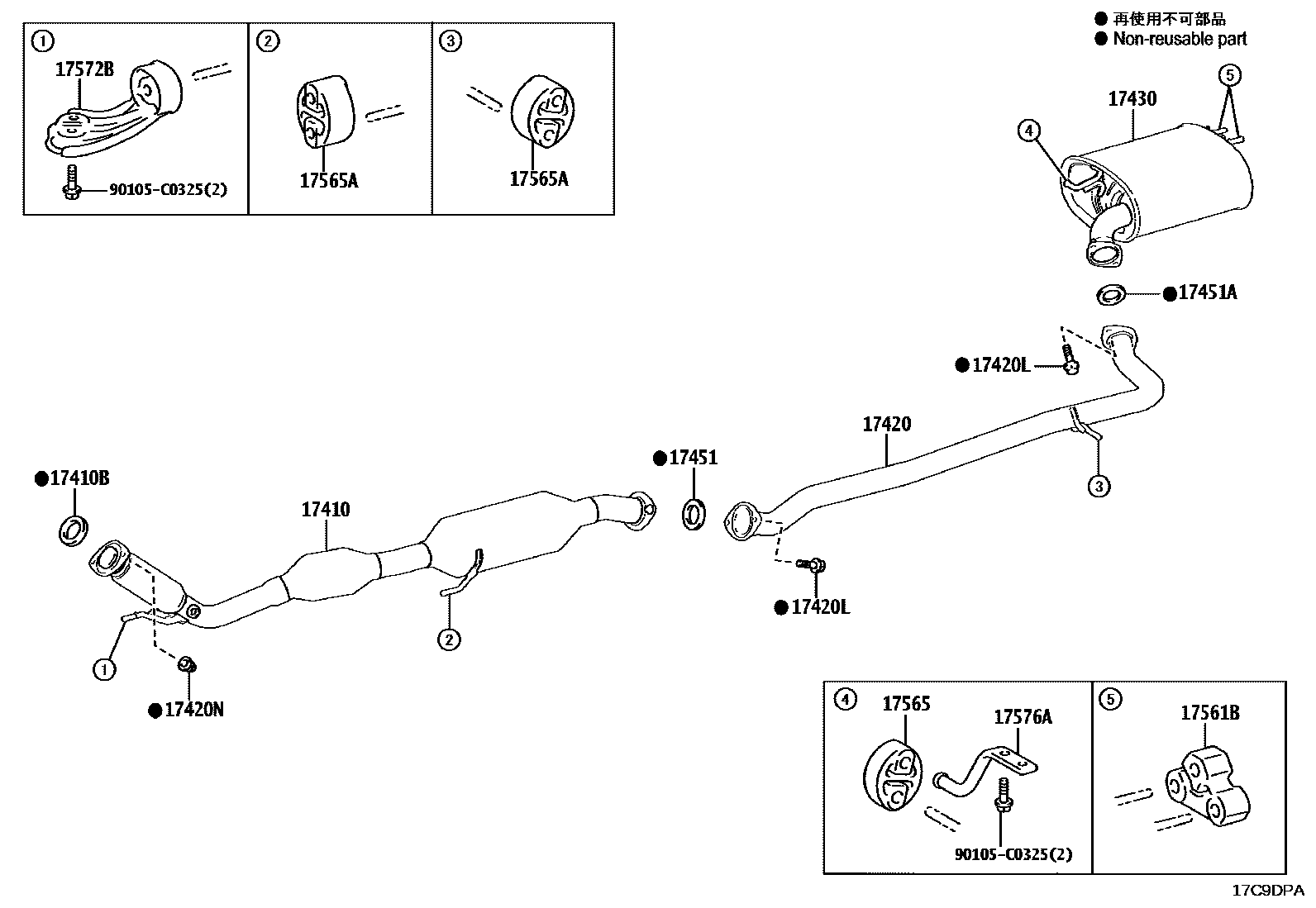

Toyota CAMRY Exhaust Pipe — Figure 1702
Toyota CAMRY EPC diagram 1702, Exhaust Pipe, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-F0770 · 17410-F2180 · 17410-F2700 |
| 17410B | Exhaust pipe gasket | 90917-C6003 |
| 17420 | Central exhaust pipe assembly | 17420-F0030 · 17420-F2020 |
| 17420L | Flange bolts (for exhaust pipe) | 90105-C0326 |
| 17420N | Lock nut (for exhaust tailpipe) | 90177-10005 |
| 17430 | Exhaust tailpipe assembly | 17430-F2420 · 17440-F0190 |
| 17451 | Exhaust pipe gasket | 90917-C6004 |
| 17451A | No. 2 exhaust pipe gasket | 90917-C6001 |
| 17561B | No. 1 exhaust pipe lifting lug | 17566-F0020 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0H060 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0H080 |
| 17572B | No. 2 exhaust pipe bracket | 17572-F0010 |
| 17573A | No. 3 exhaust pipe bracket | 17573-F0010 |
| 17575 | No. 5 exhaust pipe bracket | 17575-F0010 |
| 17576A | No. 6 exhaust pipe bracket | 17576-F0040 · 17577-F0010 |
