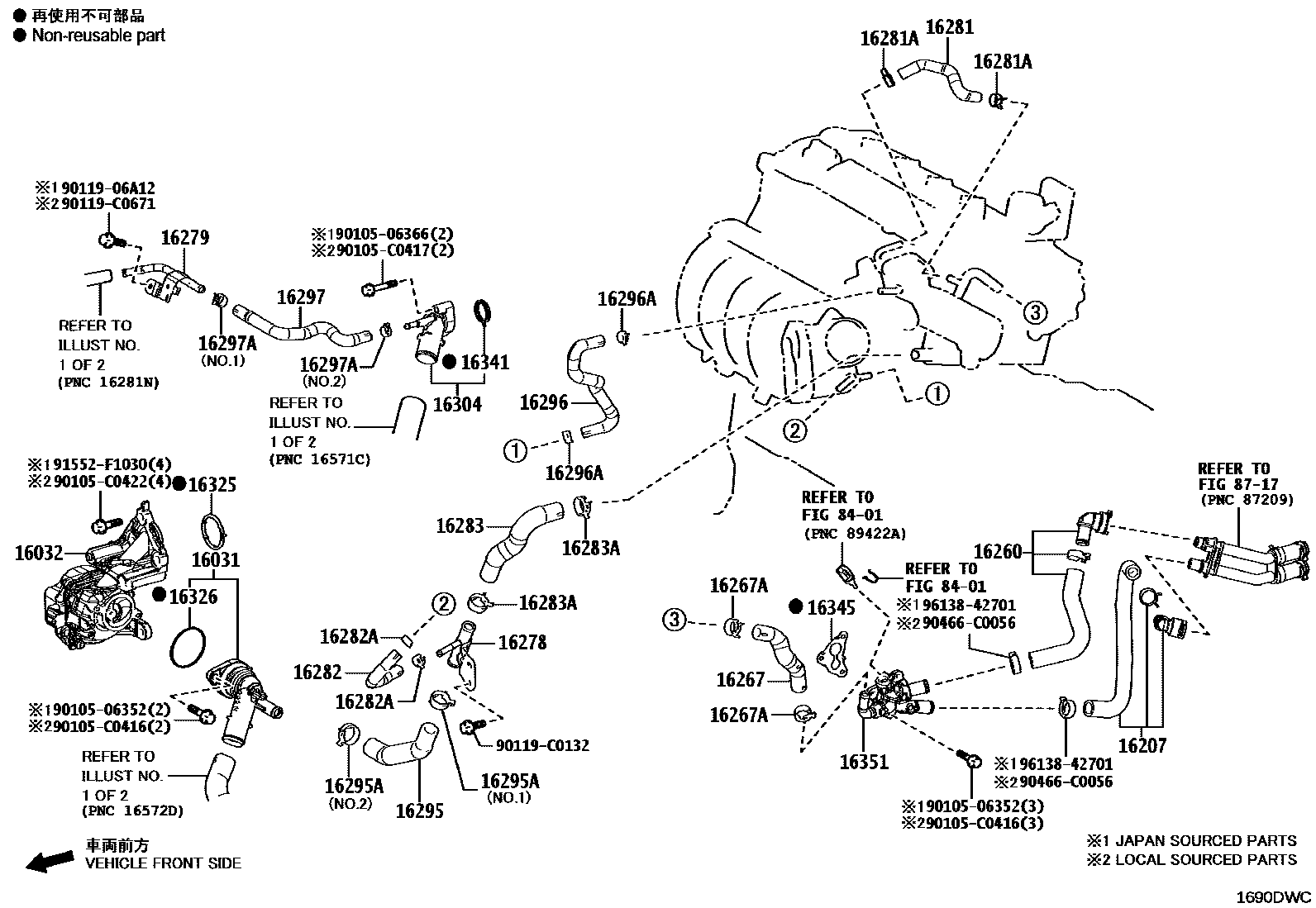

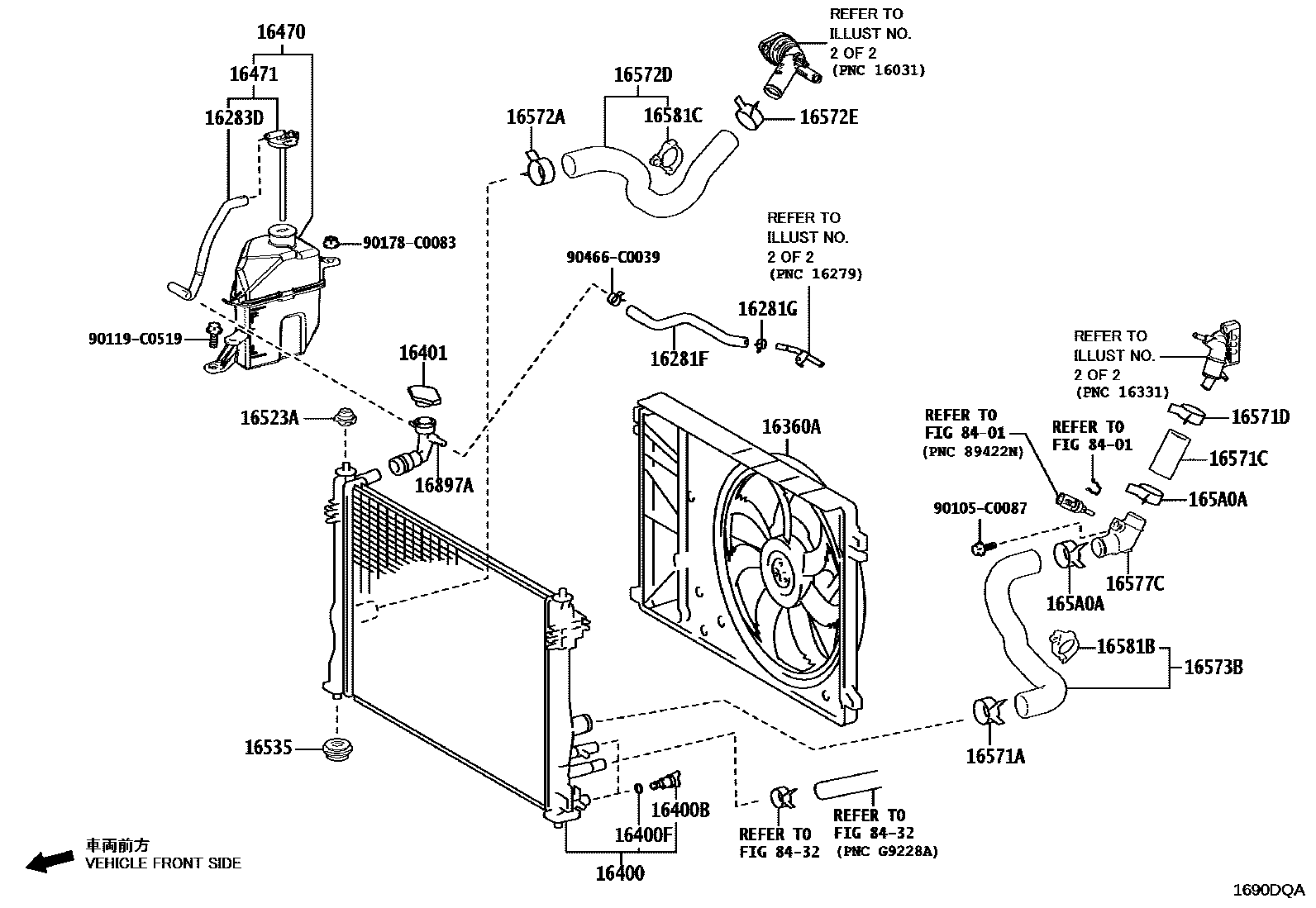

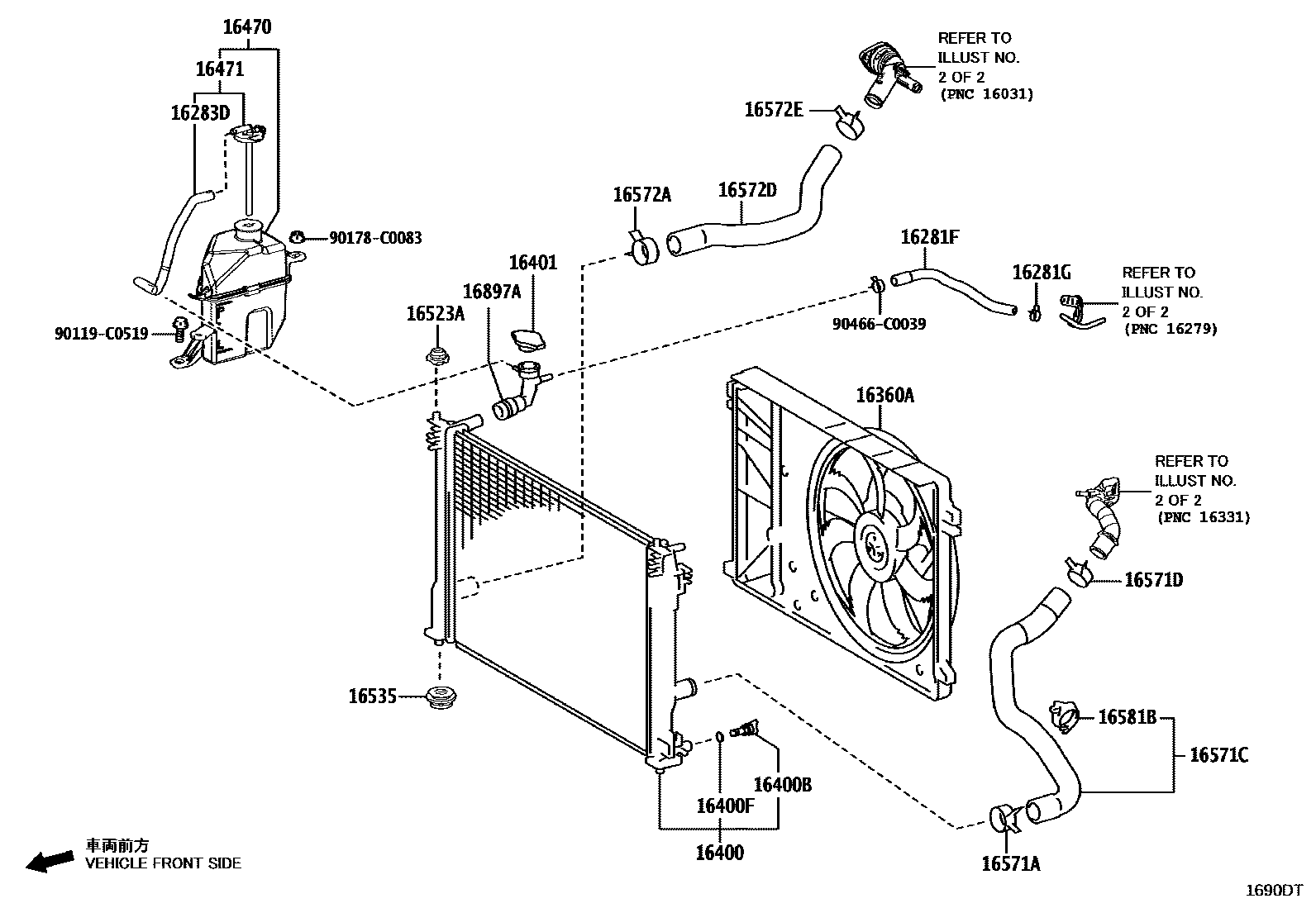

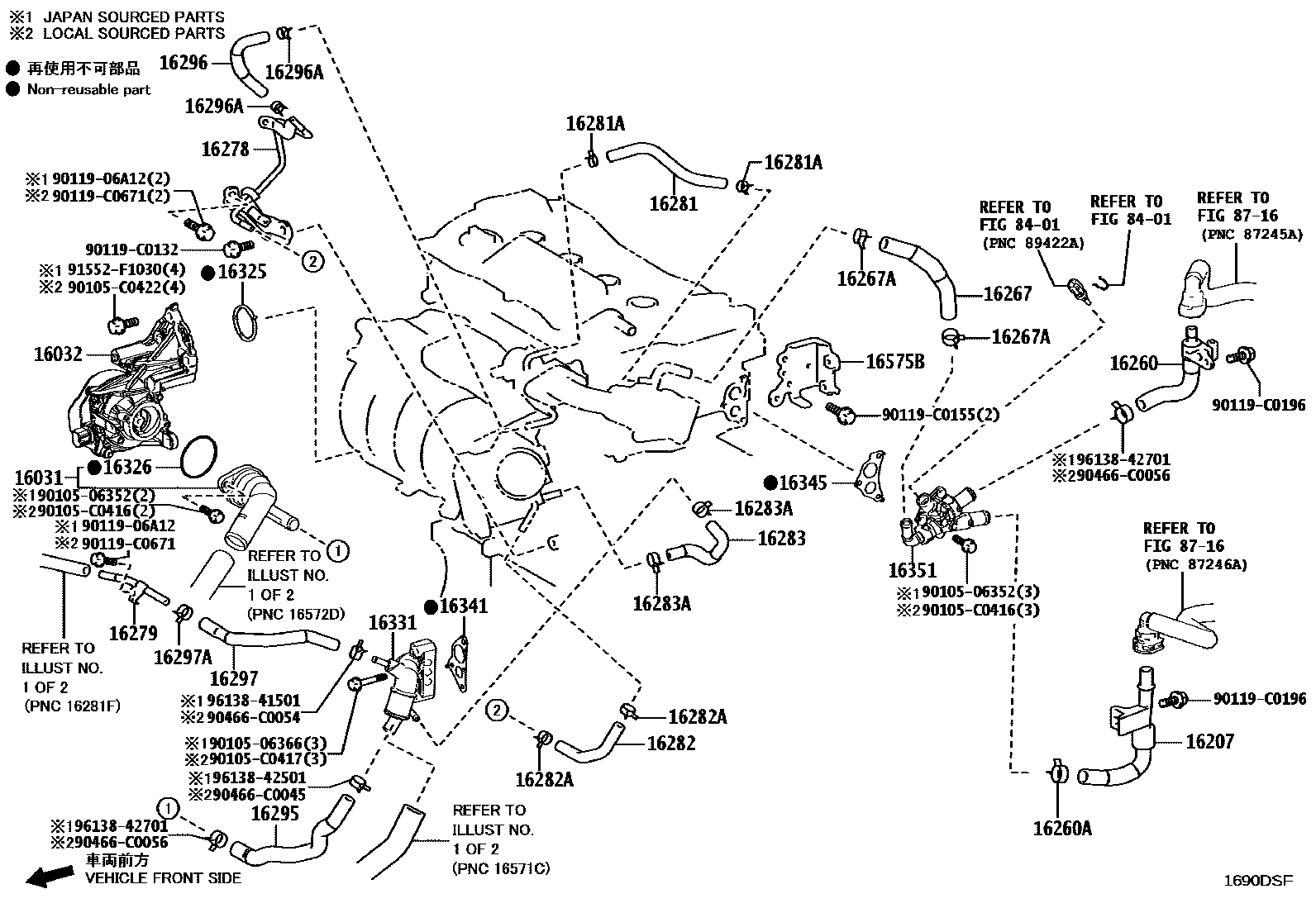

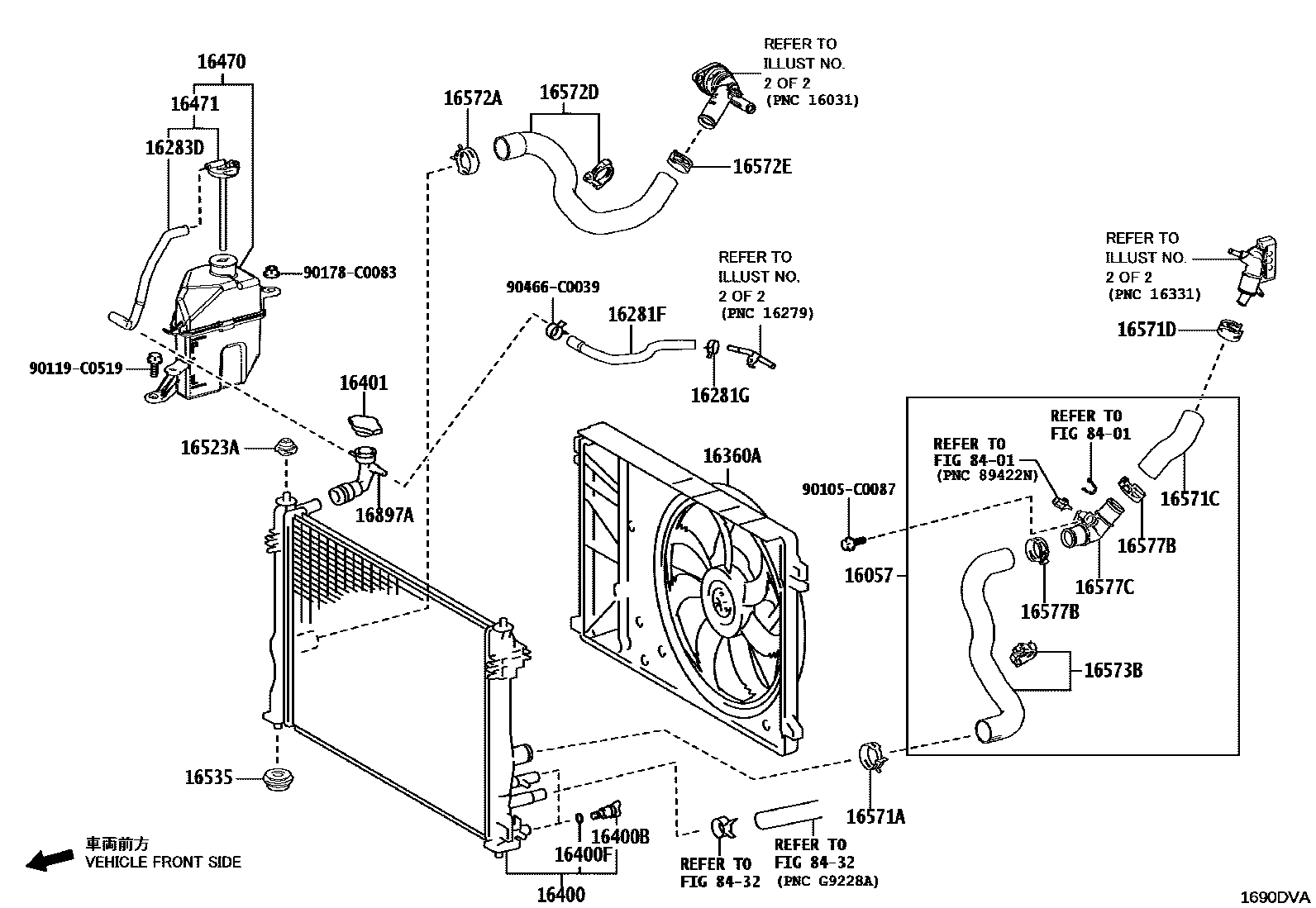

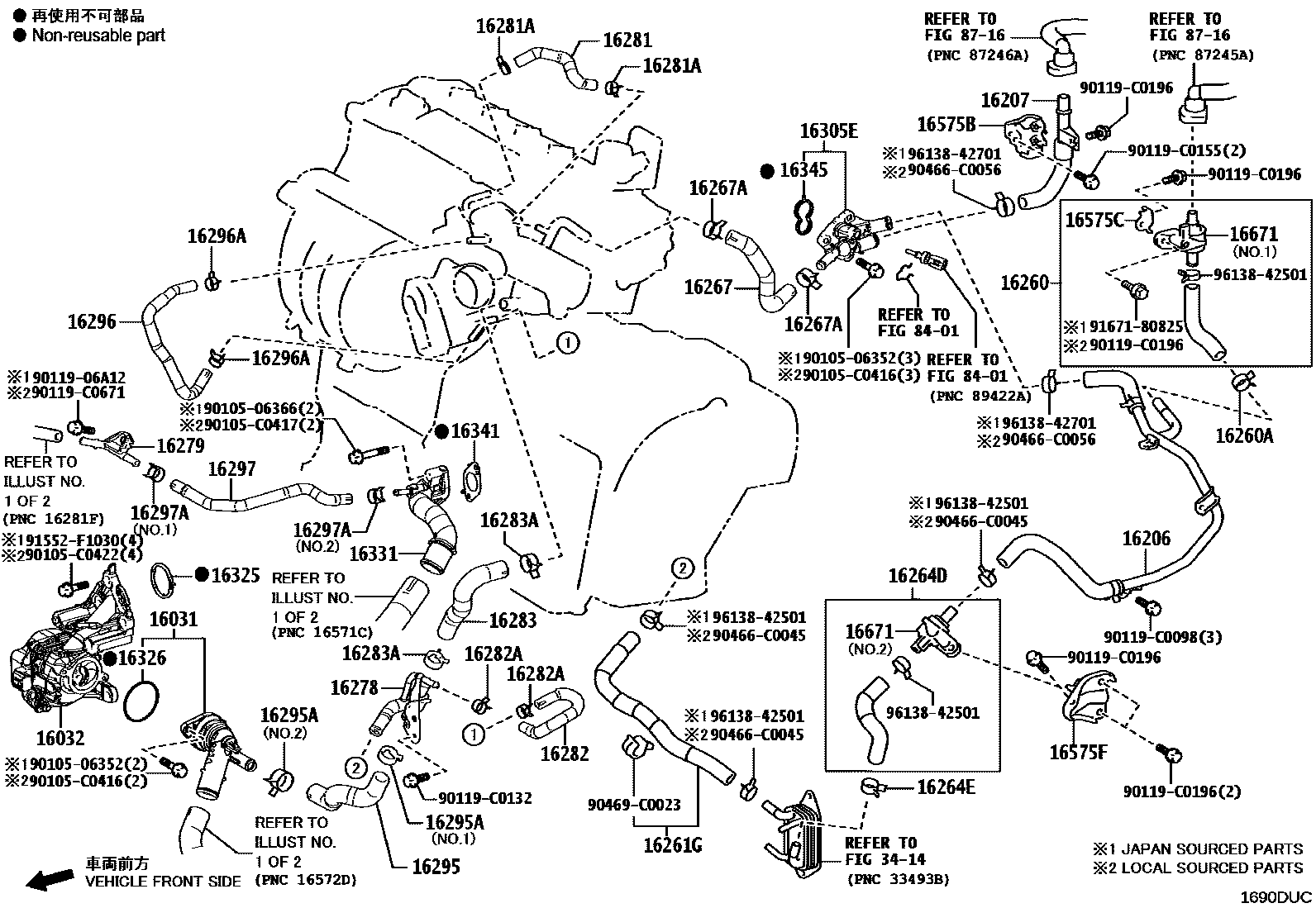

Toyota CAMRY RADIATOR & WATER OUTLET — Figure 1603
Toyota CAMRY EPC diagram 1603, RADIATOR & WATER OUTLET, with 6 images and 63 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-24040 · 16031-F0020 · 16031-F2050 |
| 16032 | Water inlet housing sub-assembly with water pump | 16032-24020 · 16032-25030 · 16032-F0050 · 16032-F2050 |
| 16057 | Radiator hose sub-assembly | 16057-F2030 |
| 16206 | PIPE SUB-ASSY, WATER BY-PASS | 16206-F2020 |
| 16207 | No. 2 water bypass pipe sub-assembly | 16207-F0060 · 16207-F2140 · 16207-F2150 |
| 16260 | Water bypass hose assembly | 16260-F0050 · 16260-F2150 · 16260-F2280 |
| 16260A | Clamp (for water bypass hose assembly) | 90466-C0045 · 90466-C0056 · 96138-42501 · 96138-42701 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-F2170 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-F2260 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0045 · 96138-42501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-25020 · 16267-F0020 · 16267-F2140 · 16267-F2190 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-C0055 · 96138-42101 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-24021 · 16278-F0050 · 16278-F2050 · 16278-F2100 |
| 16279 | No. 3 water bypass pipe | 16279-24020 · 16279-F0030 · 16279-F2050 · 16279-F2100 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-F0130 · 16281-F2130 · 16281-F2230 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90466-C0054 · 96138-41501 |
| 16281F | HOSE, WATER BY-PASS, NO.5 | 16282-F0051 · 16282-F0220 · 16282-F2100 |
| 16281G | CLIP, WATER BY-PASS HOSE NO.5 | 90466-C0003 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-24030 · 16282-F0240 · 16282-F2070 · 16282-F2130 · 16282-F2170 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90466-C0054 · 96138-41501 |
| 16283 | HOSE, WATER BY-PASS, NO.6 | 16283-24020 · 16283-F0140 · 16283-F2050 · 16283-F2110 · 16283-F2120 |
| 16283A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.6 | 90466-C0045 · 90466-C0054 · 96138-41501 · 96138-42501 |
| 16283D | HOSE, WATER BY-PASS, NO.6 | 16283-F0031 |
| 16295 | HOSE, WATER BY-PASS, NO.7 | 16295-24020 · 16295-F0010 · 16295-F2050 · 16295-F2080 · 16295-F2090 |
| 16295A | CLIP, WATER BY-PASS HOSE NO.7 | 90466-C0045 · 90466-C0056 · 96138-42501 · 96138-42701 |
| 16296 | HOSE, WATER BY-PASS, NO.8 | 16296-24040 · 16296-F0010 · 16296-F2110 · 16296-F2160 · 16296-F2170 |
| 16296A | CLIP, WATER BY-PASS HOSE NO.8 | 90466-C0054 · 96138-41501 |
| 16297 | No. 9 water bypass hose | 16297-24020 · 16297-F0010 · 16297-F2050 · 16297-F2090 · 16297-F2100 |
| 16297A | Clamp (for No. 9 water bypass hose) | 90466-C0003 · 90466-C0054 · 90467-15022 · 96138-41501 |
| 16304 | Water outlet sub-assembly | 16304-24010 · 16304-F2020 |
| 16305E | Water bypass outlet sub-assembly | 16305-F2020 · 16305-F2080 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-F2040 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-47020 · 16326-F0010 · 16326-F2020 |
| 16331 | Water outlet | 16331-F0030 · 16331-F2030 |
| 16341 | GASKET, WATER OUTLET | 16341-24020 · 16341-F0030 · 16341-F2020 |
| 16345 | Outlet pipe gasket | 16345-24010 · 16345-24020 · 16345-F0030 · 16345-F2030 · 16345-F2040 |
| 16351 | water bypass outlet | 16351-24020 · 16351-F0030 · 16351-F2060 |
| 16360A | Fan assembly with motor | 16360-0V340 · 16360-F0290 |
| 16400 | Radiator assembly | 16400-0V300 · 16400-F0130 |
| 16400B | Radiator drain switch screw plug | 16417-0H290 |
| 16400F | Seal (for radiator drain switch) | 16492-0T270 · 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-36030 · 16401-F0010 |
| 16470 | Radiator reservoir assembly | 16470-F2050 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-F0011 |
| 16523A | Radiator bracket cushion | 16523-F0010 |
| 16535 | Radiator lower support | 16535-20030 · 16535-F0050 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-C0057 |
| 16571C | Radiator hose No. 1 | 16571-F0100 · 16571-F0130 · 16571-F2240 |
| 16571D | No. 1 radiator hose clip | 90466-C0053 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-C0057 |
| 16572D | Radiator hose No. 2 | 16572-F0050 · 16572-F0110 · 16572-F2210 |
| 16572E | No. 2 radiator hose clip | 90466-C0053 |
| 16573B | Radiator hose No. 3 | 16573-F0080 |
| 16575B | No. 2 water hose clamp bracket | 16575-F0120 · 16575-F2270 |
| 16575C | No. 1 water hose clamp bracket | 16575-F2390 |
| 16575F | No. 3 water hose clamp bracket | 16575-F2280 |
| 16577B | Hose clamps or clips (for radiator pipes) | 90466-C0053 |
| 16577C | radiator pipe | 16577-F0020 |
| 16581B | Hose clamp (for radiator hose) | 16581-F0030 |
| 16581C | Hose clamp (for No. 2 radiator hose) | 16581-F0040 |
| 165A0A | Hose clip | 90466-C0053 |
| 16671 | water valve | 16671-24020 · 16671-25070 |
| 16897A | Filling port neck | 16897-F0031 · 16897-F0170 · 16897-F0171 |
