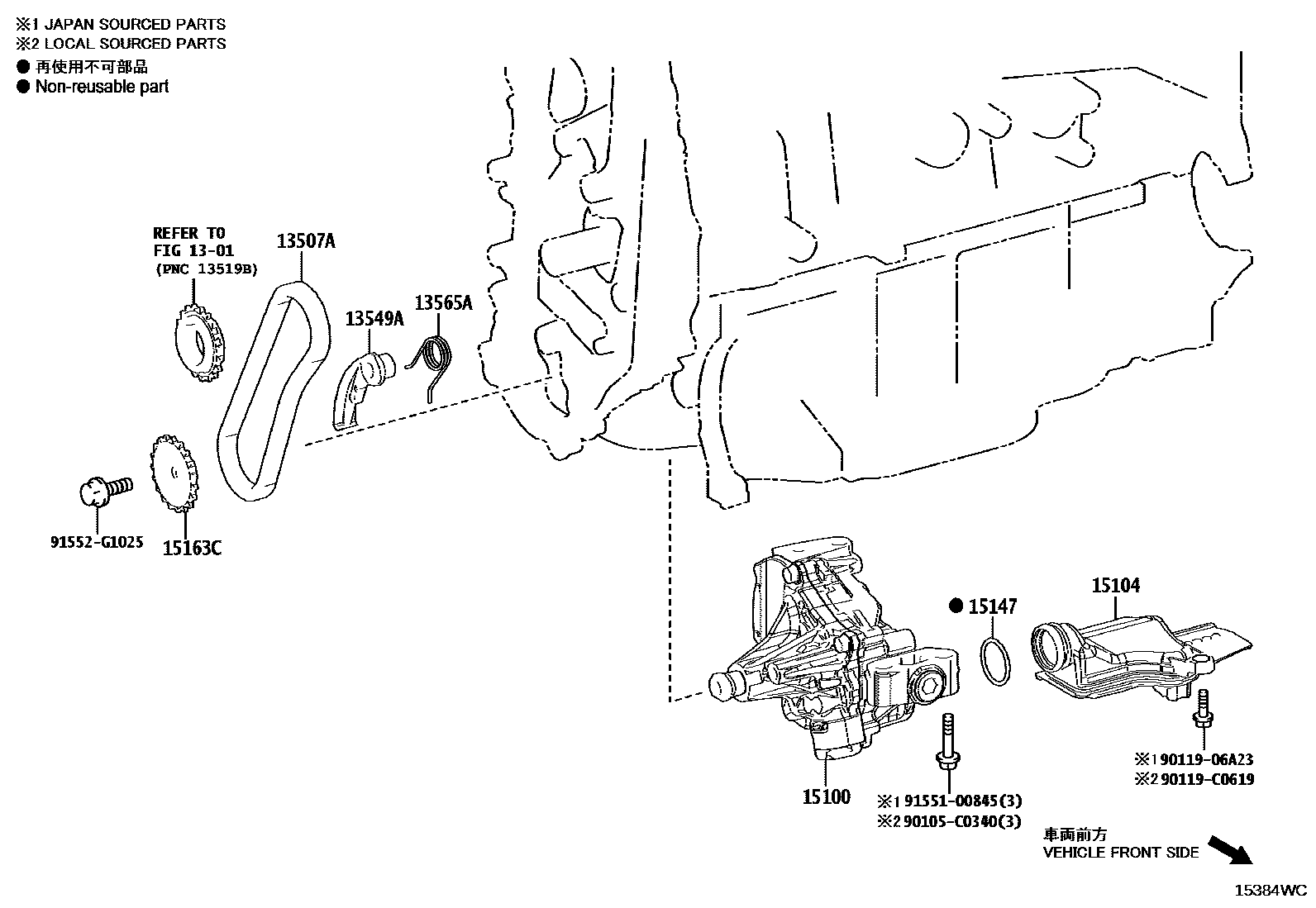

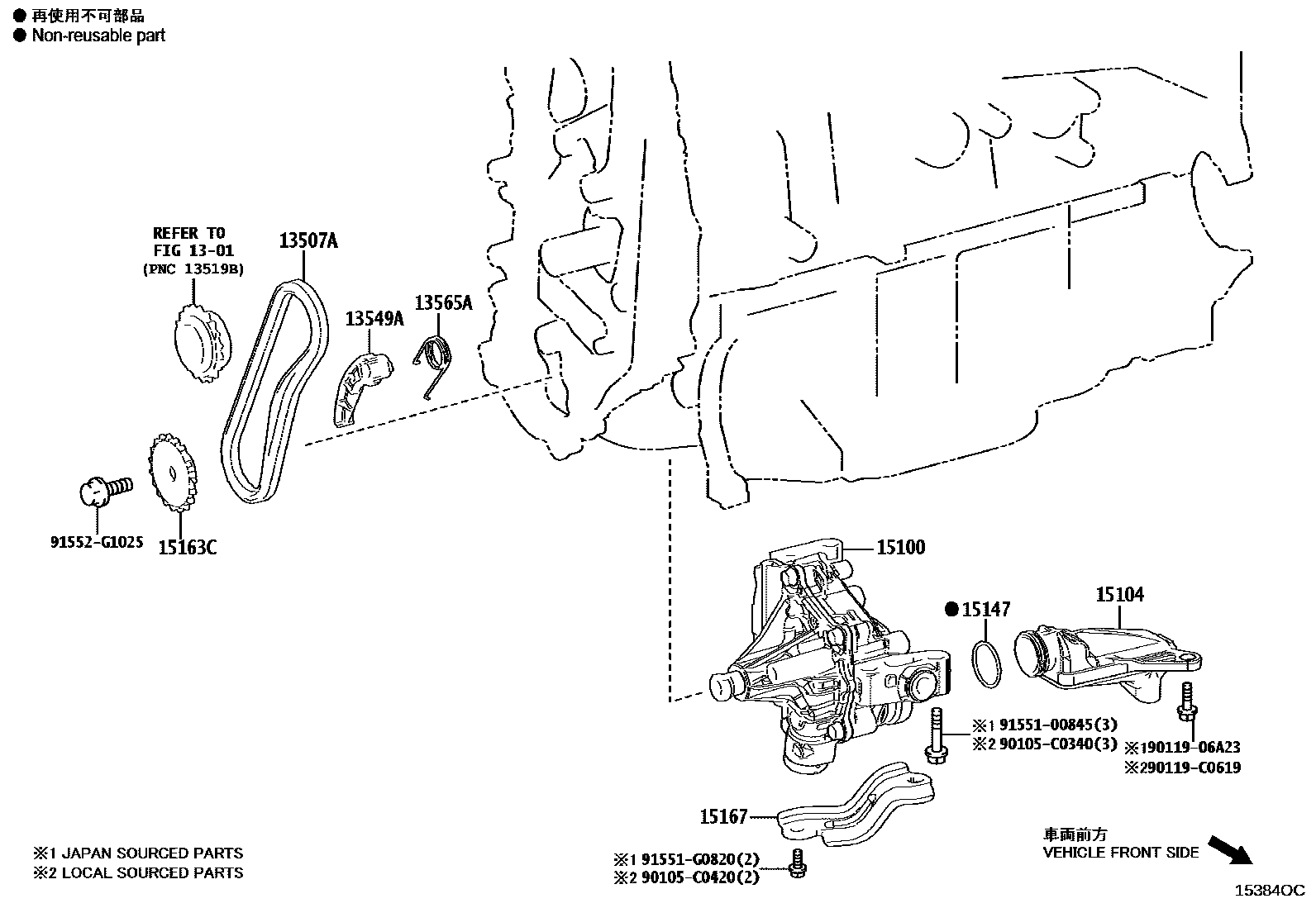

Toyota CAMRY Engine Oil Pump — Figure 1501
Toyota CAMRY EPC diagram 1501, Engine Oil Pump, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13507A | Oil pump drive chain sub-assembly | 13507-F0020 · 13507-F2020 |
| 13549A | chain tensioner pressure plate | 13549-F2020 |
| 13565A | chain damper spring | 13565-F2020 |
| 15100 | Oil pump assembly | 15100-F0020 · 15100-F2030 |
| 15104 | Oil filter sub-assembly | 15104-F0020 · 15104-F2050 |
| 15147 | Oil filter gasket | 15147-F2010 |
| 15163C | Oil pump drive shaft sprocket | 15163-F2020 |
| 15167 | Oil pump bracket | 15167-F0010 |
