Toyota CAMRY Ventilation Hose — Figure 1201

Toyota CAMRY EPC diagram 1201, Ventilation Hose, with 3 images and 4 PNC and OE references.

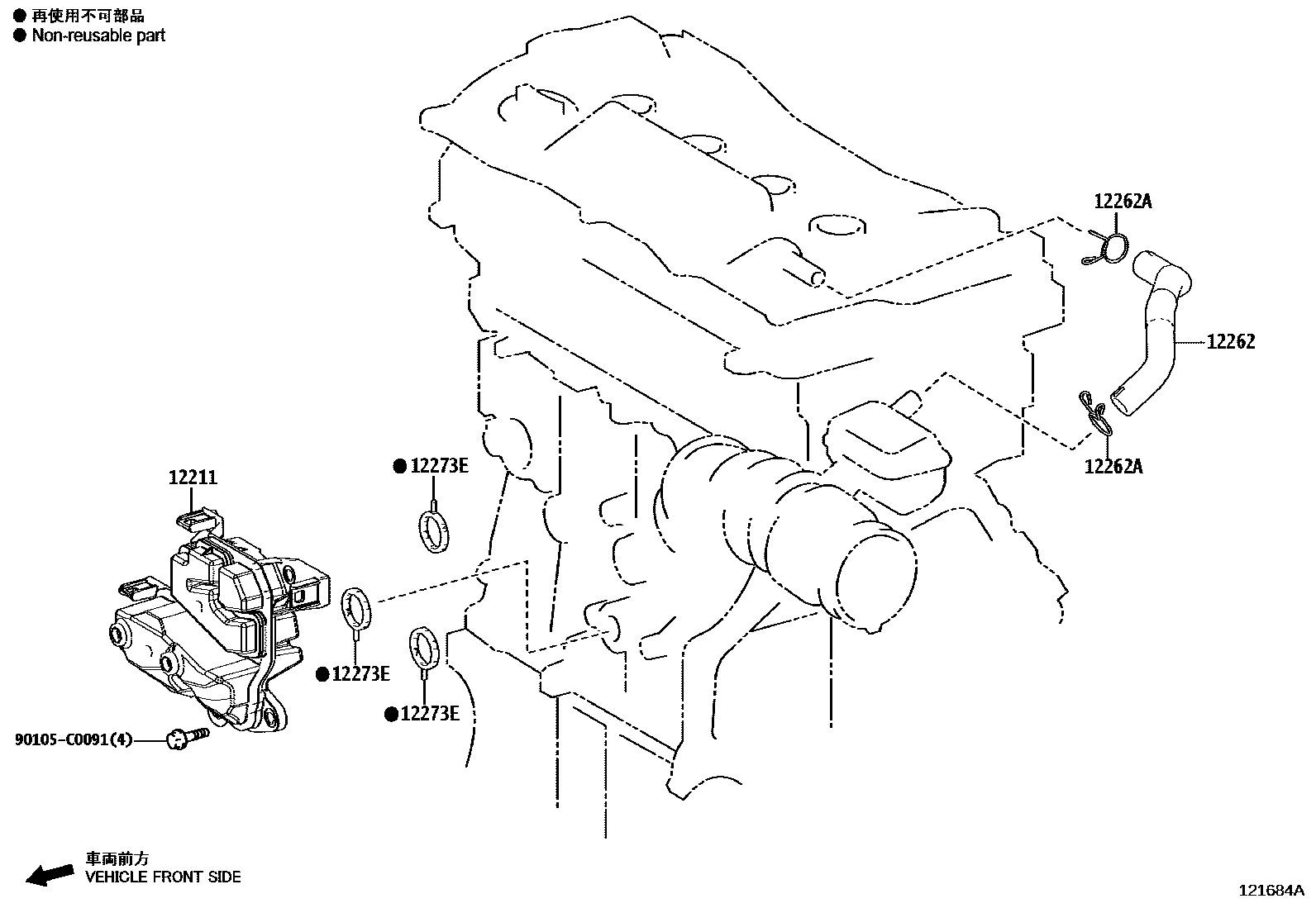

Toyota CAMRY Ventilation Hose EPC diagram — 121684A
Ventilation Hose — 121684A (202406 – 999999)

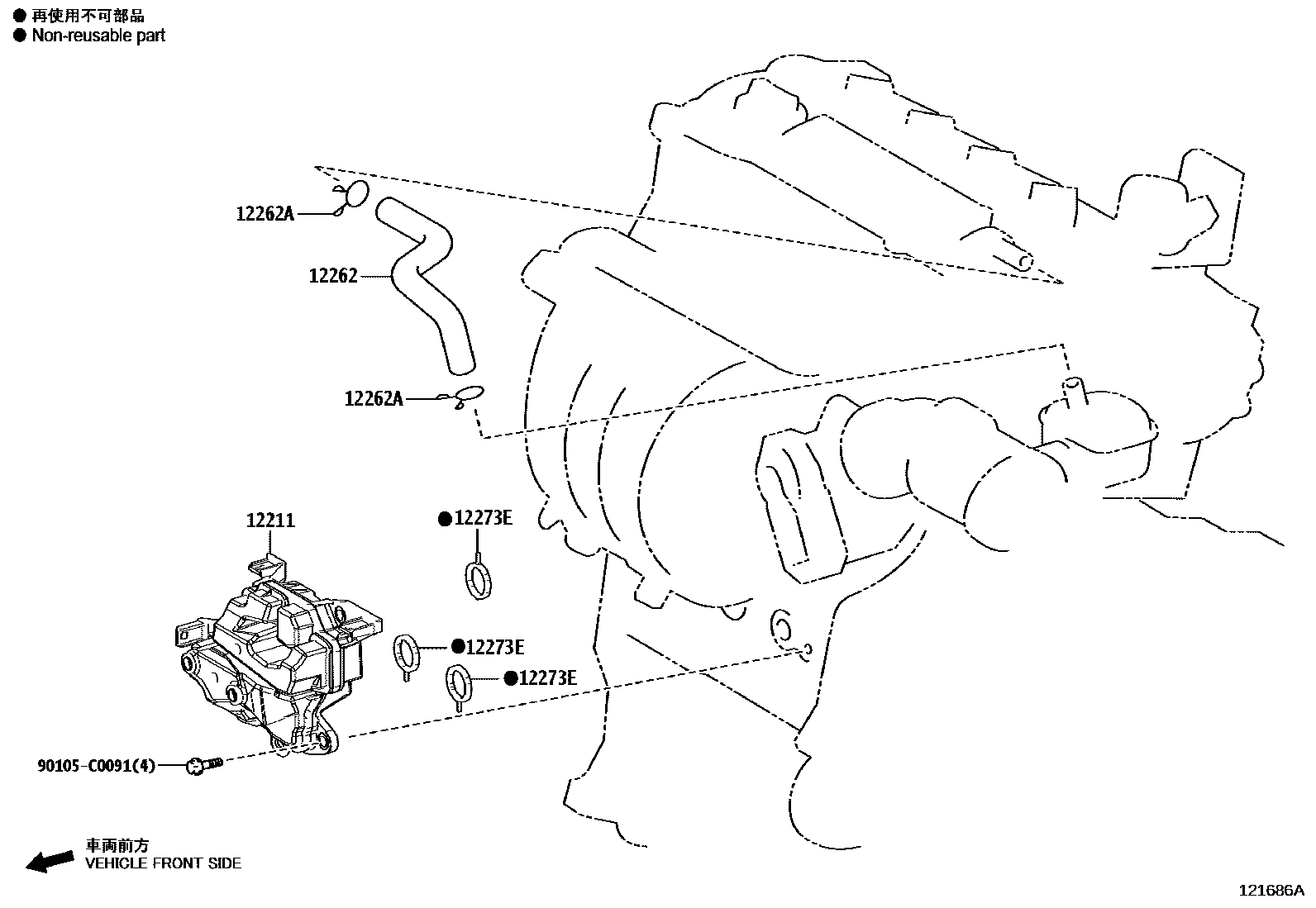

Toyota CAMRY Ventilation Hose EPC diagram — 121686A
Ventilation Hose — 121686A (202403 – 999999)

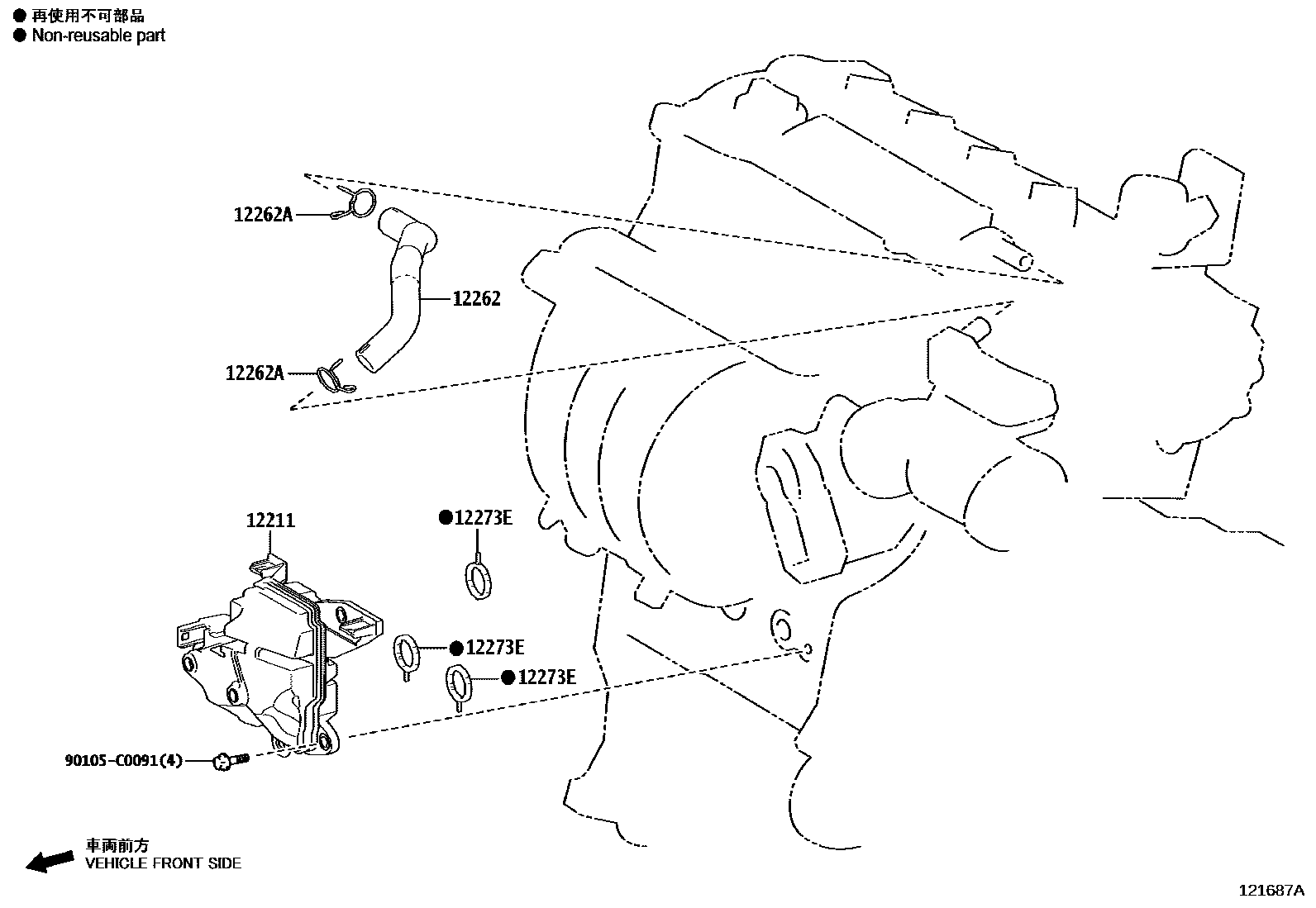

Toyota CAMRY Ventilation Hose EPC diagram — 121687A
Ventilation Hose — 121687A (202403 – 999999)

PNC and OE references

PNCPart nameOE numbers
12211Ventilation box No. 112211-F0020 · 12211-F2030 · 12211-F2070
12262Ventilation hose No. 212262-24060 · 12262-25040 · 12262-25060
12262AClamp (for vent hose No. 2)90467-21004
12273EPads (for ventilation boxes)12273-F2020
