Toyota CAMRY Engine Mounting — Figure 1107

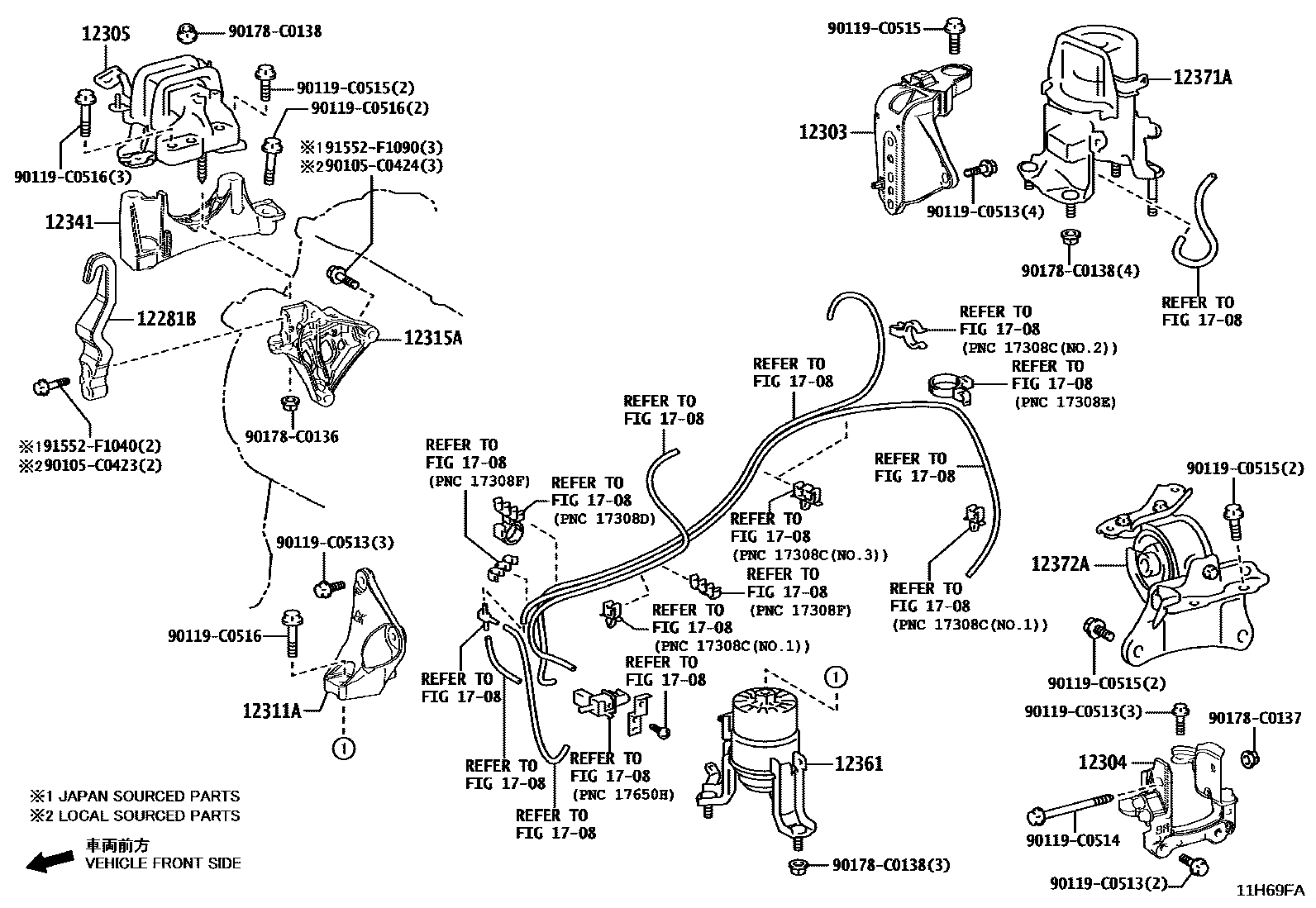

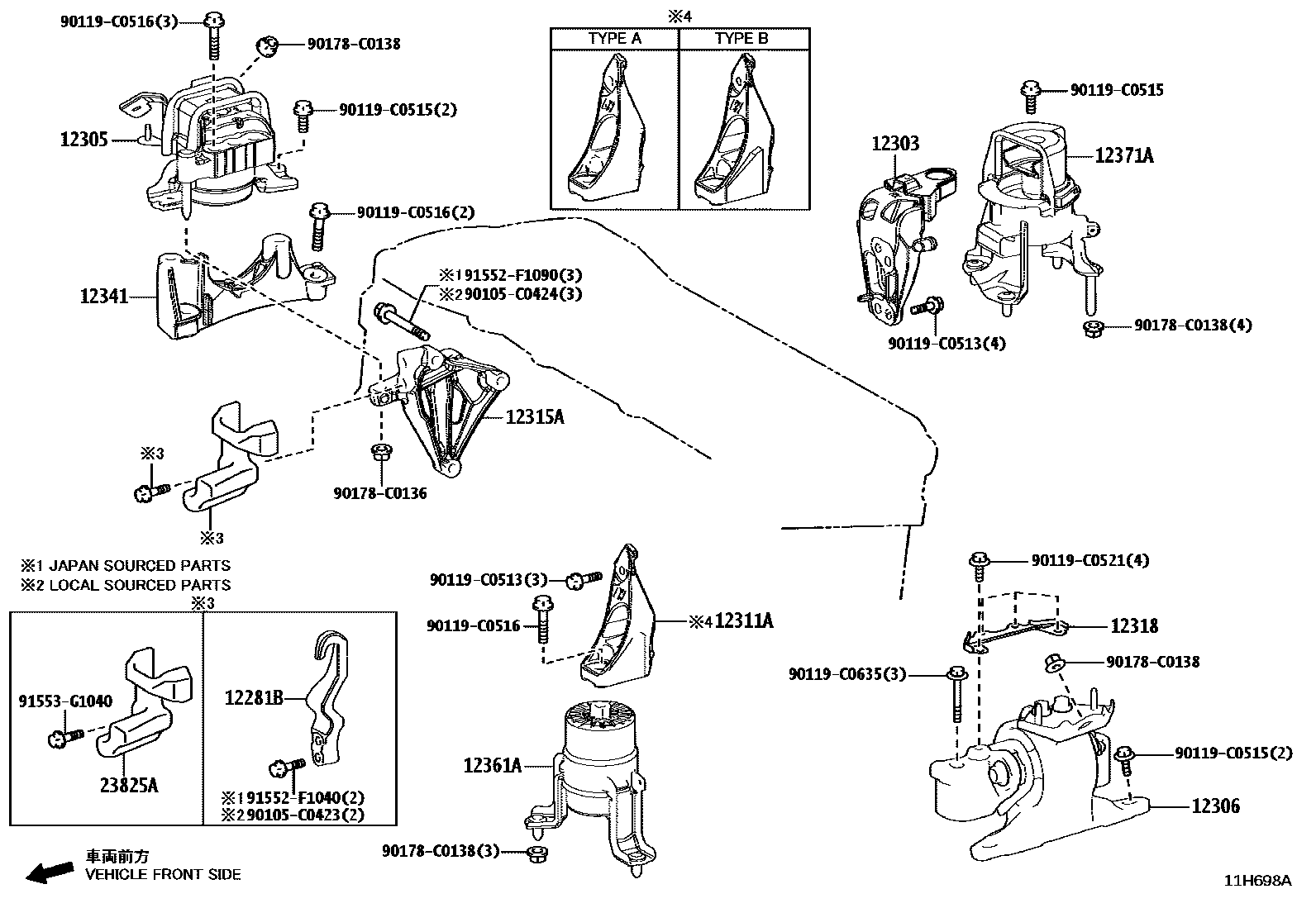

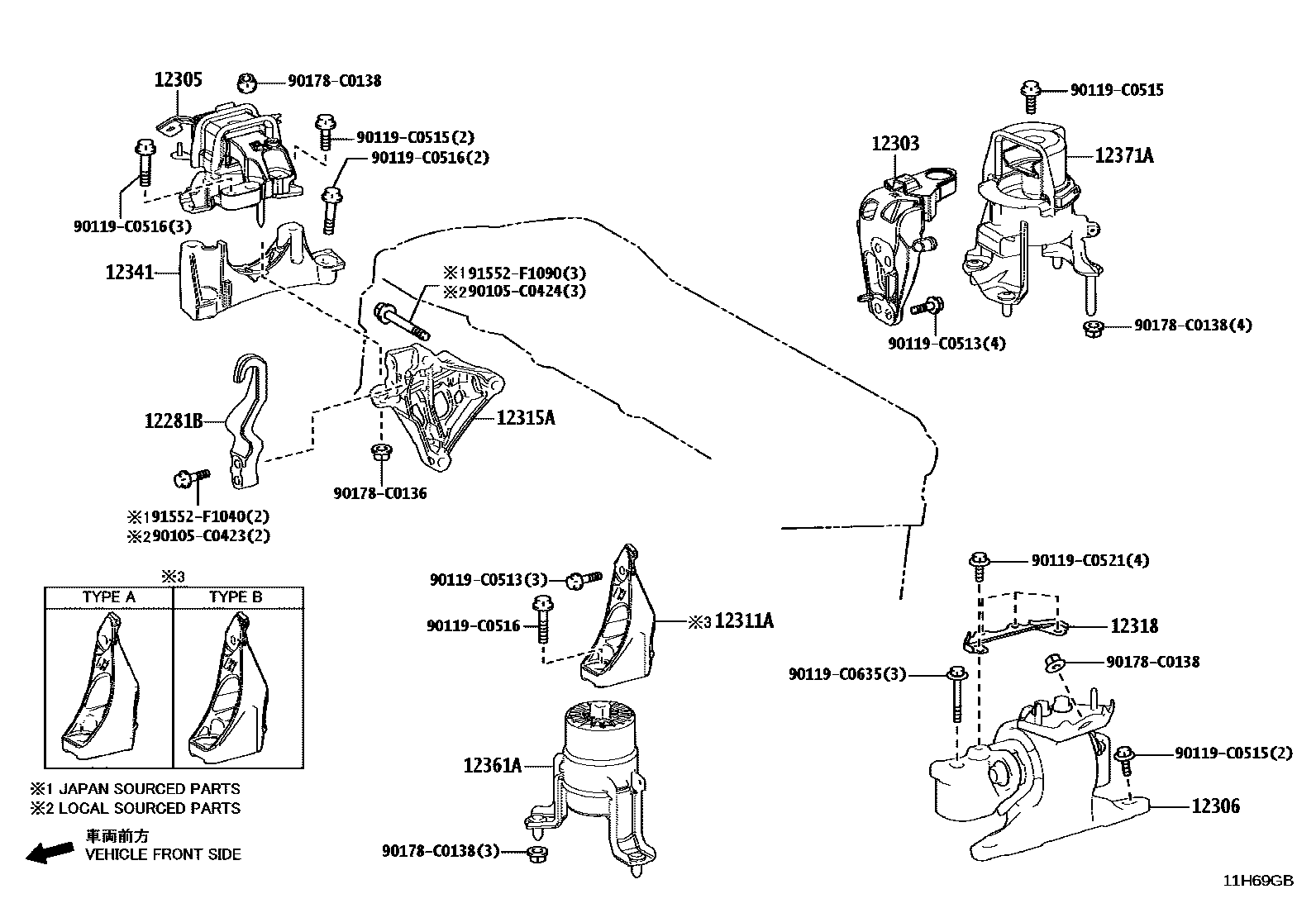

Toyota CAMRY EPC diagram 1107, Engine Mounting, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12281B | Engine No. 1 hanger | 12281-F2010 |
| 12303 | Engine rear mounting bracket sub-assembly | 12303-F0250 · 12303-F2070 |
| 12304 | Engine left mounting bracket sub-assembly | 12304-F2050 · 12304-F2060 |
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-F0071 · 12305-F0160 · 12305-F2191 |
| 12306 | Engine left mounting vibration isolation pad sub-assembly | 12306-F0120 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-F0050 · 12311-F0090 · 12311-F0130 · 12311-F0180 · 12311-F2040 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-F0020 · 12315-F2050 |
| 12318 | Engine left mounting bracket | 12318-F0170 |
| 12341 | engine mounting spacer | 12341-F0040 · 12341-F0070 |
| 12361 | Engine front mounting vibration isolation pad | 12361-F2010 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-F0050 |
| 12371A | Engine rear mount vibration isolation pad | 12371-F0050 · 12371-F2010 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-F0180 |
| 23825A | Oil pipeline anti-collision parts | 23825-25010 · 23825-F0010 · 23825-F0020 |
