Toyota CAMRY Engine Overhaul Gasket Kit — Figure 1103

Toyota CAMRY EPC diagram 1103, Engine Overhaul Gasket Kit, with 6 images and 2 PNC and OE references.

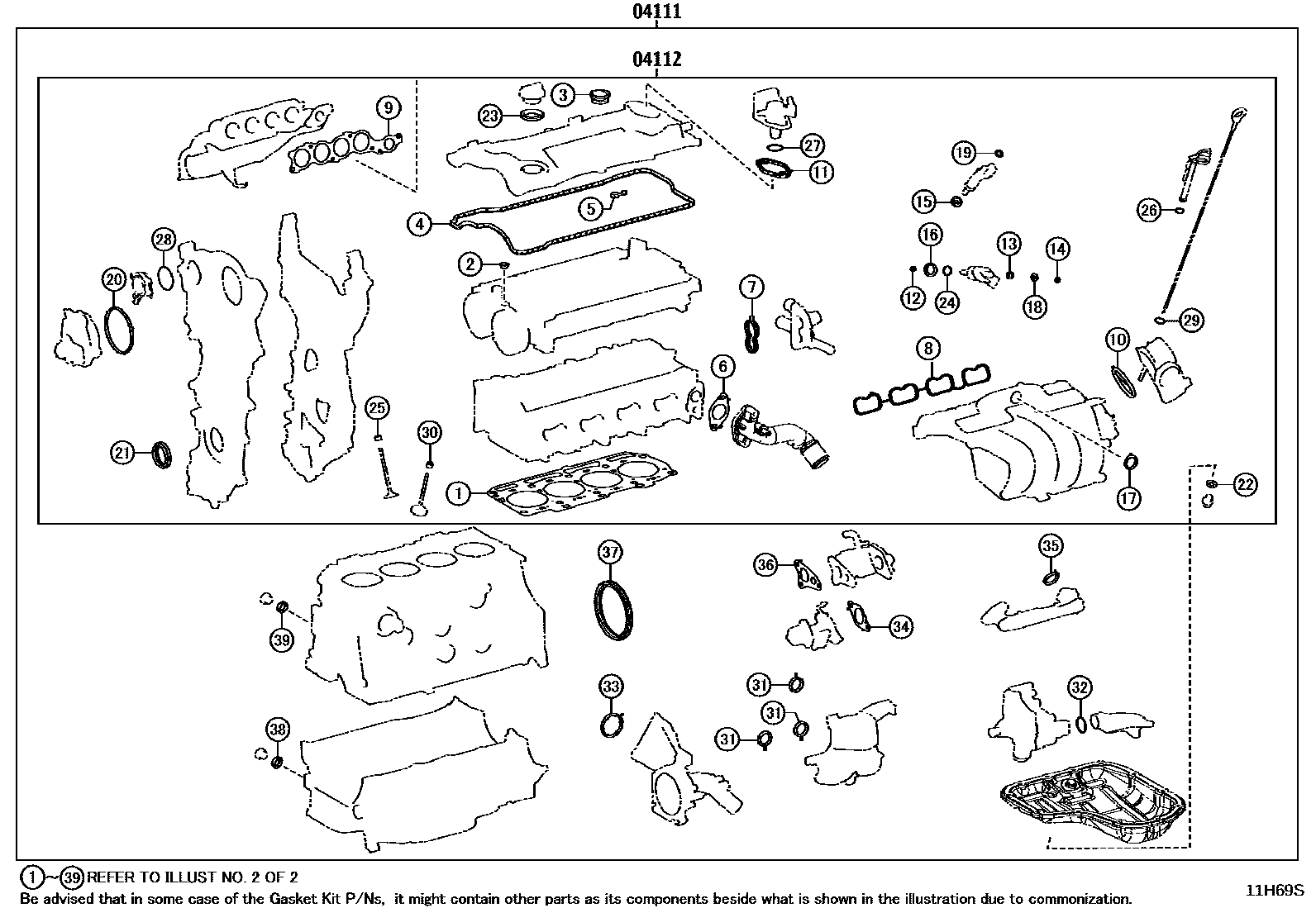

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11H69S
Engine Overhaul Gasket Kit — 11H69S (202403 – 999999)

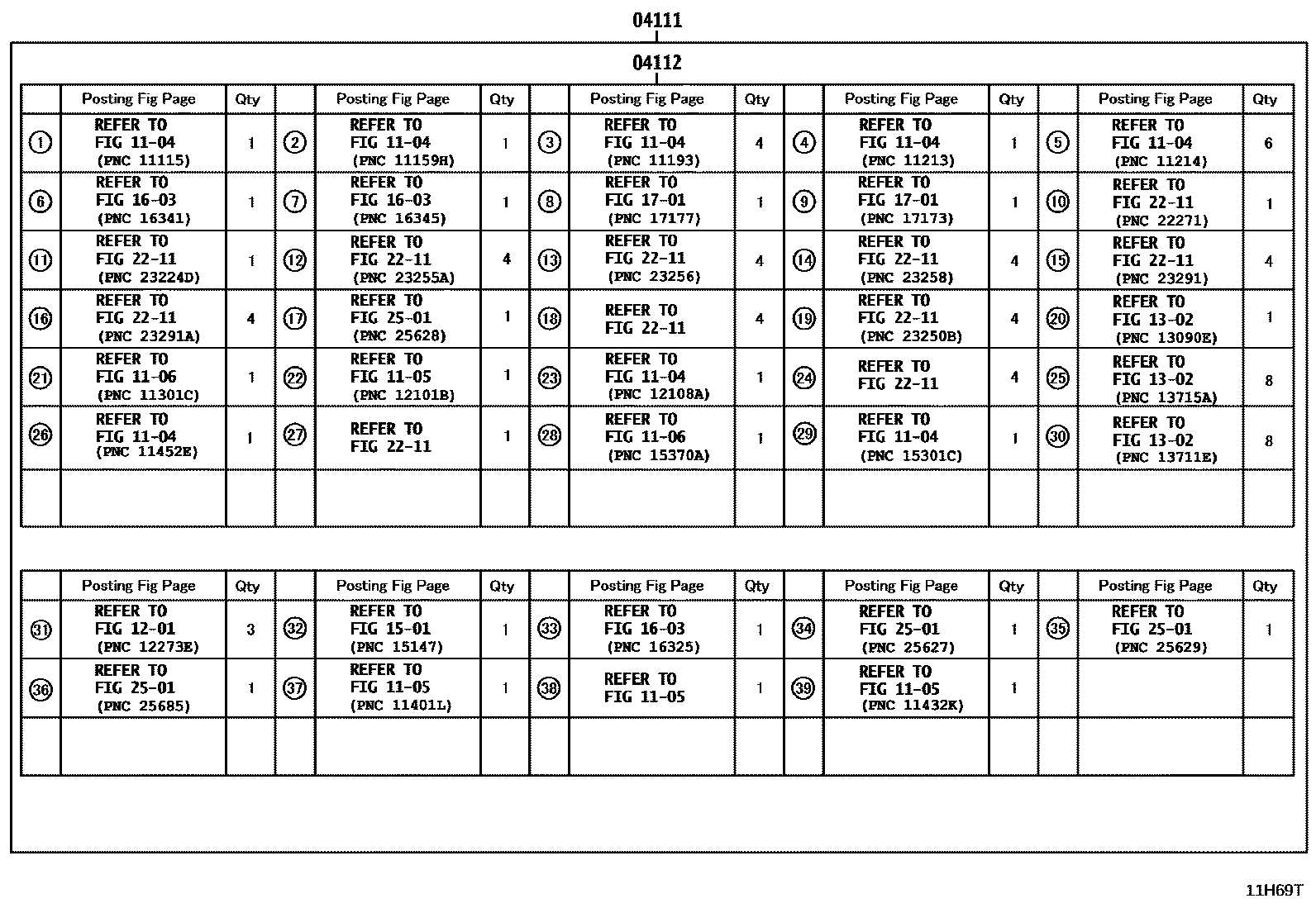

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11H69T
Engine Overhaul Gasket Kit — 11H69T (202403 – 999999)

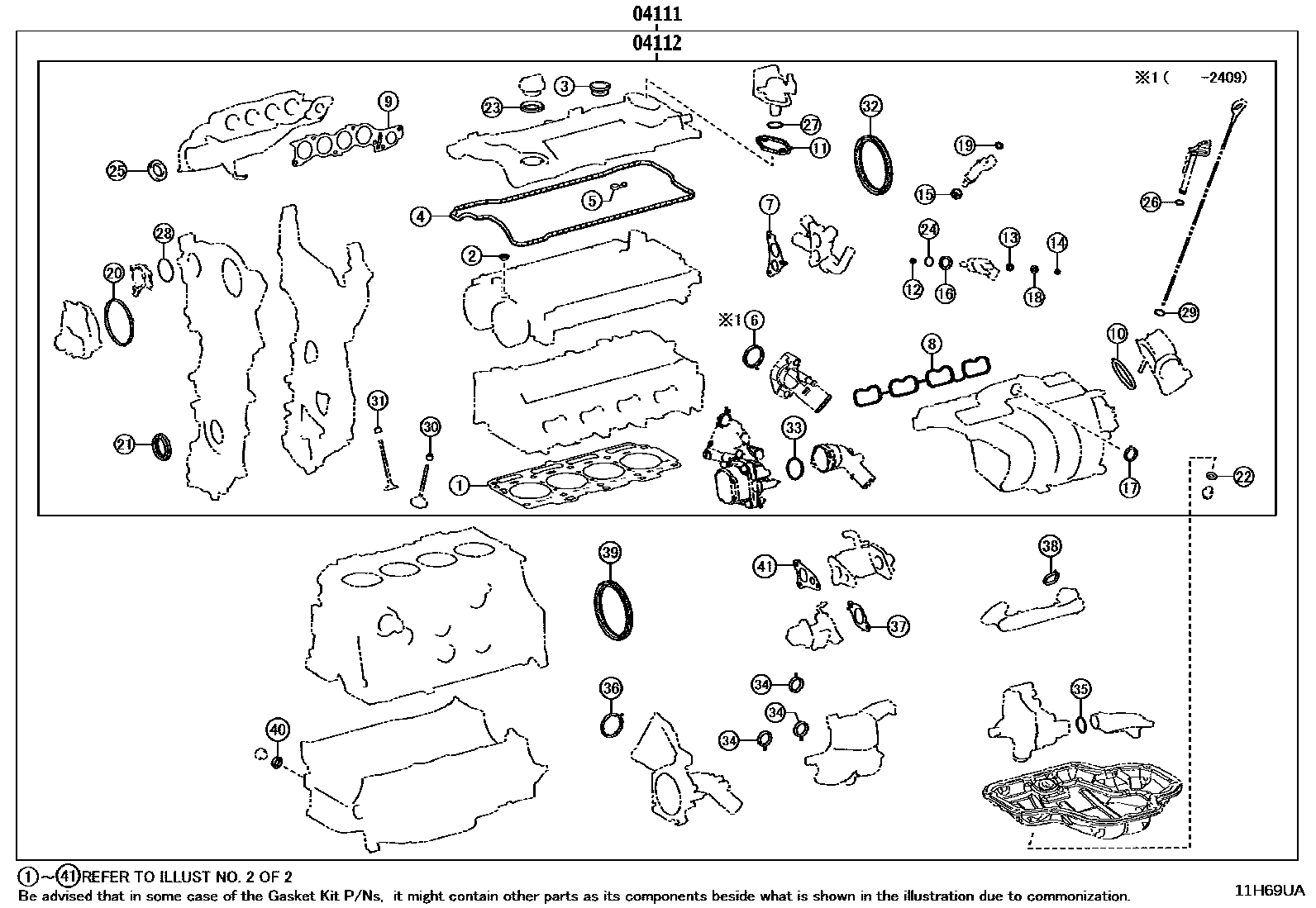

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11H69UA
Engine Overhaul Gasket Kit — 11H69UA (202403 – 999999)

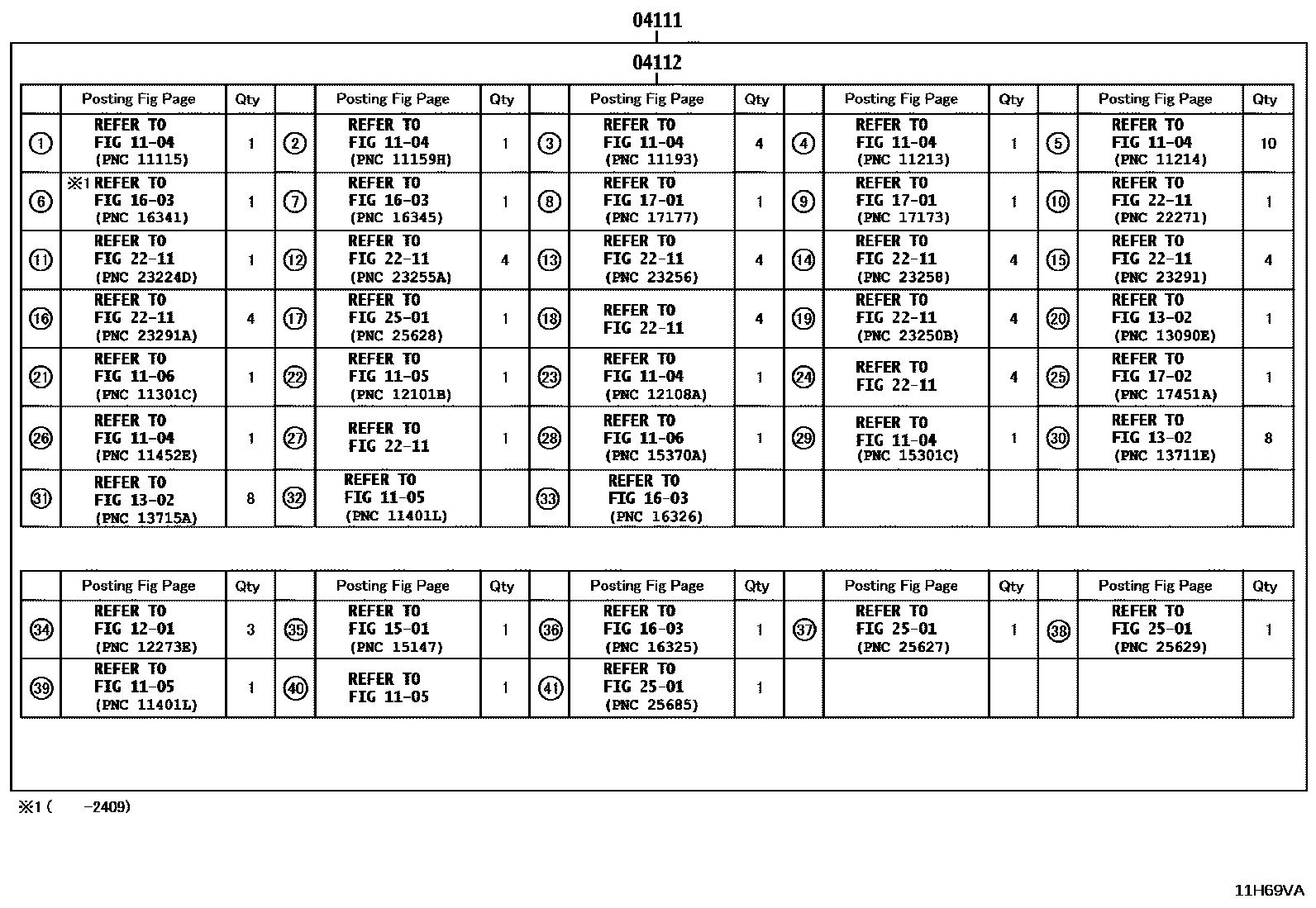

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11H69VA
Engine Overhaul Gasket Kit — 11H69VA (202403 – 999999)

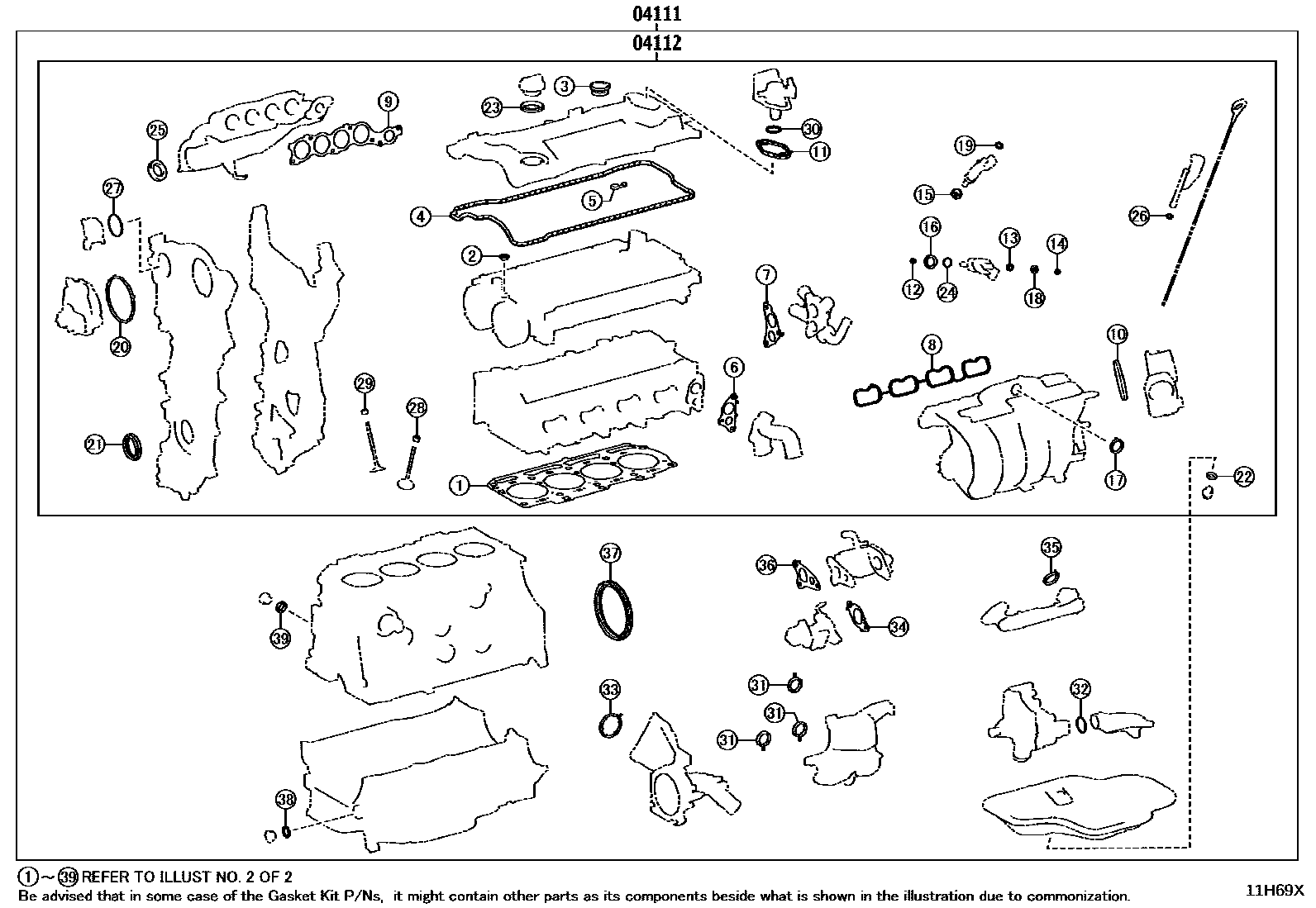

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11H69X
Engine Overhaul Gasket Kit — 11H69X (202406 – 999999)

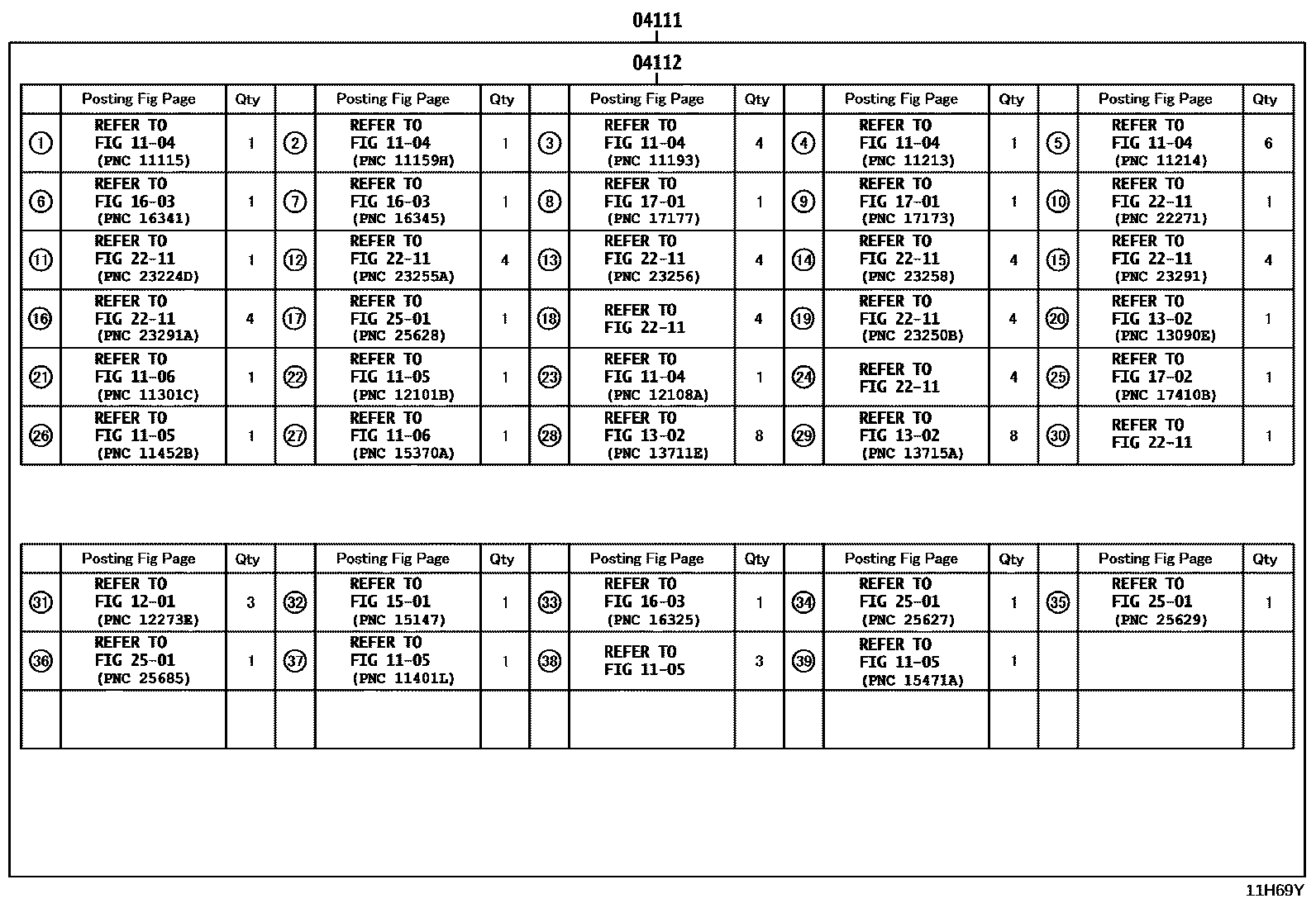

Toyota CAMRY Engine Overhaul Gasket Kit EPC diagram — 11H69Y
Engine Overhaul Gasket Kit — 11H69Y (202406 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-F0091 · 04111-F2062 · 04111-F2280 · 04111-F2331 · 04111-F2332
04112Engine valve grinding pad assembly04112-F0061 · 04112-F2062 · 04112-F2260 · 04112-F2311 · 04112-F2312
