Toyota CAMRY 空气净化器或离子发生器 — Figure 8724

Toyota CAMRY EPC diagram 8724, 空气净化器或离子发生器, with 1 images and 4 PNC and OE references.

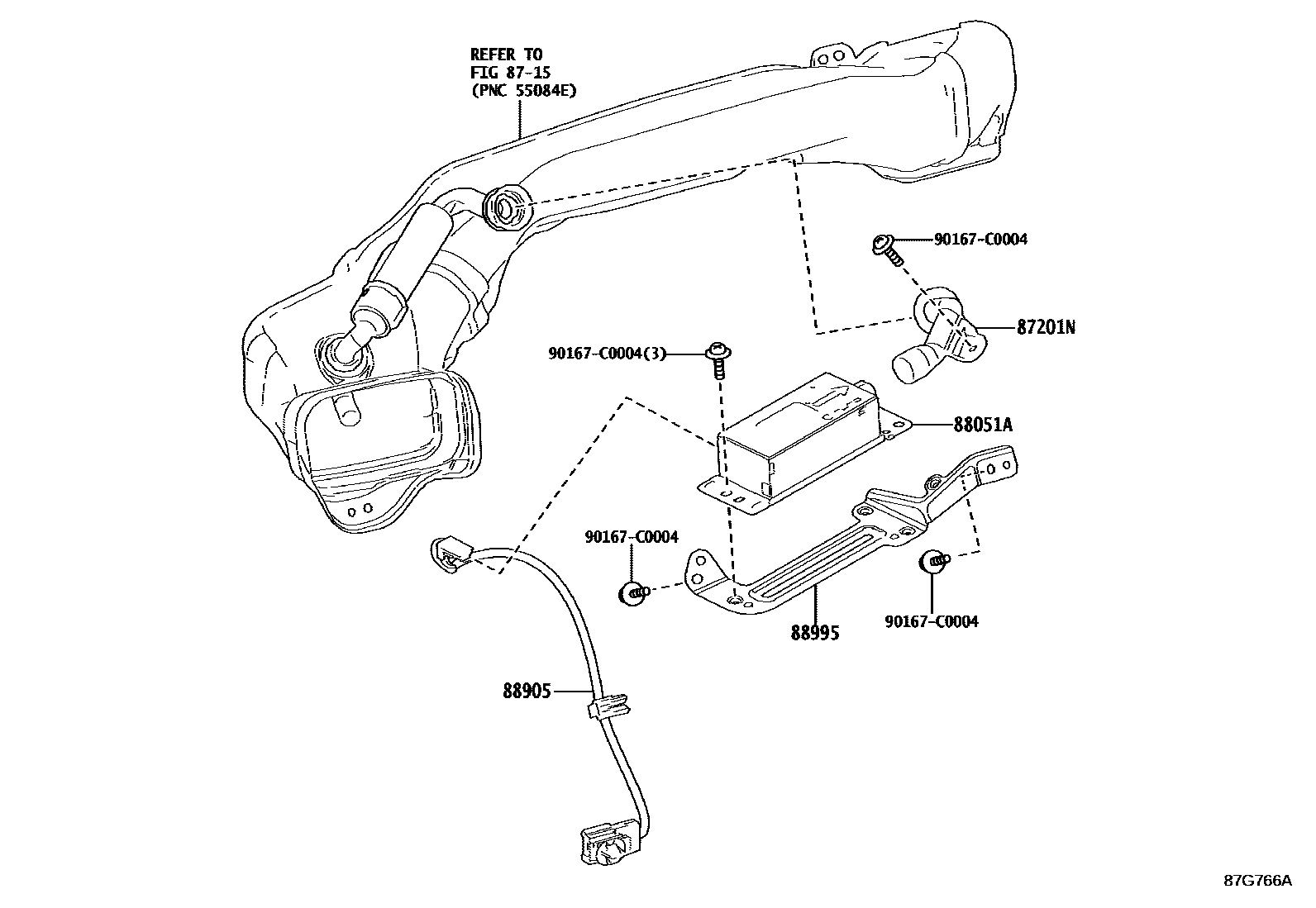

Toyota CAMRY 空气净化器或离子发生器 EPC diagram — 87G766A
空气净化器或离子发生器 — 87G766A (201712 – 999999)

PNC and OE references

PNCPart nameOE numbers
87201NAir duct sub-assembly55848-06010
88051AIon generator sub-assembly88051-0N010
88905Air purifier No. 1 wiring harness sub-assembly82144-06020
88995No. 1 ion generator bracket88995-06040
