Toyota CAMRY Heating & Air Conditioning - Compressor — Figure 8719
Toyota CAMRY EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

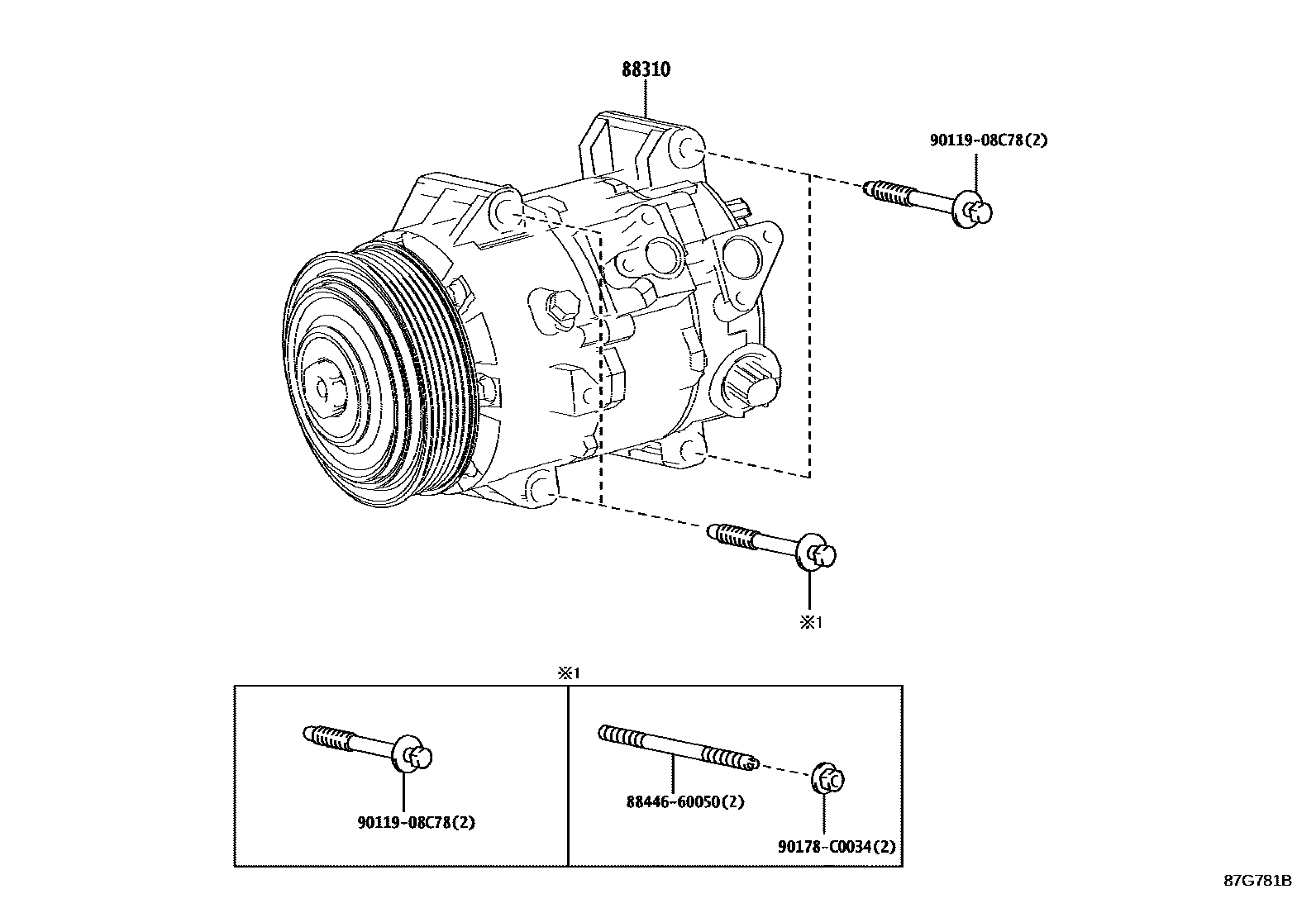

| 88310 | Compressor assembly with pulley | 88310-06660 · 88310-06670 |

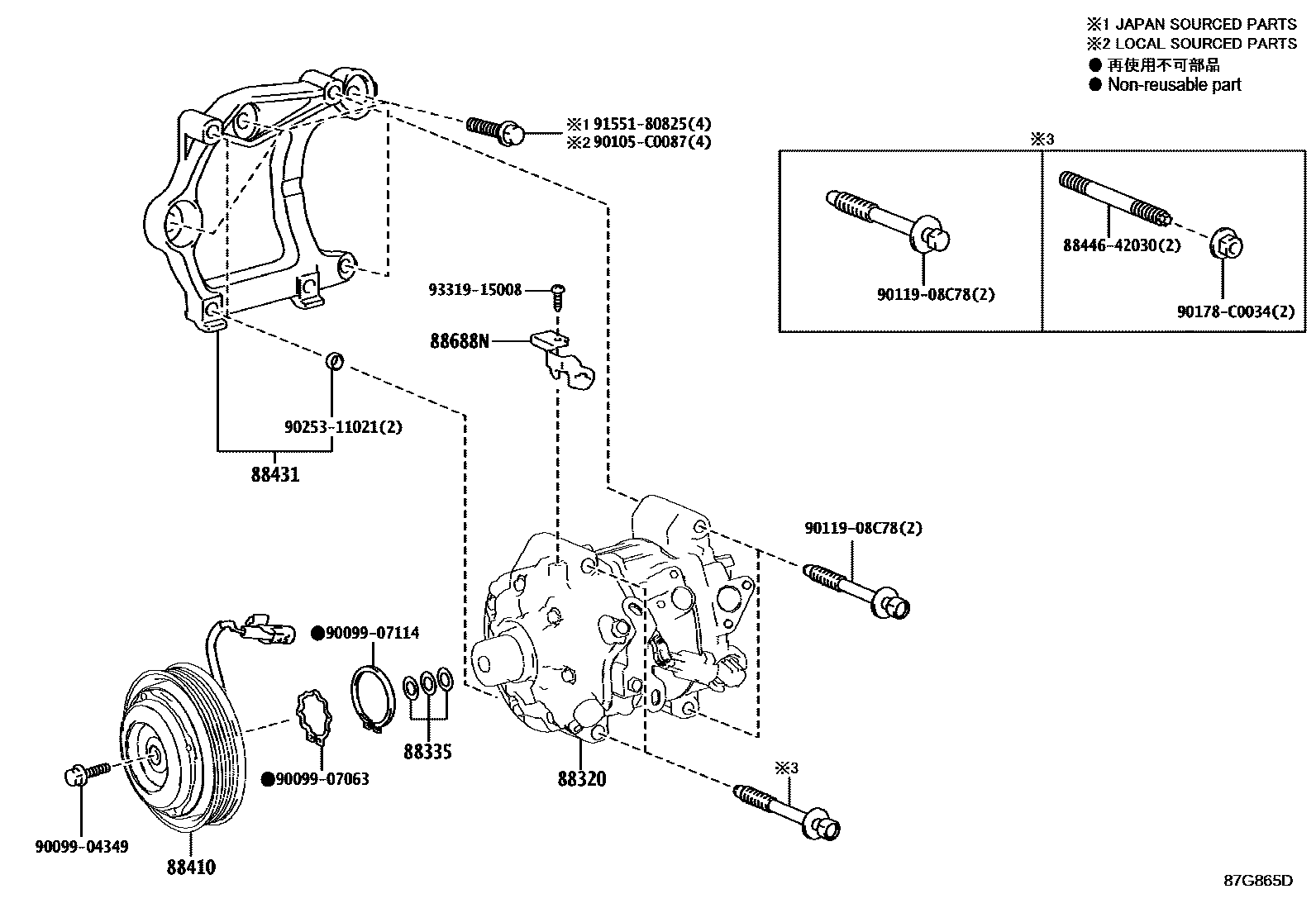

| 88320 | Cooler Compressor Assembly | 88320-42150 |
| 88335 | Overhaul gasket assembly | 88335-14020 |

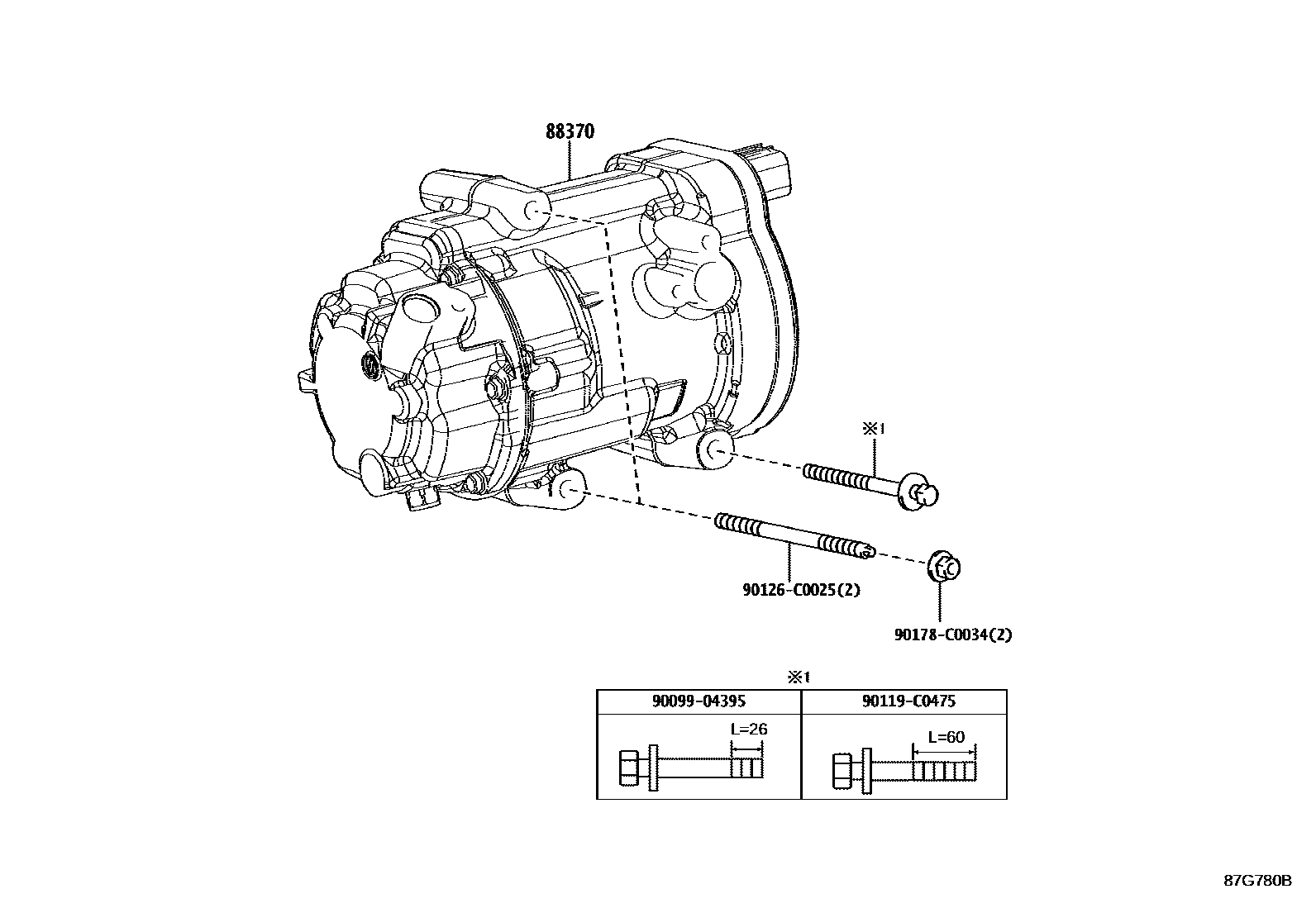

| 88370 | Compressor assembly with motor | 88370-06010 · 88370-33040 · 88370-33050 |
| 88410 | Magnetic Clutch Assembly | 88410-0R010 |
| 88431 | Compressor No. 1 mounting bracket | 12502-0V020 |
| 88688N | cooler bracket | 88688-33570 |
