Toyota CAMRY Heating & Air Conditioning - Cooler Piping — Figure 8718

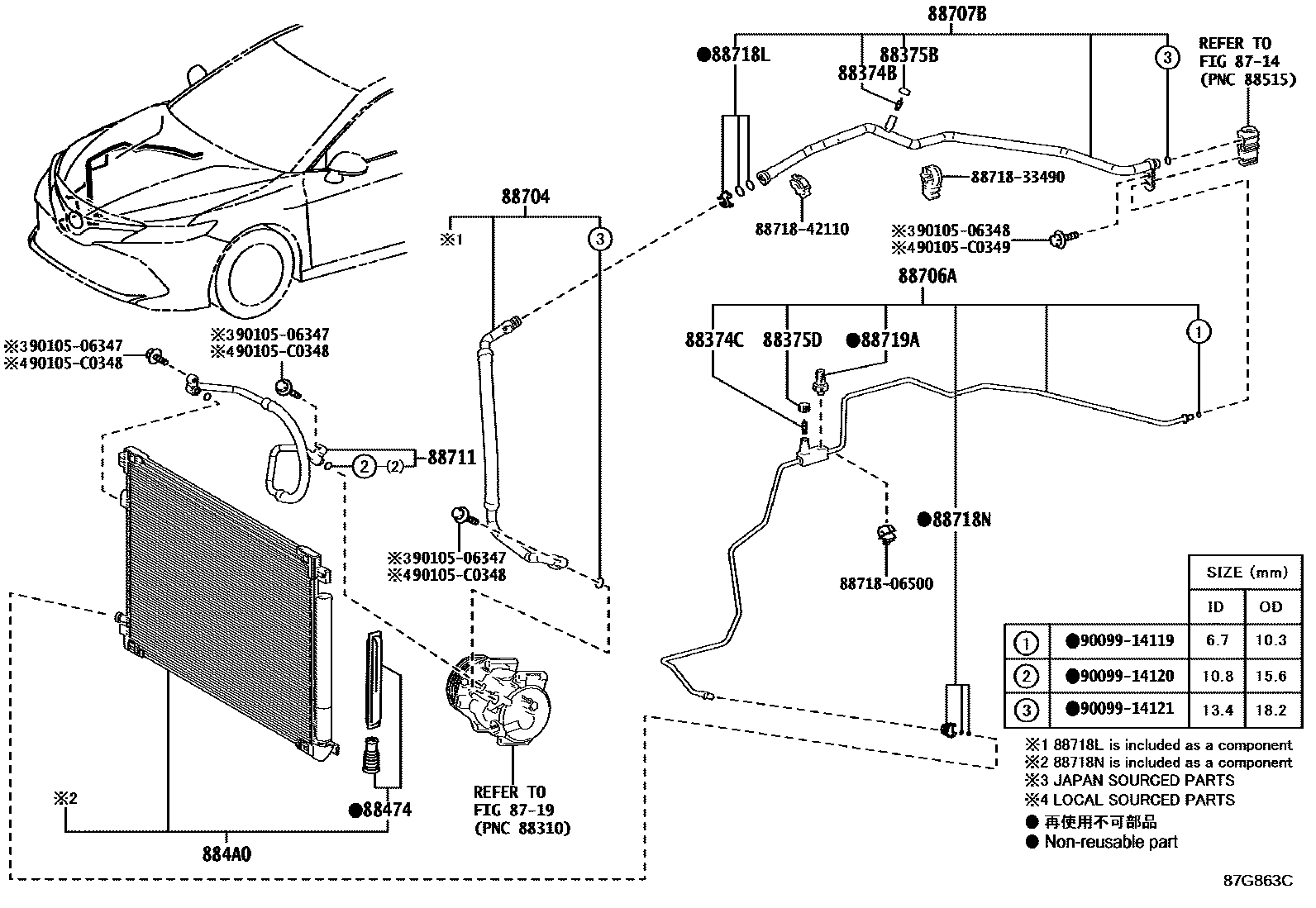

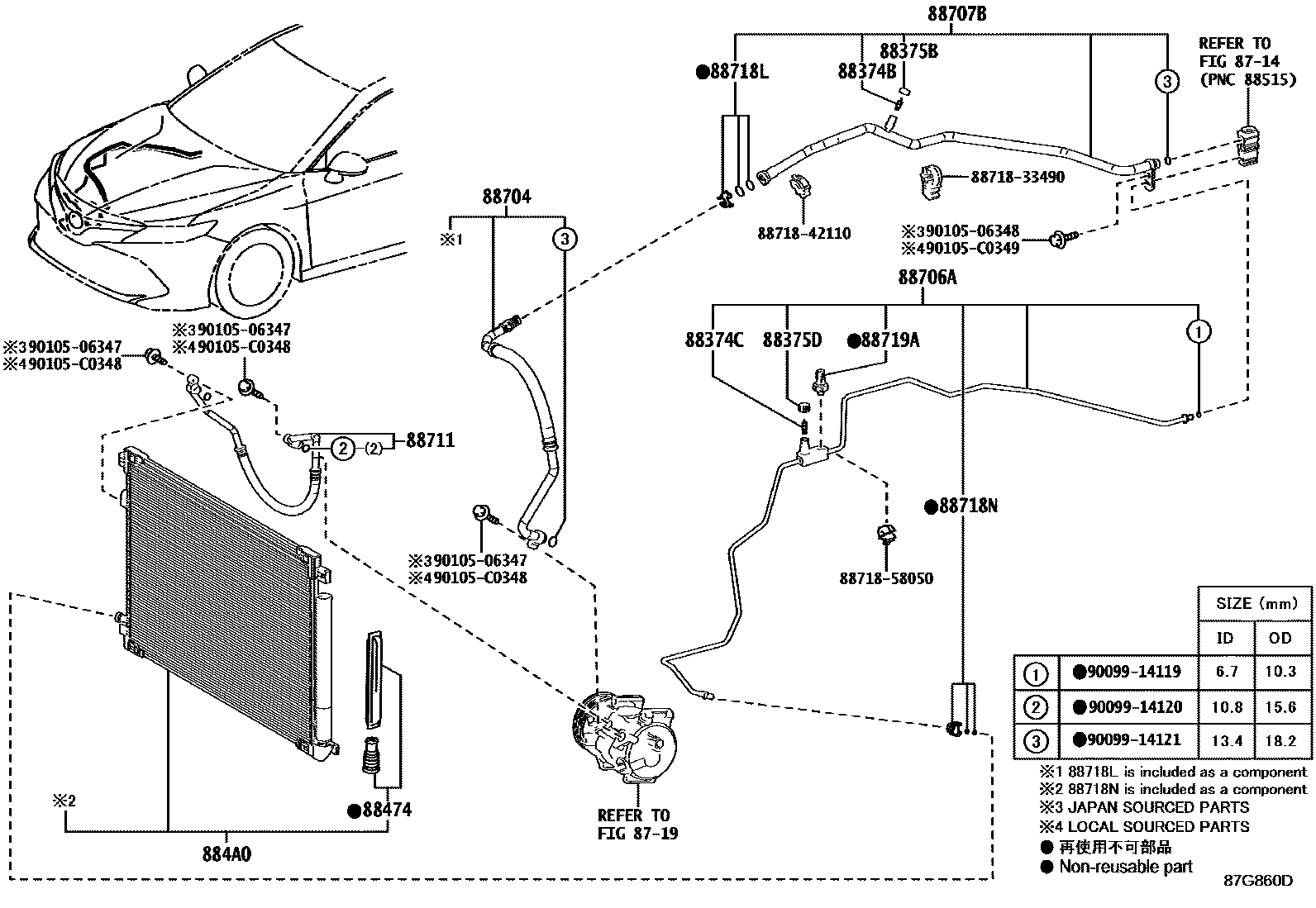

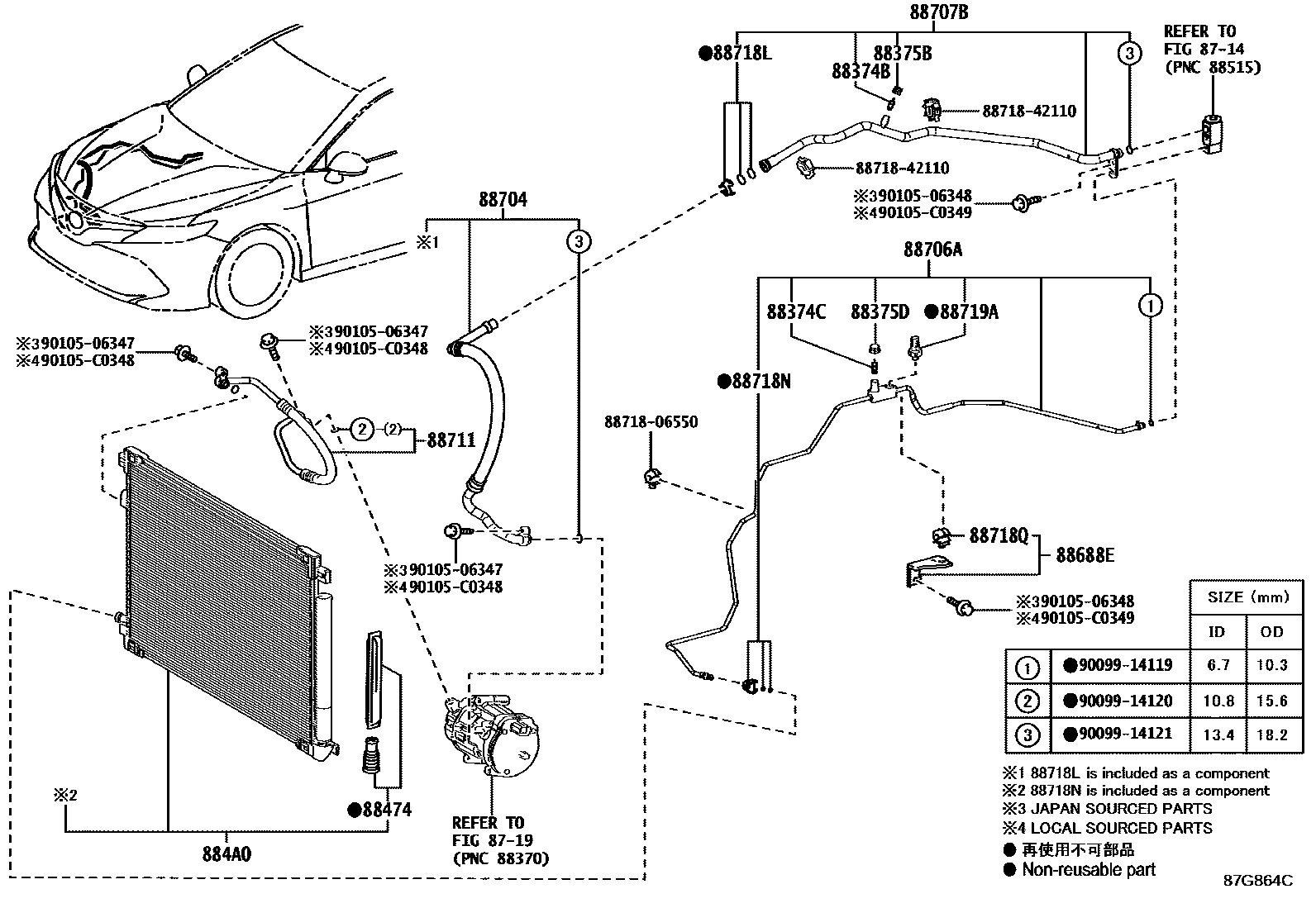

Toyota CAMRY EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-0D010 |
| 88474 | cooler dryer | 88474-12020 |
| 884A0 | Air conditioning condenser assembly | 884A0-06050 · 884A0-06060 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-06370 |
| 88704 | Oil suction hose sub-assembly | 88704-06550 · 88704-06560 · 88704-06570 · 88704-06580 |
| 88706A | Liquid pipe A sub-assembly | 88710-06550 · 88710-06650 |
| 88707B | Suction pipe B sub-assembly | 88707-06260 · 88707-06370 · 88707-06390 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-06620 · 88711-06630 · 88711-06710 · 88711-06720 |
| 88718L | Pipe clamp | 88718-52280 |
| 88718N | Pipe clamp | 88718-1E150 |
| 88718Q | Pipe clamp | 88718-06500 · 88718-58050 |
| 88719A | Air conditioning pressure sensor | 88719-11010 |
