Toyota CAMRY 暖风和空调系统 - 水管 — Figure 8716

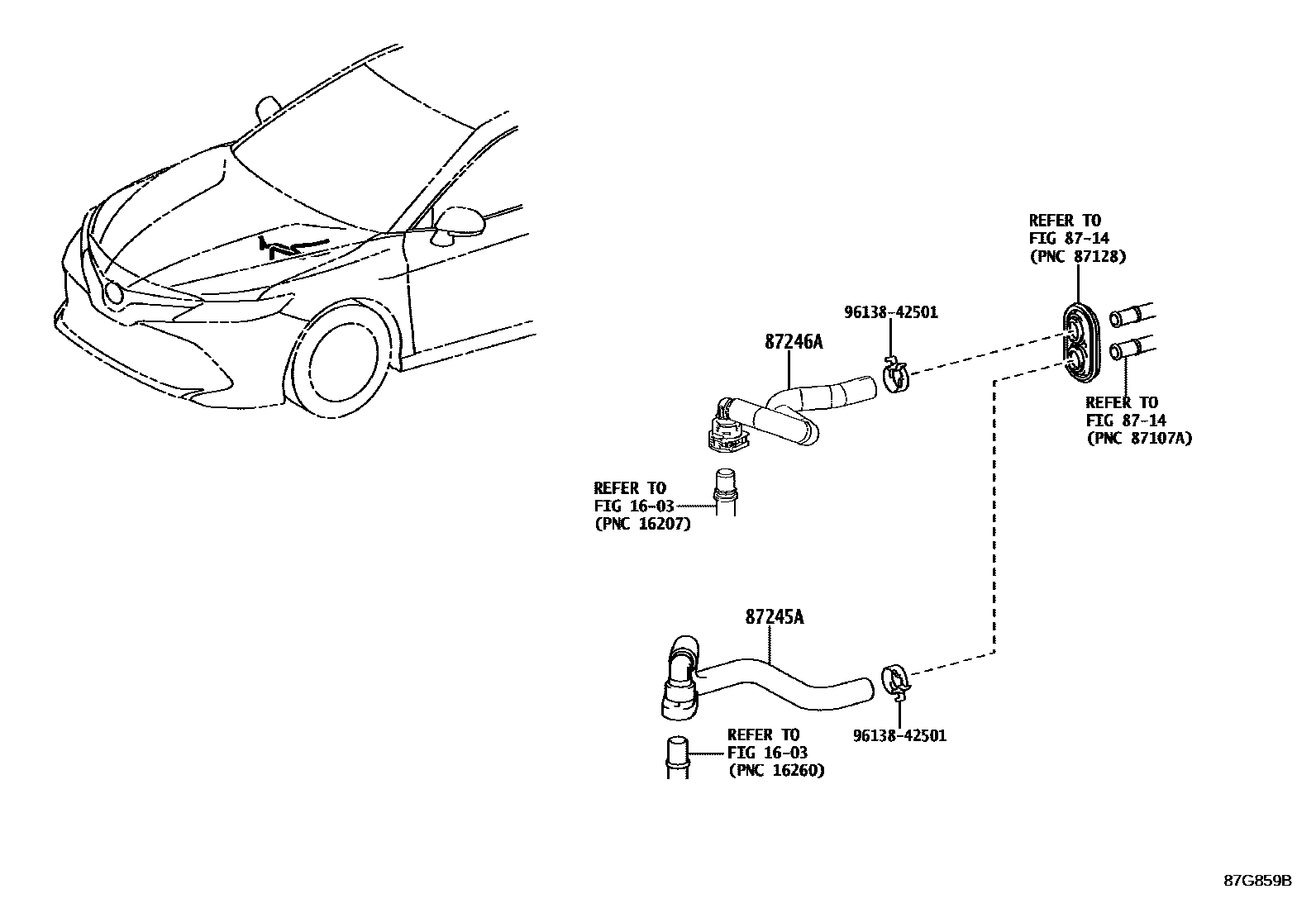

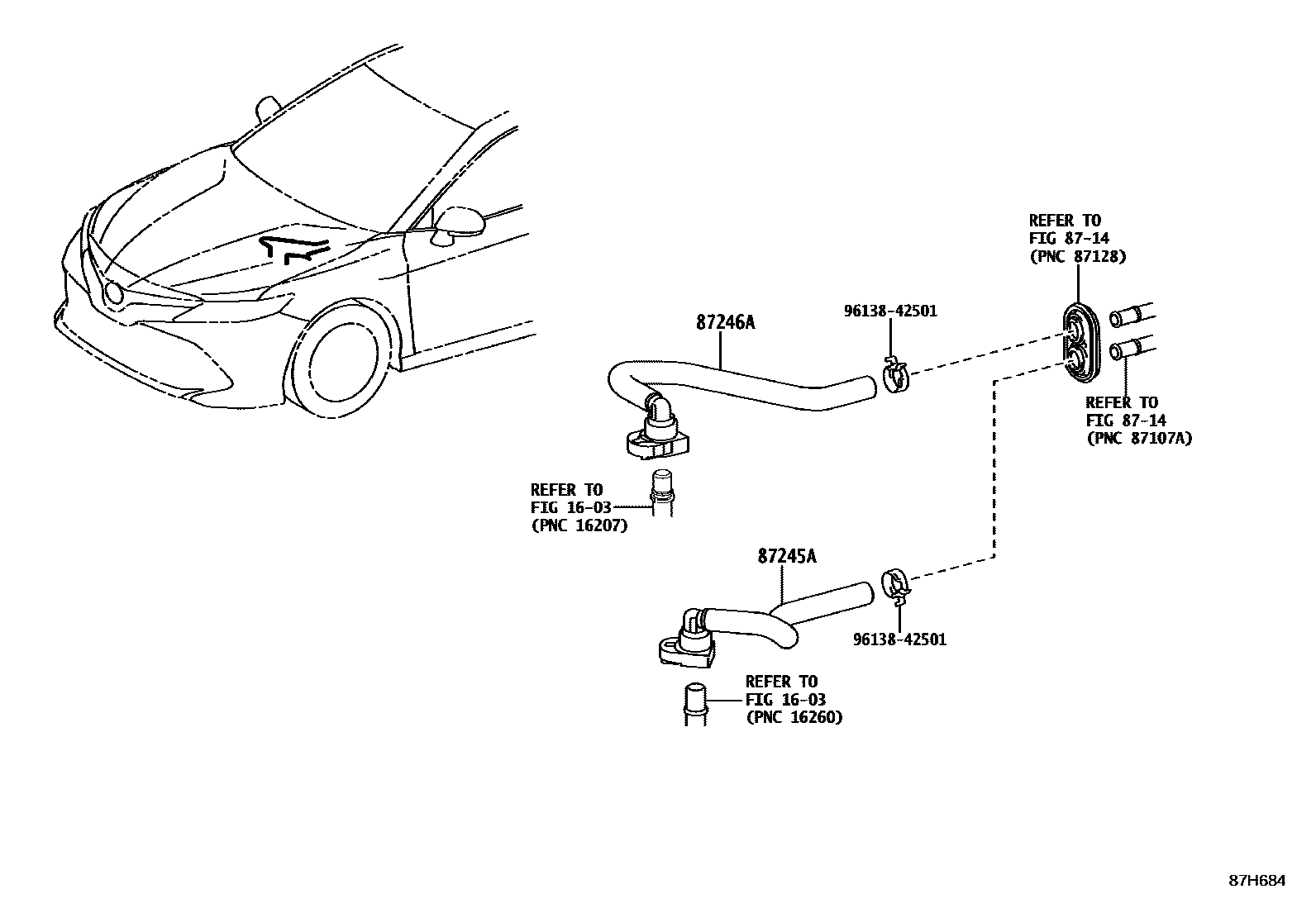

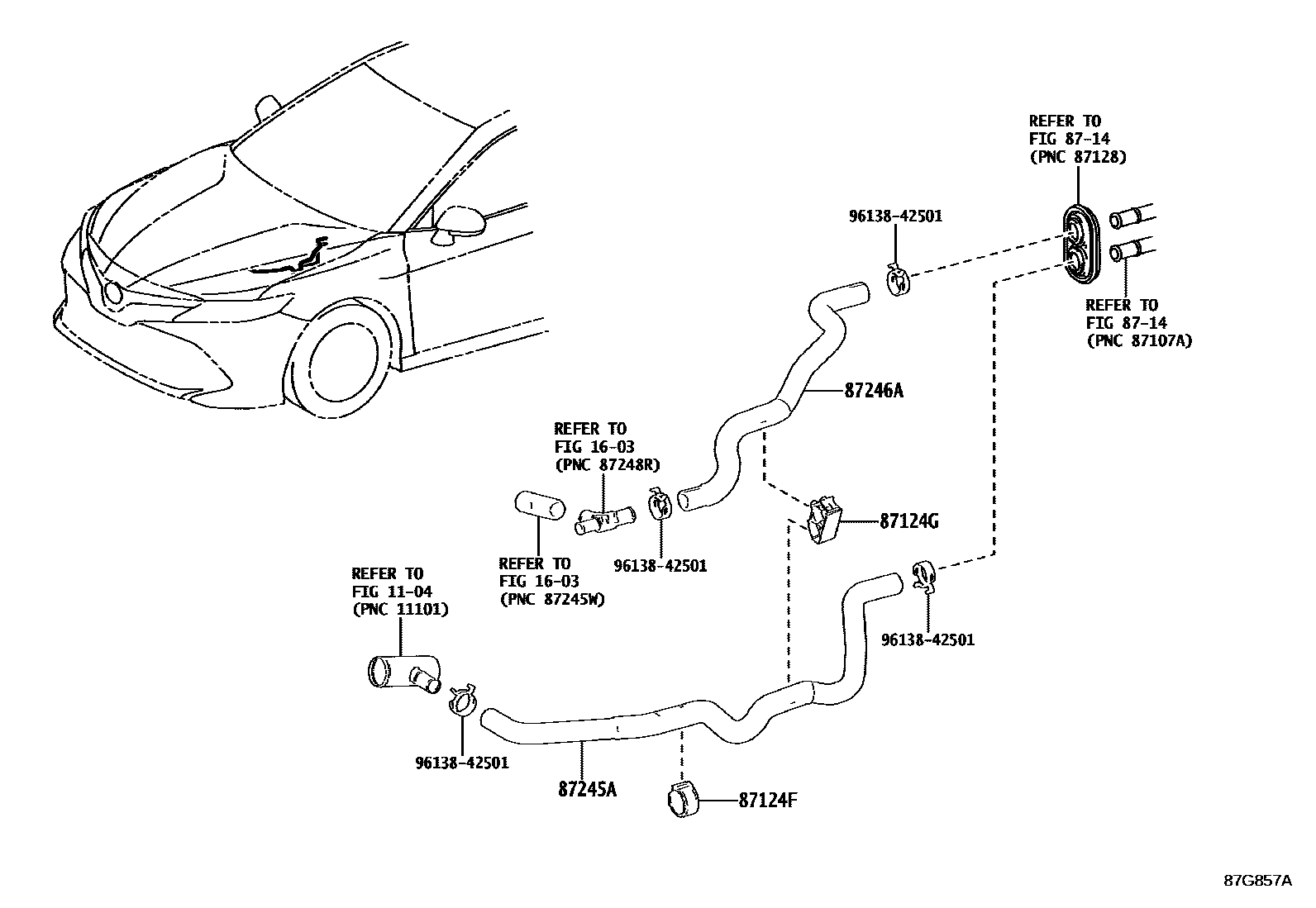

Toyota CAMRY EPC diagram 8716, 暖风和空调系统 - 水管, with 3 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87124F | No. 1 heater hose clamp | 88718-33480 |
| 87124G | No. 2 heater hose clamp | 88718-33500 |
| 87245A | Heater water inlet hose A | 87209-06150 · 87209-07030 · 87245-06E30 |
| 87246A | Heater outlet hose A | 87209-06160 · 87209-07040 · 87245-06E40 |
