Toyota CAMRY 暖风和空调系统 - 控制器和风管 — Figure 8715

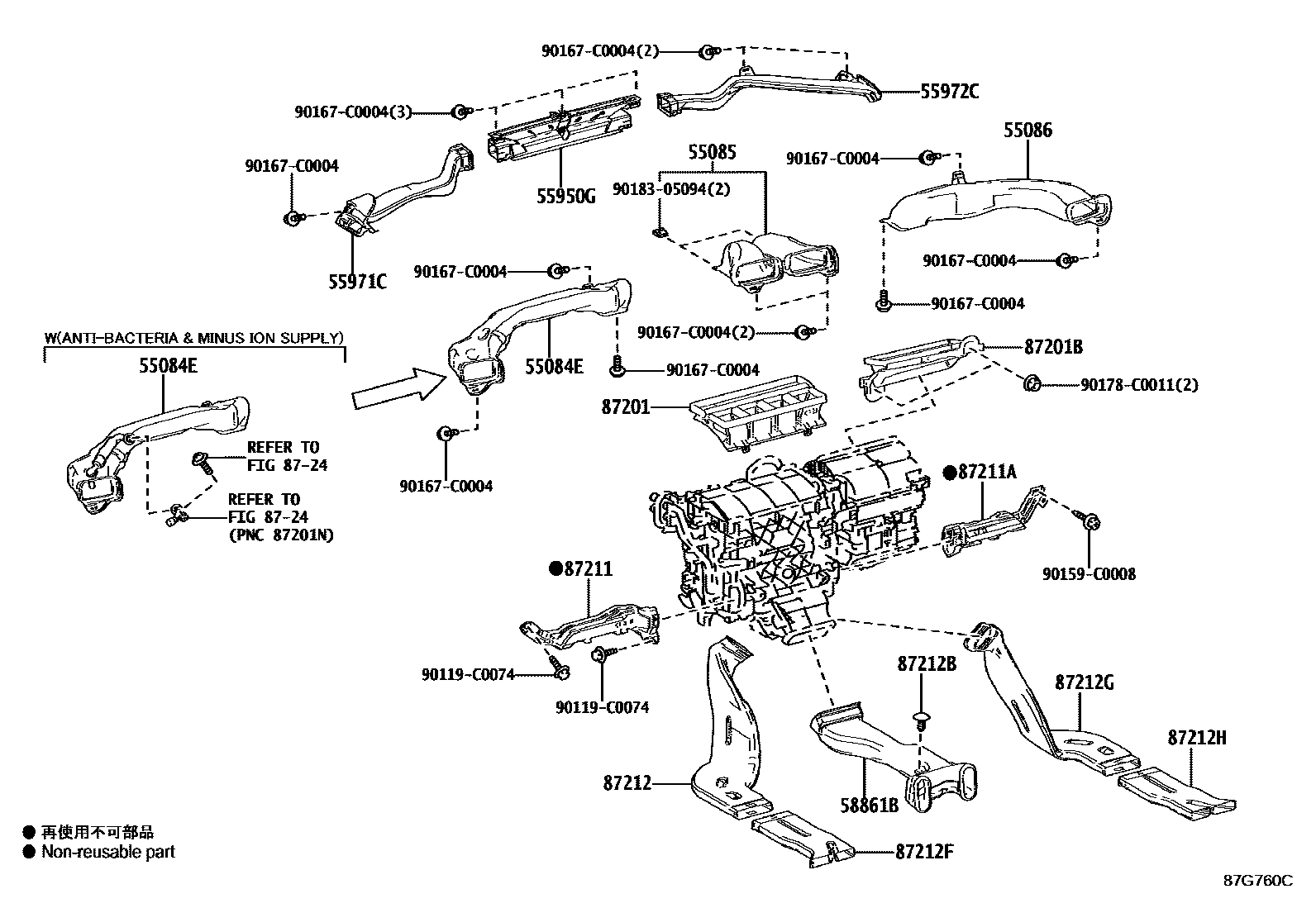

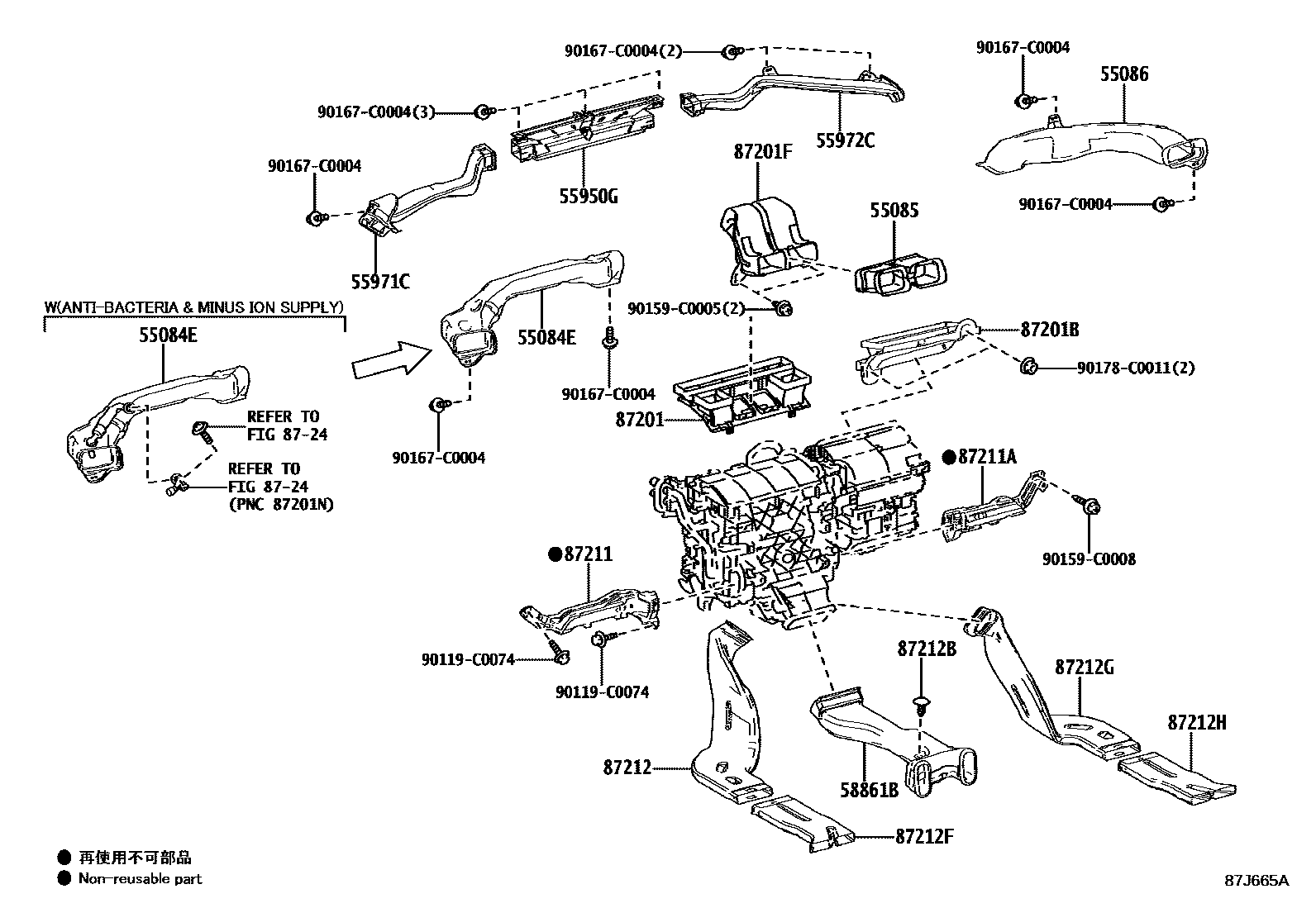

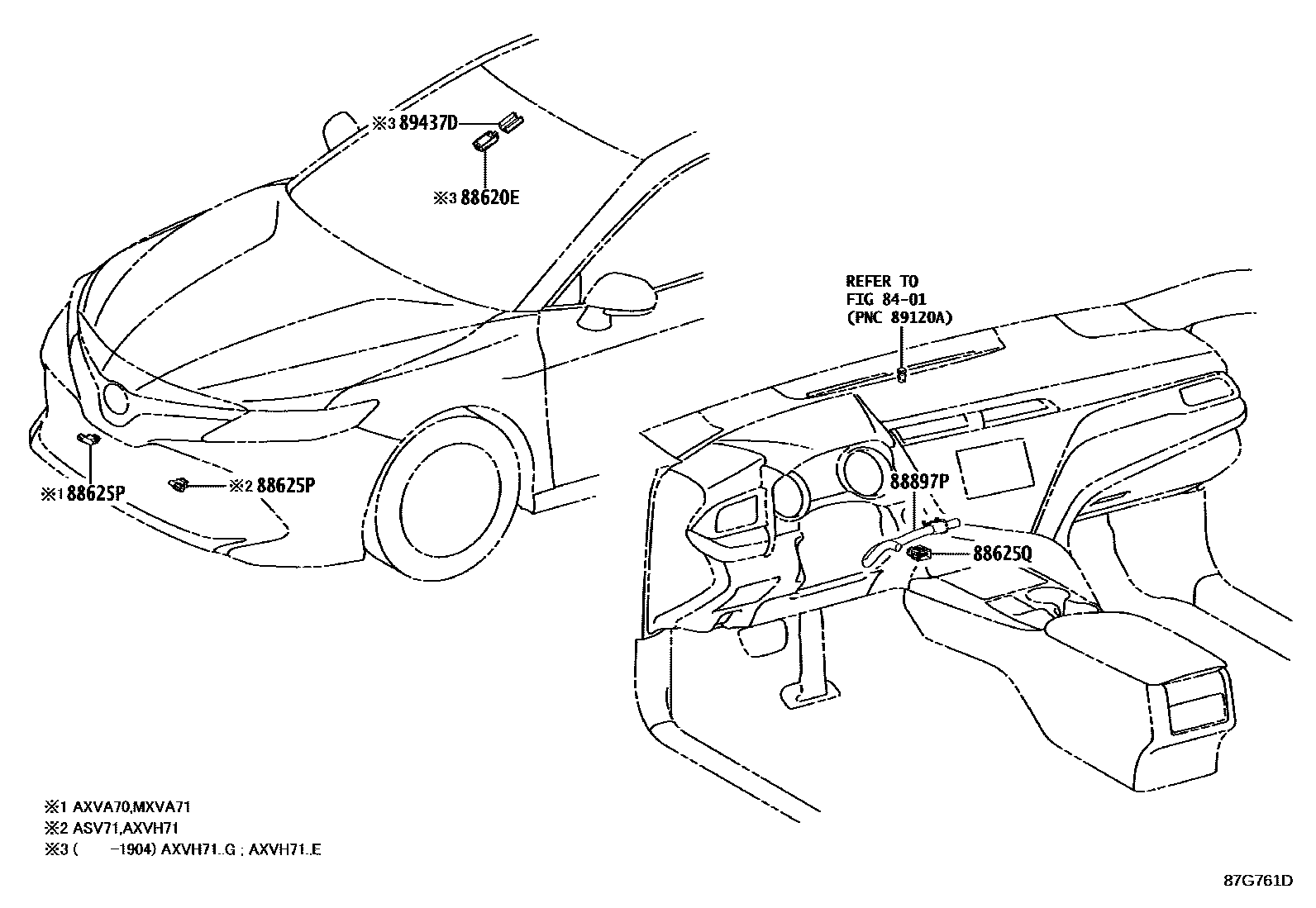

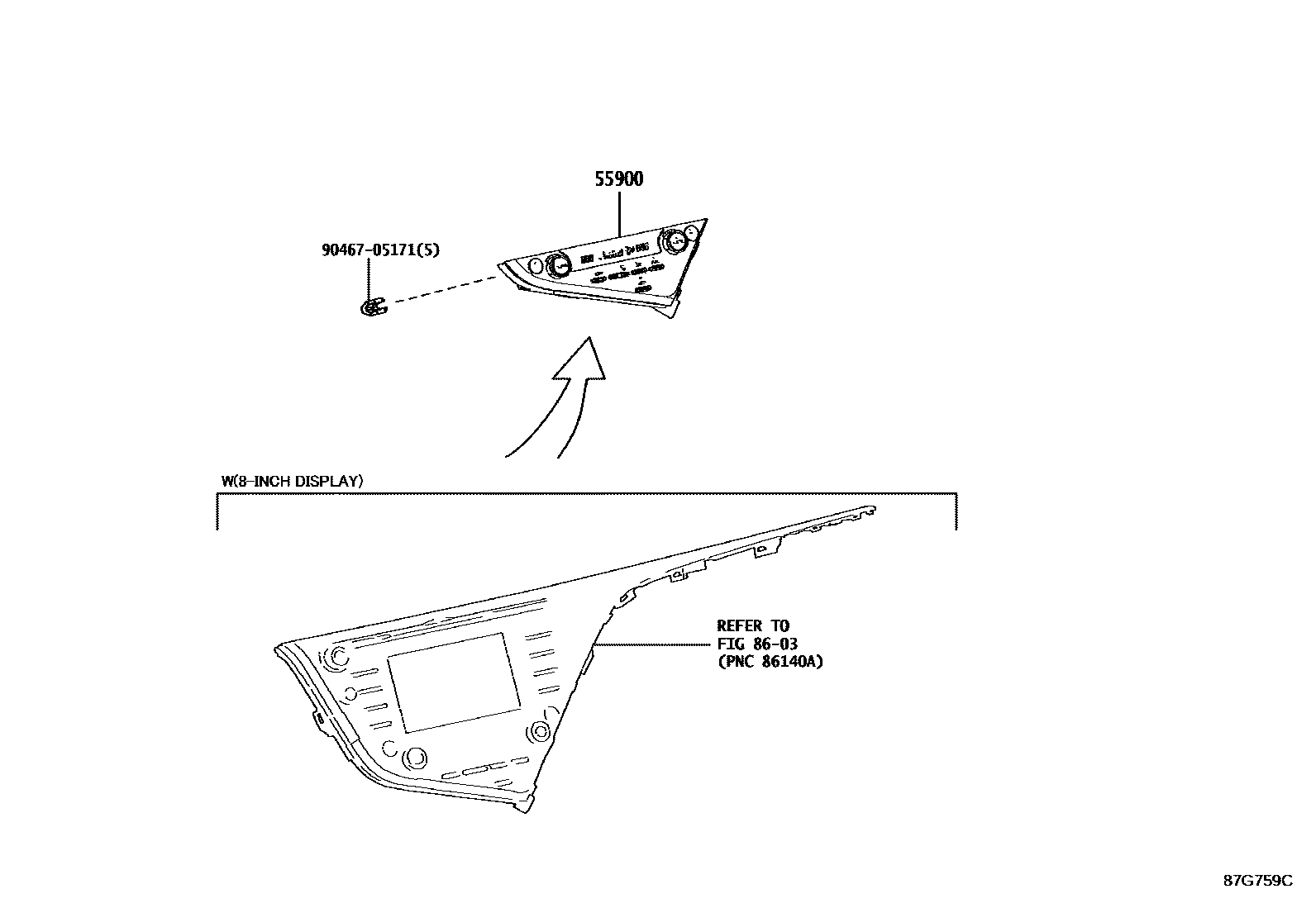

Toyota CAMRY EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55843-06340 · 55843-06341 · 55870-06050 · 55870-06051 |
| 55085 | Heater to air regulator No. 2 air duct sub-assembly | 55844-06200 · 55844-06310 |
| 55086 | Heater to air regulator No. 3 air duct sub-assembly | 55845-06170 |
| 55900 | Air conditioning control assembly | 55900-06630 · 55900-06720 |
| 55950G | Defroster nozzle assembly | 55950-06170 |
| 55971C | Side defroster No. 1 nozzle air duct | 55971-06160 |
| 55972C | Side defroster No. 2 nozzle air duct | 55972-06160 |
| 58861B | Air duct No. 1 for armrest box | 58861-06210 |
| 87201 | No. 1 air duct sub-assembly | 87201-06B00 · 87201-06C20 |
| 87201B | No. 2 air duct sub-assembly | 87201-06800 |
| 87201F | No. 3 air duct sub-assembly | 87201-06C10 |
| 87211 | No. 1 air duct | 87201-06780 |
| 87211A | Duct No. 2 | 87201-06790 |
| 87212 | No. 1 rear air duct | 87213-06100 · 87213-06101 |
| 87212F | No. 2 rear air duct | 87216-06060 |
| 87212G | No. 3 rear air duct | 87212-06100 |
| 87212H | No. 4 rear air duct | 87215-06060 |
| 88620E | Air conditioning thermistor assembly | 89941-33070 |
| 88625P | Cooler thermistor (ambient temperature sensor) | 88790-06030 · 88790-28100 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-02150 · 88625-47021 |
| 88897P | aspirator | 87201-06810 |
| 89437D | sensor cover | 89943-33060 |
