Toyota CAMRY 暖风和空调系统 - 冷却器组件 — Figure 8714

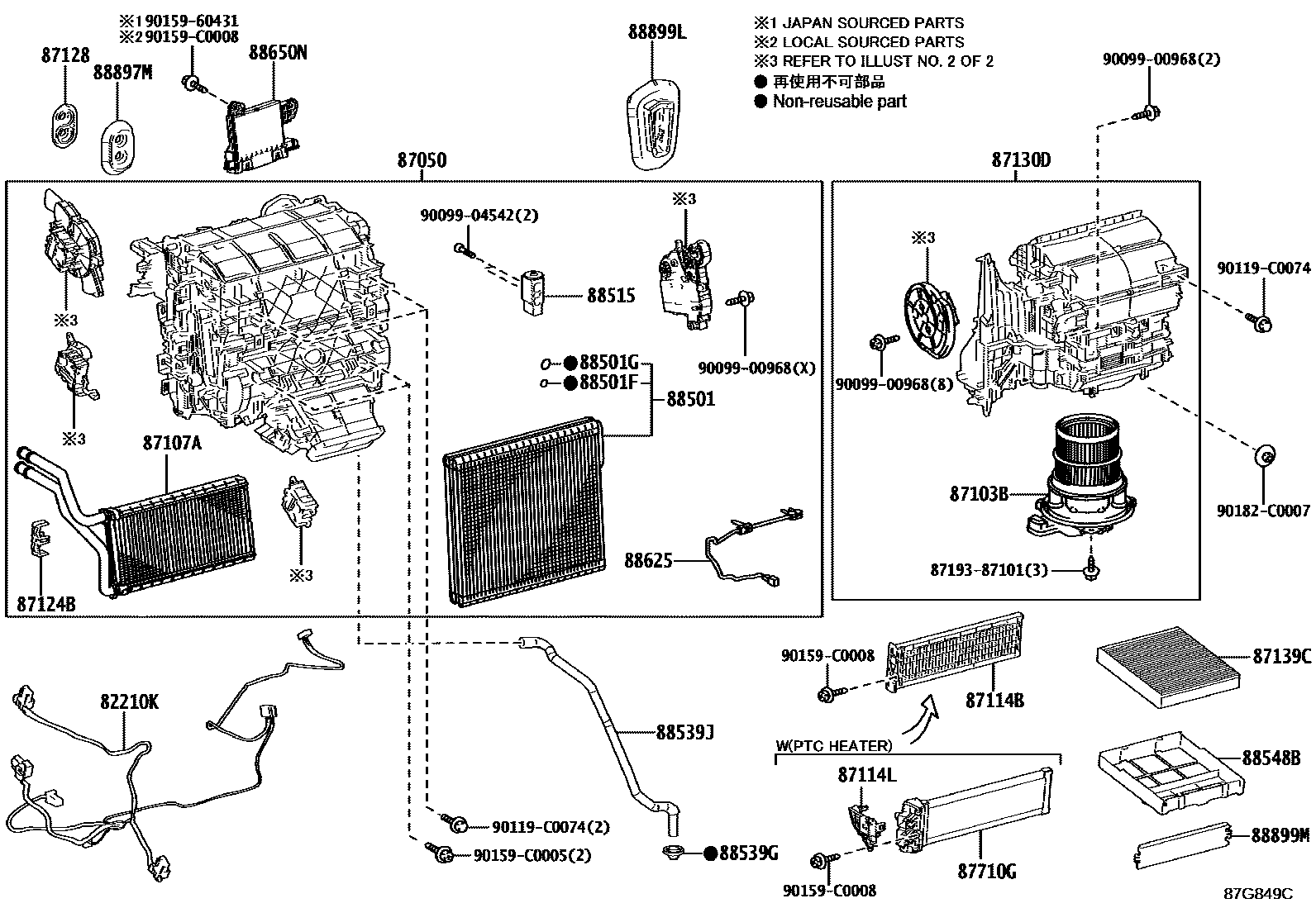

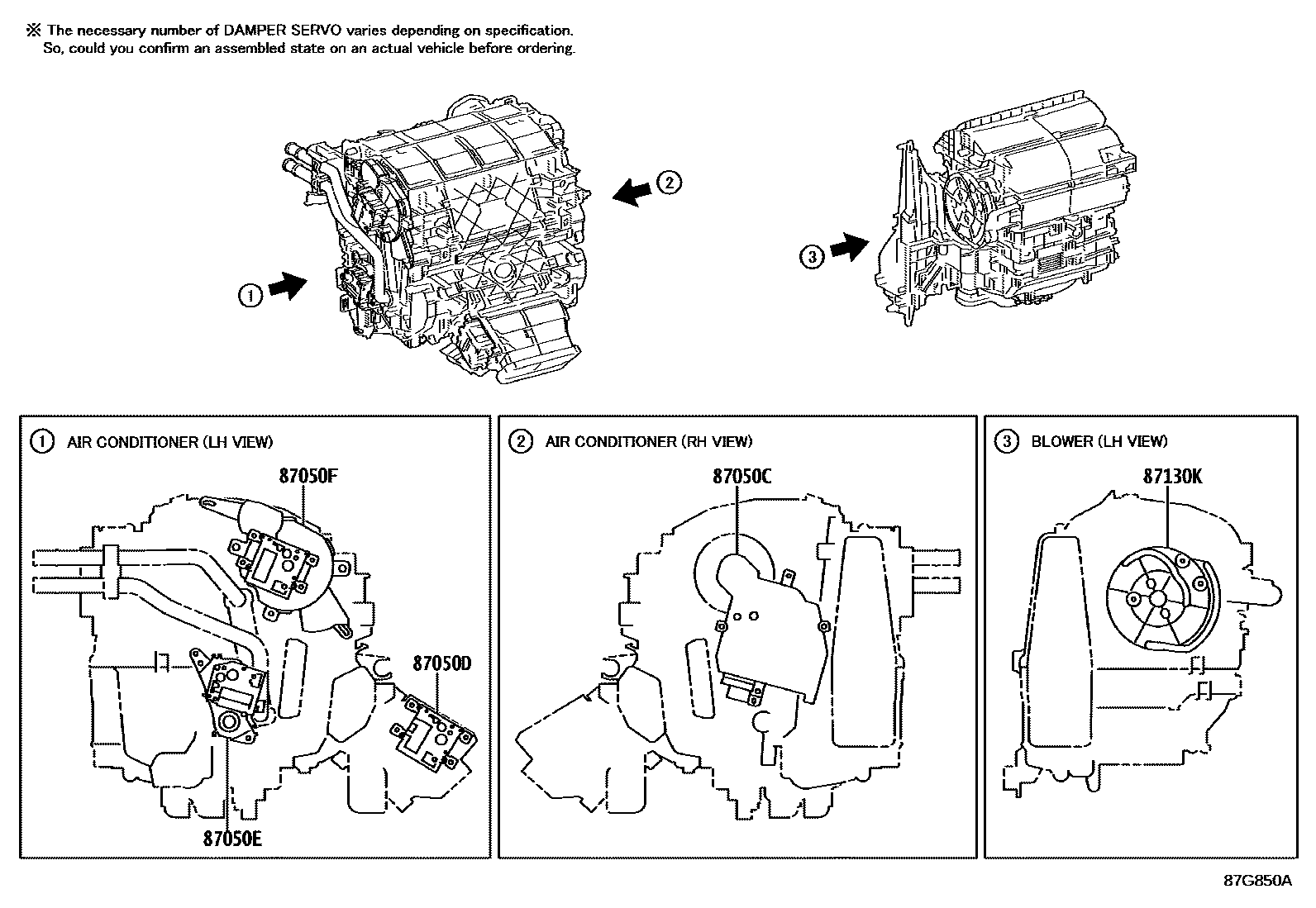

Toyota CAMRY EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82210K | Air conditioning wiring harness assembly | 82212-06210 · 82212-06220 · 82212-06250 |
| 87050 | Air conditioning radiator assembly | 87050-06A20 · 87050-06A30 · 87050-06A40 · 87050-06A41 · 87050-06A50 · 87050-06A51 · 87050-06B70 · 87050-06B80 · 87050-06B90 · 87050-06C00 |
| 87050C | No. 1 air conditioner radiator damper servo mechanism sub-assembly | 87106-06370 |
| 87050D | No. 2 air conditioner radiator damper servo mechanism sub-assembly | 87106-06380 |
| 87050E | No. 3 air conditioner radiator damper servo mechanism sub-assembly | 87106-06400 |
| 87050F | No. 4 air conditioner radiator damper servo mechanism sub-assembly | 87106-06410 |
| 87103B | Blower motor sub-assembly with fan | 87103-06130 |
| 87107A | Heater radiator device sub-assembly | 87107-06110 |
| 87114B | heater cover | 87114-06060 |
| 87114L | Heater cover No. 2 | 87114-06050 |
| 87124B | heater clip | 87124-06110 |
| 87128 | heater seal | 87128-0A040 · 87128-28010 |
| 87130D | Blower assembly | 87130-06420 |
| 87130K | No. 1 blower damper servo mechanism sub-assembly | 87106-06390 |
| 87139C | air purification filter | 87139-02270 · 87139-06150 · 87139-06170 · 87139-58010 |
| 87710G | Rapid heater assembly | 87710-06040 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-06460 · 88501-06470 · 88501-0E240 |
| 88501F | No. 1 cooler evaporator O-ring (discharge) | 90099-14120 |
| 88501G | No. 1 cooler evaporator O-ring (suction) | 90099-14121 |
| 88515 | Cooler expansion valve | 88515-06150 · 88515-06180 · 88515-0R040 |
| 88539G | Seal (for cooler unit drain hose) | 88888-06030 |
| 88539J | Cooler drain hose | 88539-06180 |
| 88548B | air filter housing | 88899-02490 · 88899-02491 · 88899-06160 |
| 88625 | Cooler No. 1 Thermistor | 88620-06070 · 88620-06080 |
| 88650N | Air conditioning amplifier assembly | 88650-06B60 · 88650-06B61 · 88650-06B70 · 88650-06E30 · 88650-06E31 · 88650-06E40 · 88650-06E41 · 88650-06F30 · 88650-06F31 · 88650-06J00 · 88650-06J10 · 88650-06K40 · 88650-06K50 |
| 88897M | Seals (for heater tubes) | 87128-06020 |
| 88899L | Cooling unit parts | 88899-06290 · 88899-33090 |
| 88899M | cover (for air cleaner) | 88899-06110 |
