Toyota CAMRY 后视镜 — Figure 8701

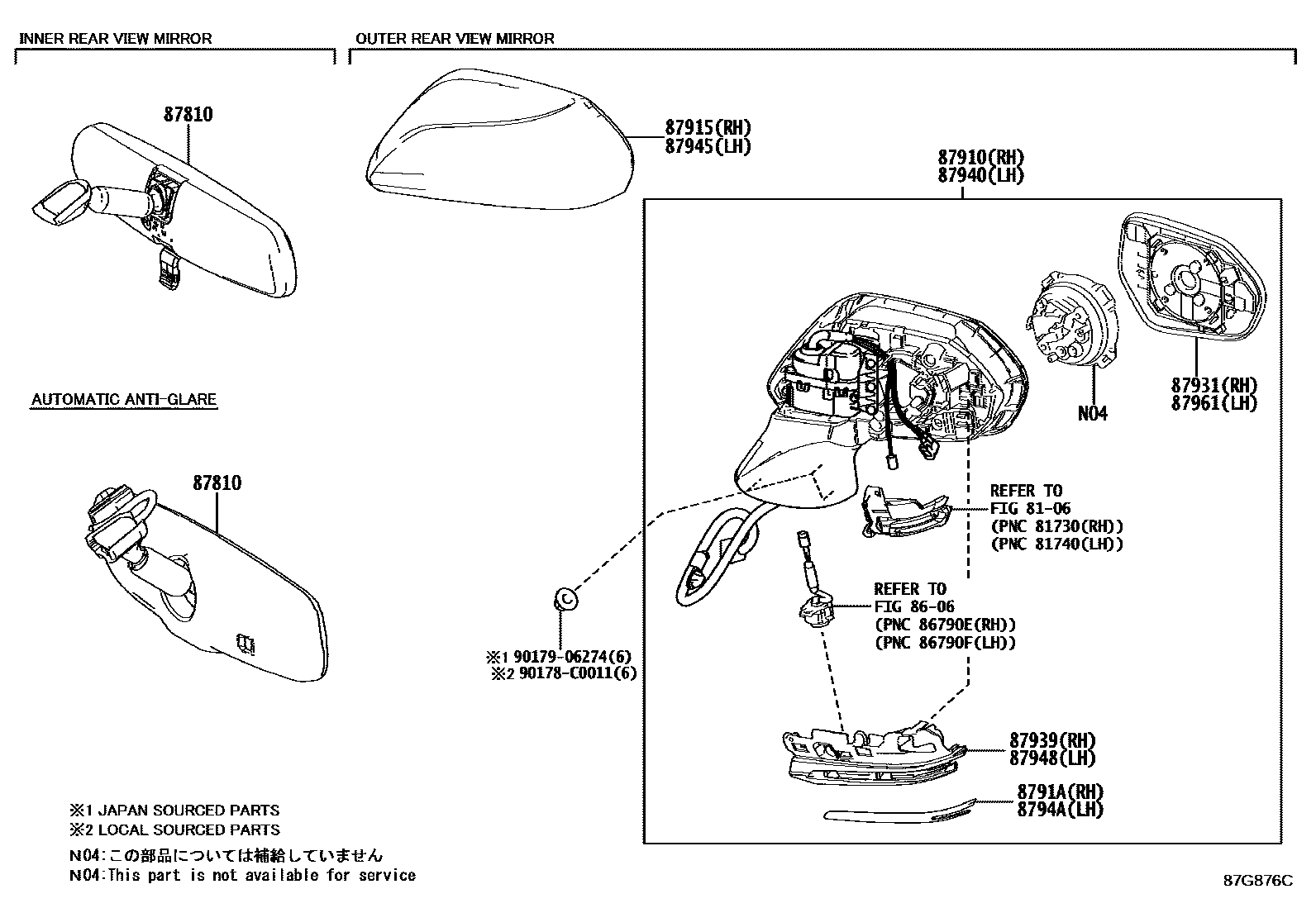

Toyota CAMRY EPC diagram 8701, 后视镜, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-06220 · 87810-06230 · 87810-06231 · 87810-06240 · 87810-08180 |
| 87910 | Right exterior rearview mirror assembly | 87910-06890 · 87910-06A00 · 87910-06A01 · 87910-06C90 |
| 87915 | Right exterior rearview mirror cover | 87915-06914 |
| 8791A | Right exterior rearview mirror cover No. 2 | 8791A-06890 |
| 87931 | Right exterior rearview mirror | 87902-06090 · 87902-06100 |
| 87939 | Right exterior rearview mirror hole cover | 87939-06A00 |
| 87940 | Left exterior rearview mirror assembly | 87940-06890 · 87940-06A00 · 87940-06A01 · 87940-06C90 |
| 87945 | Left exterior rearview mirror cap | 87945-06914 |
| 87948 | Left exterior rearview mirror hole cover | 87948-06A00 |
| 8794A | No. 2 left exterior rearview mirror cap | 8794A-06890 |
| 87961 | Left exterior rearview mirror | 87907-06070 · 87907-06080 |
