Toyota CAMRY 预碰撞安全系统 — Figure 8617

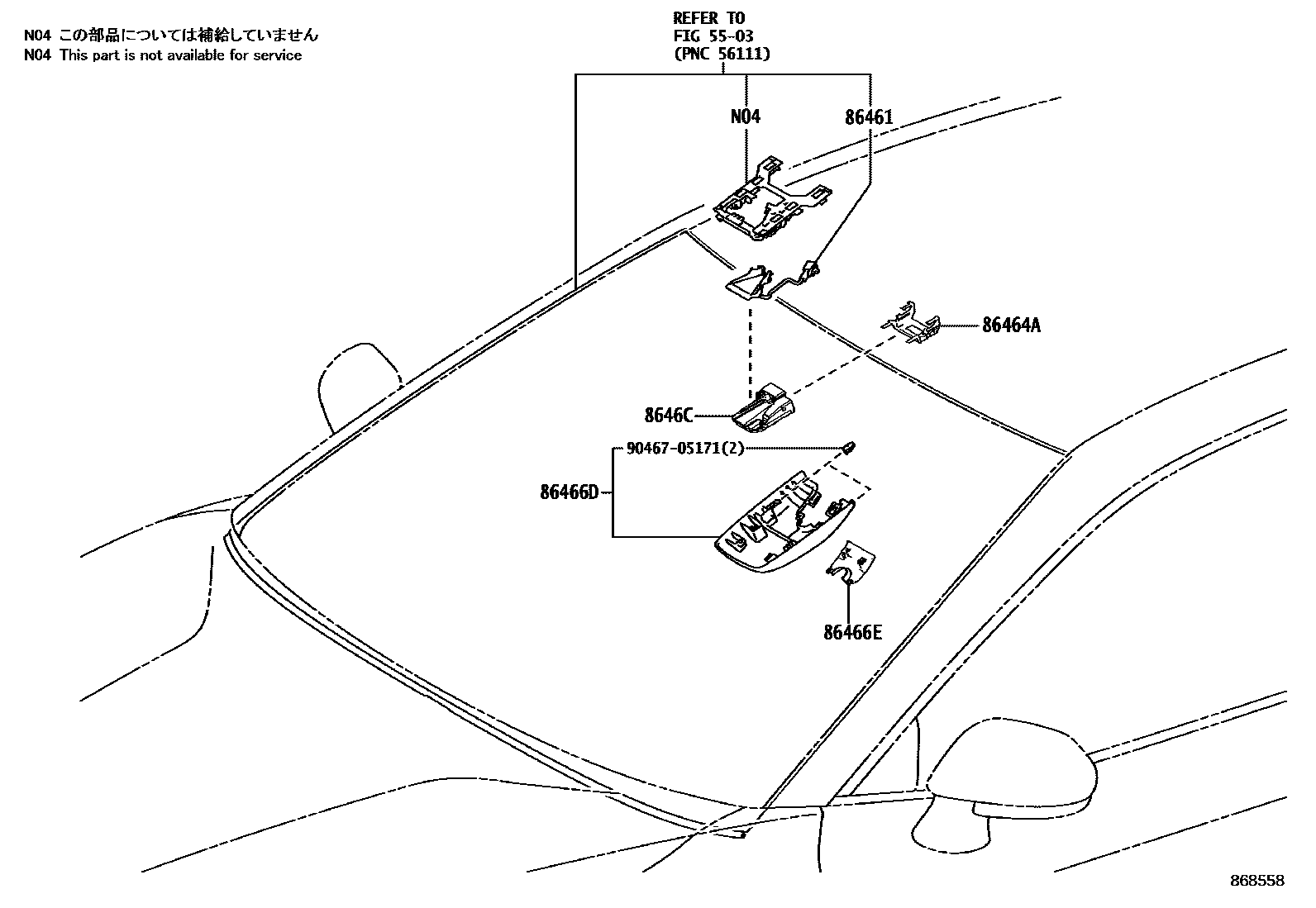

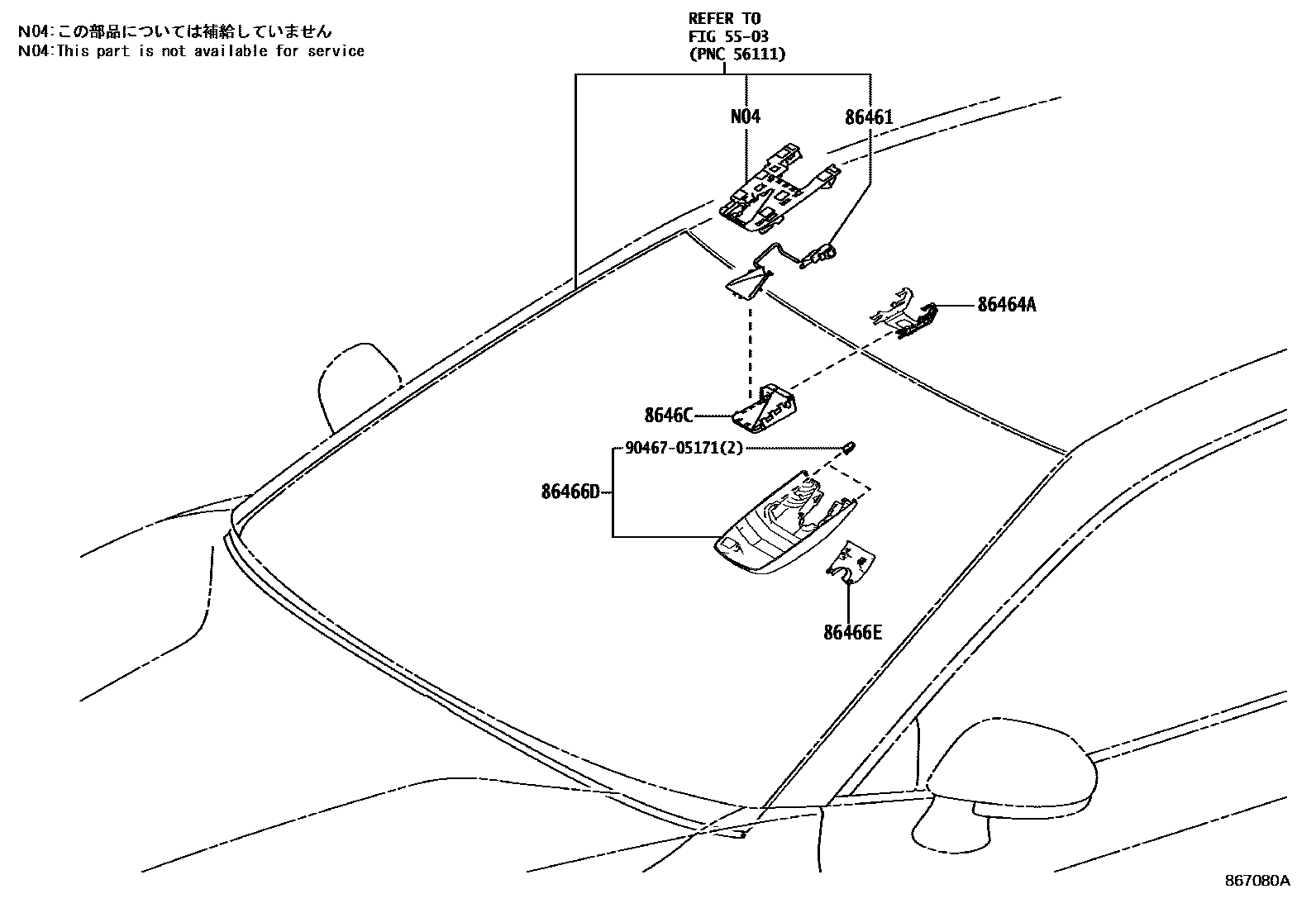

Toyota CAMRY EPC diagram 8617, 预碰撞安全系统, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86461 | front identification cover | 86401-06040 · 86461-33030 |
| 86464A | Front identification lock | 86464-0E010 · 86464-71010 |
| 86466D | Front identification cover No. 1 | 86466-06070 · 86466-33060 |
| 86466E | Front identification cover No. 2 | 86466-33070 |
| 8646C | front recognition camera | 8646C-06030 · 8646C-06050 · 8646C-06120 |
