Toyota CAMRY 车载电话和呼救装置 — Figure 8615

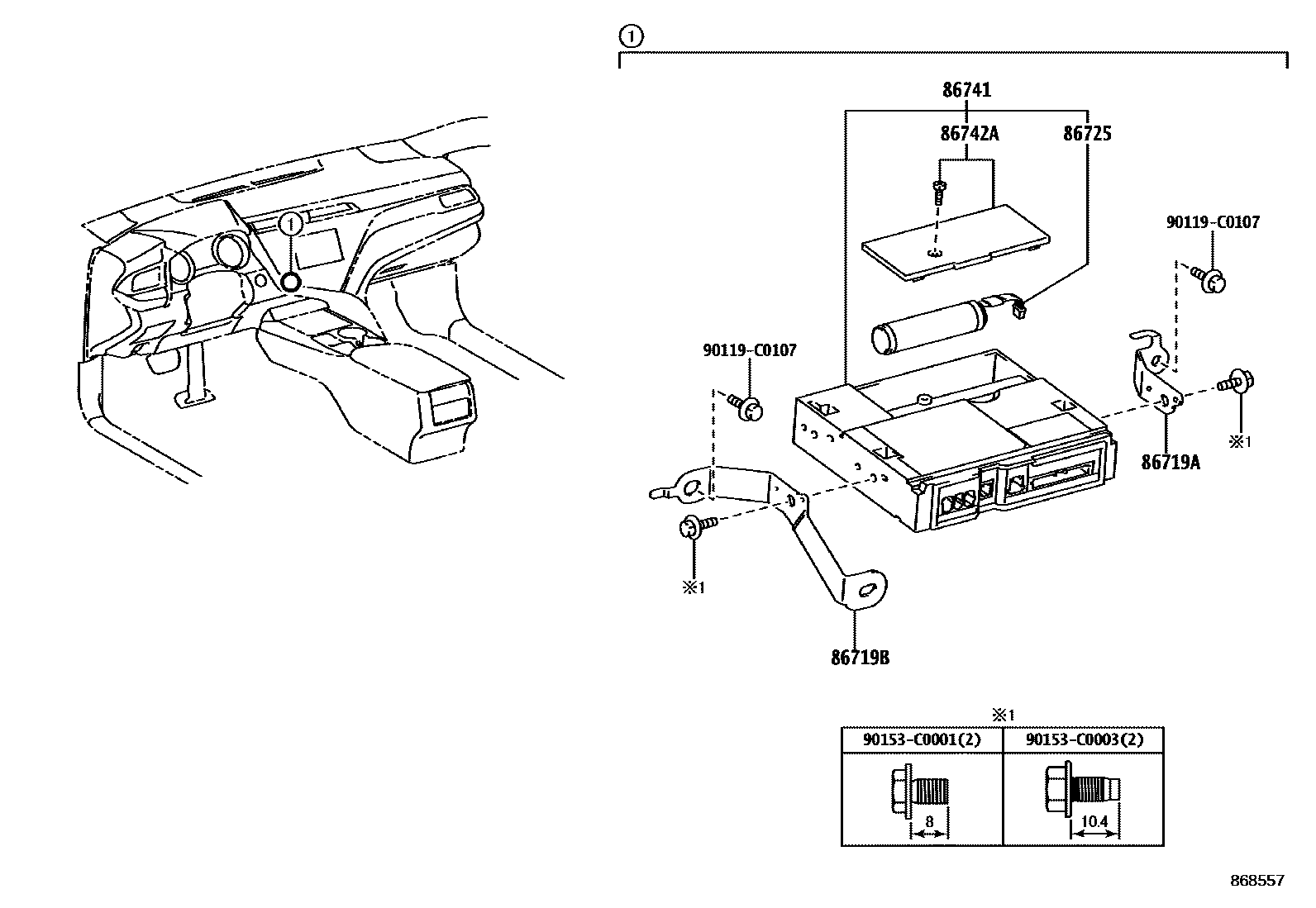

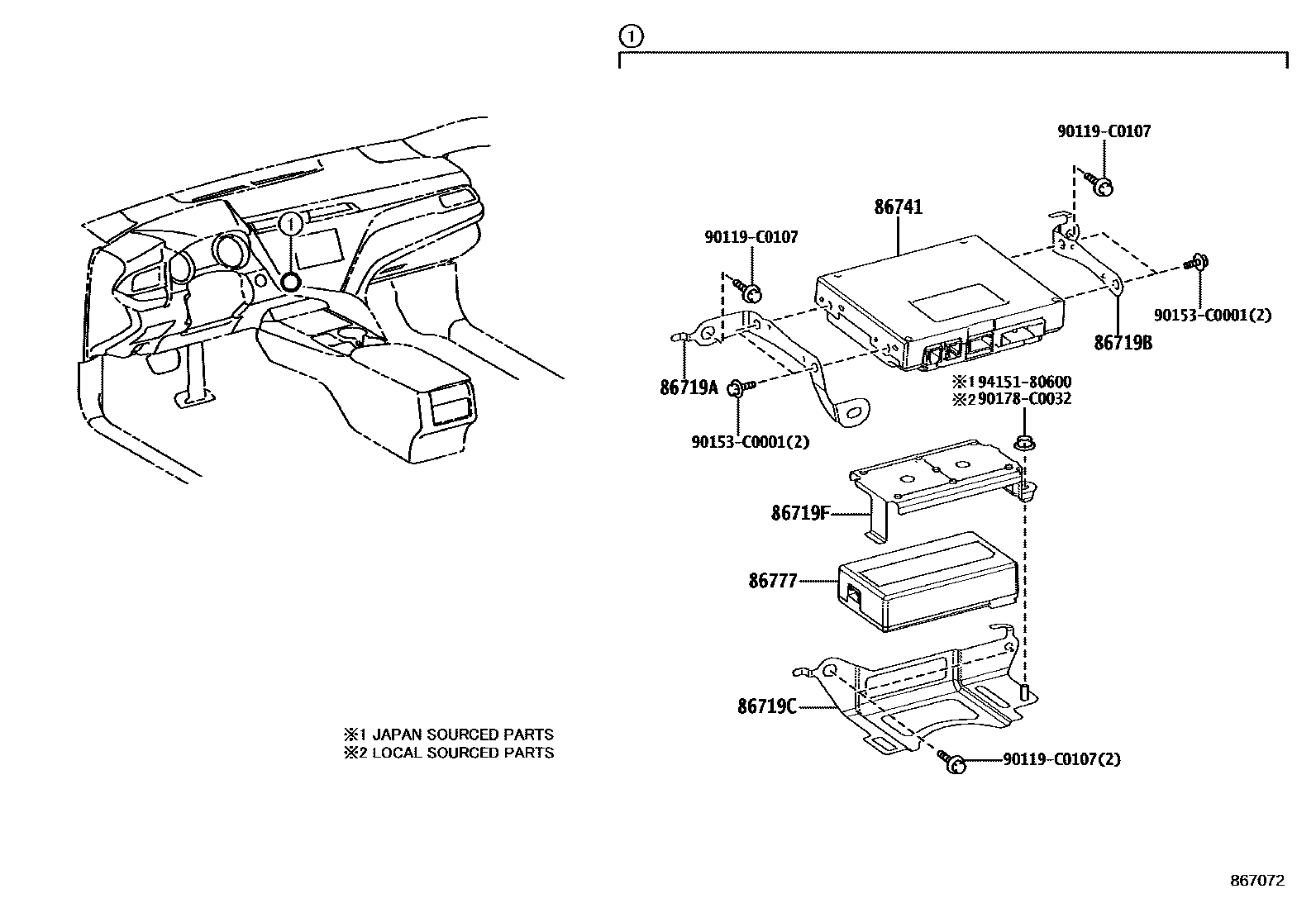

Toyota CAMRY EPC diagram 8615, 车载电话和呼救装置, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86719A | Phone holder No. 1 | 86719-06080 · 86719-06170 |
| 86719B | Phone holder No. 2 | 86719-06090 · 86719-06180 |
| 86719C | No. 3 phone holder | 86719-06100 |
| 86719F | No. 4 phone holder | 86719-33170 |
| 86725 | mobile phone battery | 86725-F4010 |
| 86741 | Telephone transceiver | 86741-06040 · 86741-06100 · 86741-06150 |
| 86742A | transceiver cover | 86742-0A010 · 86742-F4010 |
| 86777 | Distress signal battery | 86777-76040 |
