Toyota CAMRY 喇叭 — Figure 8611

Toyota CAMRY EPC diagram 8611, 喇叭, with 2 images and 5 PNC and OE references.

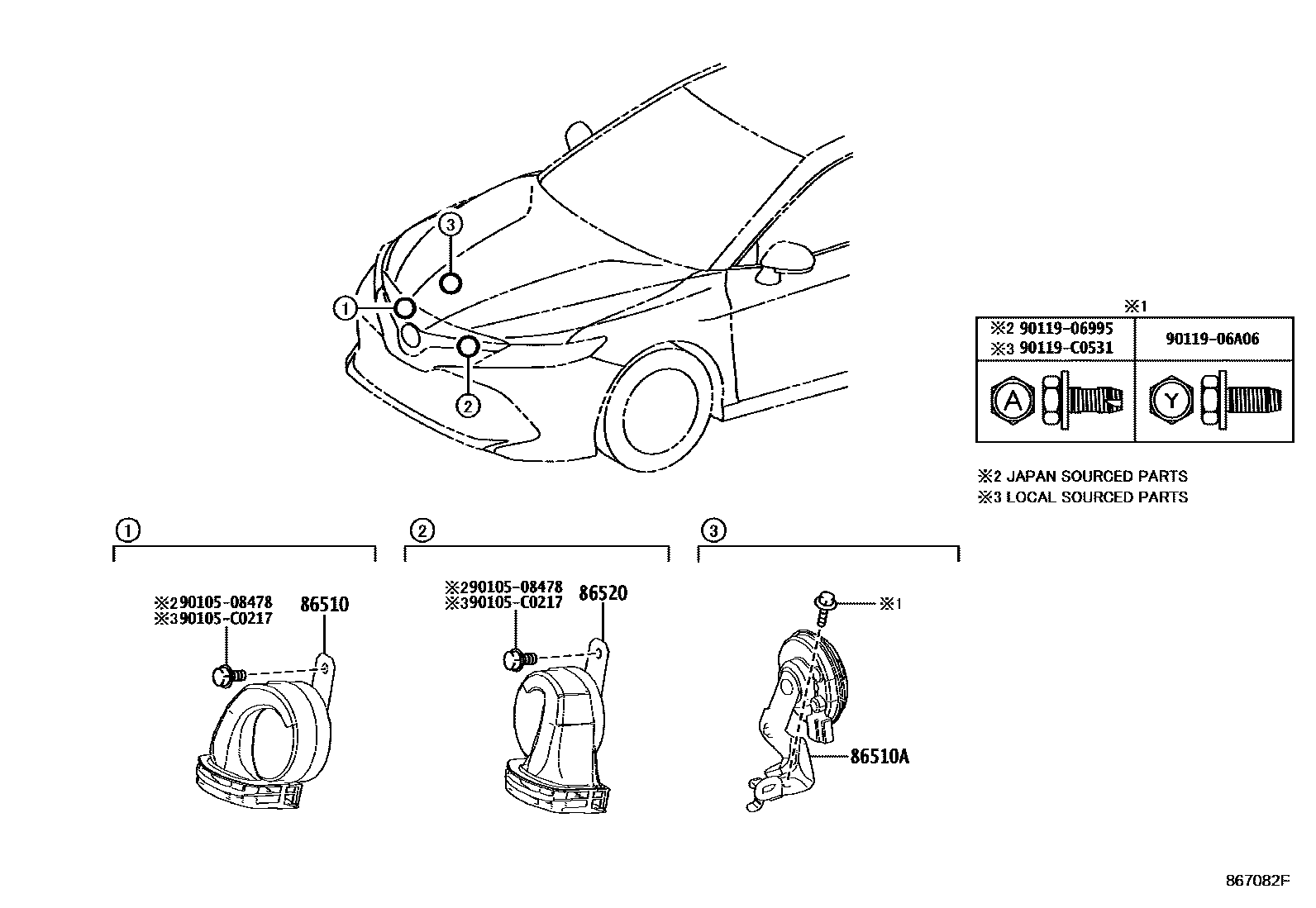

Toyota CAMRY 喇叭 EPC diagram — 867082F
喇叭 — 867082F (201712 – 202103)

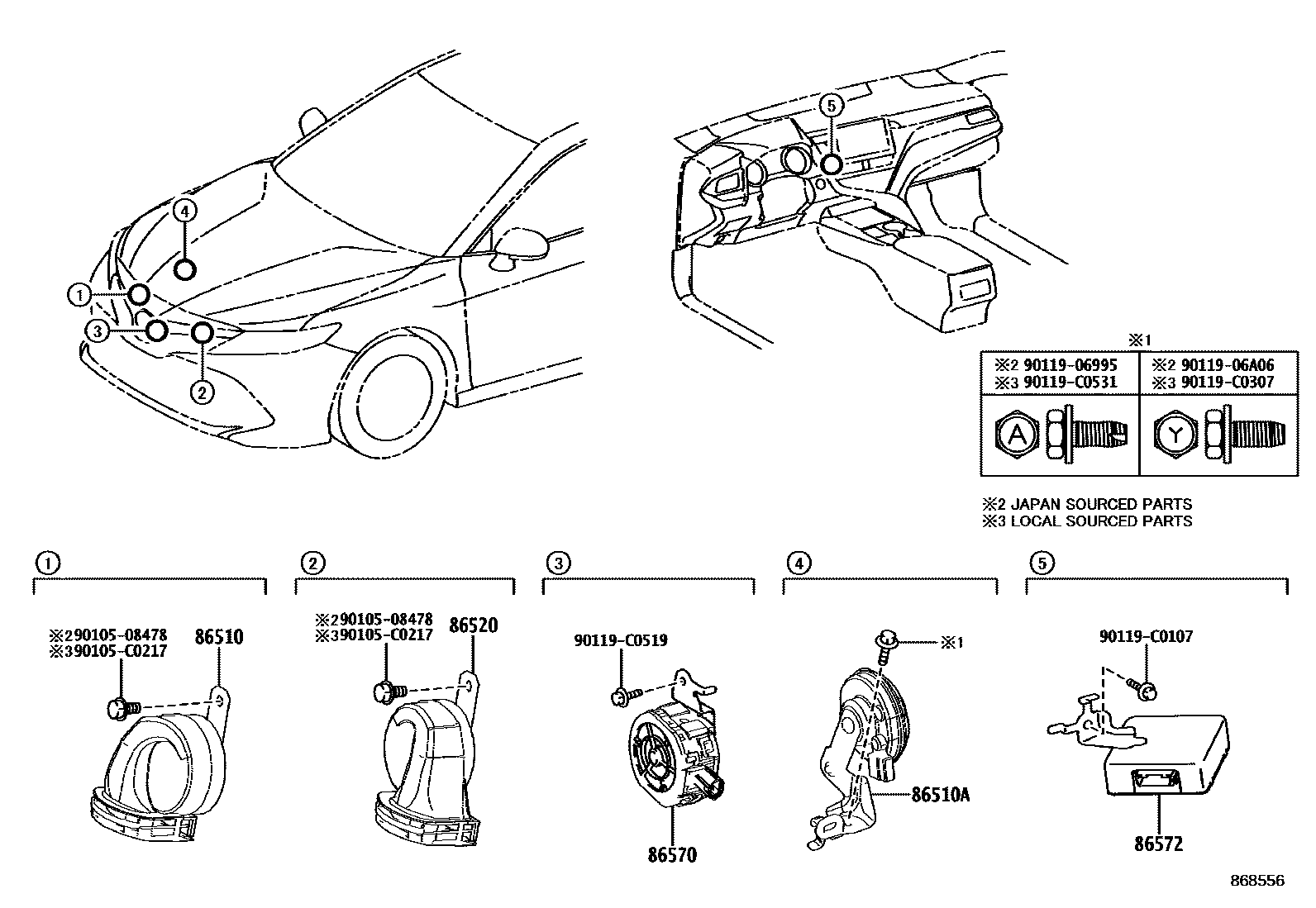

Toyota CAMRY 喇叭 EPC diagram — 868556
喇叭 — 868556 (202103 – 999999)

PNC and OE references

PNCPart nameOE numbers
86510tweeter assembly86510-33300
86510AAlarm horn assembly86560-06090
86520Subwoofer assembly86520-12740
86570Vehicle intrusion speaker assembly86570-06020
86572vehicle hacking speaker controller86572-06030 · 86572-06040
