Toyota CAMRY 倒车影像和摄像头 — Figure 8606

Toyota CAMRY EPC diagram 8606, 倒车影像和摄像头, with 2 images and 7 PNC and OE references.

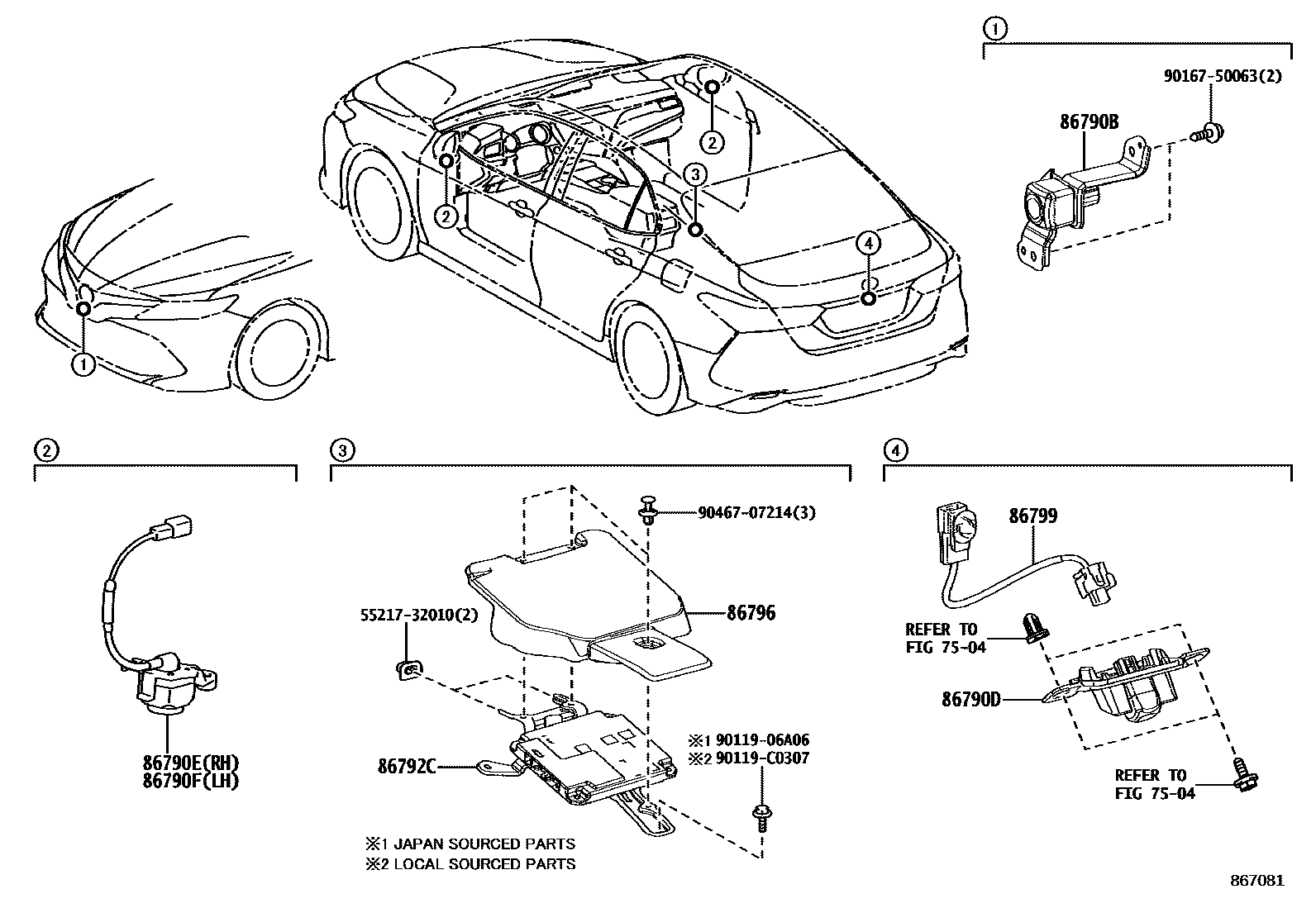

Toyota CAMRY 倒车影像和摄像头 EPC diagram — 867081
倒车影像和摄像头 — 867081 (201712 – 202103)

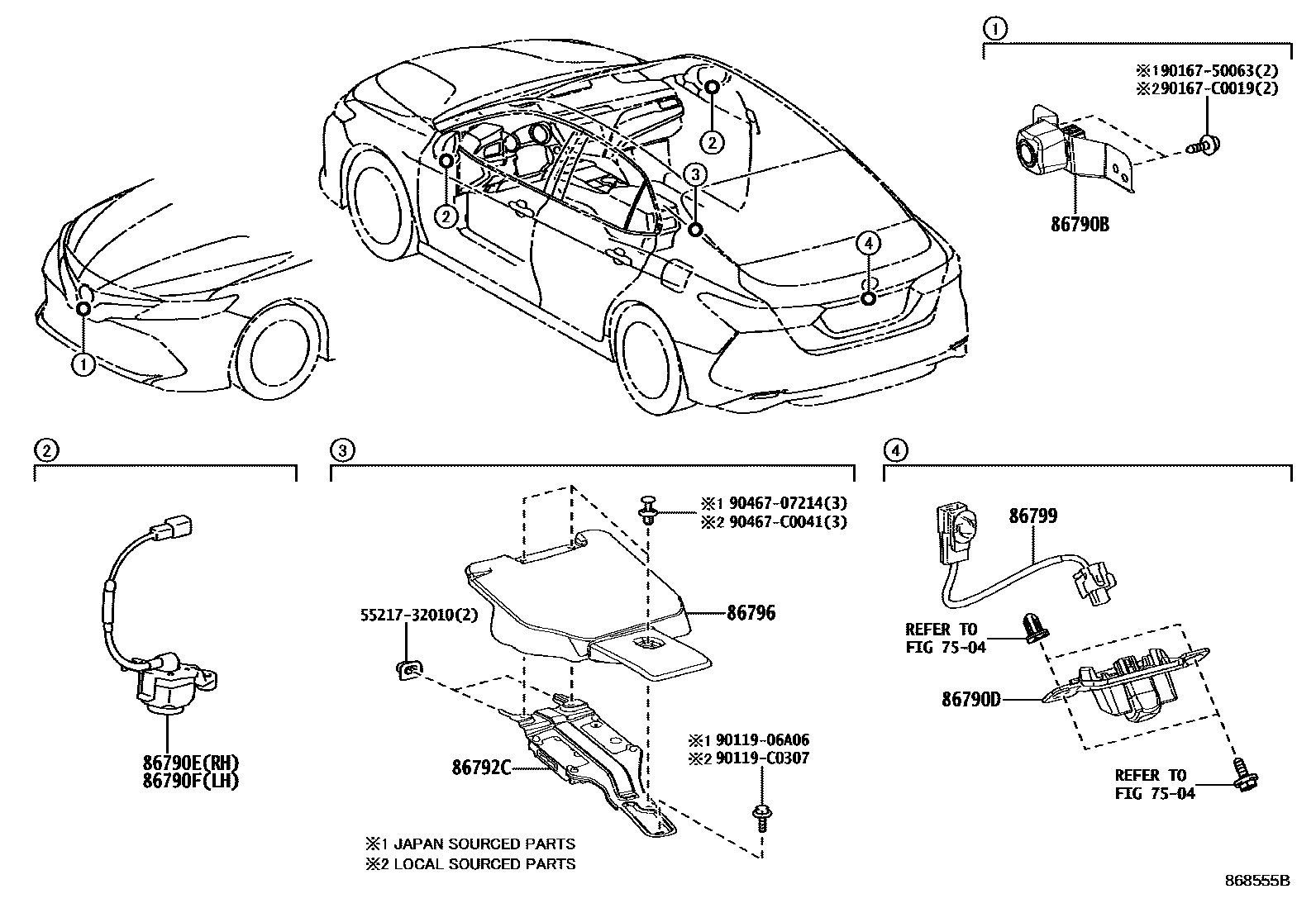

Toyota CAMRY 倒车影像和摄像头 EPC diagram — 868555B
倒车影像和摄像头 — 868555B (202103 – 999999)

PNC and OE references

PNCPart nameOE numbers
86790BFront image camera assembly86790-06100 · 86790-06250
86790DRear reversing image camera assembly86790-06130 · 86790-06160 · 86790-06220 · 867B0-06050
86790ERight image camera assembly86790-06120 · 86790-06240
86790FLeft image camera assembly86790-06110 · 86790-06230
86792CParking assist ECU86792-33061 · 86792-33300
86796Parking assist ECU cover86796-06030
86799Reversing image camera wiring harness86799-06030 · 86799-06040 · 86799-06130
