Toyota CAMRY antenna — Figure 8604

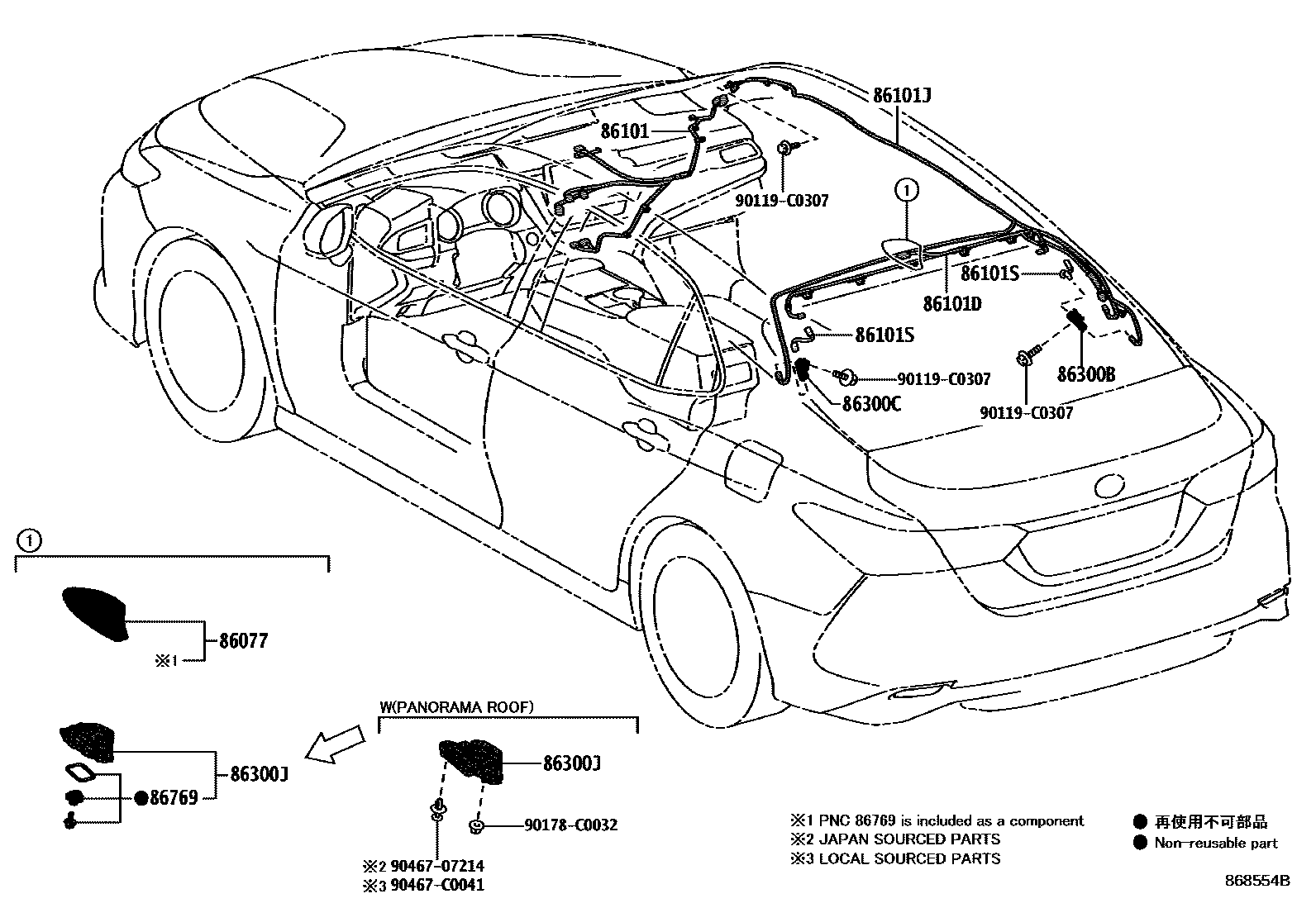

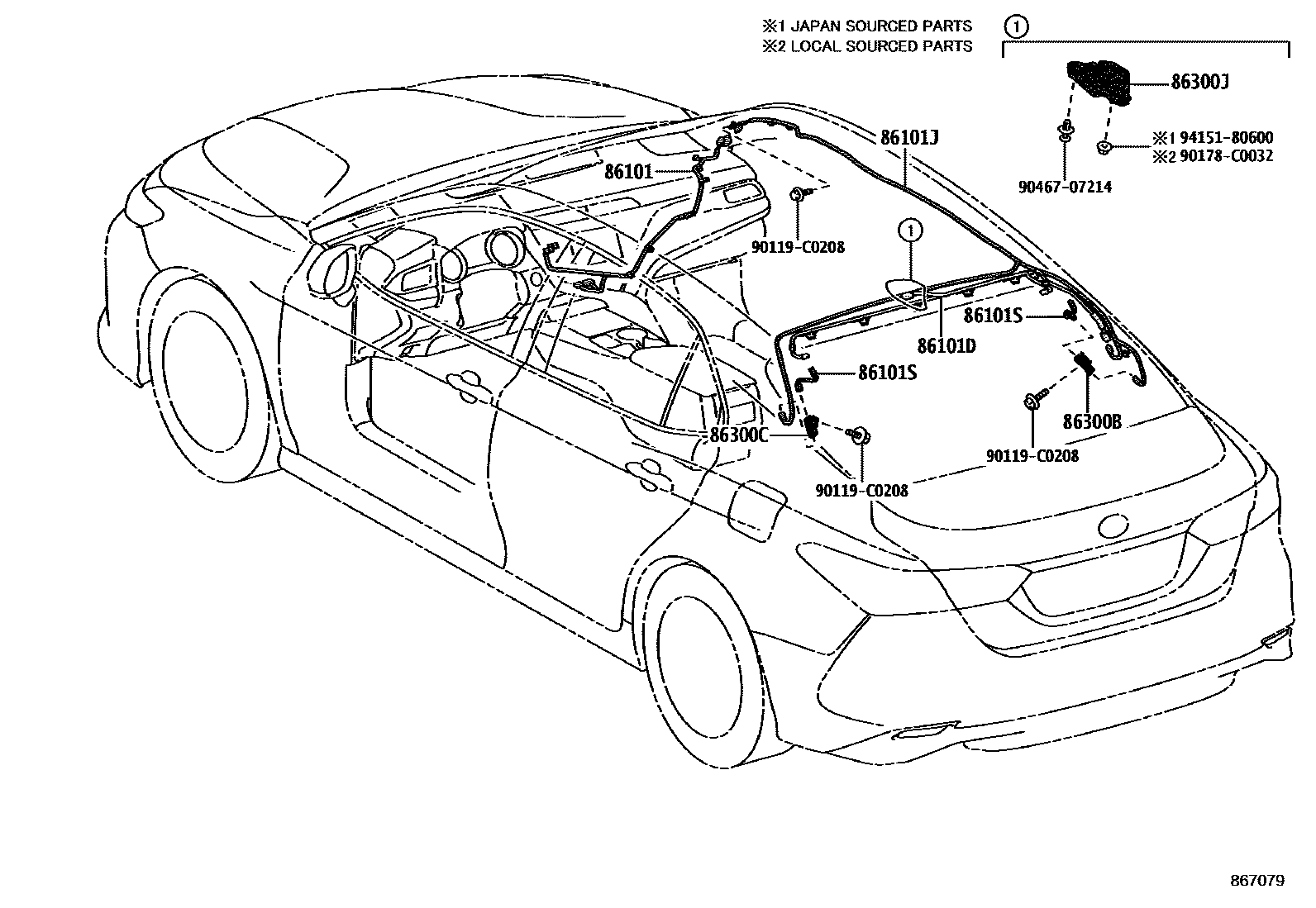

Toyota CAMRY EPC diagram 8604, antenna, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-06B00 · 86101-06B10 · 86101-06G90 · 86101-06J10 |
| 86101D | No. 3 antenna wire sub-assembly | 86101-06D40 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-06A60 · 86101-06A70 · 86101-06A80 · 86101-06D90 · 86101-06G80 · 86101-06J70 |
| 86101S | Antenna wire sub-assembly | 86101-06A30 |
| 86300B | No. 1 amplifier antenna assembly | 86300-06250 |
| 86300C | No. 2 amplifier antenna assembly | 86300-06260 |
| 86300J | Roof antenna assembly | 86760-06120 · 86760-06190 · 86760-06200 |
| 86769 | roof radome | 86769-48020 |
