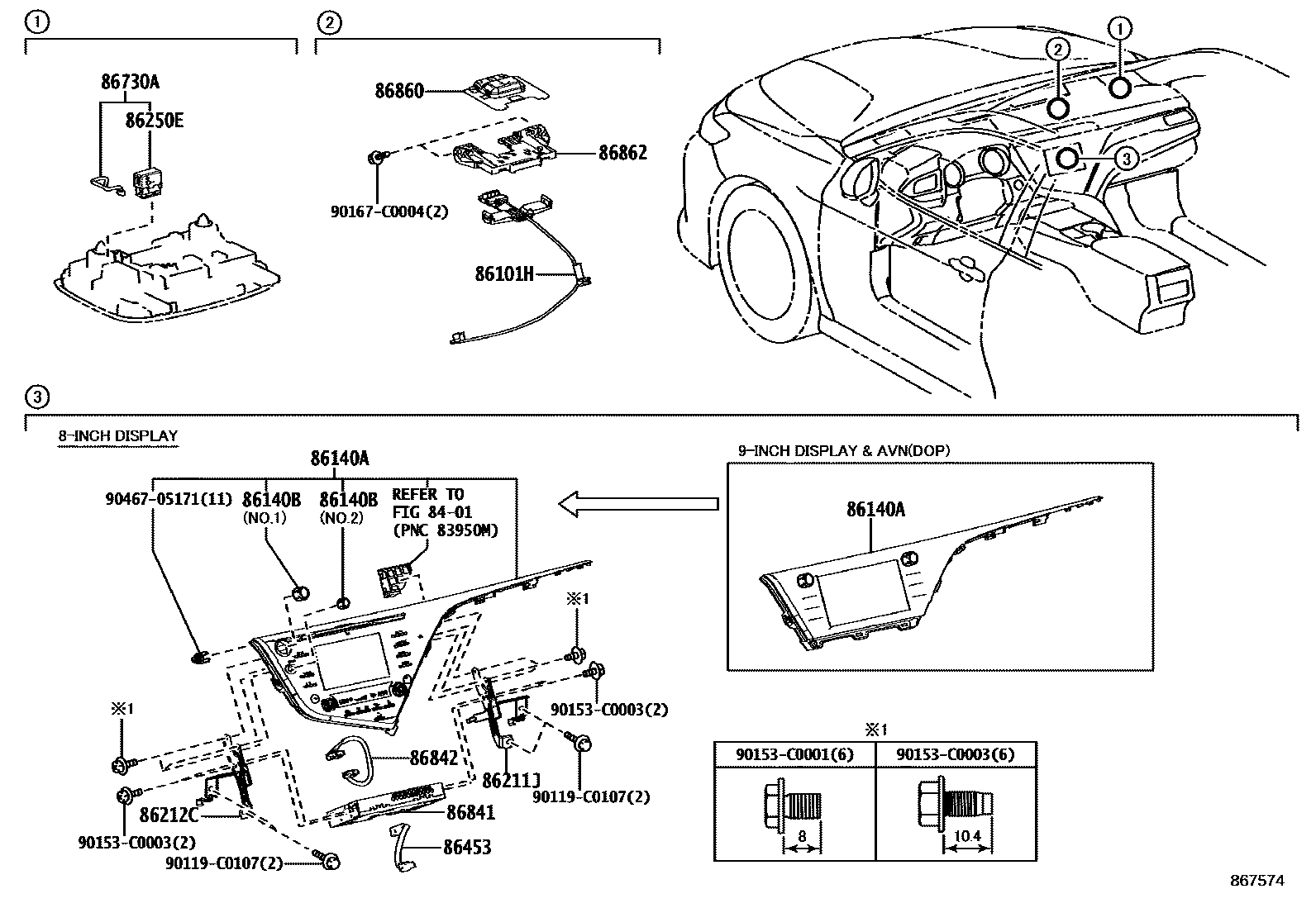

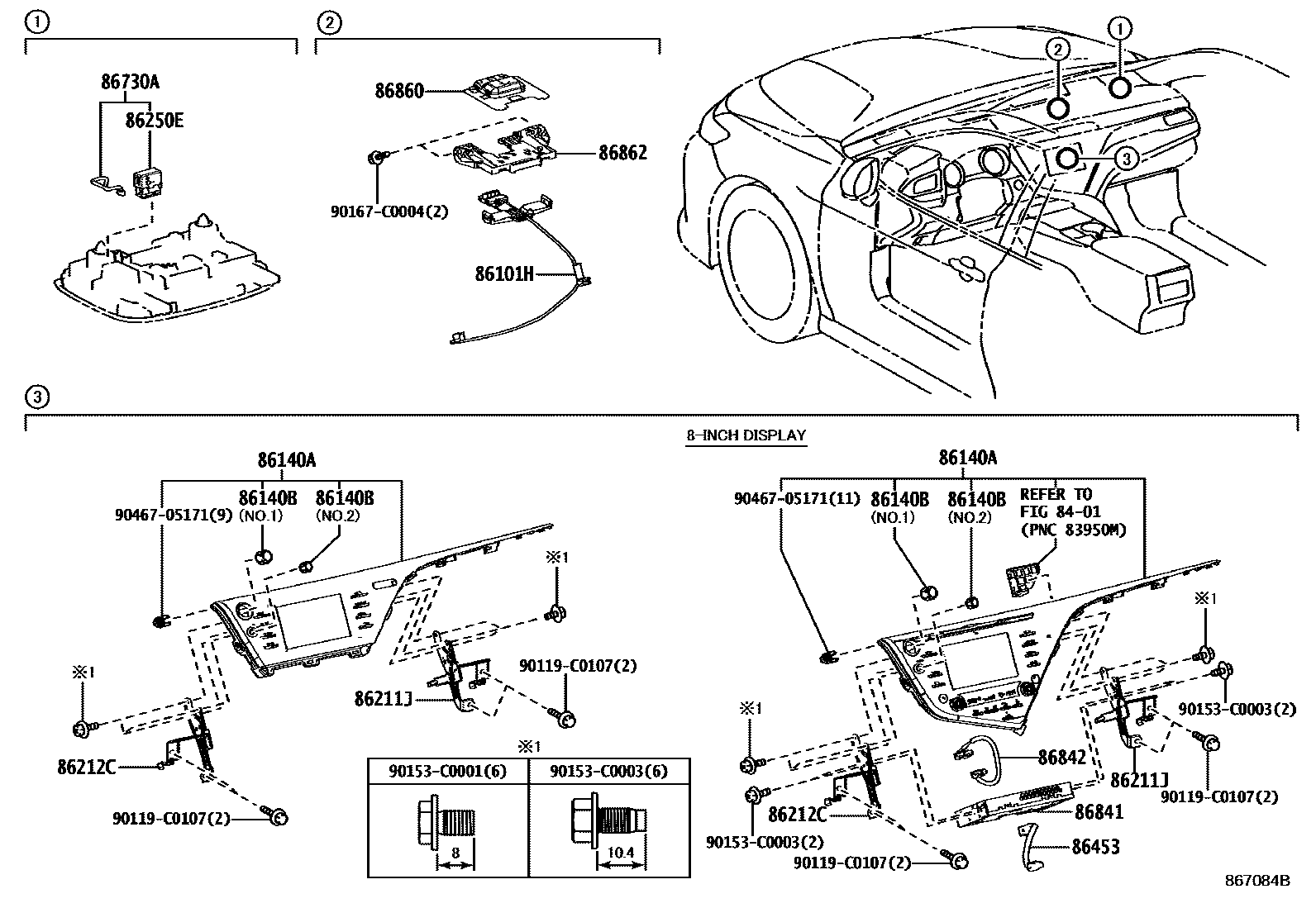

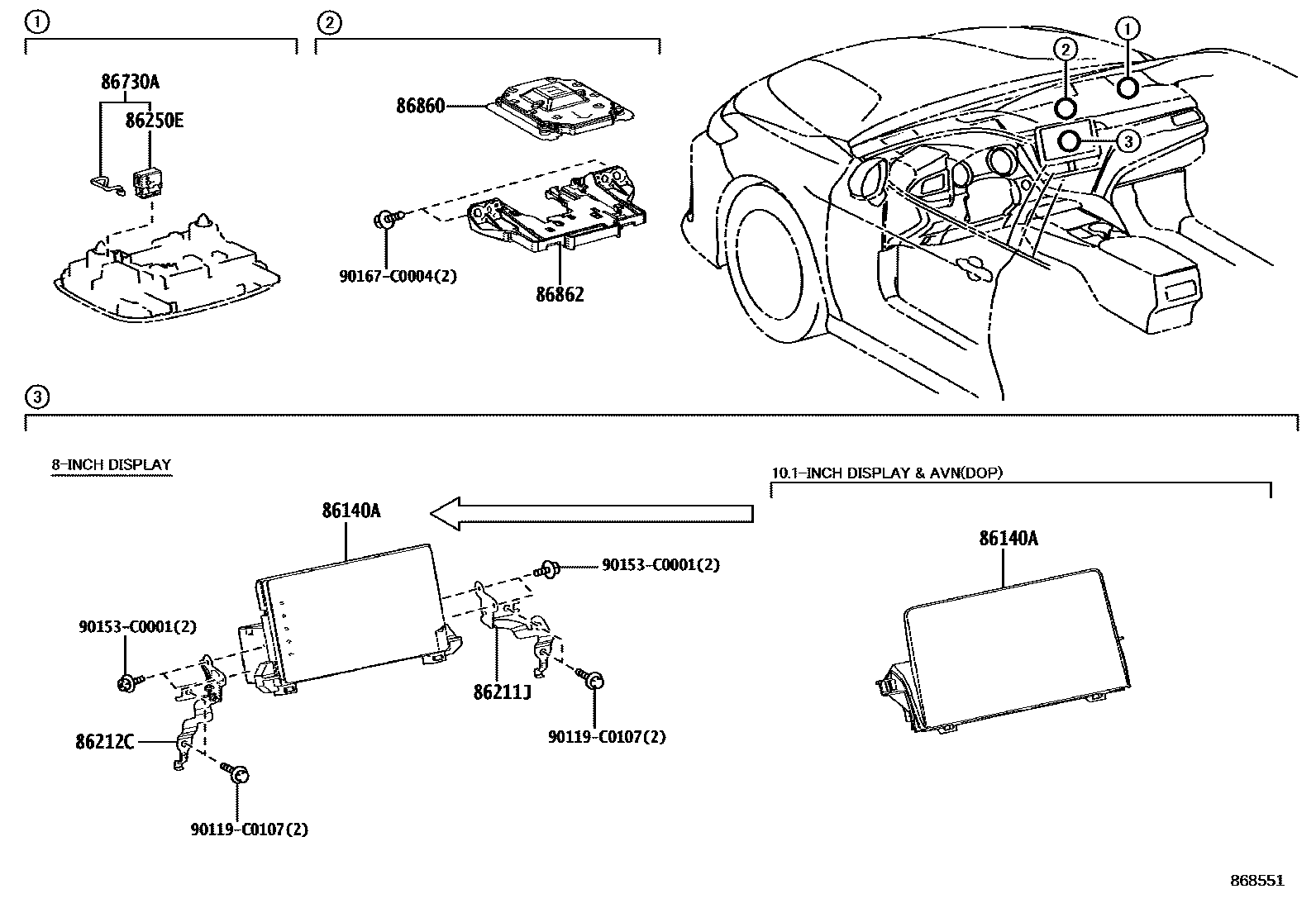

Toyota CAMRY 导航和前监视器显示屏 — Figure 8603
Toyota CAMRY EPC diagram 8603, 导航和前监视器显示屏, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101H | Antenna wire sub-assembly | 86101-06D30 |
| 86140A | Radio and display receiver assembly | 86100-YY100 · 86100-YY130 · 86100-YY210 · 86140-06520 · 86140-06530 · 86140-06740 · 86140-06C50 · 86140-06C51 · 86140-06E50 |
| 86140B | Radio and display receiver switch button | 90011-25294 · 90011-25295 · 90011-25296 · 90011-25297 |
| 86211J | No. 1 radio bracket | 86211-06270 · 86211-06320 · 86211-06340 · 86211-06360 |
| 86212C | No. 2 radio bracket | 86212-06270 · 86212-06320 · 86212-06340 · 86212-06360 |
| 86250E | amplifier loudspeaker assembly | 86250-06020 · 86250-52030 |
| 86453 | Multimedia module wiring harness | 86203-33280 |
| 86730A | Telephone amplifier assembly | 86730-06060 |
| 86841 | Navigation ECU | 86840-06030 · 86840-06031 · 86840-06032 · 86840-06033 · 86840-06034 · 86840-06035 · 86840-06036 |
| 86842 | Navigation harness No. 1 | 86842-06020 |
| 86860 | Navigation antenna assembly | 86860-06120 · 86880-0E020 |
| 86862 | Navigation antenna bracket | 86862-42010 · 86862-58020 |
