Toyota CAMRY 扬声器 — Figure 8602

Toyota CAMRY EPC diagram 8602, 扬声器, with 2 images and 5 PNC and OE references.

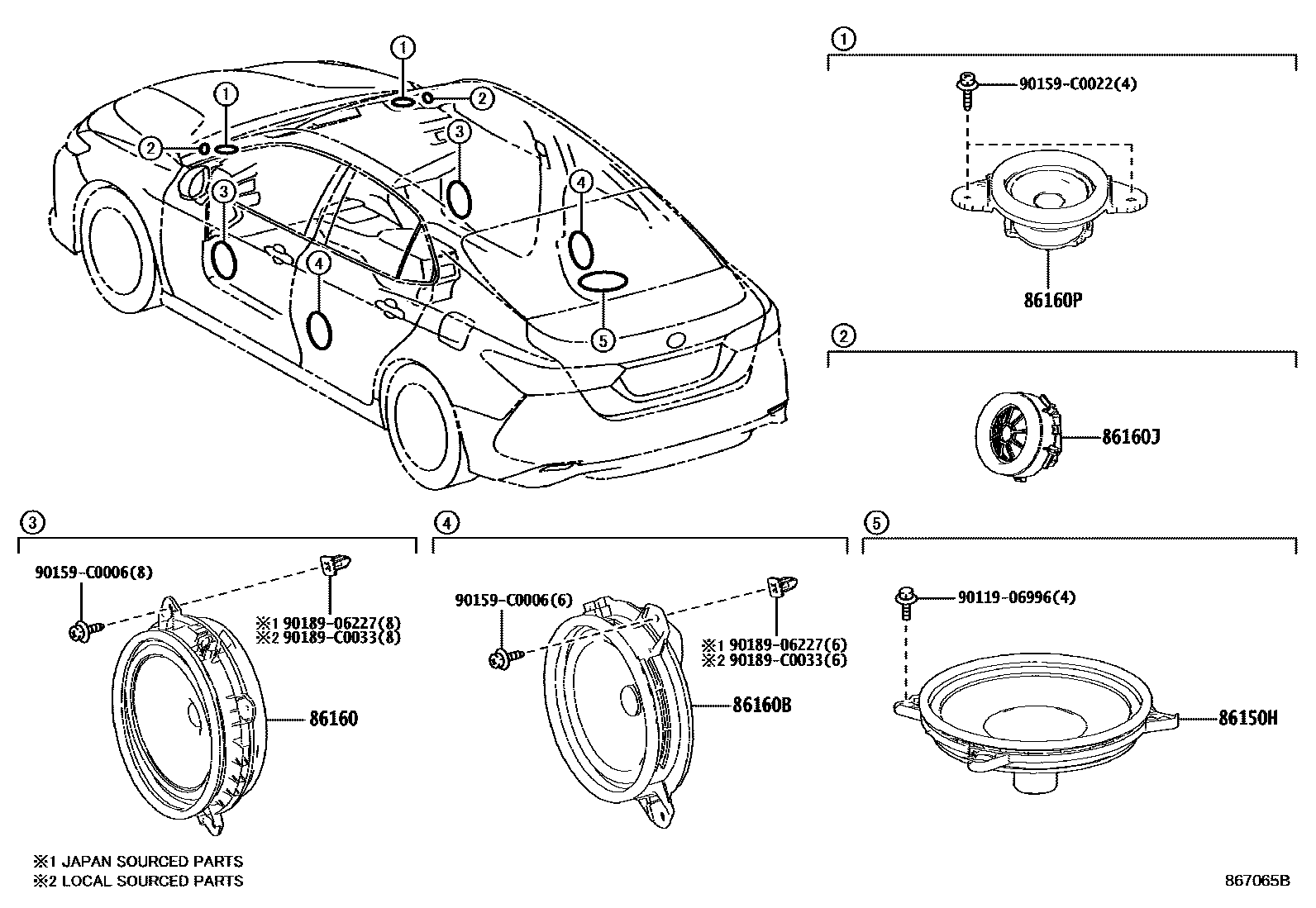

Toyota CAMRY 扬声器 EPC diagram — 867065B
扬声器 — 867065B (201712 – 202103)

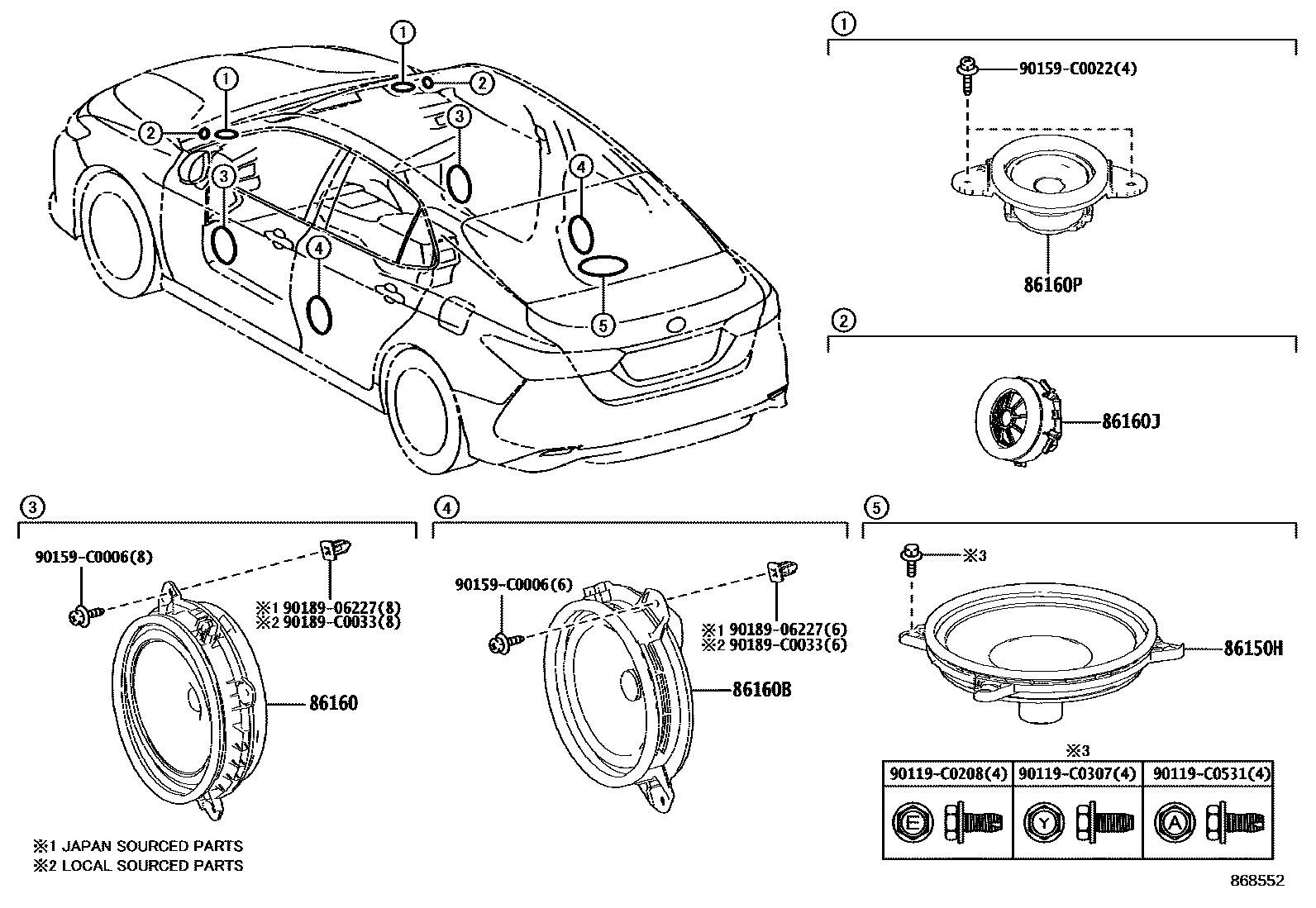

Toyota CAMRY 扬声器 EPC diagram — 868552
扬声器 — 868552 (202103 – 999999)

PNC and OE references

PNCPart nameOE numbers
86150HSpeaker assembly with stand86150-06070
86160No. 1 front speaker assembly86160-06880 · 86160-06A20 · 86160-06B10
86160BRear speaker assembly86160-02C10 · 86160-06870 · 86160-0D390
86160JNo. 3 front speaker assembly86150-06050
86160PNo. 2 front speaker assembly86160-06690 · 86160-06A50
