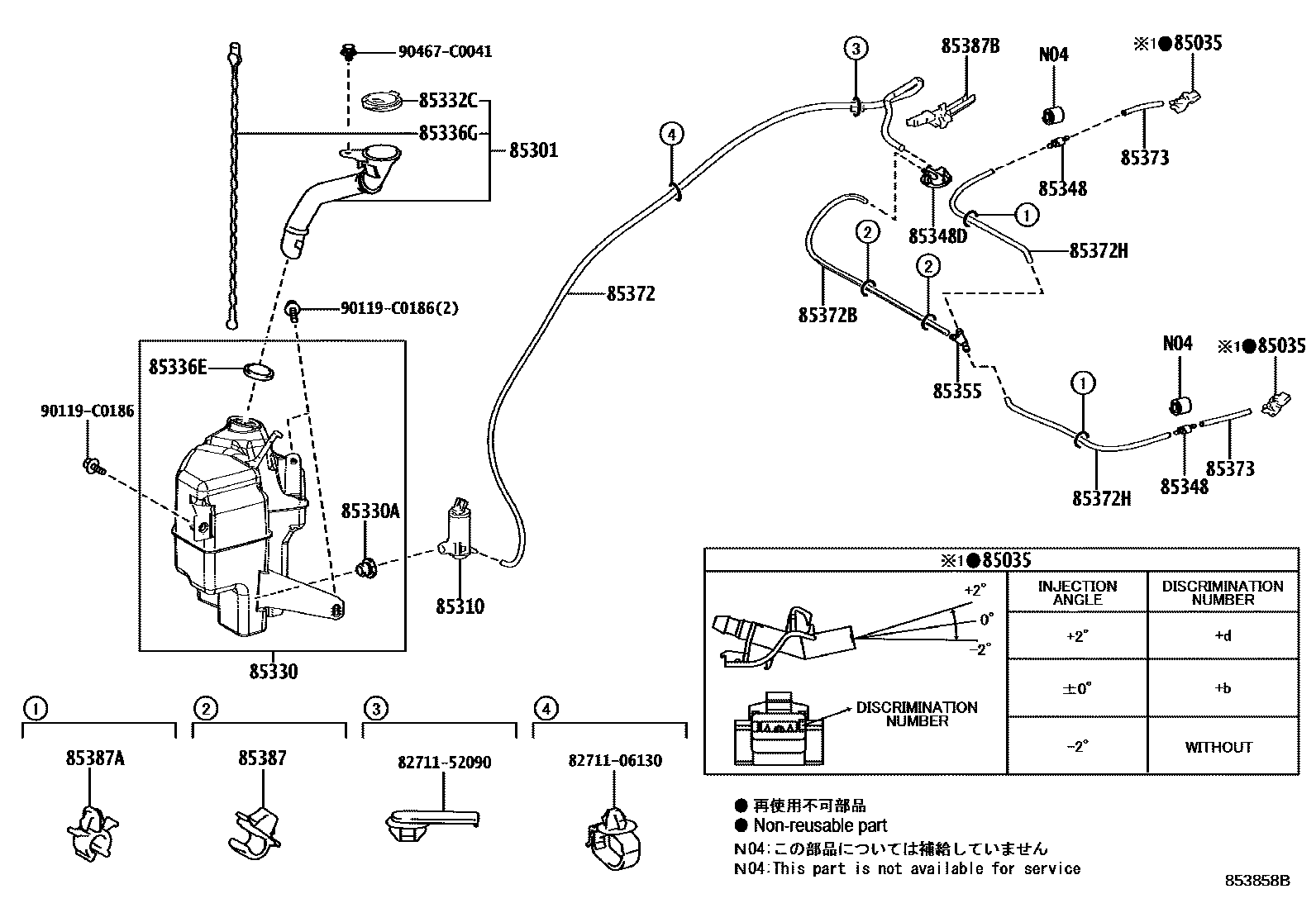

Toyota CAMRY 挡风玻璃清洗器 — Figure 8503
Toyota CAMRY EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-30220 · 85381-30230 · 85381-30240 |
| 85301 | Cleaner water inlet sub-assembly | 85329-06300 · 85329-06301 |
| 85310 | Windshield washer motor and pump assembly | 85330-33070 |
| 85330 | Windshield washer fluid tank assembly | 85315-06300 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332C | Front washer water tank cover | 85316-06300 |
| 85336E | Windshield washer water inlet hose seal | 85336-30160 |
| 85336G | water level gauge | 85312-47020 |
| 85348 | Windshield washer hose connector No. 1 | 85321-26020 |
| 85348D | No. 1 windshield washer elbow joint | 85373-33030 |
| 85355 | Windshield washer hose valve | 85317-06240 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-33058 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90068-33308 |
| 85372H | No. 3 windshield washer hose (from connector to connector) | 90068-33307 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33232 |
| 85387 | Clip No. 1 (for windshield washer) | 85371-12040 |
| 85387A | Cleaner clip No. 2 | 90469-07011 · 90469-C0015 |
| 85387B | No. 3 cleaner clip | 85371-06060 |
