Toyota CAMRY 空气囊 — Figure 8421

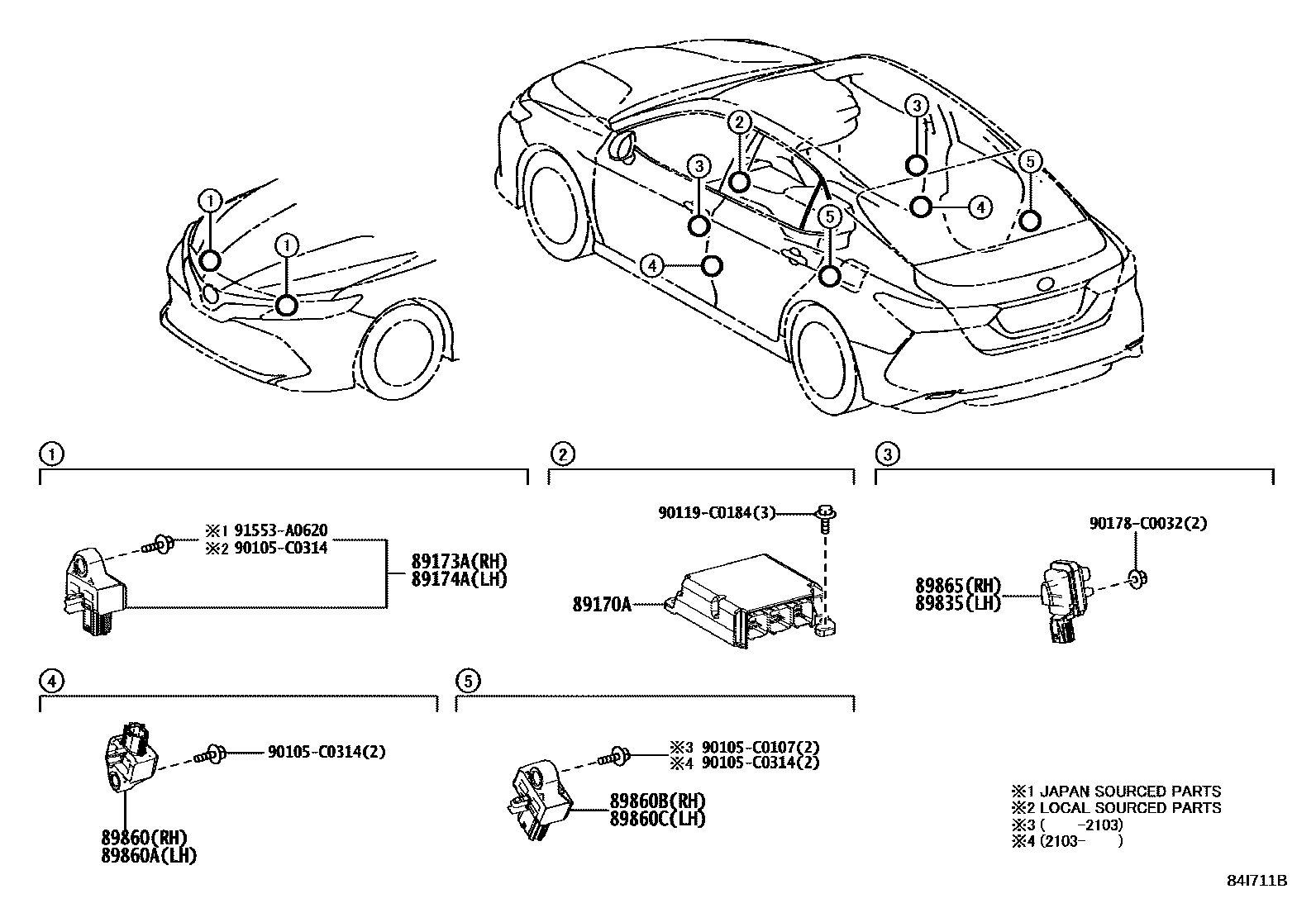

Toyota CAMRY EPC diagram 8421, 空气囊, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-06790 · 89170-06800 · 89170-06A20 · 89170-06A30 · 89170-06A90 · 89170-06B00 · 89170-06C40 · 89170-06C50 |
| 89173A | Right front air bag sensor | 89173-09886 · 89173-09C80 |
| 89174A | Left front air bag sensor | 89173-09886 · 89173-09C80 |
| 89835 | Left door side air bag sensor | 8983A-06020 · 8983A-06021 · 8983A-0R021 |
| 89860 | Right side airbag sensor assembly | 89831-06160 · 89831-0R150 |
| 89860A | Left side air bag sensor assembly | 89831-06160 · 89831-0R150 |
| 89860B | Right No. 2 side airbag sensor assembly | 89831-06150 |
| 89860C | Left No. 2 side airbag sensor assembly | 89831-06150 |
| 89865 | Right door side air bag sensor | 8983A-06020 · 8983A-06021 · 8983A-0R021 |
