Toyota CAMRY ABS 和 VSC — Figure 8414

Toyota CAMRY EPC diagram 8414, ABS 和 VSC, with 2 images and 3 PNC and OE references.

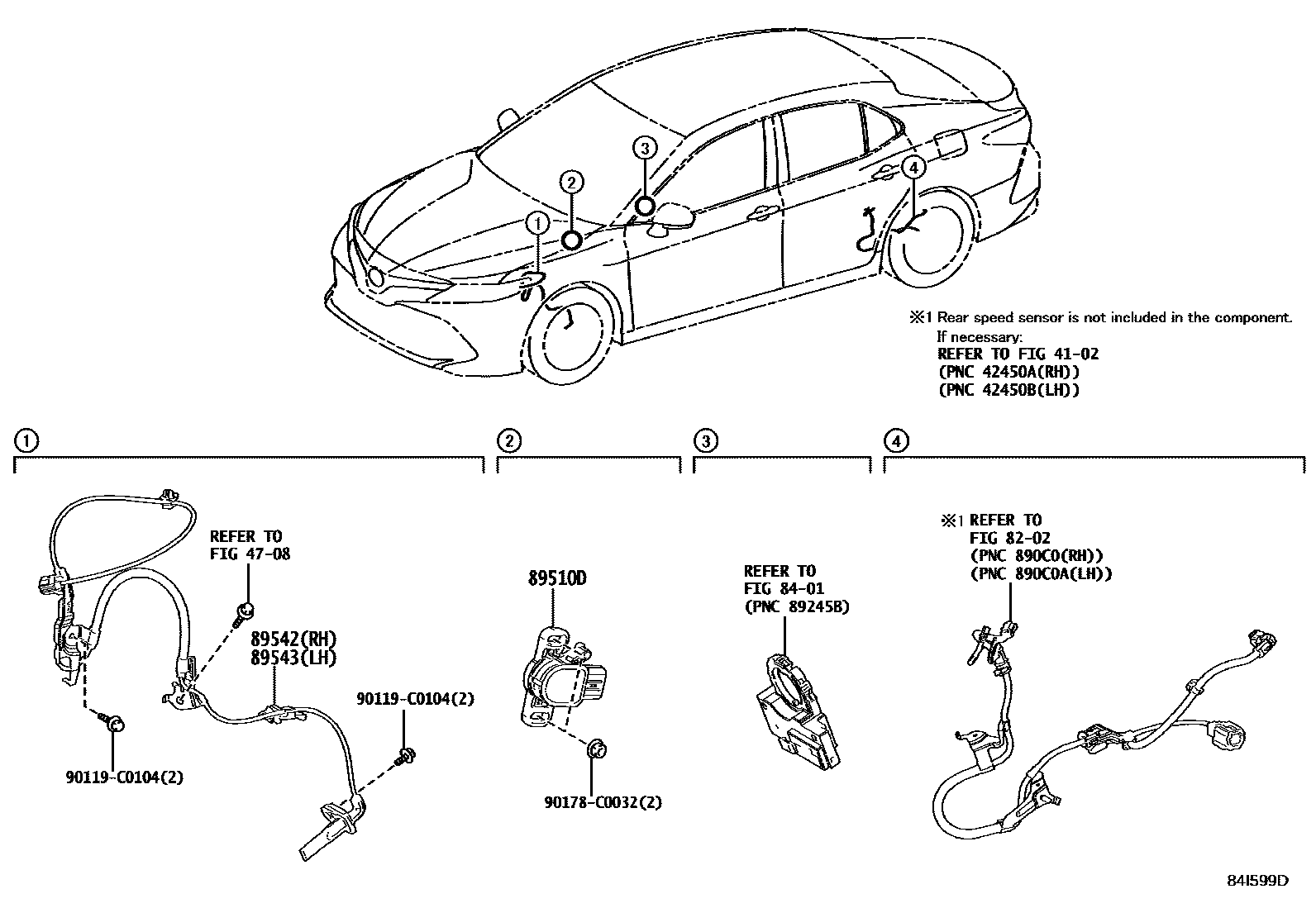

Toyota CAMRY ABS 和 VSC EPC diagram — 84I599D
ABS 和 VSC — 84I599D (201712 – 202103)

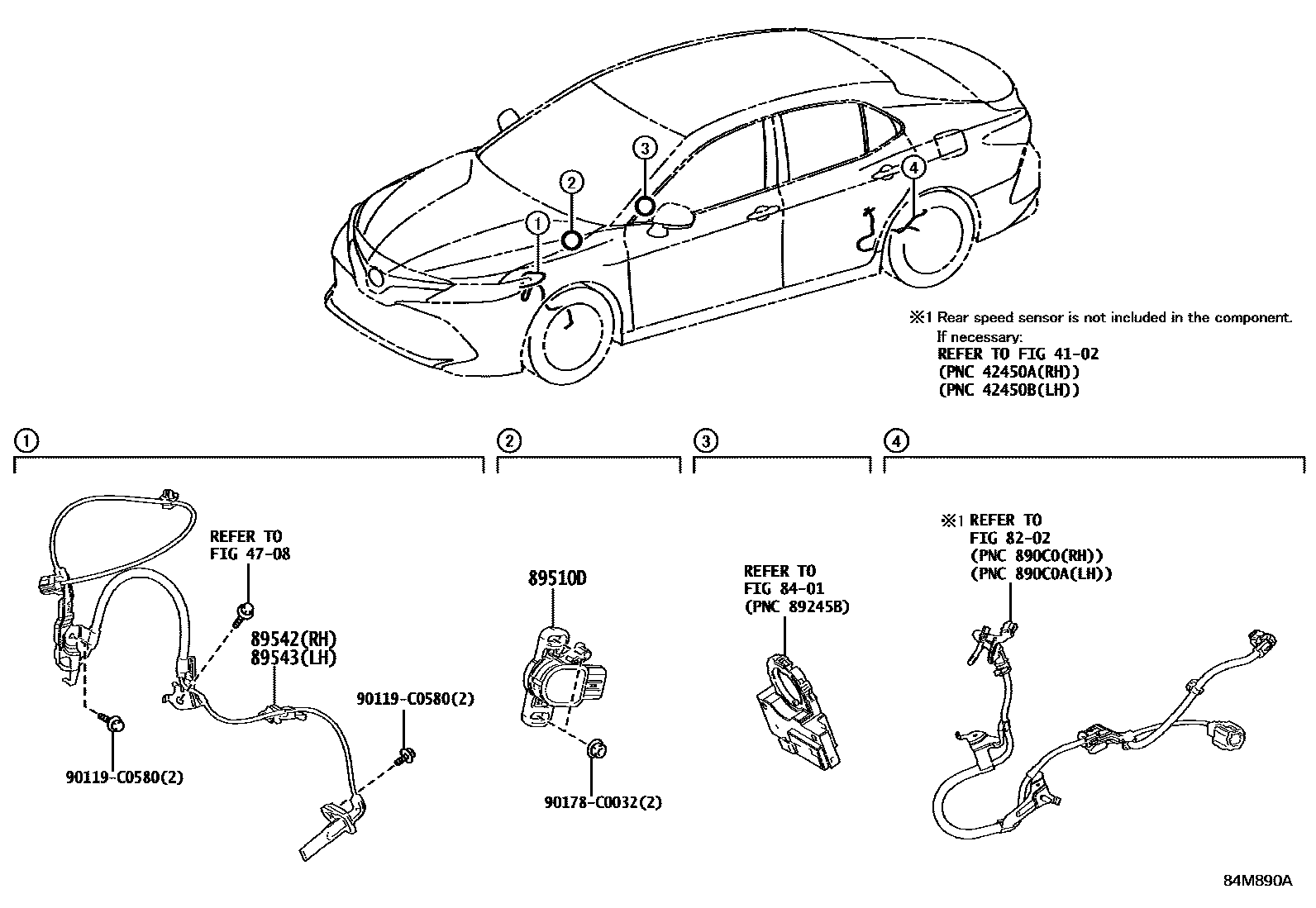

Toyota CAMRY ABS 和 VSC EPC diagram — 84M890A
ABS 和 VSC — 84M890A (202103 – 999999)

PNC and OE references

PNCPart nameOE numbers
89510DBrake pedal stroke sensor assembly89510-02020 · 89510-0R030 · 89510-47040
89542Right front wheel speed sensor89542-06110
89543Left front wheel speed sensor89543-06110
