Toyota CAMRY 电子燃油喷射系统 — Figure 8404

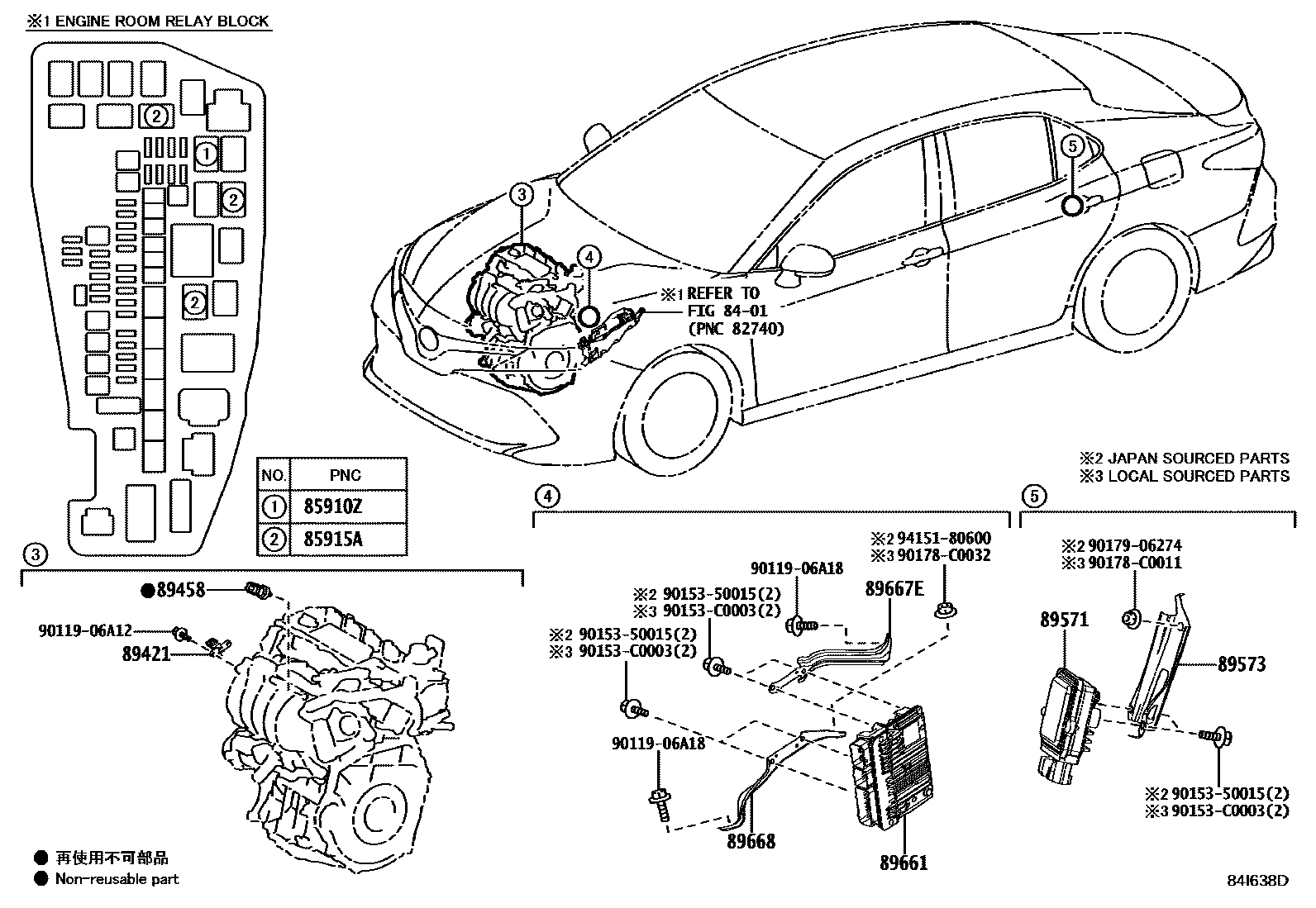

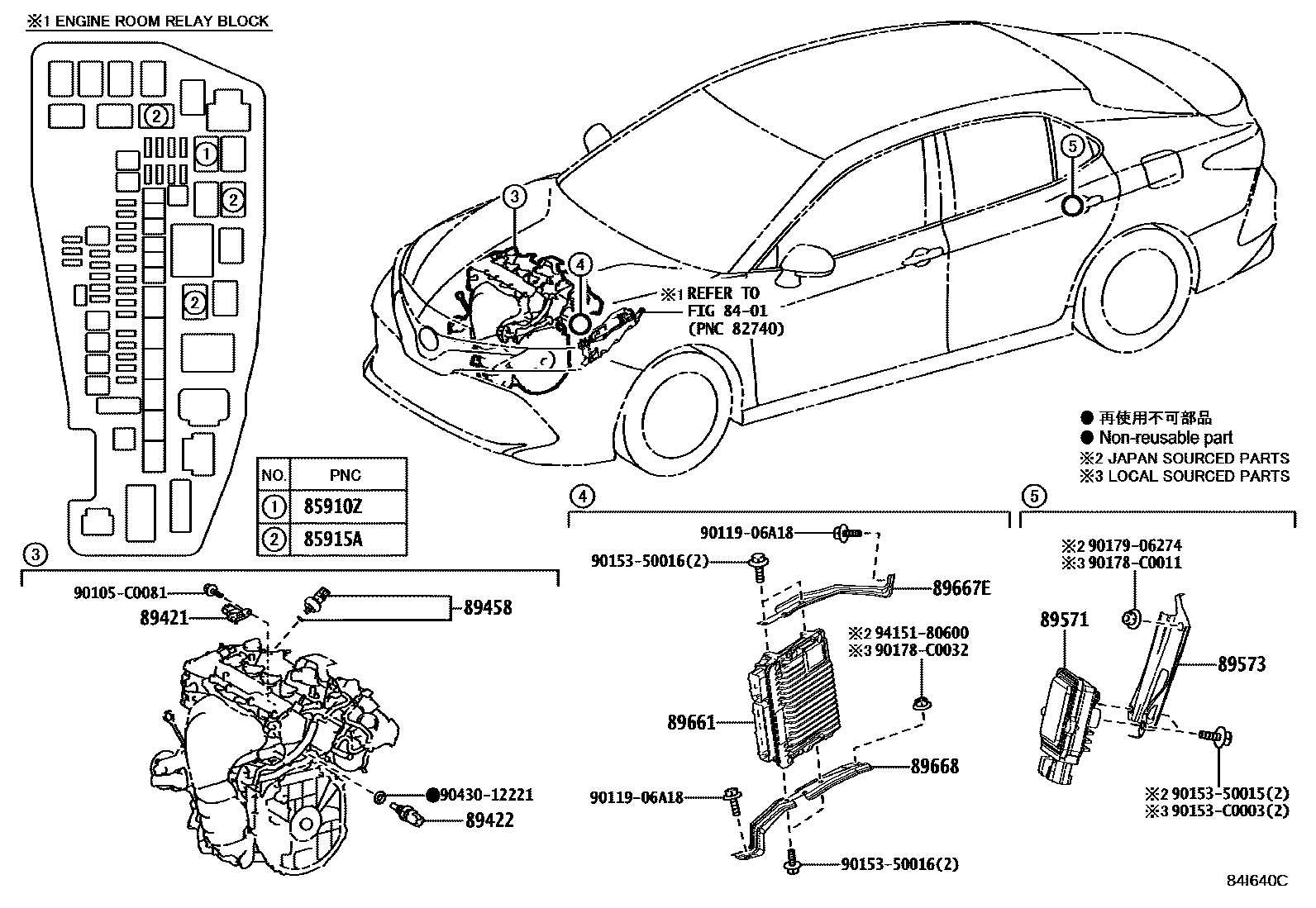

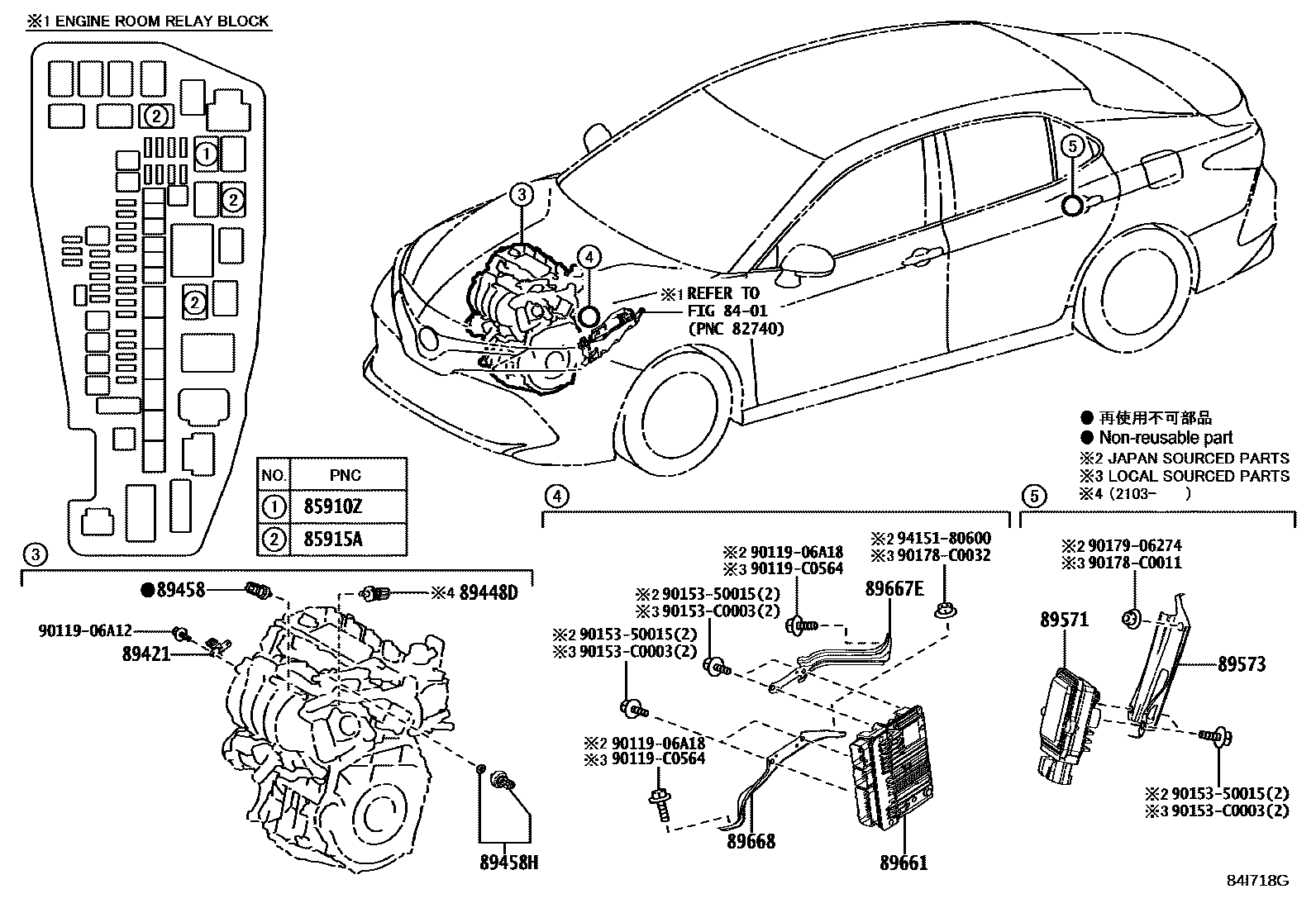

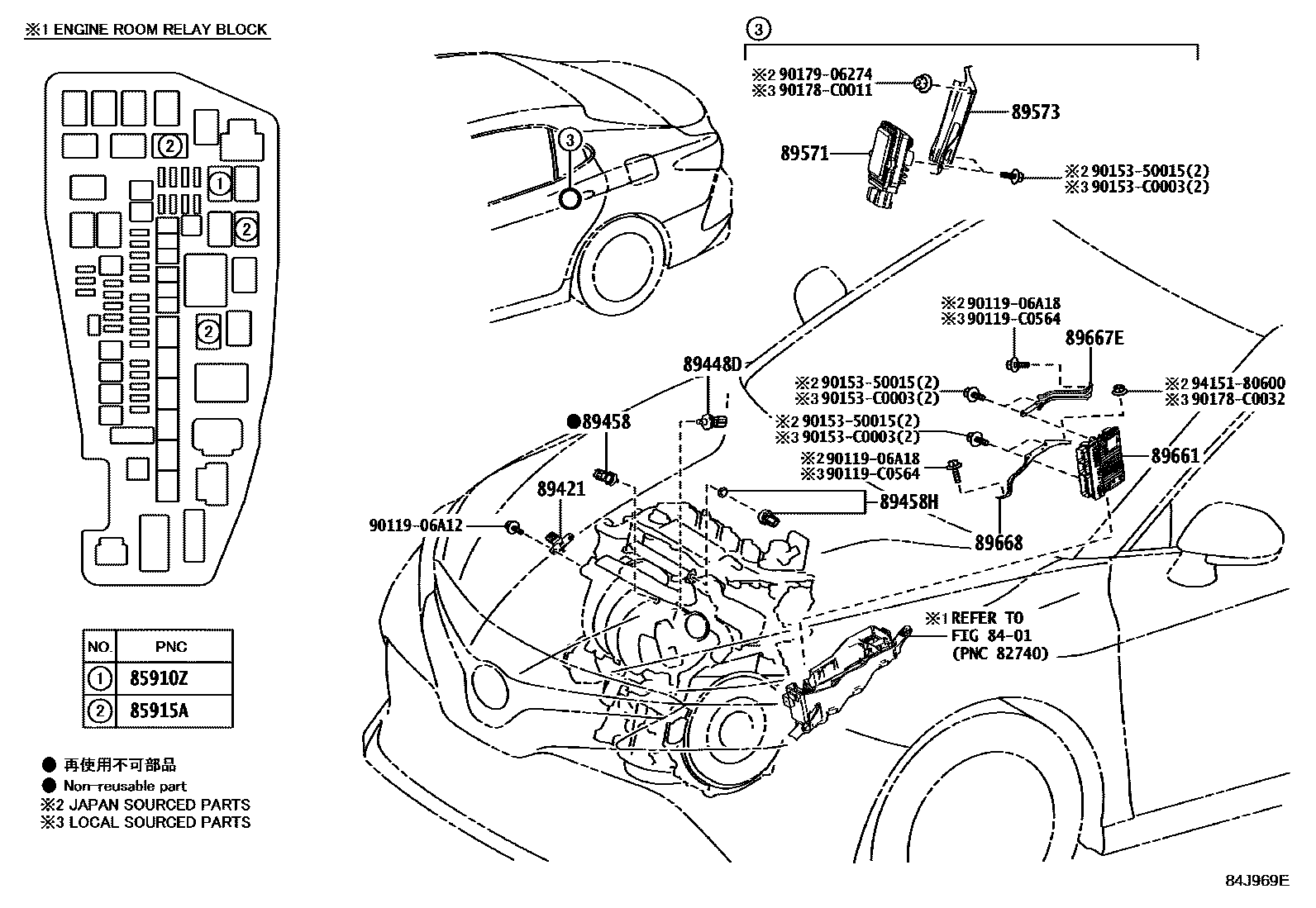

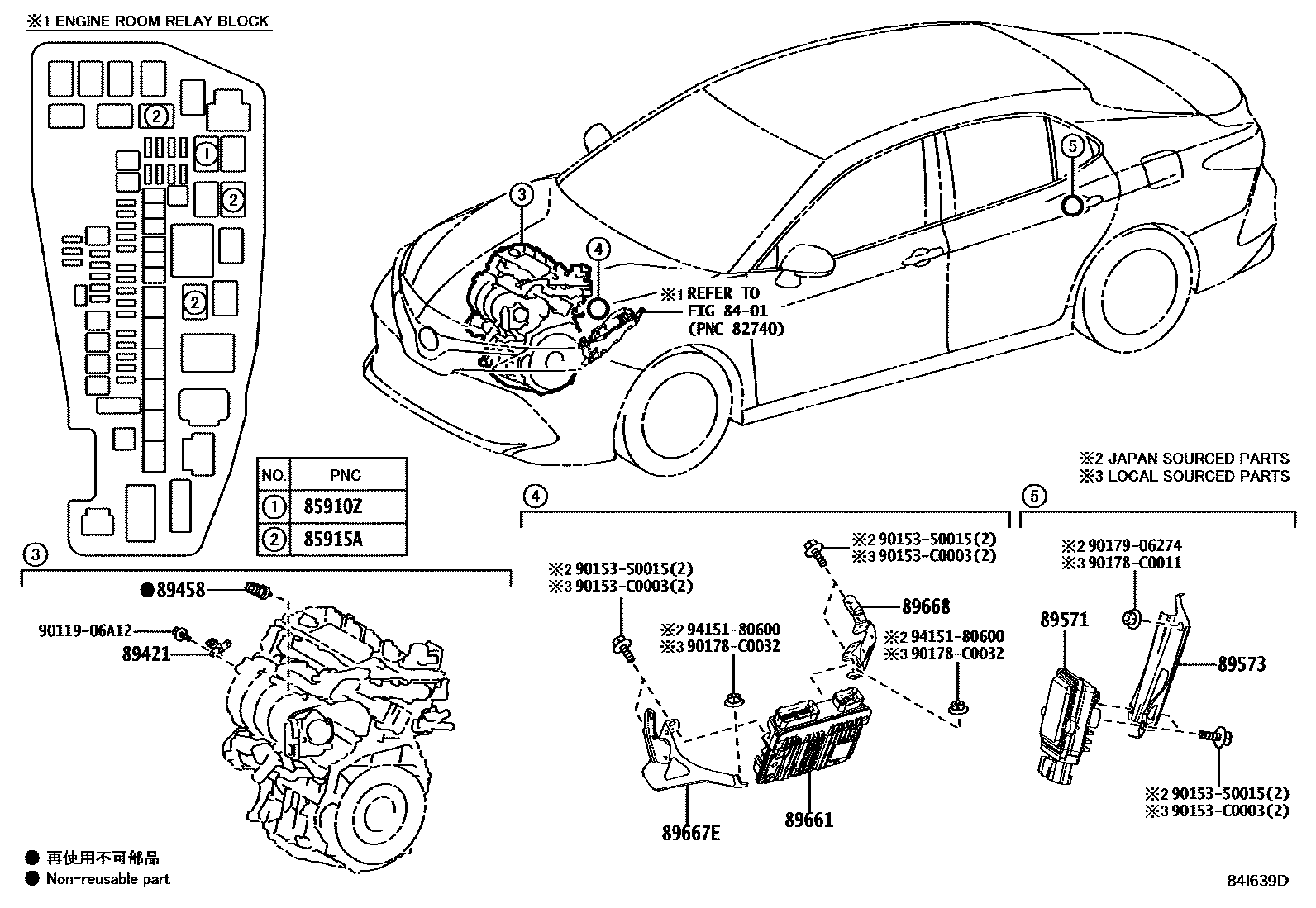

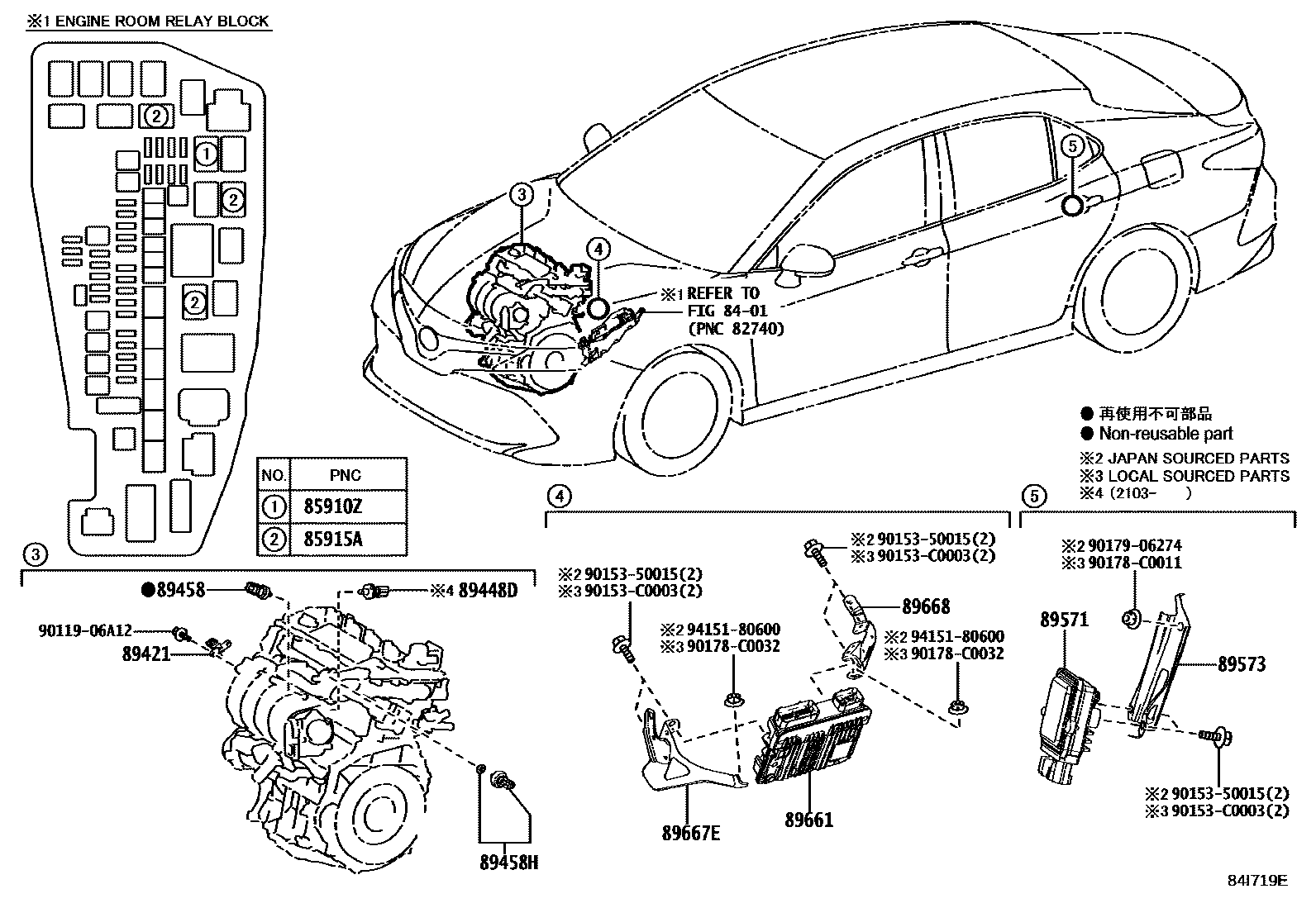

Toyota CAMRY EPC diagram 8404, 电子燃油喷射系统, with 6 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910Z | Injection relay (for EFI) | 90987-T2005 |
| 85915A | main relay | 90987-T2005 |
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-26030 · 89421-33010 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-0D010 |
| 89448D | Oil pressure and sensors | 89448-0R010 · 89448-33010 |
| 89458 | fuel pressure sensor | 89458-0R010 · 89458-33030 · 89458-33041 |
| 89458H | No. 2 fuel pressure sensor | 89458-0R020 · 89458-33041 · 89458-33042 |
| 89571 | Fuel pump control ECU | 89571-33030 · 89571-42010 |
| 89573 | Fuel pump control ECU bracket | 89573-06030 · 89573-06060 |
| 89661 | Engine control ECU | 89661-06N90 · 89661-06X80 · 89661-06Y80 · 89661-06Z30 · 89661-0X210 · 89661-0X300 · 89661-0X450 · 89661-0X530 · 89661-0X540 · 89661-0X541 · 89661-0X740 · 89661-0X750 · 89661-0X751 · 89661-0XA80 · 89661-0XA90 · 89661-0XB00 |
| 89667E | No. 1 engine control ECU bracket | 89667-06270 · 89667-06280 · 89667-06290 |
| 89668 | No. 2 engine control ECU bracket | 89668-06270 · 89668-06280 · 89668-06290 |
