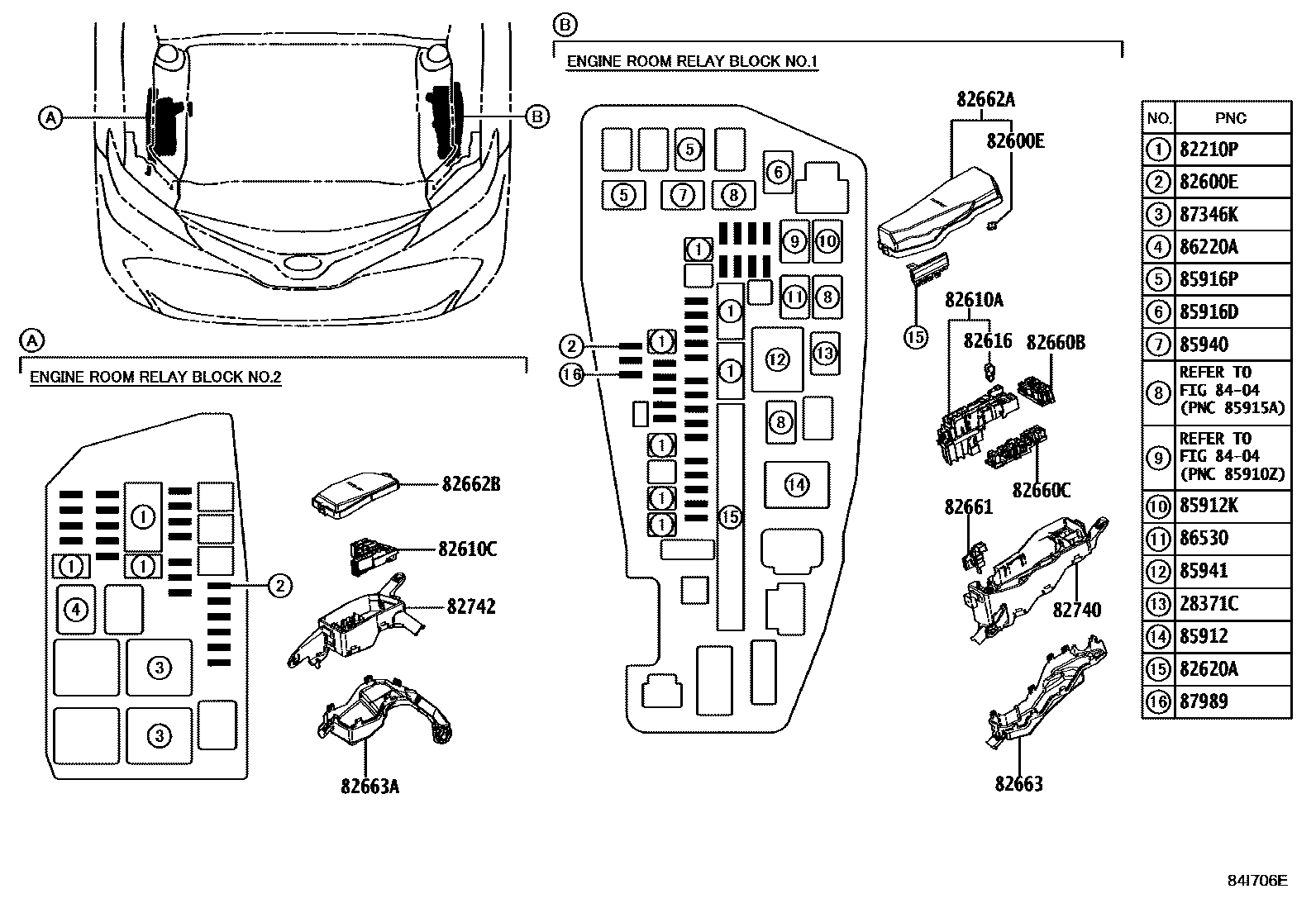

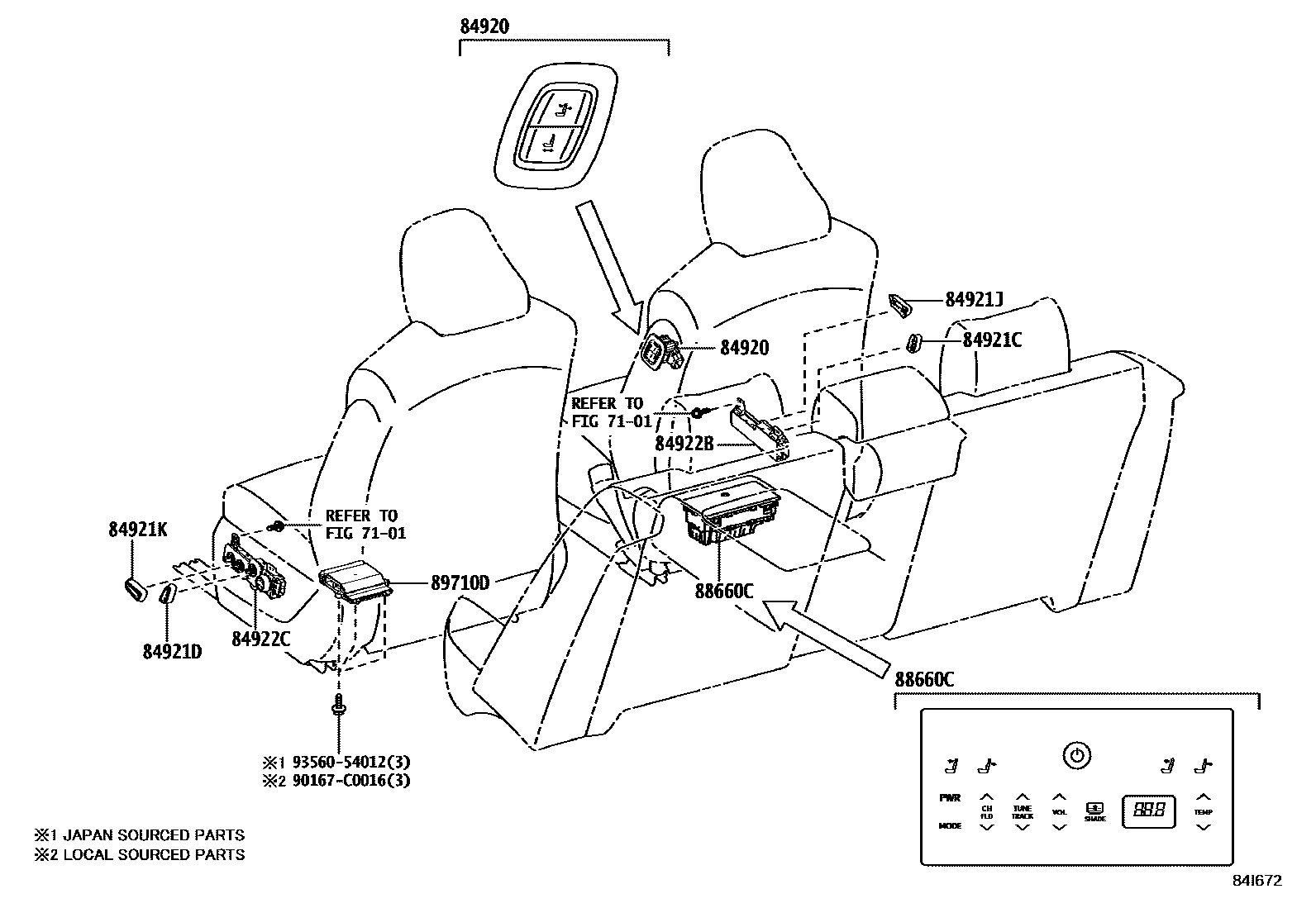

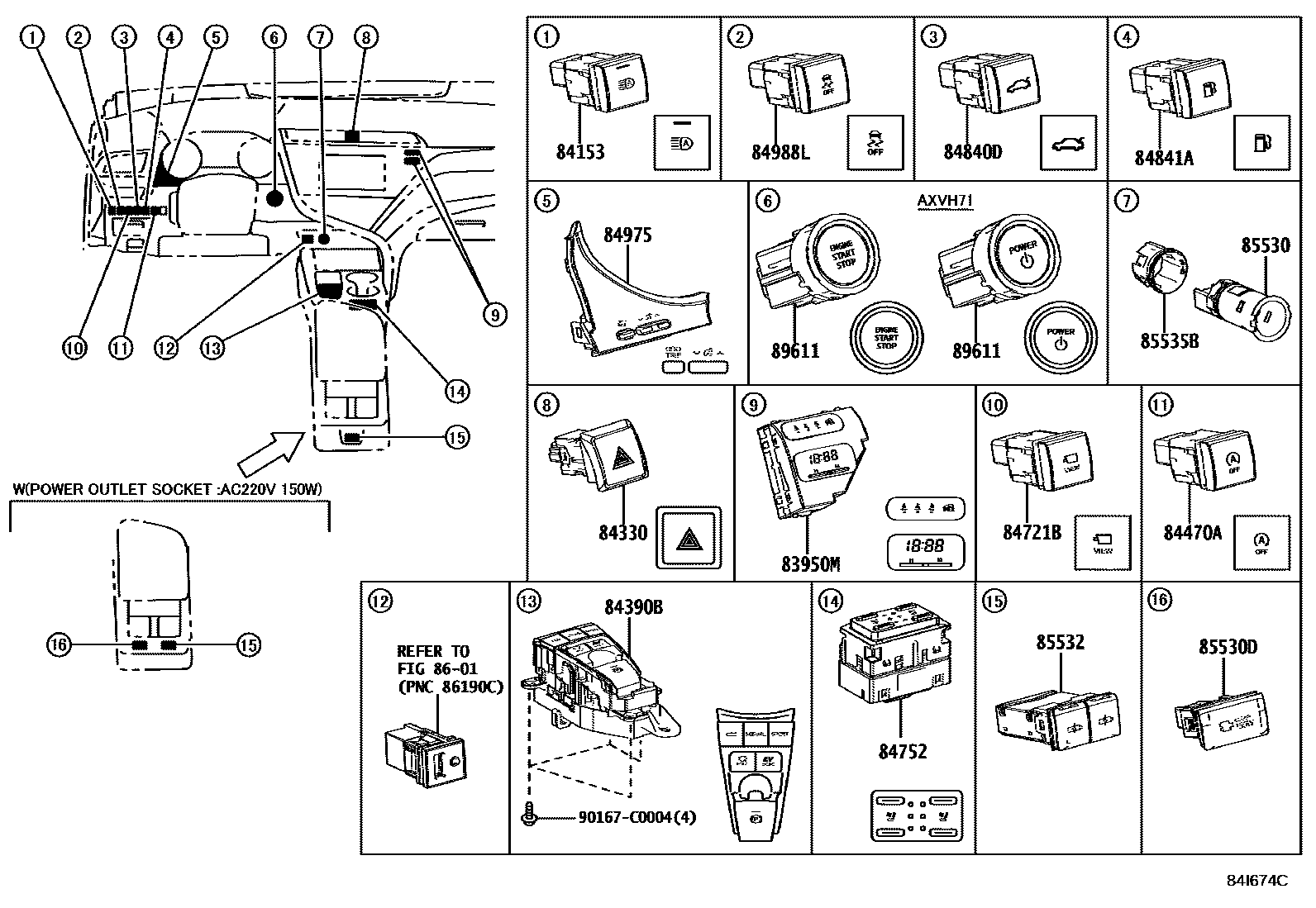

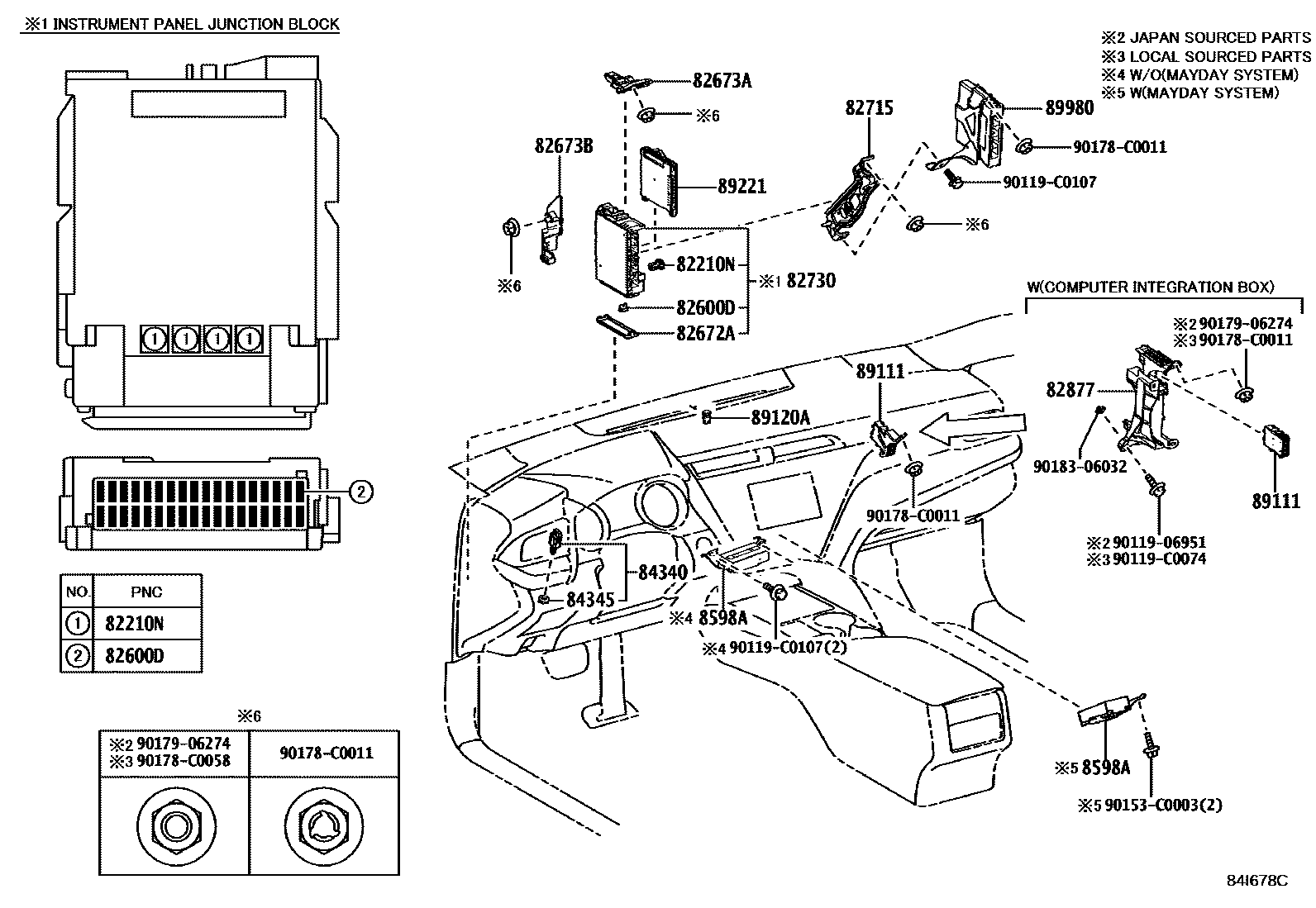

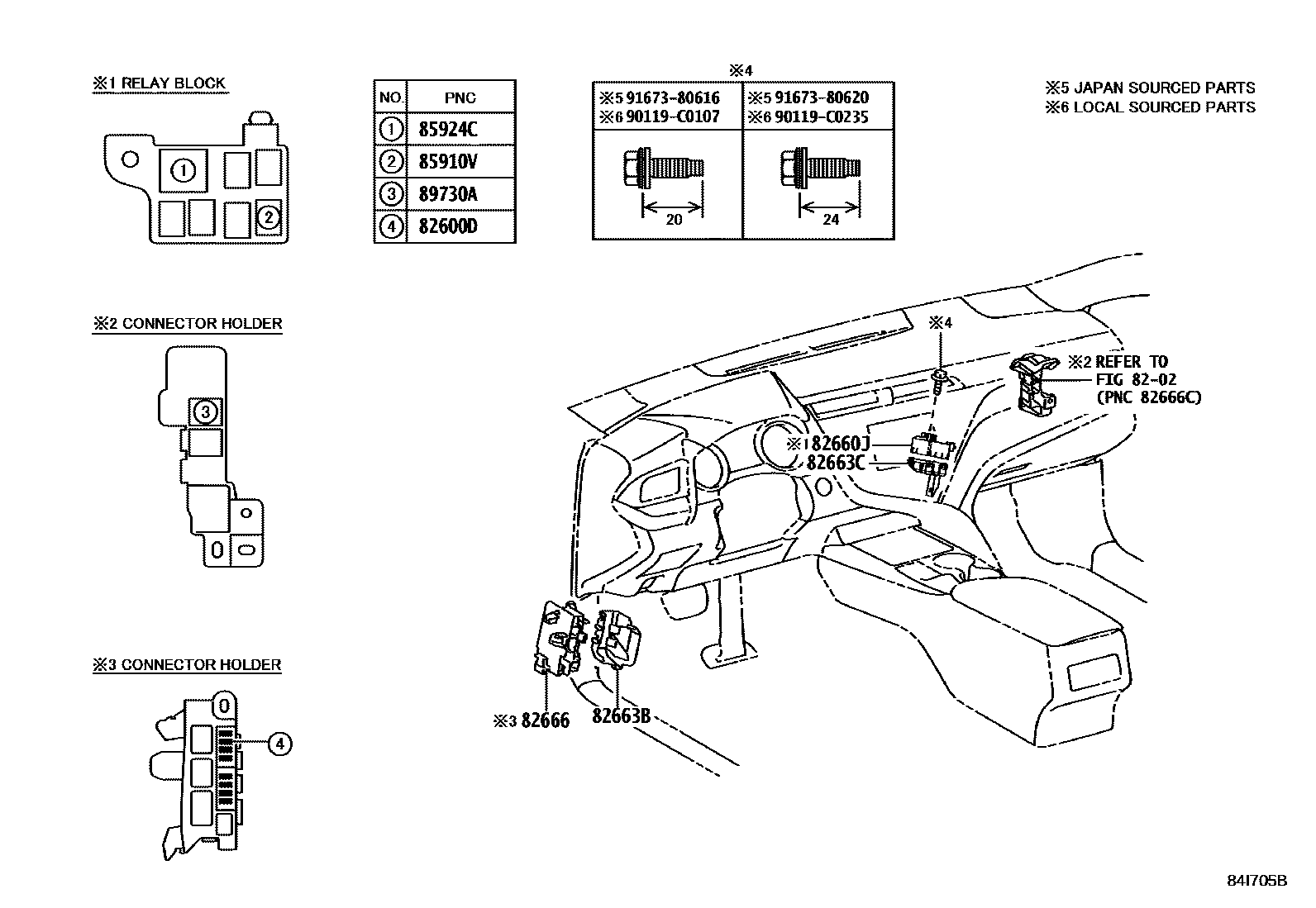

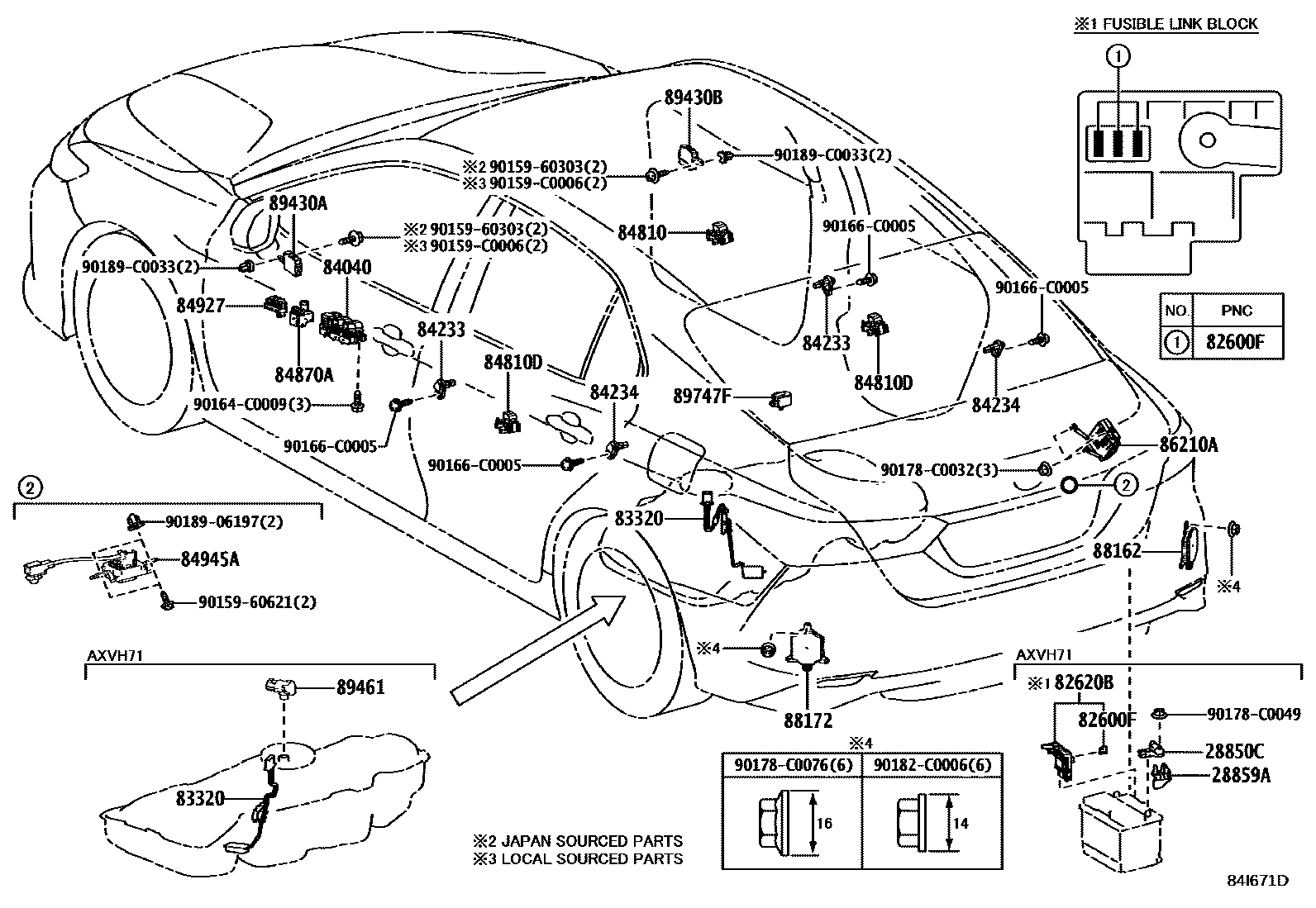

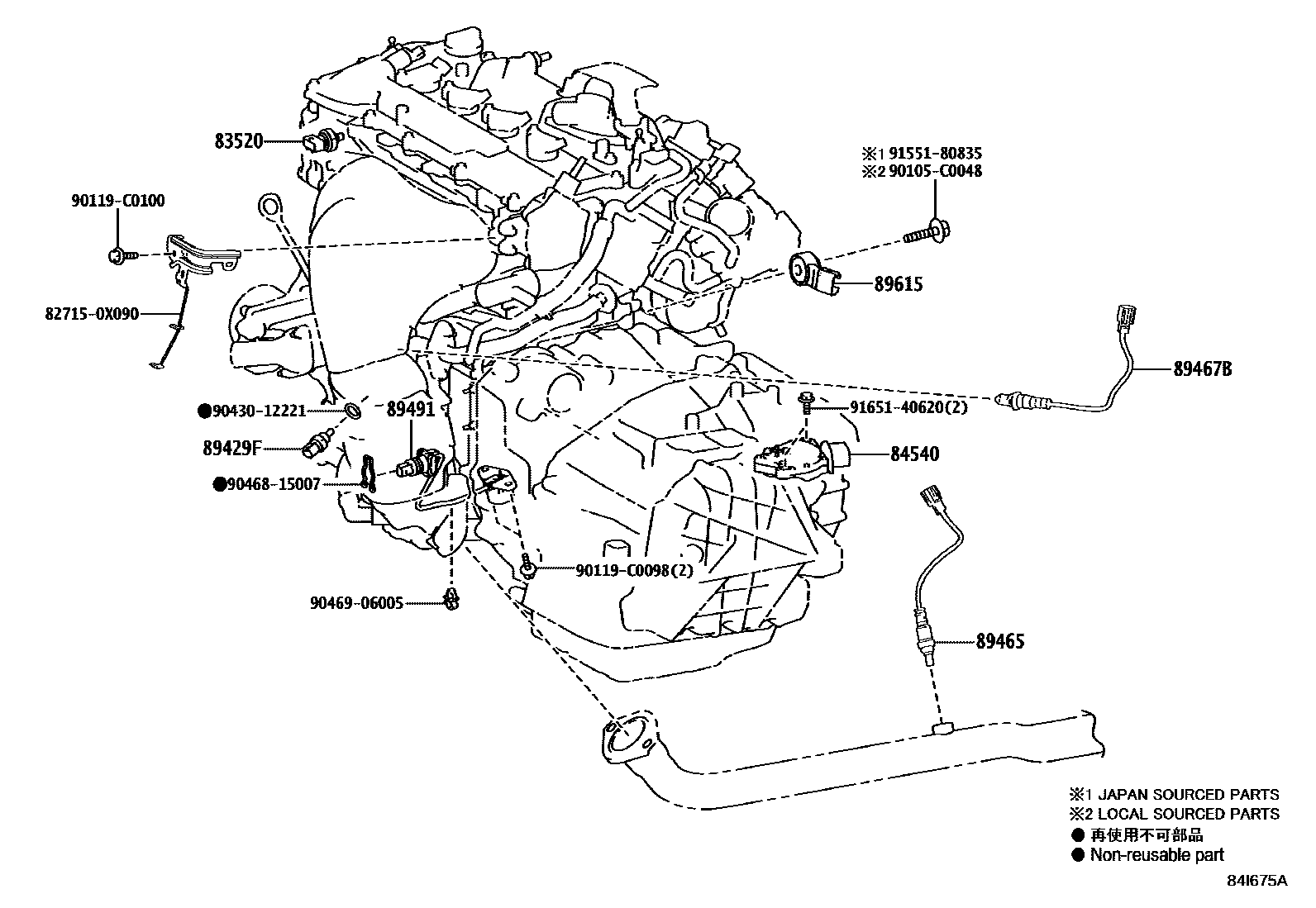

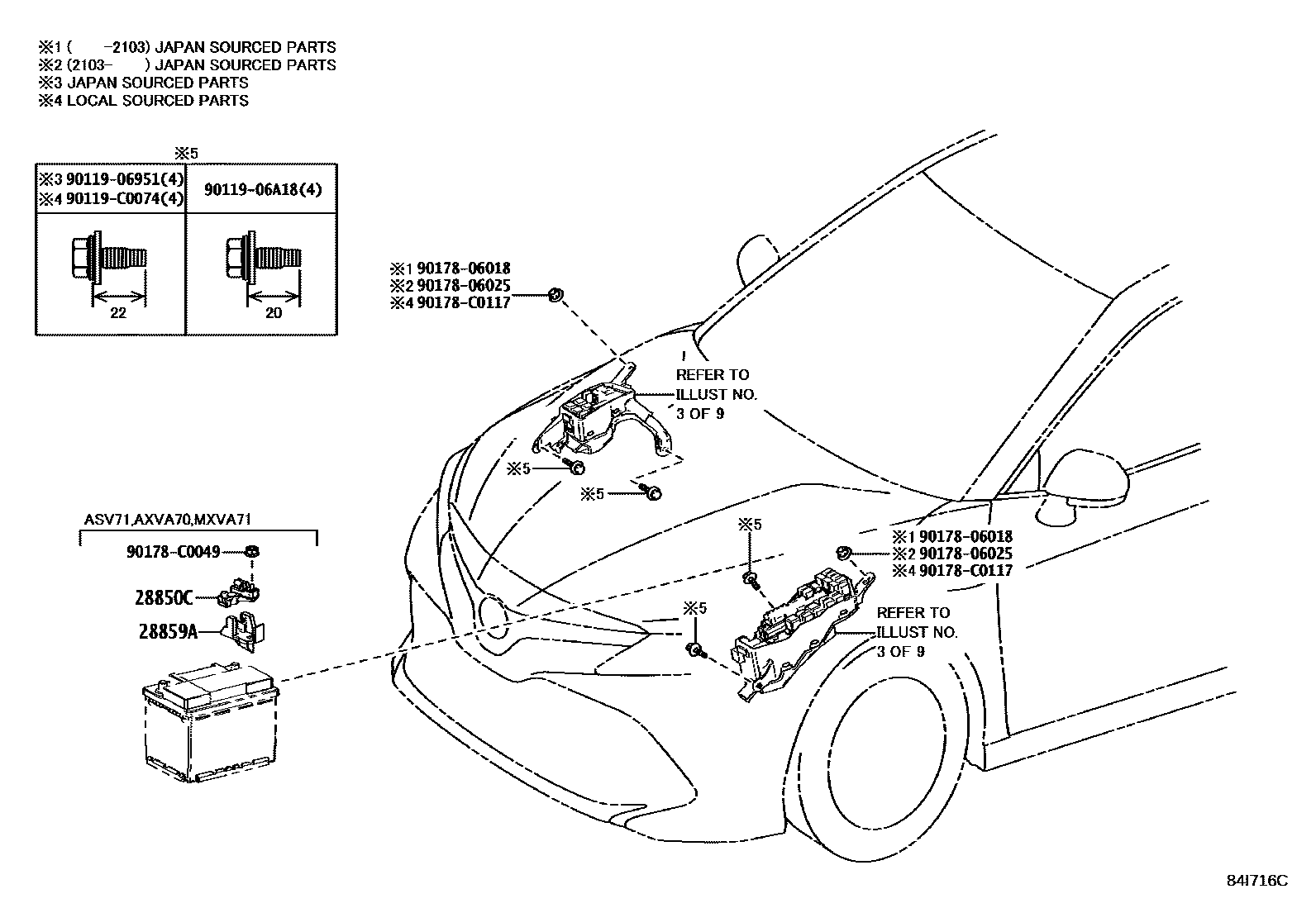

Toyota CAMRY 开关和继电器和ECU — Figure 8401

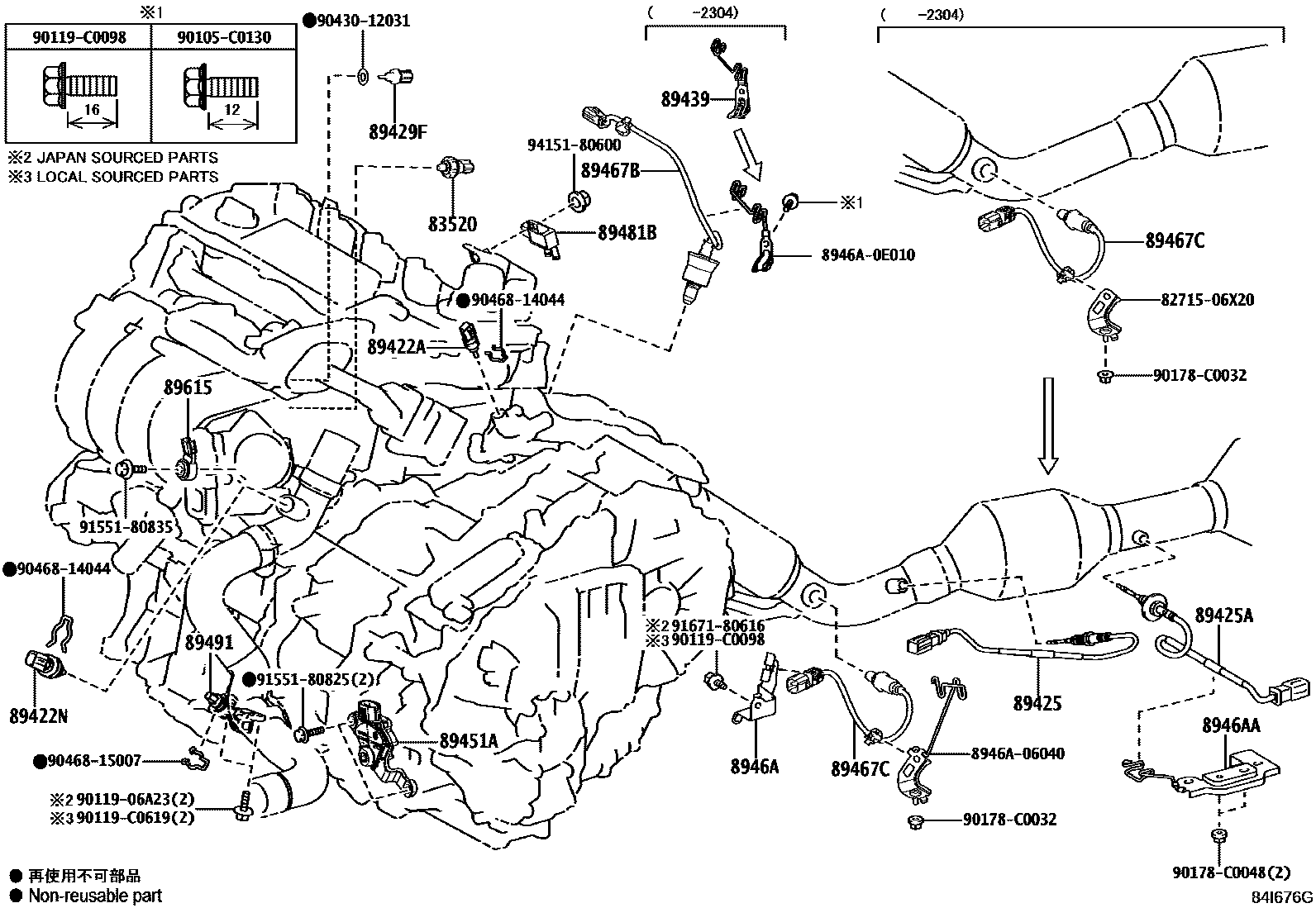

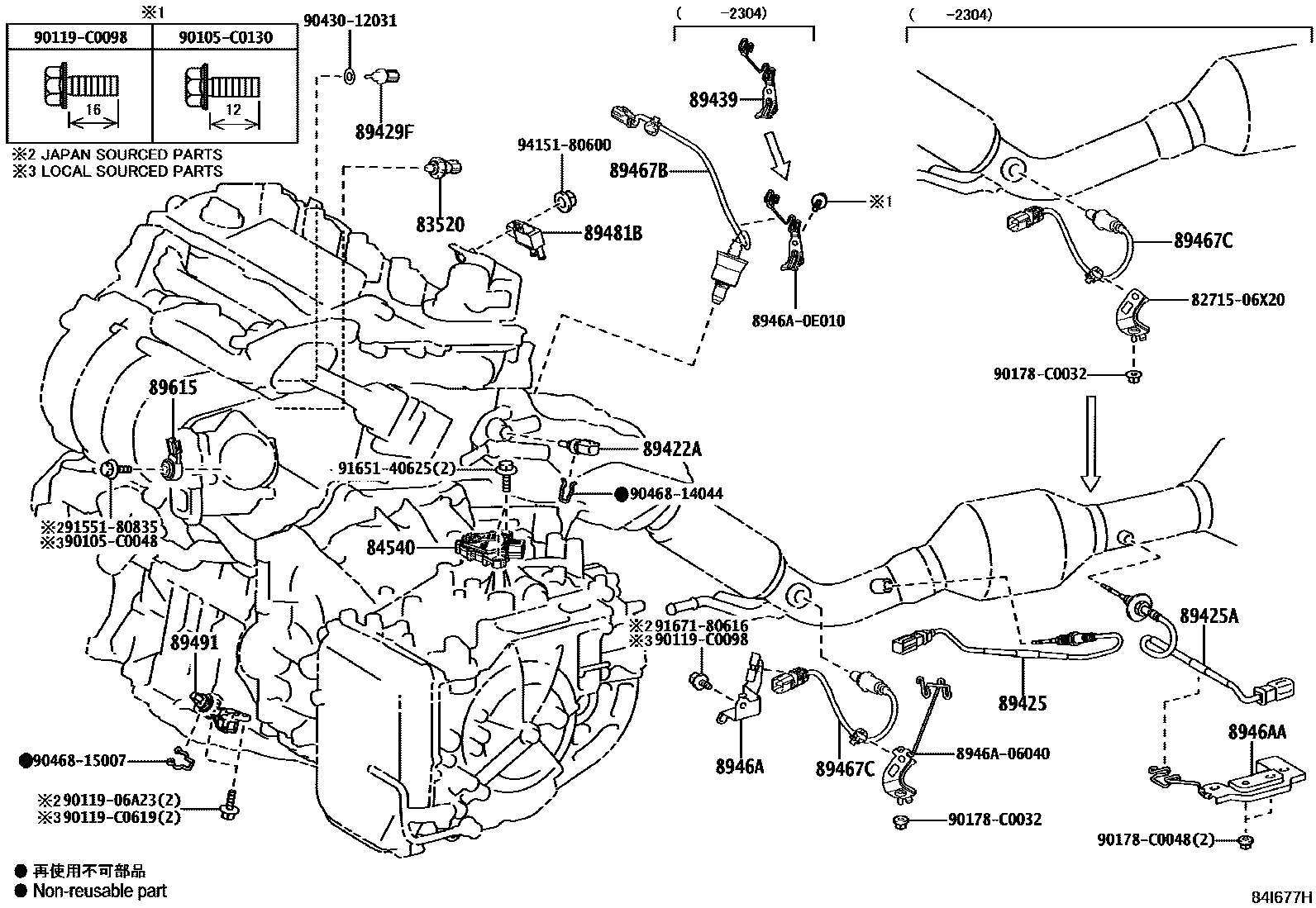

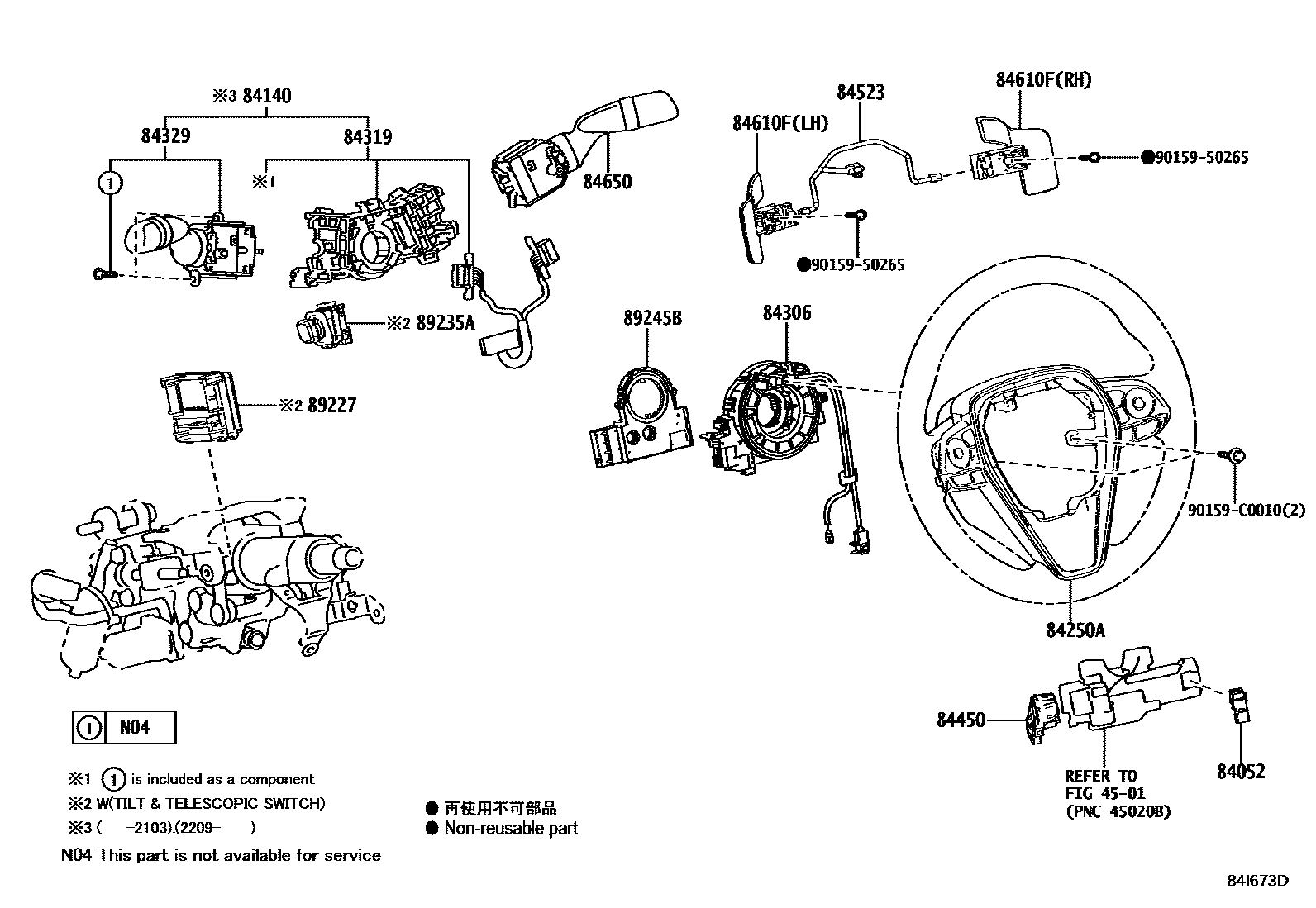

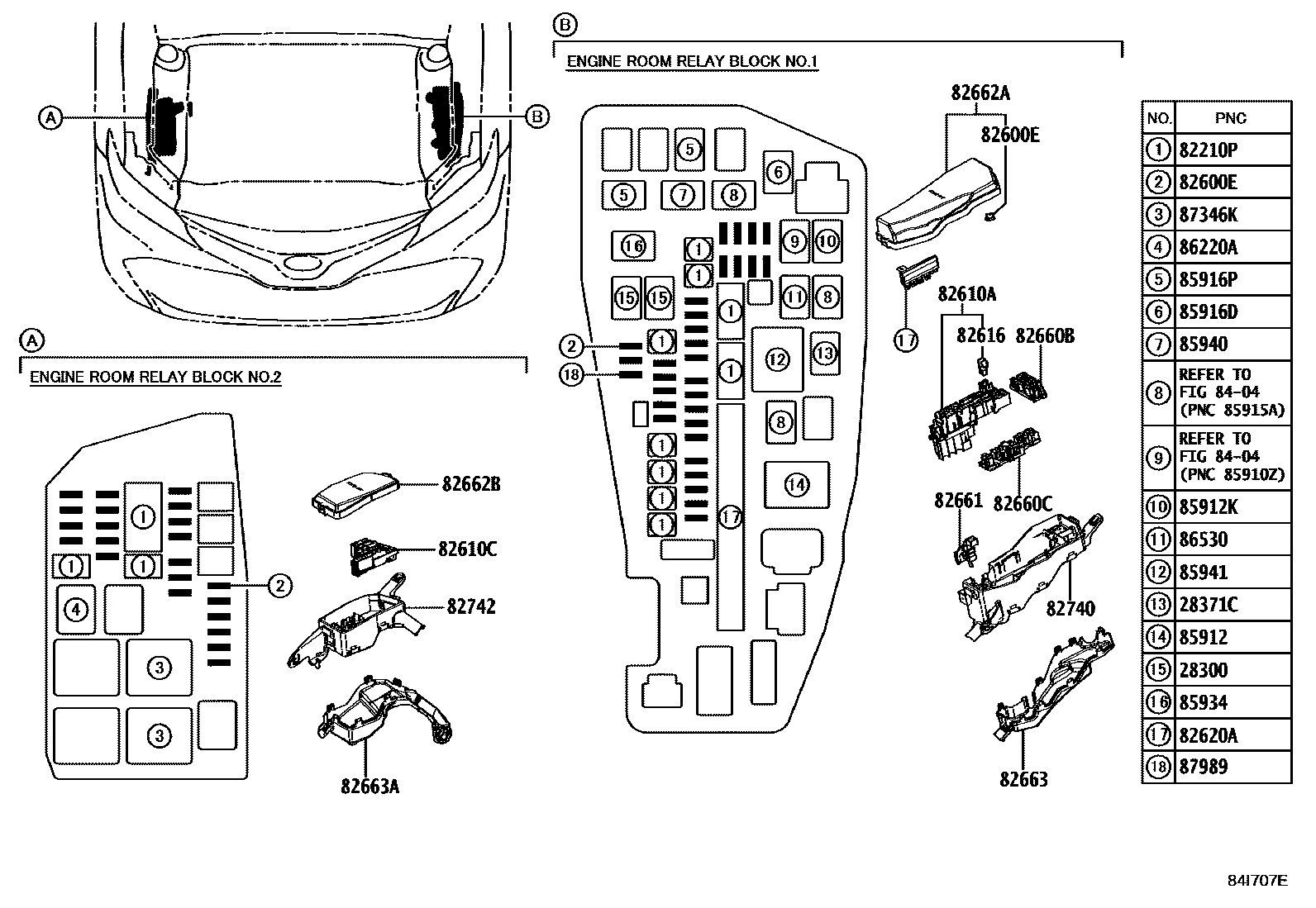

Toyota CAMRY EPC diagram 8401, 开关和继电器和ECU, with 13 images and 123 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-21020 · 28300-F2010 |
| 28371C | No. 2 ignition relay | 90987-T2005 |
| 28850C | Battery status sensor assembly | 28850-70010 · 28850-F0010 · 28850-F0030 · 28850-F0070 |
| 28859A | Battery current sensor mount | 28859-F0010 · 28859-F0020 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08296 · 90982-08298 · 90982-08300 · 90982-08302 · 90982-08303 · 90982-08312 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82600F | Spare fuse | 90982-09020 · 90982-09022 · 90982-09024 |
| 82610A | Fuse box assembly | 82610-33130 · 82610-33140 |
| 82610C | Fuse box assembly | 82610-33150 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-33140 · 82620-33150 |
| 82620B | Fuse box assembly | 82620-33110 · 82620-33111 |
| 82660B | Relay assembly | 82660-33100 |
| 82660C | Relay assembly | 82660-33110 |
| 82660J | Relay assembly | 82660-33060 |
| 82661 | No. 1 relay box cover | 82661-33050 |
| 82662A | No. 1 relay box upper cover | 82662-06A40 · 82662-06A50 · 82662-06A51 · 82662-06A52 · 82662-06A80 · 82662-06A81 · 82662-06A82 · 82662-06A83 |
| 82662B | No. 2 relay box upper cover | 82662-06A60 · 82662-06A61 |
| 82663 | Relay box lower cover | 82663-33210 · 82663-33230 |
| 82663A | No. 2 relay box lower cover | 82663-33220 |
| 82663B | No. 3 relay box lower cover | 82663-33240 |
| 82663C | No. 4 relay box lower cover | 82663-33260 |
| 82666 | Connector holder | 82666-33570 |
| 82672A | Junction box cover | 82672-06300 · 82672-06301 |
| 82673A | Junction box bracket | 82673-06110 |
| 82673B | Junction box bracket | 82673-06120 |
| 82715 | Wire harness clamp bracket | 82715-06Z60 |
| 82730 | Instrument panel junction box assembly | 82730-06870 · 82730-06871 |
| 82740 | Engine room relay box assembly | 82740-33080 · 82740-33090 |
| 82742 | Engine room No. 2 relay box | 82742-33050 |
| 82877 | Right ECU integrated box | 82877-06040 |
| 83320 | Fuel gauge sensor assembly | 83320-06230 · 83320-33150 · 83320-33160 |
| 83520 | Oil pressure gauge sensor assembly | 83520-33010 · 83520-60060 |
| 83950M | Warning light assembly | 83910-06320 · 83910-06350 · 83950-06050 · 83950-06110 · 83950-06120 |
| 84040 | Multi-channel network main switch assembly | 84040-06180 · 84040-0E170 |
| 84052 | Unlock warning switch assembly | 84052-06010 |
| 84140 | Headlight dimmer switch assembly | 84140-06730 |
| 84153 | Automatic high beam switch | 84153-06030 |
| 84233 | Door control light switch assembly (for front door) | 84231-0R010 |
| 84234 | Door control light switch assembly (for rear door) | 84231-0R010 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-06A00 · 84250-06B90 |
| 84306 | Spiral cable sub-assembly | 84308-06060 |
| 84319 | Steering wheel switch housing | 84319-06040 |
| 84329 | turn signal switch | 84329-06080 |
| 84330 | Hazard warning signal switch assembly | 84332-06130 · 84332-06140 |
| 84340 | brake light switch assembly | 84340-09330 · 84340-09340 |
| 84345 | Brake light switch base adjuster | 84345-0R010 · 84345-51010 |
| 84390B | Electric parking brake switch assembly | 84390-06030 · 84390-06110 · 84390-06120 |
| 84450 | Ignition or starter switch assembly | 84450-06060 |
| 84470A | Economic operation cancel switch assembly | 84470-06070 |
| 84523 | No. 1 switch harness | 84523-06010 · 84523-11010 |
| 84540 | Neutral start switch assembly | 84540-12240 · 84540-33010 · 84540-33020 · 84540-33021 |
| 84610F | Transmission shift switch assembly | 84610-06010 · 84610-06020 · 84610-33010 · 84610-33011 · 84610-33020 · 84610-33021 |
| 84650 | Windshield wiper switch assembly | 84652-06460 · 84652-06510 |
| 84721B | Panoramic display switch | 84721-06030 |
| 84752 | Relax seat switch | 84752-06050 |
| 84810 | Electric window lift switch assembly | 84810-06150 · 84810-F4060 |
| 84810D | Rear electric window lift switch assembly | 84810-06150 · 84810-F4060 |
| 84840D | Trunk door opening switch assembly | 84840-06050 · 84840-06051 |
| 84841A | Fuel filler cap opener switch | 84841-06030 · 84841-06031 |
| 84870A | Exterior rearview mirror switch assembly | 84872-06130 · 84872-06140 · 84872-06220 · 84872-06221 · 84872-06240 · 84872-06241 · 84872-06250 |
| 84922B | Front right electric seat switch | 84922-06220 |
| 84927 | Seat memory switch | 84927-06040 |
| 84945A | Luggage electronic key switch | 84945-06030 |
| 84975 | trip odometer switch | 84975-06040 · 84975-06060 |
| 84988L | VSC off switch | 84988-06140 |
| 85530 | No. 1 power socket assembly | 85530-52010 |
| 85530D | No. 2 power socket assembly | 85530-07010 |
| 85532 | USB charging socket | 85532-06030 · 85532-06070 · 85532-0R100 |
| 85535B | No. 1 power outlet cover | 85535-06110 |
| 85910V | seat heater relay | 90987-T2005 |
| 85912 | defogger relay | 90987-T4002 |
| 85912K | VVT relay | 90987-T2005 |
| 85916D | fog light relay | 90987-T2005 |
| 85916P | headlight relay | 90987-T2005 |
| 85924C | IGCT relay | 90987-02031 |
| 85934 | Electromagnetic clutch relay | 90987-02027 · 90987-02028 |
| 85940 | Windshield wiper relay assembly | 90987-02027 · 90987-T2005 |
| 85941 | windshield washer relay | 90987-02025 · 90987-T2004 |
| 8598A | door control battery | 8598A-06020 · 8598A-06030 · 8598A-06040 |
| 86210A | Voltage inverter assembly | 86210-06010 |
| 86220A | Inverter relay | 90987-T2005 |
| 86530 | Speaker relay assembly | 90987-02027 · 90987-T2005 |
| 87346K | PTC heater relay | 90987-02025 · 90987-T2004 |
| 87989 | Rearview mirror control relay | 90987-04004 · 90987-T4001 |
| 88162 | Blind spot monitor right sensor | 88162-33070 · 88162-33071 · 88162-33120 · 88162-33121 |
| 88172 | Blind spot monitor left sensor | 88162-33070 · 88162-33071 · 88162-33120 · 88162-33121 |
| 88660C | Cooler control switch assembly | 84660-06070 |
| 89111 | Network gateway ECU | 89100-06020 · 89100-06040 · 89100-06050 · 89111-06090 · 89111-06100 · 89111-06190 · 89111-06200 · 89111-06250 · 89111-06260 |
| 89120A | Automatic light control sensor | 89121-0E040 · 89121-30020 |
| 89221 | Multi-channel network body ECU | 89220-06700 · 89220-06780 · 89220-06E30 · 89220-06E40 · 89220-06F60 · 89220-06F70 |
| 89227 | Multi-channel network steering column tilt and telescopic control ECU | 89227-33030 · 89227-48070 |
| 89235A | Tilt-telescoping steering column switch | 89235-06020 · 89235-33010 |
| 89245B | steering sensor | 8924B-06060 · 8924B-0R030 |
| 89419B | gear shift sensor | 89419-12010 · 89419-12011 · 89419-K2010 |
| 89422A | water temperature sensor | 89422-33040 |
| 89422N | No. 2 water temperature sensor | 89422-33040 |
| 89425 | Exhaust gas temperature sensor | 89425-06030 |
| 89425A | No. 2 exhaust gas temperature sensor | 89425-06040 |
| 89429F | temperature sensor | 89429-12010 |
| 89430A | Left exterior rearview mirror control ECU assembly | 89430-06070 · 89430-06071 |
| 89430B | Right exterior mirror control ECU assembly | 89430-06080 · 89430-06081 |
| 89439 | Sensor holder | 82715-07160 · 82715-33K11 |
| 89451A | shift lever position sensor | 89451-10010 |
| 89461 | steam pressure sensor | 89461-48020 |
| 89465 | oxygen sensor | 89465-06300 |
| 89467B | air fuel ratio sensor | 89467-06220 · 89467-06270 · 89467-0R160 · 89467-0R190 · 89467-F4010 |
| 89467C | No. 2 air-fuel ratio sensor | 89467-06290 · 89467-06300 · 89467-06350 · 89467-33210 |
| 8946A | Exhaust sensor clip bracket | 8946A-06050 |
| 8946AA | No. 2 exhaust sensor clip bracket | 8946A-06020 |
| 89481B | Differential pressure sensor | 89481-K0010 |
| 89491 | Engine oil level sensor | 89491-33040 · 89491-33042 · 89491-33050 · 89491-33051 · 89491-33052 |
| 89535B | Transmission control ECU | 89535-06010 · 89535-06020 · 89535-06021 · 89535-33010 · 89535-33020 |
| 89539M | No. 1 transmission control ECU bracket | 89539-0R010 · 89539-42080 |
| 89539N | No. 2 transmission control ECU bracket | 89539-0R020 · 89539-42090 |
| 89611 | One-button start switch | 89611-02142 · 89611-02162 |
| 89615 | knock control sensor | 89615-20090 |
| 89710D | Left position control ECU assembly | 89710-33060 · 89710-33061 |
| 89730A | Relay (for safety warnings) | 90987-02027 · 90987-T2005 |
| 89747F | Blind spot monitor buzzer | 89747-52010 |
| 89980 | Hybrid vehicle control ECU assembly | 89980-06150 · 89980-06160 · 89980-06161 · 89980-33090 · 89980-33170 · 89980-33320 |
