Toyota CAMRY 线束和卡夹 — Figure 8202

Toyota CAMRY EPC diagram 8202, 线束和卡夹, with 20 images and 115 PNC and OE references.

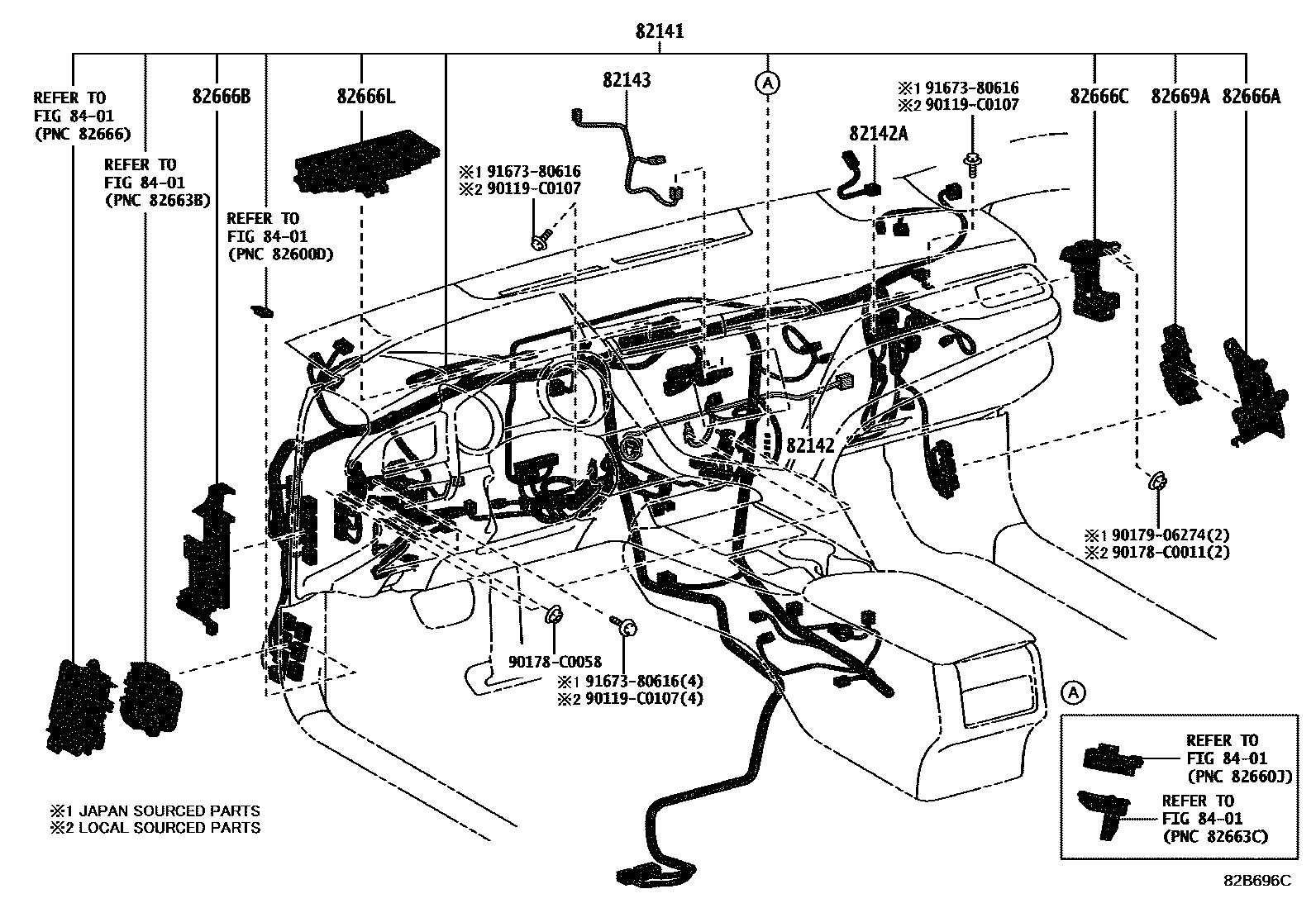

Toyota CAMRY 线束和卡夹 EPC diagram — 82B696C
线束和卡夹 — 82B696C (201712 – 999999)
Toyota CAMRY 线束和卡夹 EPC diagram — 82B697
线束和卡夹 — 82B697 (201712 – 999999)

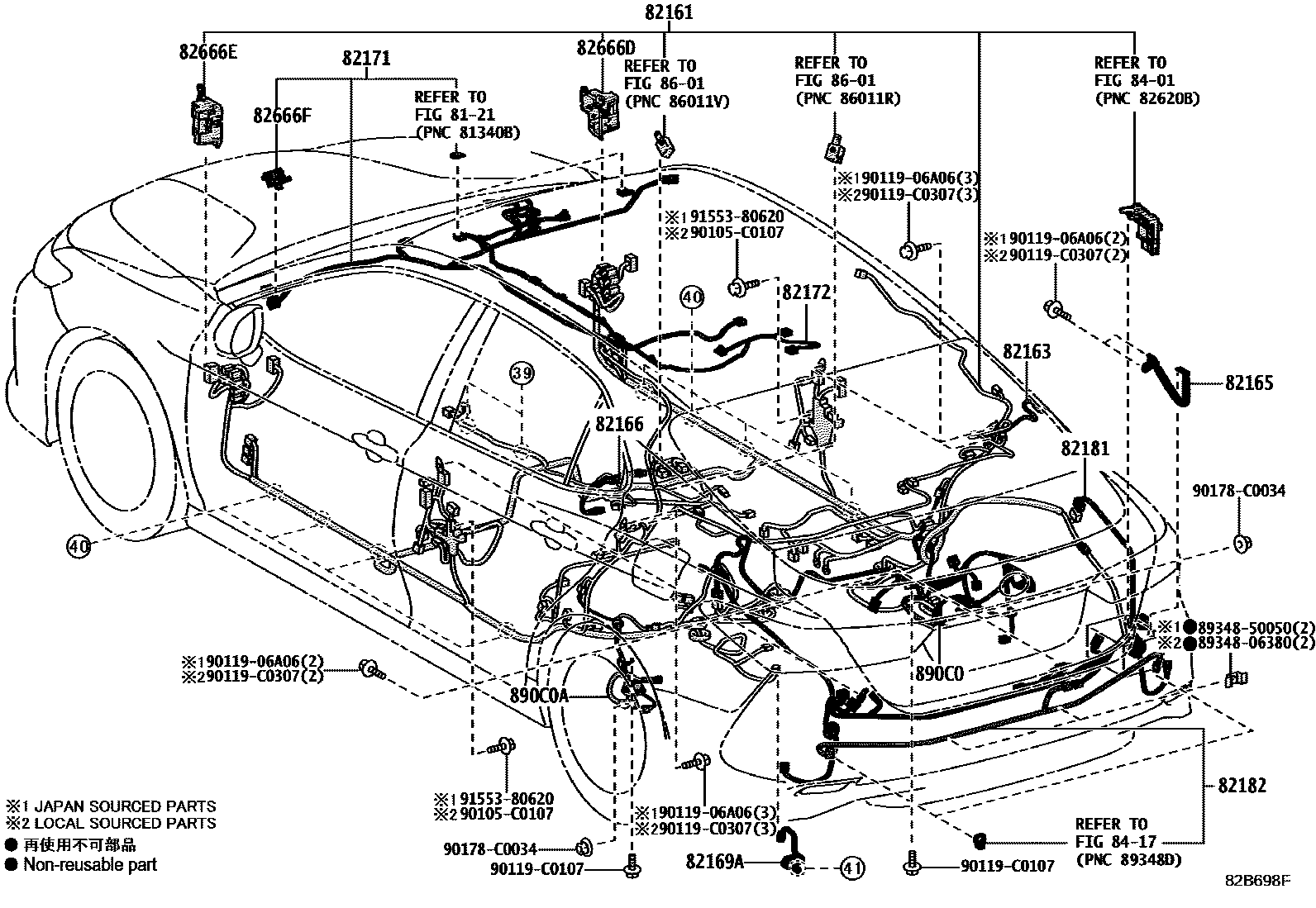

Toyota CAMRY 线束和卡夹 EPC diagram — 82B698F
线束和卡夹 — 82B698F (201712 – 999999)
Toyota CAMRY 线束和卡夹 EPC diagram — 82B699C
线束和卡夹 — 82B699C (201712 – 999999)
Toyota CAMRY 线束和卡夹 EPC diagram — 82B700
线束和卡夹 — 82B700 (201712 – 999999)

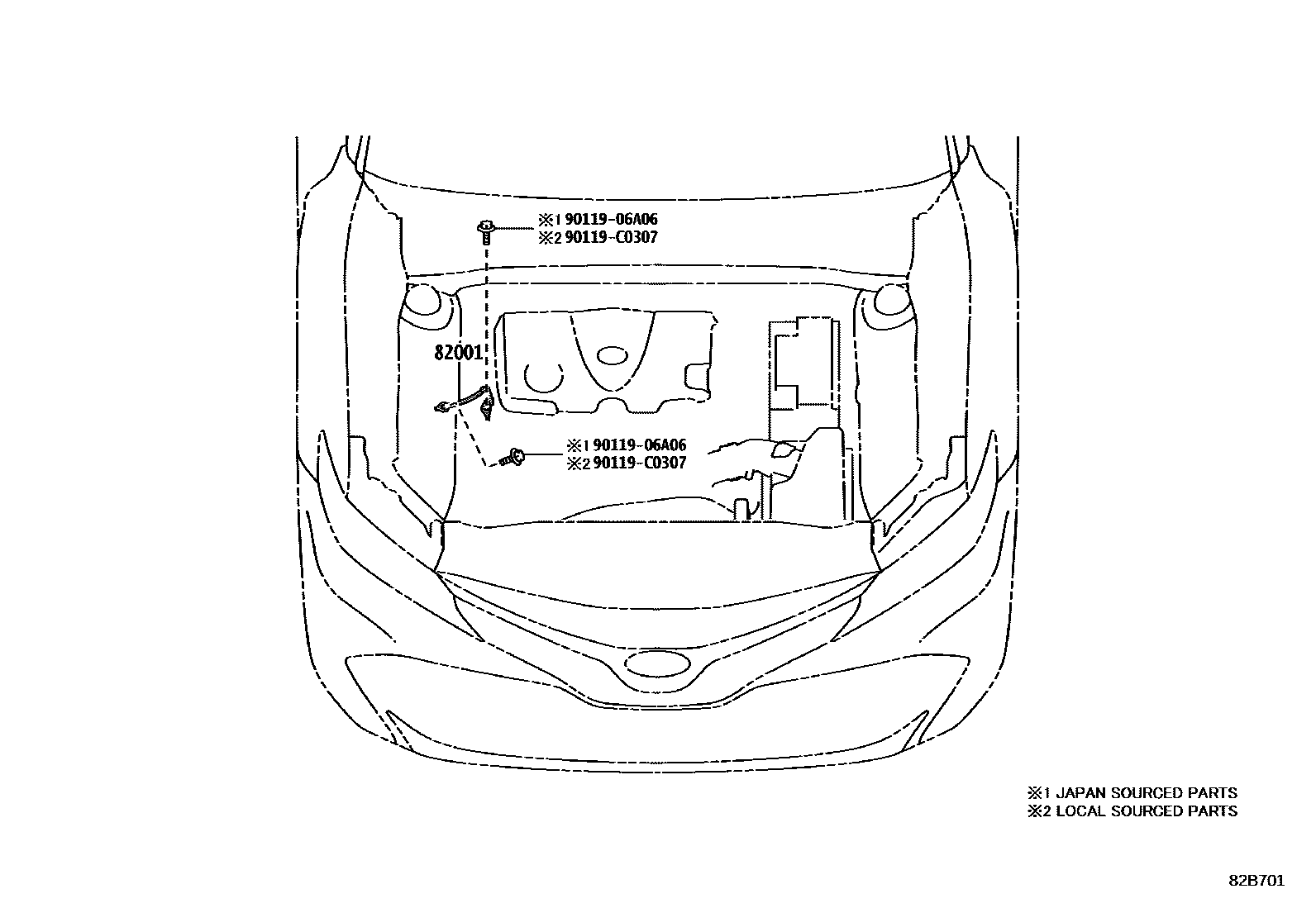

Toyota CAMRY 线束和卡夹 EPC diagram — 82B701
线束和卡夹 — 82B701 (201712 – 999999)

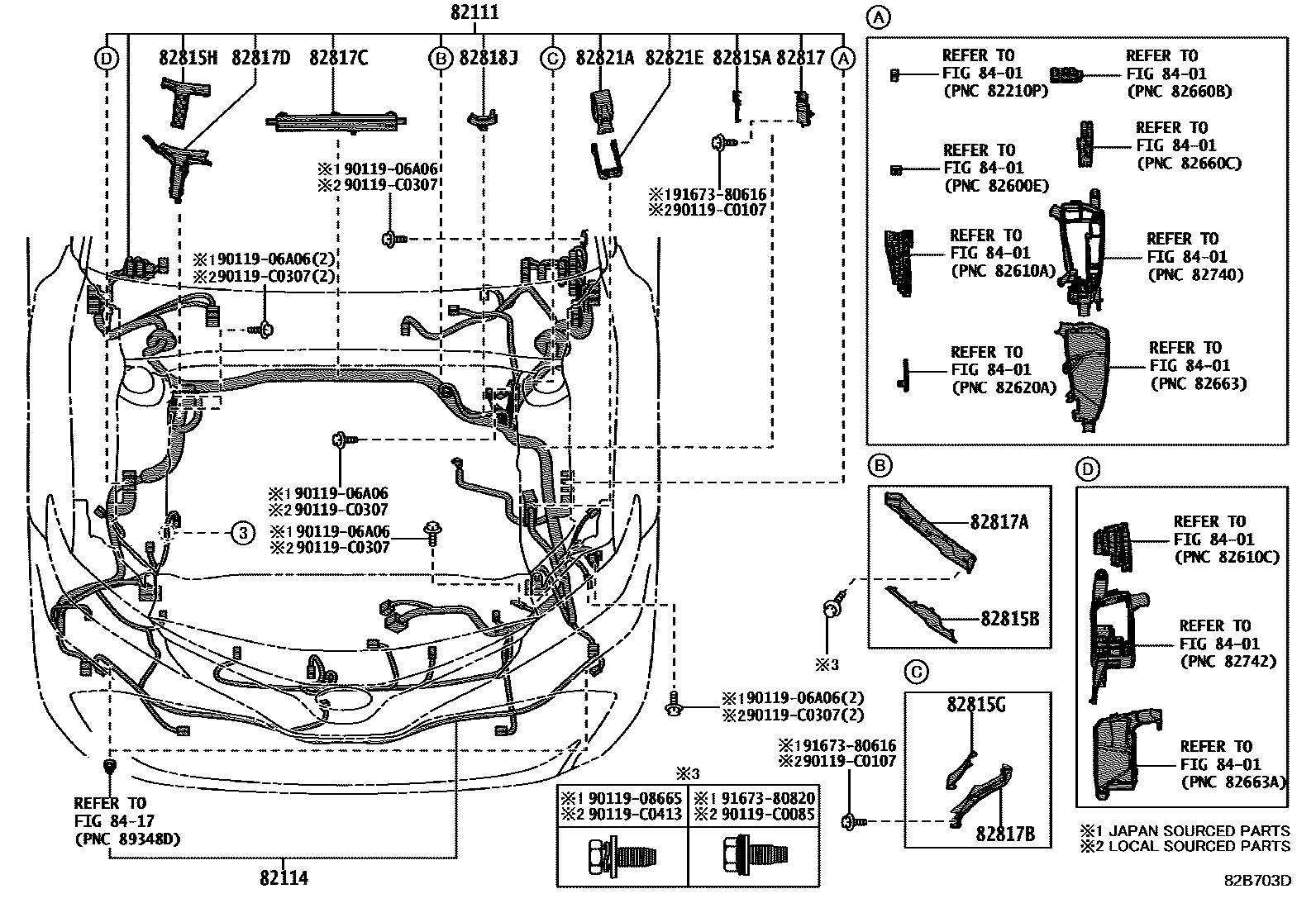

Toyota CAMRY 线束和卡夹 EPC diagram — 82B703D
线束和卡夹 — 82B703D (201712 – 999999)

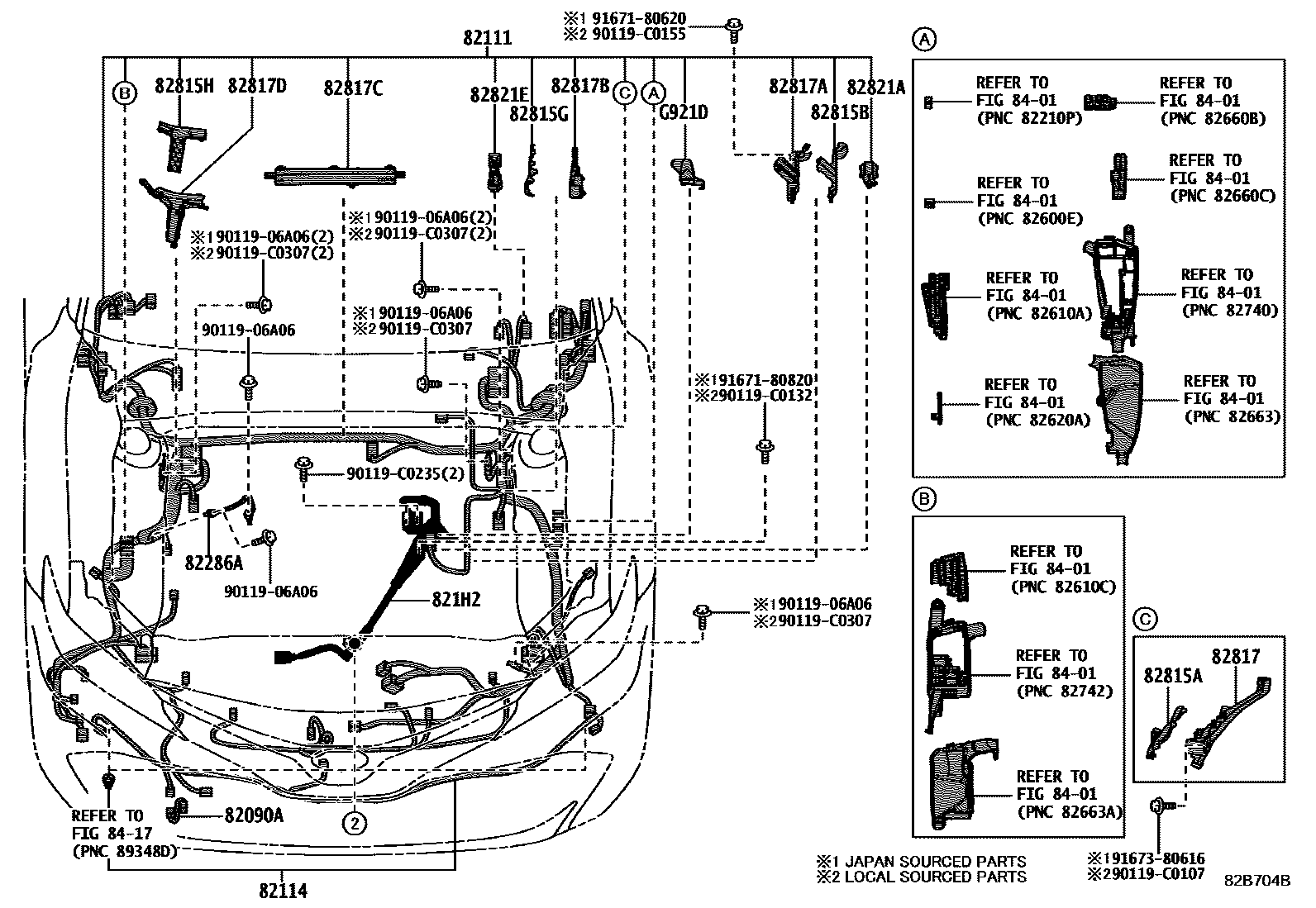

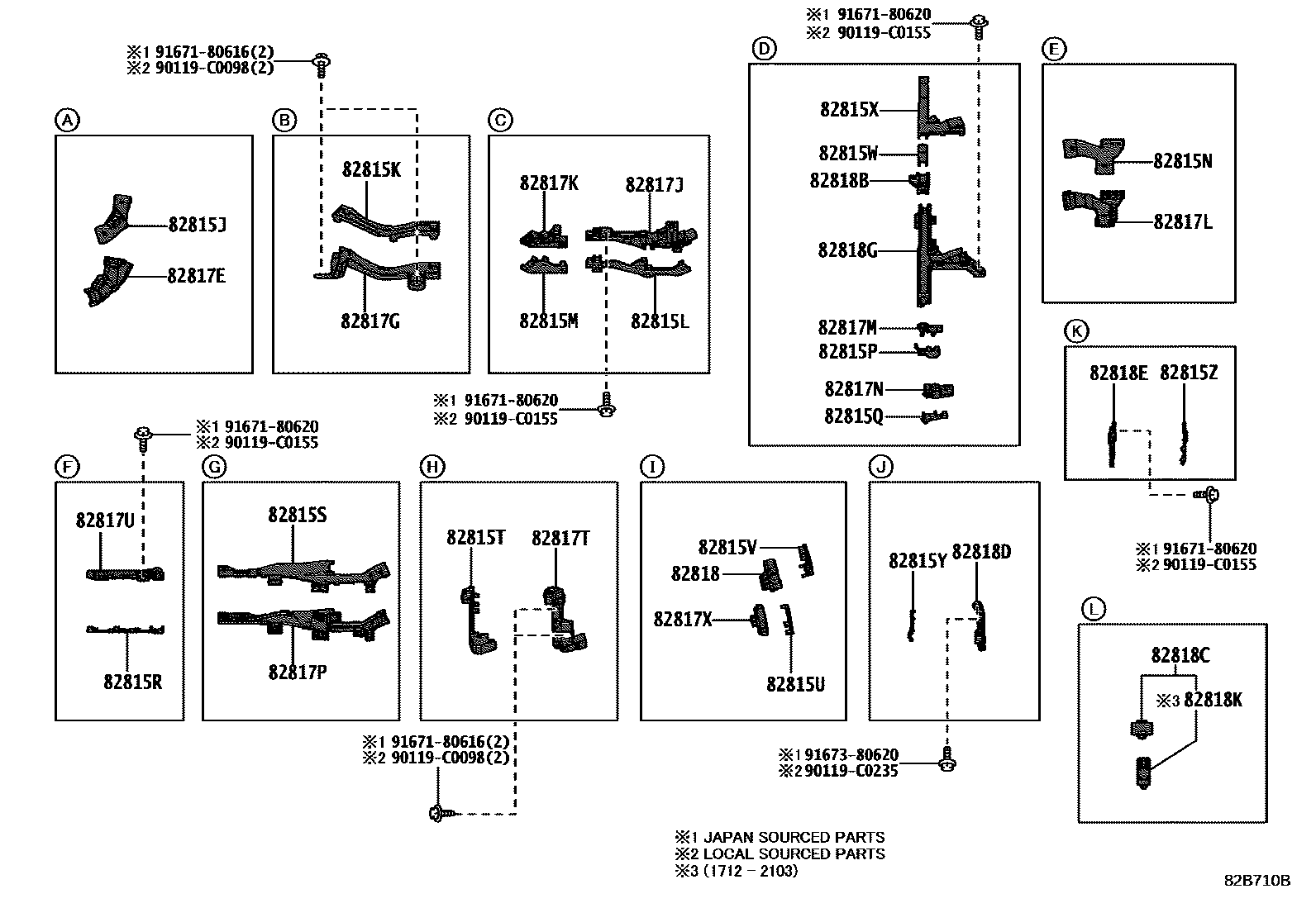

Toyota CAMRY 线束和卡夹 EPC diagram — 82B704B
线束和卡夹 — 82B704B (201712 – 999999)

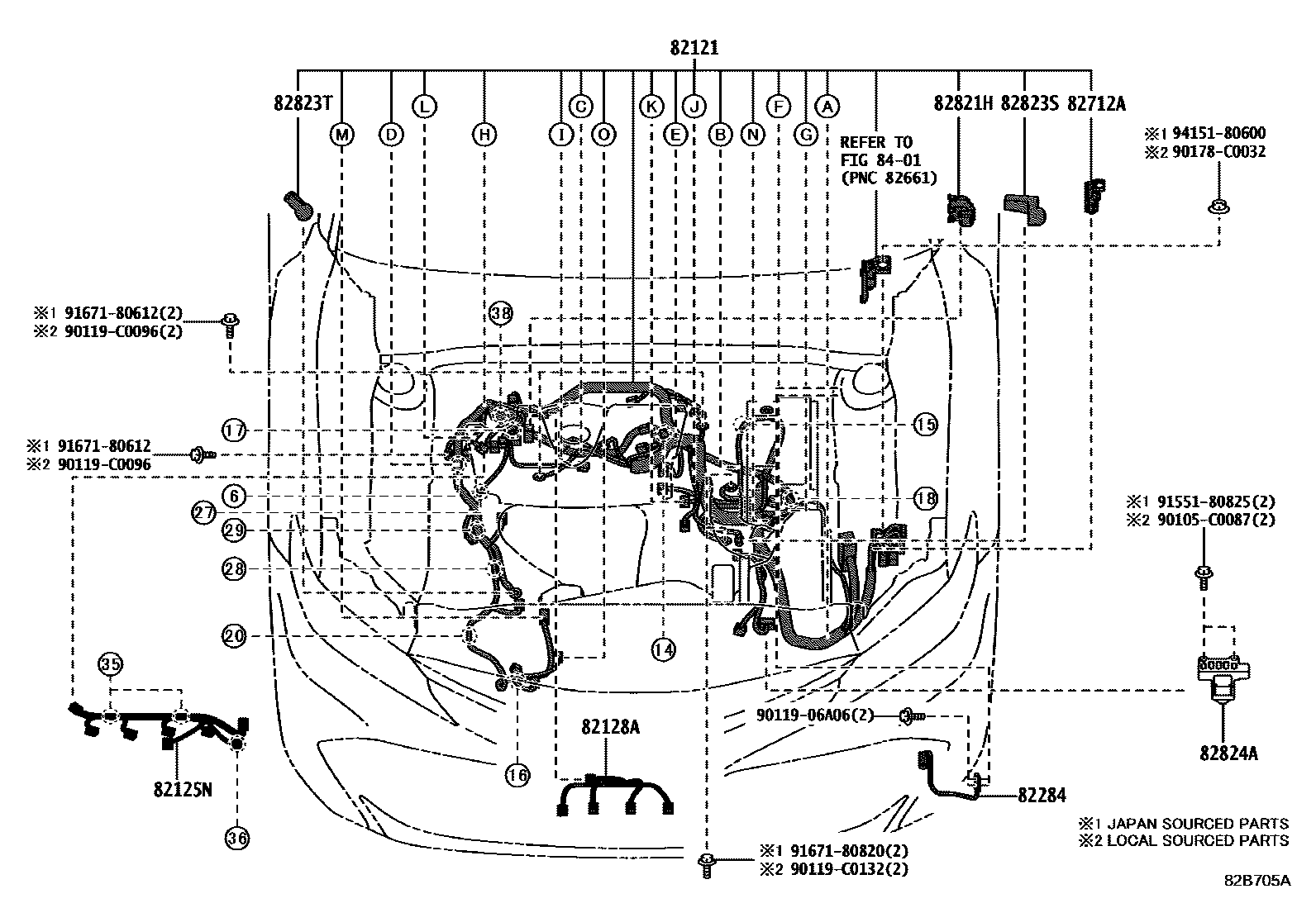

Toyota CAMRY 线束和卡夹 EPC diagram — 82B705A
线束和卡夹 — 82B705A (201712 – 999999)
Toyota CAMRY 线束和卡夹 EPC diagram — 82B706
线束和卡夹 — 82B706 (201712 – 999999)

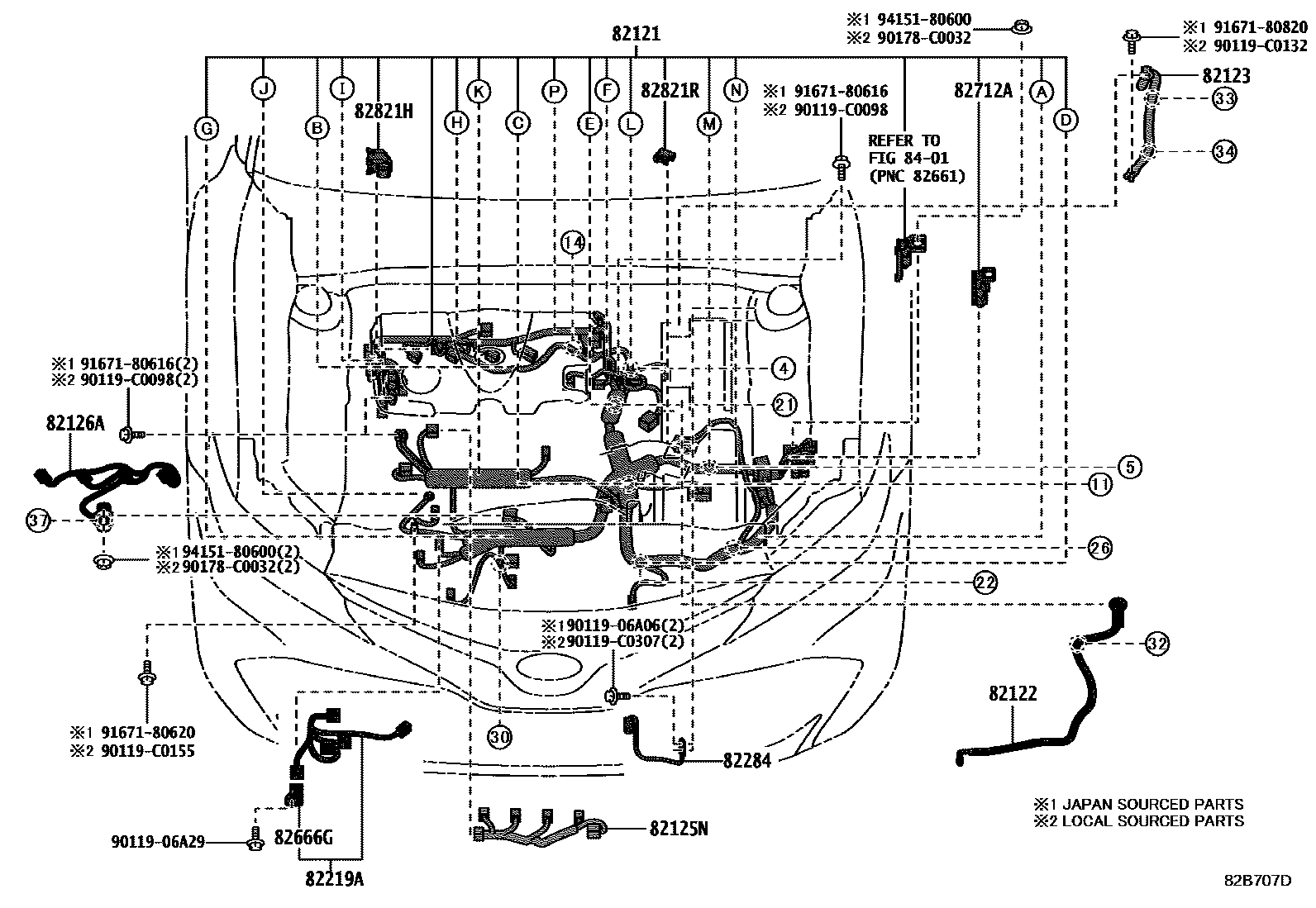

Toyota CAMRY 线束和卡夹 EPC diagram — 82B707D
线束和卡夹 — 82B707D (201712 – 999999)
Toyota CAMRY 线束和卡夹 EPC diagram — 82B708B
线束和卡夹 — 82B708B (201712 – 999999)
Toyota CAMRY 线束和卡夹 EPC diagram — 82B709E
线束和卡夹 — 82B709E (201712 – 999999)
Toyota CAMRY 线束和卡夹 EPC diagram — 82B710B
线束和卡夹 — 82B710B (201712 – 999999)

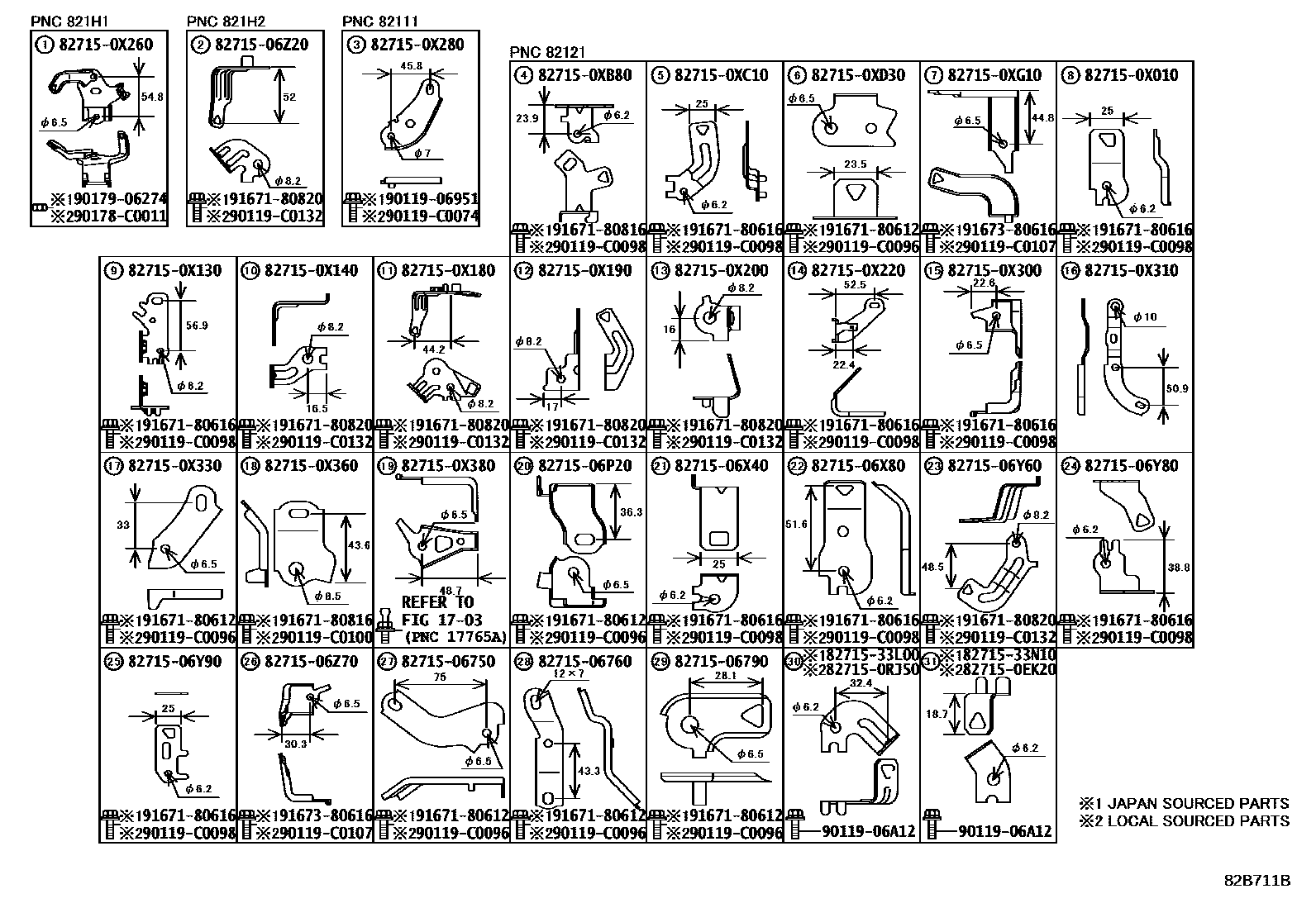

Toyota CAMRY 线束和卡夹 EPC diagram — 82B711B
线束和卡夹 — 82B711B (201712 – 999999)

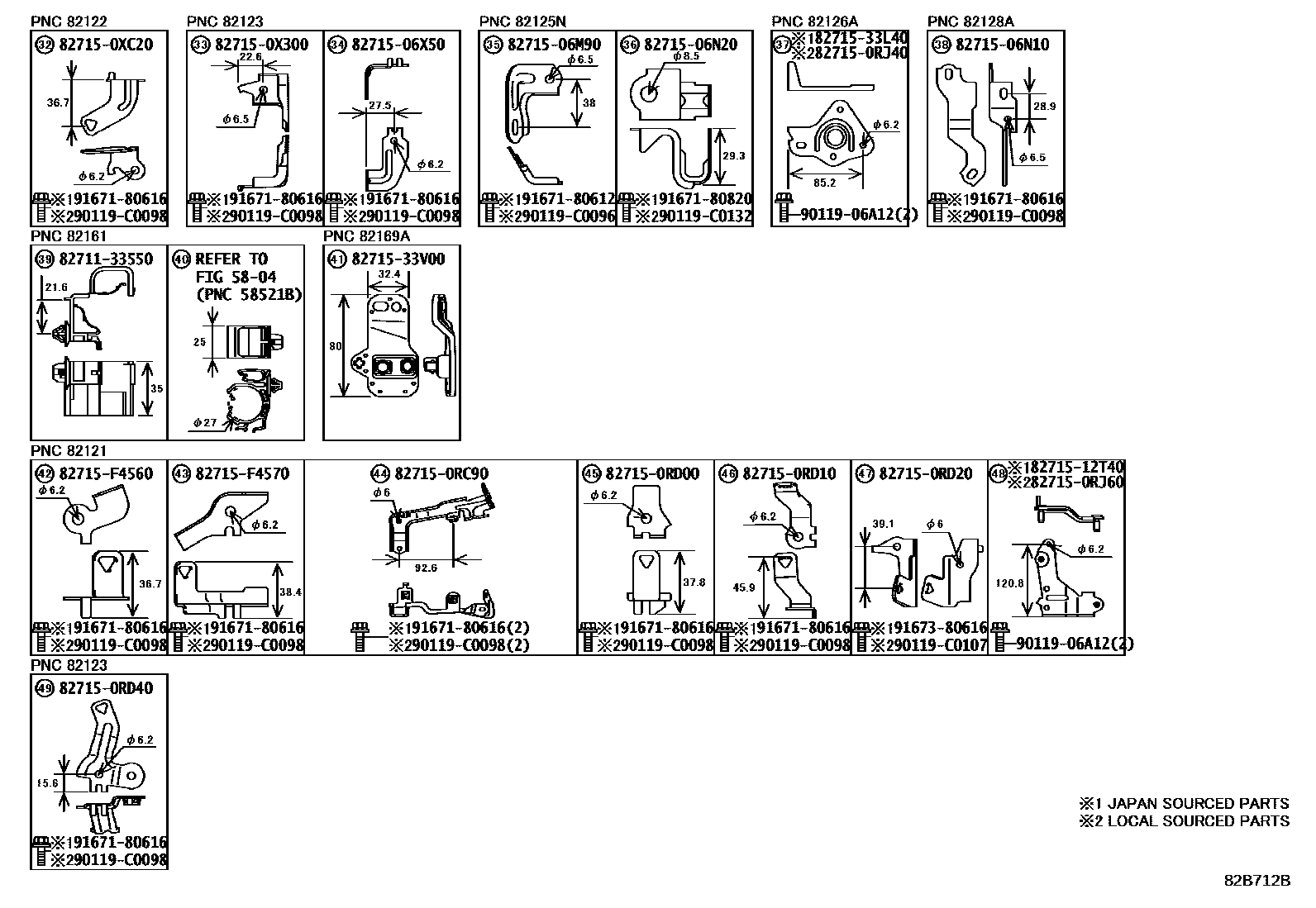

Toyota CAMRY 线束和卡夹 EPC diagram — 82B712B
线束和卡夹 — 82B712B (201712 – 999999)

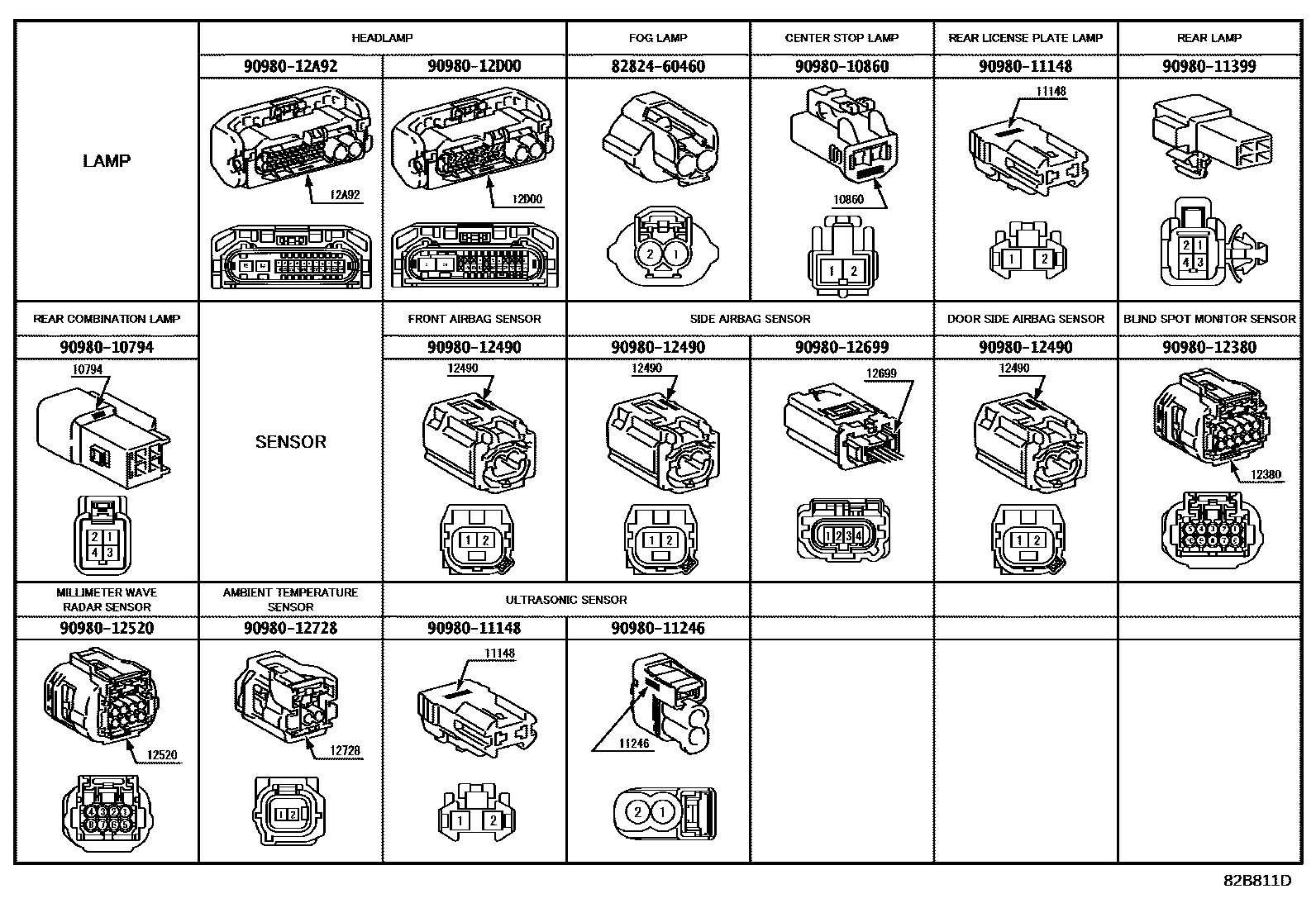

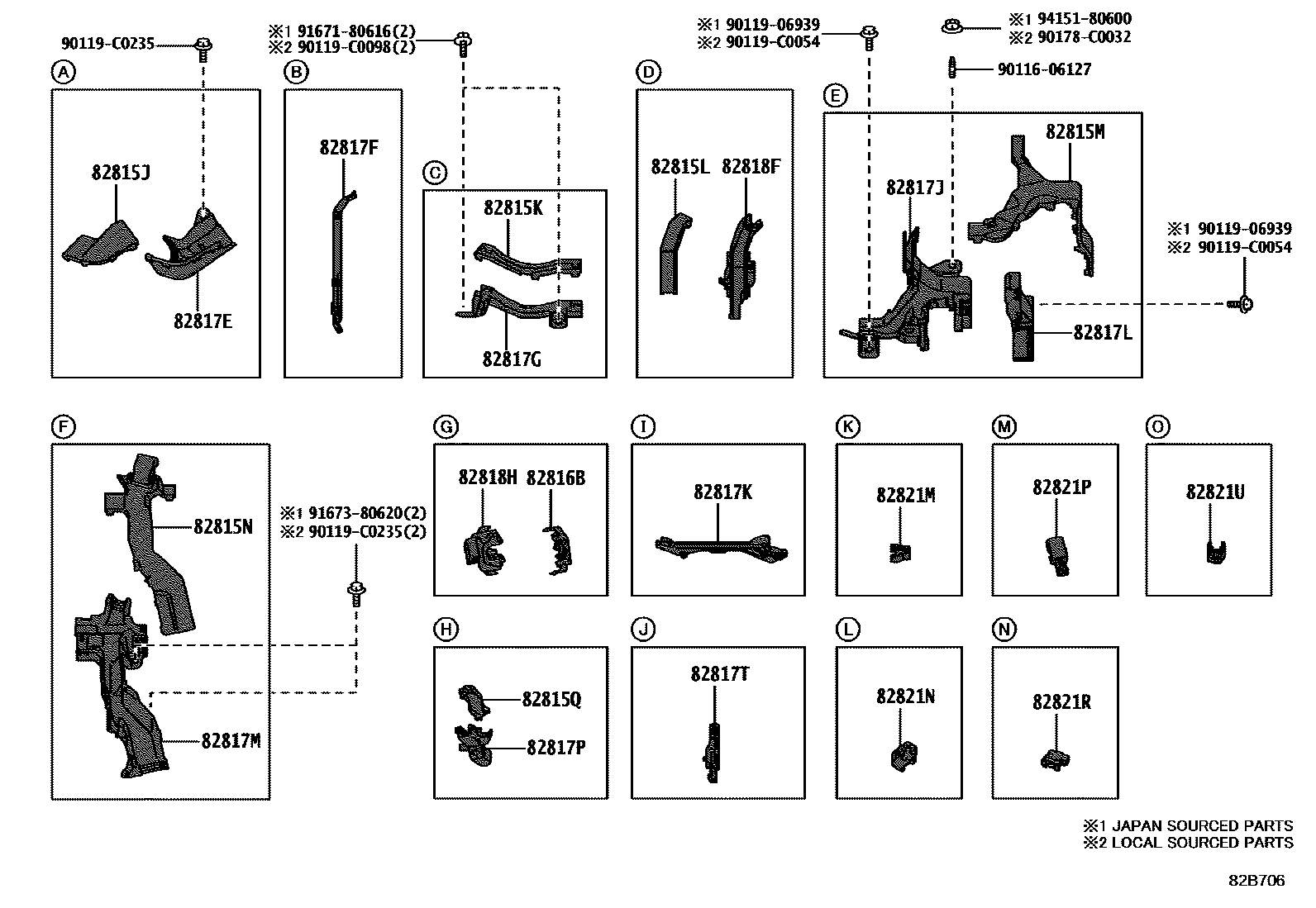

Toyota CAMRY 线束和卡夹 EPC diagram — 82B811D
线束和卡夹 — 82B811D (201712 – 999999)

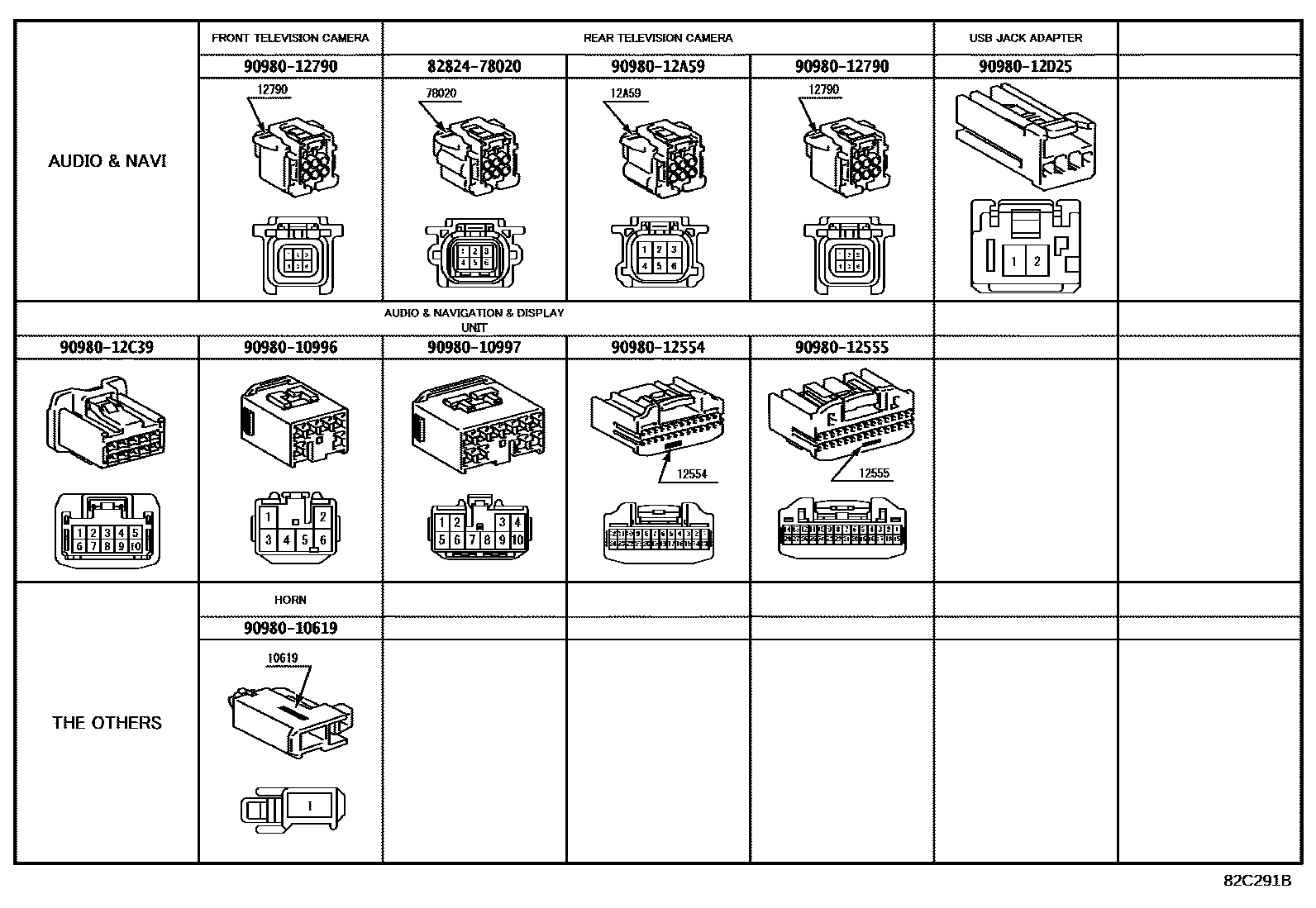

Toyota CAMRY 线束和卡夹 EPC diagram — 82C291B
线束和卡夹 — 82C291B (201712 – 999999)

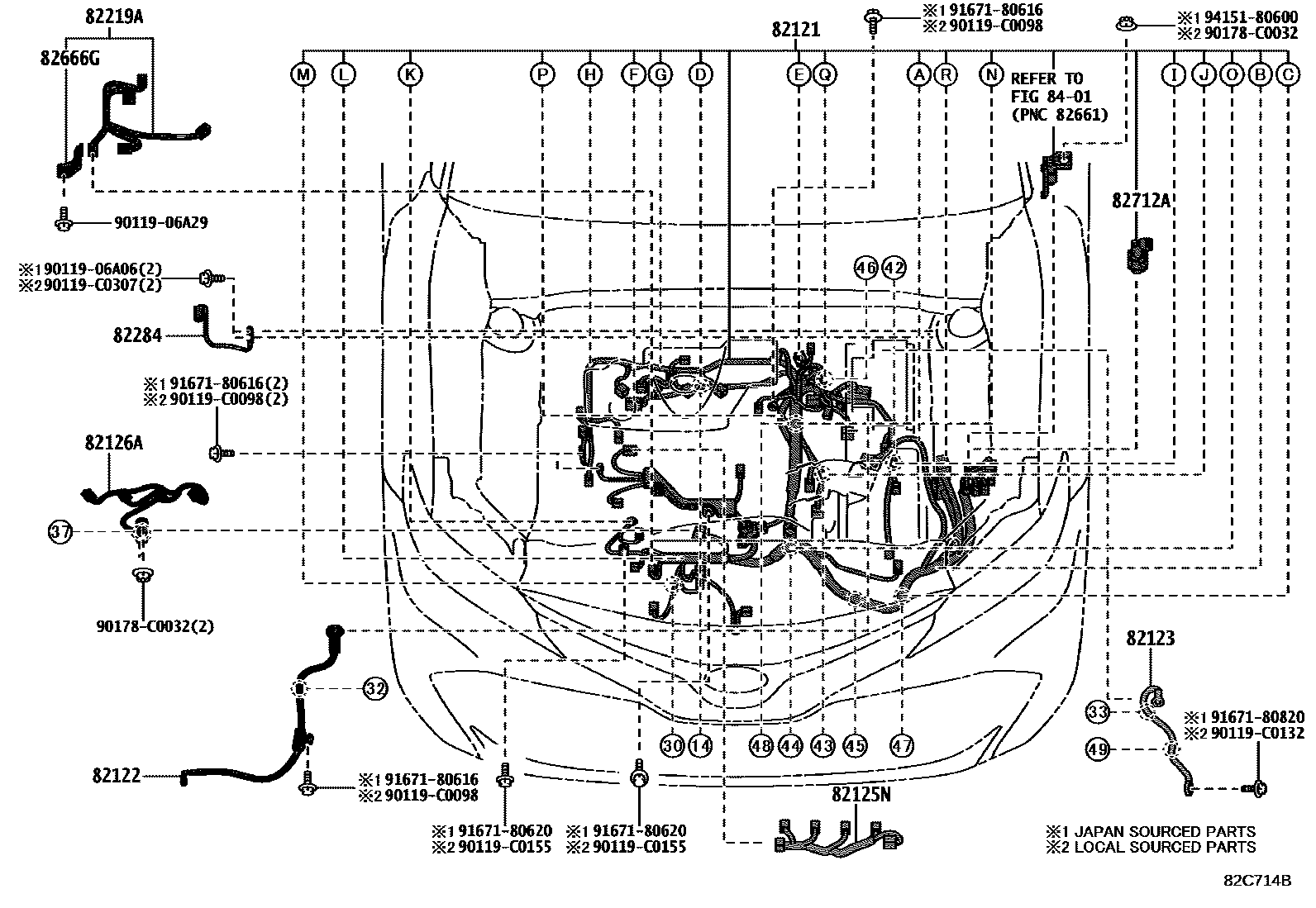

Toyota CAMRY 线束和卡夹 EPC diagram — 82C714B
线束和卡夹 — 82C714B (201903 – 999999)

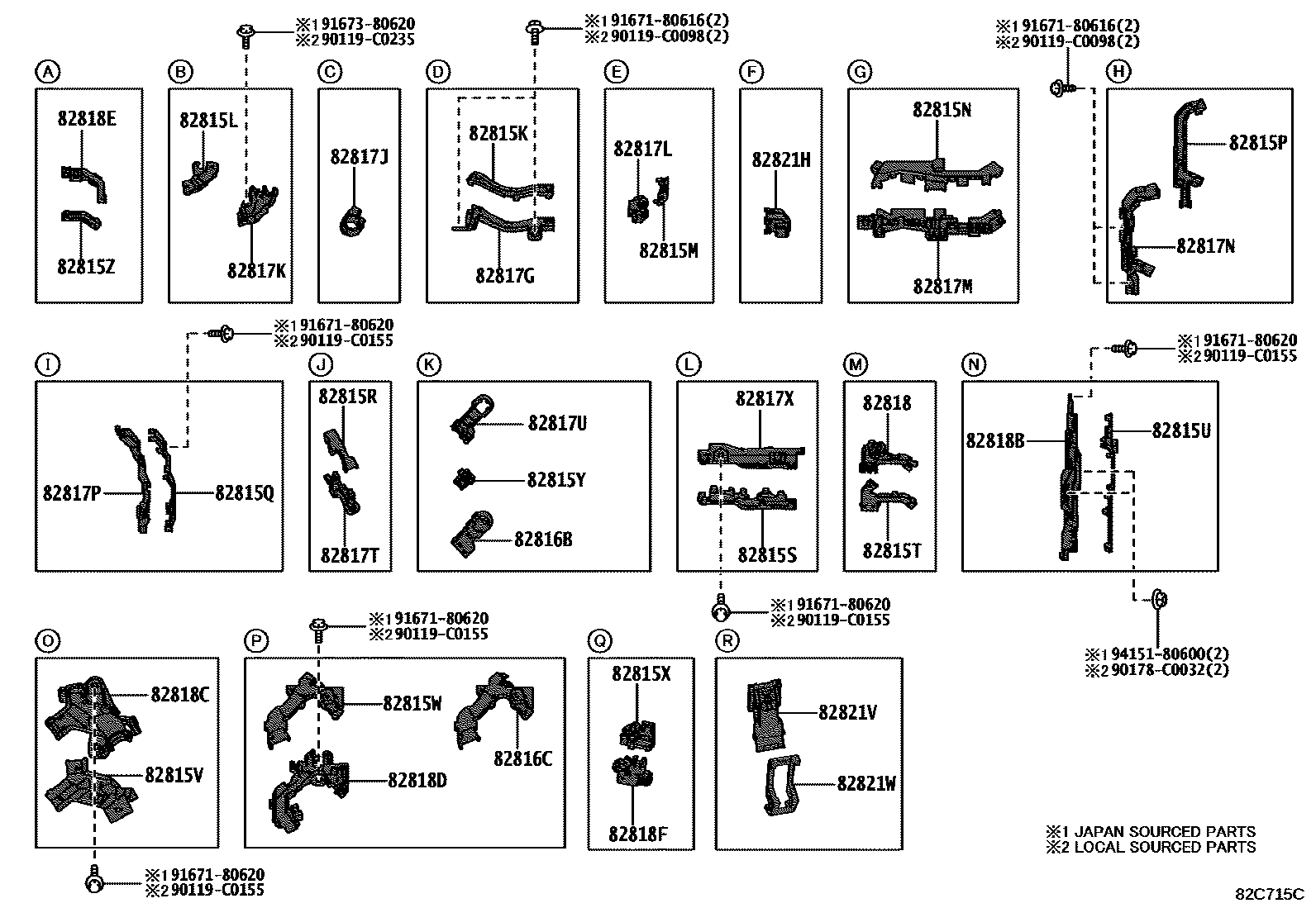

Toyota CAMRY 线束和卡夹 EPC diagram — 82C715C
线束和卡夹 — 82C715C (201903 – 999999)

PNC and OE references

PNCPart nameOE numbers
82001Connection cable No. 182286-33020
82090AExtension cord assembly82090-06040
82111Engine room main wiring harness82115-06G50 · 82115-06G51 · 82115-06G53 · 82115-06G54 · 82115-06P40 · 82115-06P41 · 82115-06P42 · 82115-06P43 · 82115-06P60 · 82115-06P61 · 82115-06P62 · 82115-06P63 · 82115-06S80 · 82115-06S81 · 82115-06S82 · 82116-06270 · 82116-06271 · 82116-06B70 · 82116-06B80 · 82116-06B90 · 82116-06C00 · 82116-06C20 · 82116-06C21 · 82116-06C22 · 82116-06C23 · 82116-06C24 · 82116-06C30 · 82116-06C31 · 82116-06C32 · 82116-06C33 · 82116-06C34 · 82116-06C40 · 82116-06C41 · 82116-06C50 · 82116-06C51 · 82116-06K20 · 82116-06K21 · 82116-06K23 · 82116-06V40 · 82116-06V41 · 82116-06V50 · 82116-06V51 · 82116-06V53 · 82116-06V54
82114Engine room wiring harness No. 482114-06230 · 82114-06231 · 82114-06240 · 82114-06290 · 82114-06291

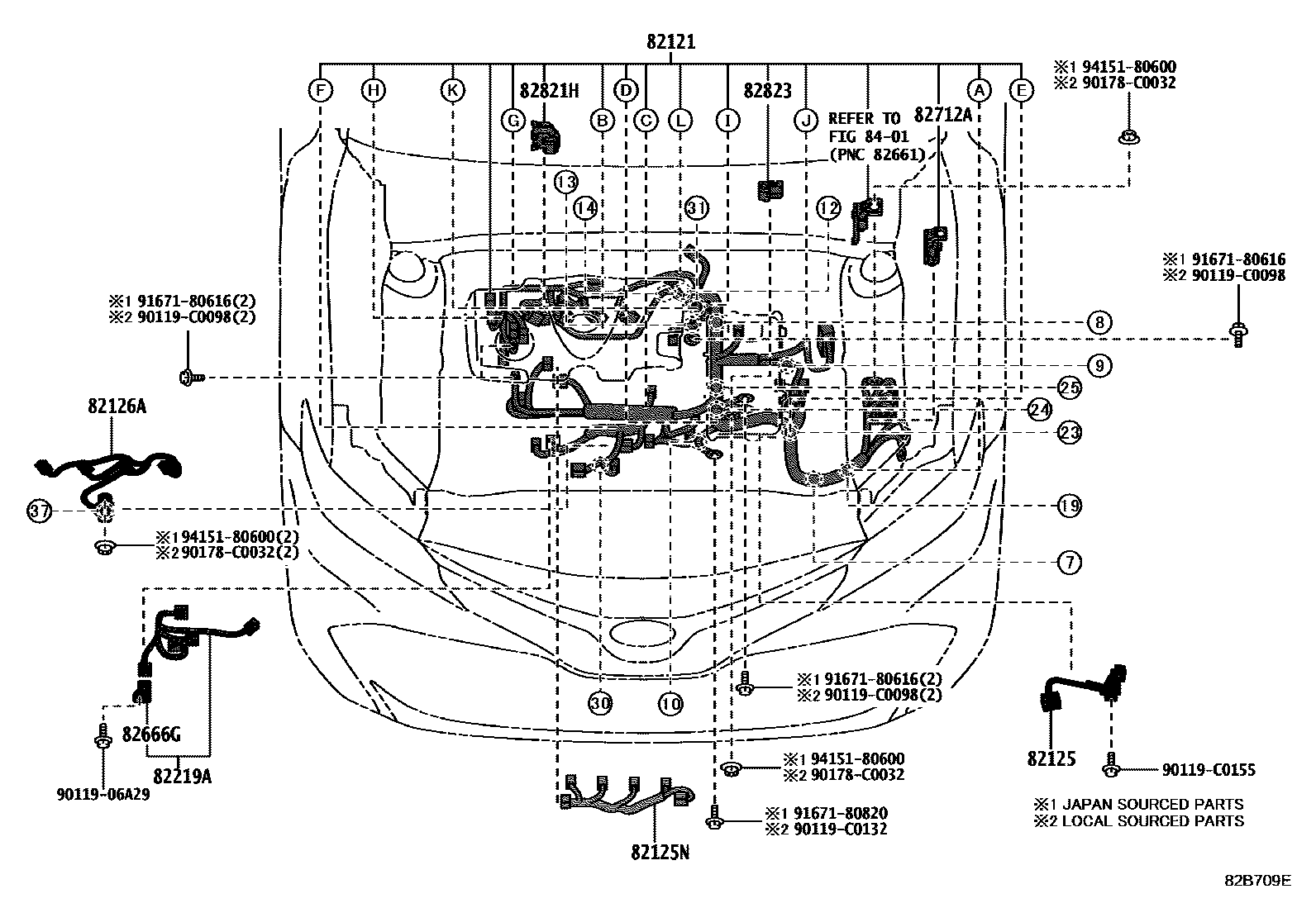

82121Engine wiring harness82121-06J00 · 82121-06J01 · 82121-06J02 · 82121-06L90 · 82121-06M00 · 82121-06M01 · 82121-06M02 · 82121-06M10 · 82121-06P20 · 82121-06P21 · 82121-06P22
82122Engine No. 2 wiring harness82122-06270 · 82122-06271 · 82122-06440 · 82122-06441
82123Engine No. 3 wiring harness82123-06100 · 82123-06130
82125Transmission wiring harness82125-33270
82125NEngine No. 5 wiring harness82125-06070 · 82125-0E060 · 82125-0R010 · 82125-12660 · 82125-33180 · 82125-33220
82126ANo. 6 engine wiring harness82126-0E030 · 82126-0R020 · 82126-12010 · 82126-33050
82128AEngine wiring harness No. 882128-06040
82141Dashboard wiring harness82145-06B20 · 82145-06B21 · 82145-06B22 · 82145-06B23 · 82145-06B30 · 82145-06B31 · 82145-06B32 · 82145-06B33 · 82145-06B40 · 82145-06B42 · 82145-06B43 · 82145-06B44 · 82145-06B45 · 82145-06B50 · 82145-06B51 · 82145-06B52 · 82145-06B53 · 82145-06Q30 · 82145-06Q40 · 82145-06Q50 · 82145-06Q60 · 82145-06Q70 · 82145-06Q80 · 82145-06Q81 · 82145-06Q82 · 82145-06Q83 · 82145-06Q84 · 82145-06Q90 · 82145-06Q91 · 82145-06Q93 · 82145-06Q94 · 82145-06Q95 · 82145-06Q96 · 82145-06R00 · 82145-06R10 · 82145-06R11 · 82145-06R13 · 82145-06R14 · 82145-06R15 · 82145-06R16 · 82145-0XJ50 · 82145-0XJ51 · 82145-0XJ52 · 82145-0XJ80 · 82145-0XJ81 · 82145-0XJ82 · 82145-0XJ83 · 82146-06020 · 82146-06030
82142Instrument panel wiring harness No. 282142-06A80
82142AInstrument panel wiring harness No. 282140-06110
82143Instrument panel wiring harness No. 382143-06490 · 82143-06491

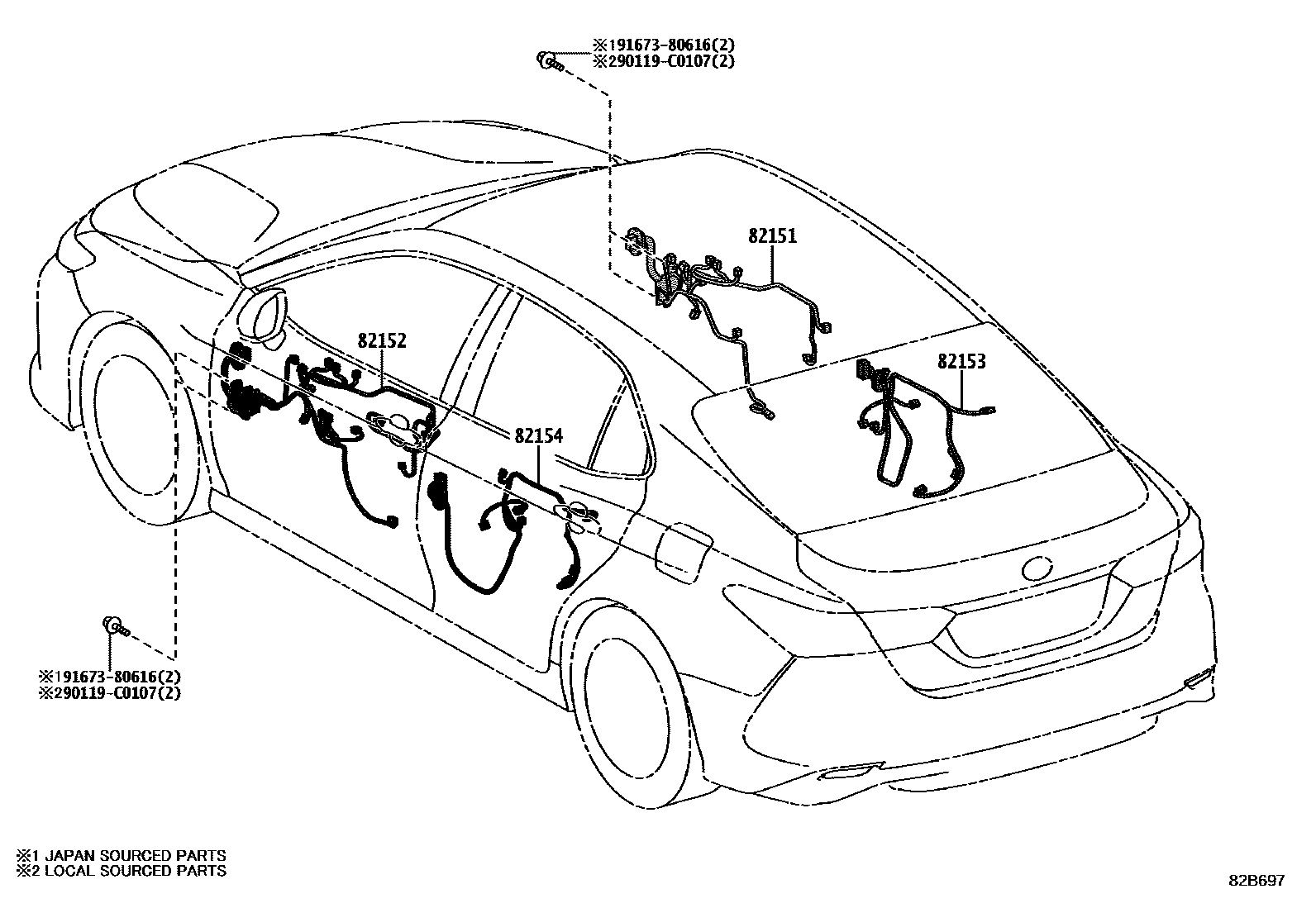

82151Right front door wiring harness82151-06R70 · 82151-06R71 · 82151-06R80 · 82151-06R81
82152Left front door wiring harness82152-06Q70 · 82152-06Q71 · 82152-06Q72 · 82152-06Q80 · 82152-06Q81 · 82152-06Q82 · 82152-06Q90 · 82152-06Q91 · 82152-06Q92 · 82152-06W20
82153Rear door wiring harness No. 182153-06740 · 82153-06741 · 82153-06A00 · 82153-06A01
82154Rear door wiring harness No. 282154-06730 · 82154-06731 · 82154-06890 · 82154-06891
82161floor wiring harness82161-0XN50 · 82161-0XN51 · 82161-0XN52 · 82161-0XN53 · 82161-0XN60 · 82161-0XN61 · 82161-0XN62 · 82161-0XN63 · 82161-0XN70 · 82161-0XN71 · 82161-0XN72 · 82161-0XN73 · 82161-0XN90 · 82161-0XN91 · 82161-0XN92 · 82161-0XN93 · 82161-0XN94 · 82161-0XP10 · 82161-0XP20 · 82161-0XP30 · 82161-0XP40 · 82161-0XP70 · 82161-0XP71 · 82161-0XP72 · 82161-0XP73 · 82161-0XP90 · 82161-0XP91 · 82161-0XP92 · 82161-0XP93 · 82199-06310 · 82199-06311 · 82199-06320 · 82199-06321 · 82199-06330 · 82199-06331 · 82199-06340 · 82199-06341 · 82199-06350 · 82199-06351 · 82199-06360 · 82199-06361 · 82199-06550 · 82199-06551 · 82199-06552 · 82199-06560 · 82199-06570 · 82199-06580 · 82199-06590 · 82199-06600 · 82199-06610 · 82199-06611 · 82199-06612 · 82199-06620 · 82199-06V60
82163Floor wiring harness No. 382163-06260
82165No. 2 frame wiring harness82165-06050 · 82165-06051
82166Armrest box wiring harness82166-06080
82169ANo. 6 floor wiring harness82169-06040
82171Roof No. 1 wiring harness82171-06T90 · 82171-06U00 · 82171-06U01 · 82171-06U10 · 82171-06U20 · 82171-06U21 · 82171-06U30 · 82171-06U40 · 82171-06U50 · 82171-06U51 · 82171-06U60 · 82171-06U61 · 82171-06Z80 · 82171-0X390 · 82171-0X391 · 82171-0X450 · 82171-0X680 · 82171-0X690 · 82171-0X700 · 82171-0X710 · 82171-0X720 · 82171-0X730 · 82171-0X740 · 82171-0X750
82172Roof No. 2 wiring harness82172-06070
82176Rear armrest box wiring harness82176-06010
82181Luggage No. 1 wiring harness82181-06V40 · 82181-06V41 · 82181-06V50 · 82181-06V51 · 82181-06V60 · 82181-06V61 · 82181-06V70 · 82181-06V71 · 82181-06V72 · 82181-06X00 · 82181-06X01 · 82181-06X02 · 82181-06X10 · 82181-06X11 · 82181-06X12 · 82181-06X13 · 82181-06Z40 · 82181-06Z50
82182Luggage No. 2 wiring harness82182-06590
82191Front right seat wiring harness82191-06750 · 82191-06A00
82192Front left seat wiring harness82192-06670 · 82192-06790
8219AWire harness No. 2, right side of front seat8219A-06150 · 8219A-06390

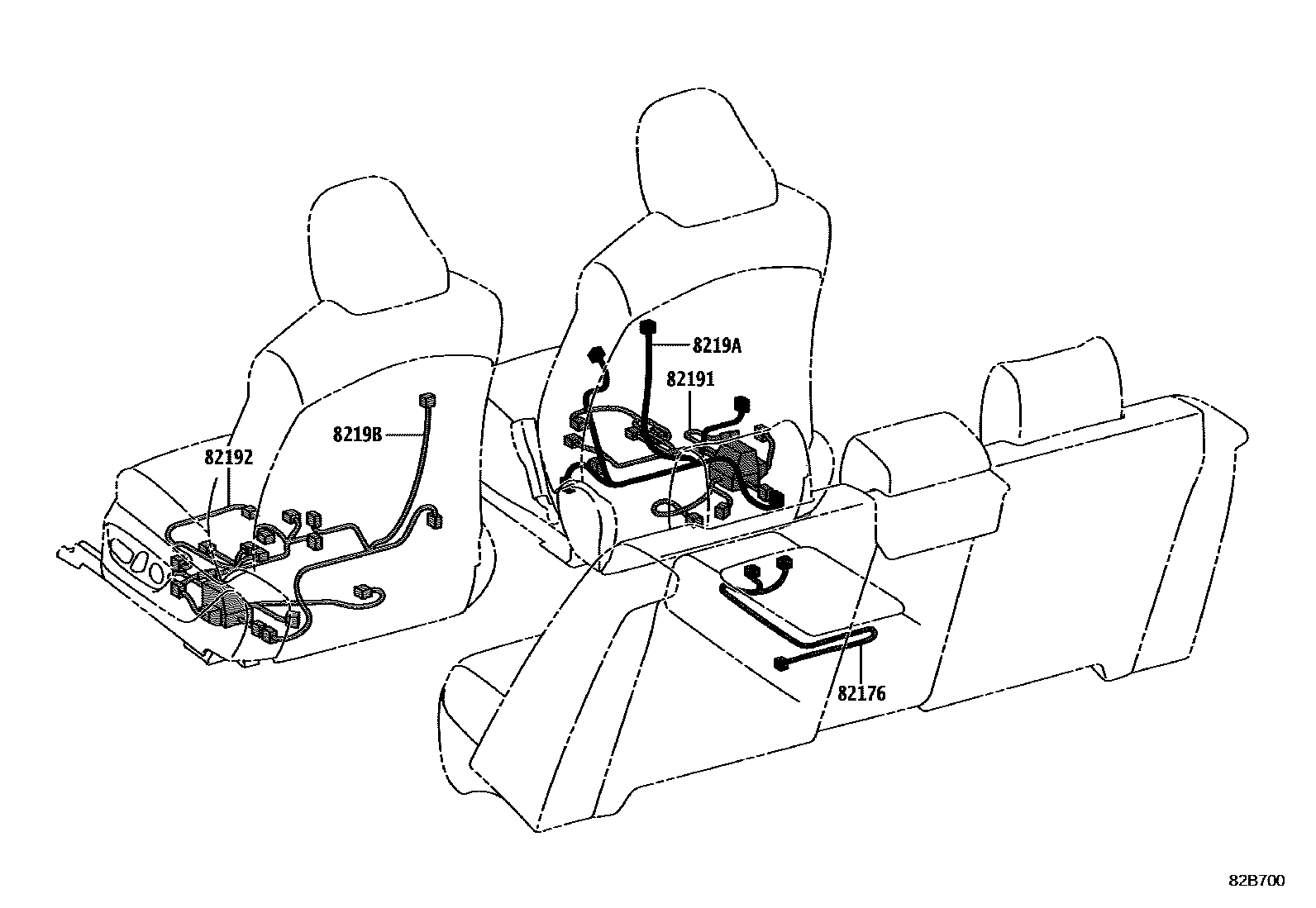

8219BWire harness No. 2, left side of front seat8219B-06310 · 8219B-06340

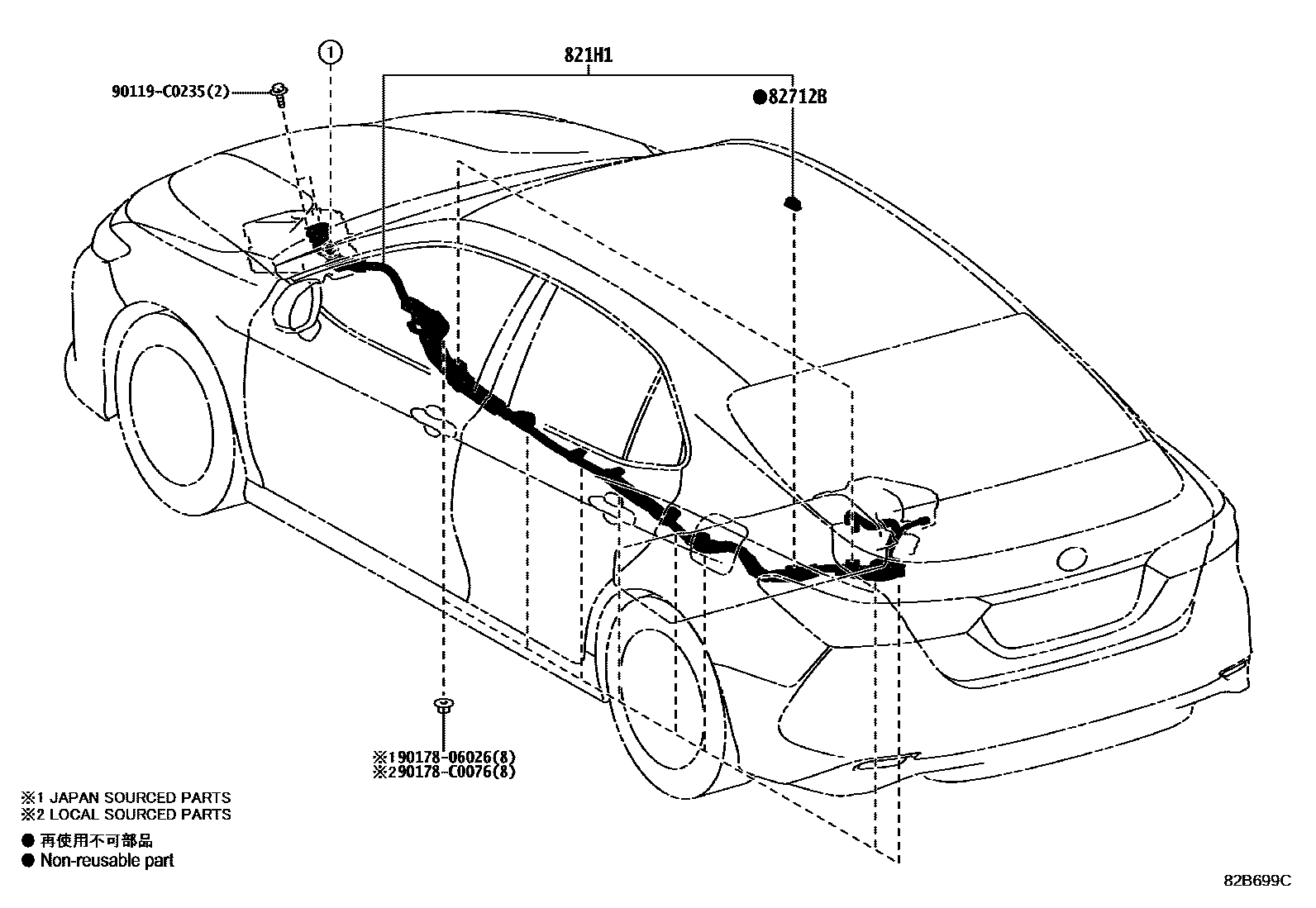

821H1Underfloor wiring harness821H1-06020
821H2HV air conditioner wiring harness821H2-06020
82219Asensor harness82219-06310 · 82219-06320 · 82219-0A060 · 82219-0R010 · 82219-12140 · 82219-33140 · 82219-33141
82284Ground wire82284-06270
82286ALine 282286-33020
82666AConnector holder No. 282666-33580
82666BNo. 3 connector holder82666-33630
82666CNo. 4 connector holder82666-33640
82666DNo. 5 connector holder82666-33650
82666ENo. 6 connector holder82666-33660
82666FNo. 7 connector holder82666-33500
82666GNo. 8 connector holder82666-12490 · 82666-33720
82666LNo. 9 connector holder82666-33590
82669AConnector box lower cover82663-33250
82712AWire harness bracket82712-33160
82712BWire harness bracket82712-33170
82815AWiring harness protector cover82815-33E00 · 82815-33E30
82815BWiring harness protector cover82815-33E10 · 82815-33E70
82815GNo. 5 wire harness protector cover82815-33E20 · 82815-33M60
82815HNo. 6 wire harness protector cover82815-33K50
82815JNo. 7 wire harness protector cover82815-33C30 · 82815-33C60 · 82815-33C80
82815KNo. 8 wire harness protector cover82815-33E80
82815LNo. 9 wire harness protector cover82815-0EE20 · 82815-33A90 · 82815-33F10 · 82815-33F60 · 82815-42810
82815MNo. 10 wire harness protector cover82815-0EE30 · 82815-33B00 · 82815-33F20 · 82815-33F70 · 82815-42540
82815NNo. 11 wire harness protector cover82815-12D60 · 82815-33C00 · 82815-33F30 · 82815-33F80
82815PNo. 12 wire harness protector cover82815-12B00 · 82815-33F40 · 82815-33F90
82815QNo. 13 wire harness protector cover82815-06100 · 82815-12E50 · 82815-33G00 · 82815-33G80 · 82815-33M30
82815RNo. 14 wire harness protector cover82815-12E60 · 82815-33G60 · 82815-33G90 · 82815-42C60
82815SNo. 15 wire harness protector cover82815-0ED50 · 82815-33G90 · 82815-33J00 · 82815-42740 · 82815-42C60
82815TNo. 16 wire harness protector cover82815-0ED50 · 82815-33J00 · 82815-33J10 · 82815-42750
82815UNo. 17 wire harness protector cover82815-33J40 · 82815-33J50 · 82815-42760
82815VNo. 1 wire harness protector cover82815-33J60 · 82815-33J90 · 82815-42770
82815WNo. 2 wire harness protector cover82815-33J80 · 82815-33M20 · 82815-42780
82815XNo. 3 wire harness protector cover82815-33K60 · 82815-33M70 · 82815-42790
82815YNo. 4 wire harness protector cover82815-33L00 · 82815-33M80
82815ZNo. 18 wire harness protector cover82815-0ED80 · 82815-33M90 · 82815-33N00
82816BNo. 1 wire harness protector cover82815-33J10 · 82815-33J90
82816CNo. 2 wire harness protector cover82815-33L60 · 82815-42C70
82817No. 1 wire harness protection device82817-33N30 · 82817-33U80
82817ANo. 2 wire harness protection device82817-33N40 · 82817-33V00
82817BNo. 3 wire harness protection device82817-33N60 · 82817-3T210
82817CNo. 4 wire harness protection device82817-33Y20
82817DNo. 5 wire harness protection device82817-33Y30
82817ENo. 6 wire harness protection device82817-33V40 · 82817-33W70 · 82817-33X20
82817FNo. 7 wire harness protection device82817-33Z10
82817GNo. 8 wire harness protection device82817-33X40
82817JNo. 9 wire harness protection device82817-0EL70 · 82817-33Q70 · 82817-33R20 · 82817-33U00 · 82817-42J70
82817KNo. 10 wire harness protection device82817-0EL80 · 82817-33Q80 · 82817-33R30 · 82817-33U10 · 82817-42J80
82817LNo. 11 wire harness protection device82817-33Q90 · 82817-33R40 · 82817-33V30 · 82817-42F60
82817MNo. 12 wire harness protection device82817-12R60 · 82817-33R00 · 82817-33R50 · 82817-33W20
82817NNo. 13 wire harness protection device82817-12V00 · 82817-33R60 · 82817-33S40
82817PNo. 14 wire harness protection device82817-06240 · 82817-12S50 · 82817-33S50 · 82817-3T160 · 82817-42P40
82817TNo. 15 wire harness protection device82817-0EK80 · 82817-12S60 · 82817-33S60 · 82817-3T170
82817UNo. 16 wire harness protection device82817-33S20 · 82817-33S70
82817XNo. 17 wire harness protection device82817-33T00 · 82817-33T20 · 82817-42J10
82818No. 2 wire harness protection device82817-33X30 · 82817-33X70 · 82817-42J20
82818BNo. 3 wire harness protection device82817-33X60 · 82817-3T150 · 82817-42J30
82818CNo. 4 wire harness protection device82817-0EK90 · 82817-33Y50 · 82817-42J40
82818DNo. 5 wire harness protection device82817-33Y60 · 82817-3T230 · 82817-42J50
82818ENo. 6 wire harness protection device82817-0EL20 · 82817-3T240 · 82817-3T250
82818FNo. 7 wire harness protection device82817-33V20 · 82817-42J60
82818GNo. 8 wire harness protection device82817-3T220
82818HNo. 9 wire harness protection device82817-33X70
82818JNo. 10 wire harness protection device82817-06840
82818KNo. 11 wire harness protection device82817-33Z40
82821AConnector cover82821-33470 · 82821-33B10
82821EConnector cover82821-33620 · 82821-33B20 · 82821-48420
82821HConnector cover82821-33460
82821MConnector cover82821-30600
82821NConnector cover82821-30690
82821PConnector cover82821-33410
82821RConnector cover82821-33690
82821UConnector cover82821-33790
82821VConnector cover82821-33B00
82821WConnector cover82821-42360
82823No. 1 terminal cover82823-33060
82823Sstarter terminal cover82823-30090
82823TGenerator terminal cover82823-0C010
82824AHarness connector82824-33360
890C0Parking brake cable assembly No. 1890C0-06071
890C0AParking brake No. 2 cable assembly890C0-06081
G921DInverter Connector Cover ProtectorG921D-47020
