Toyota CAMRY 蓄电池和蓄电池电缆 — Figure 8201

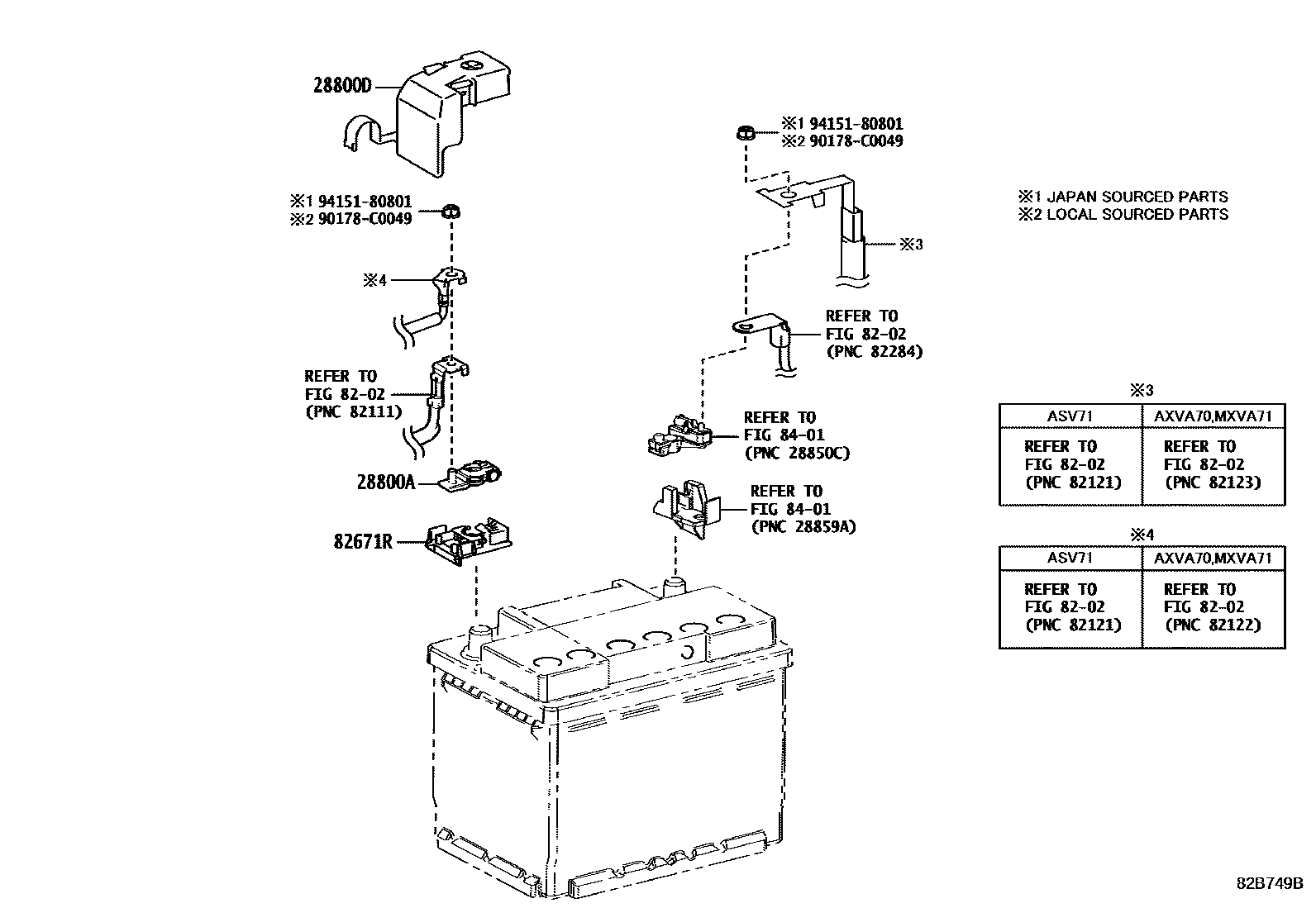

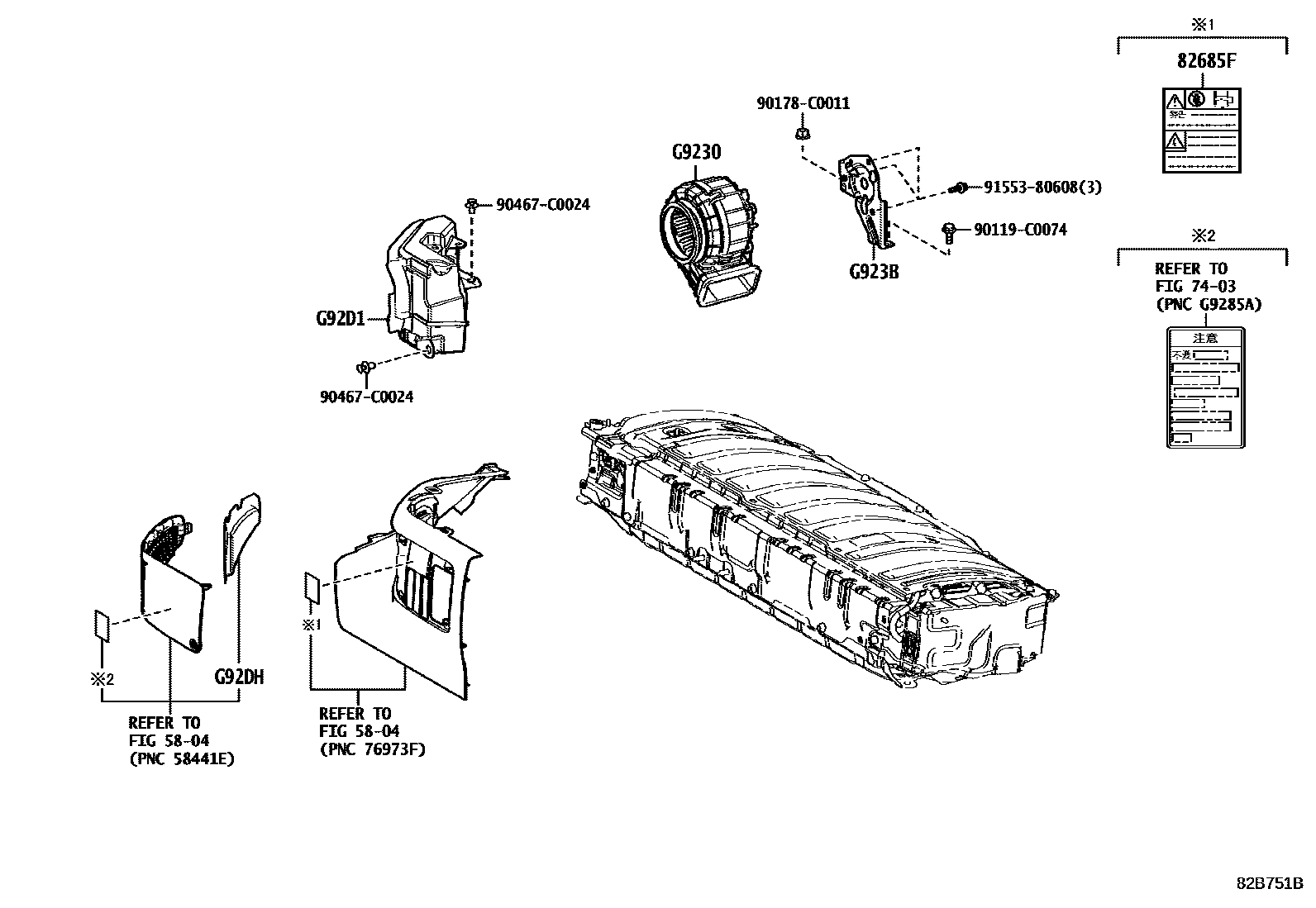

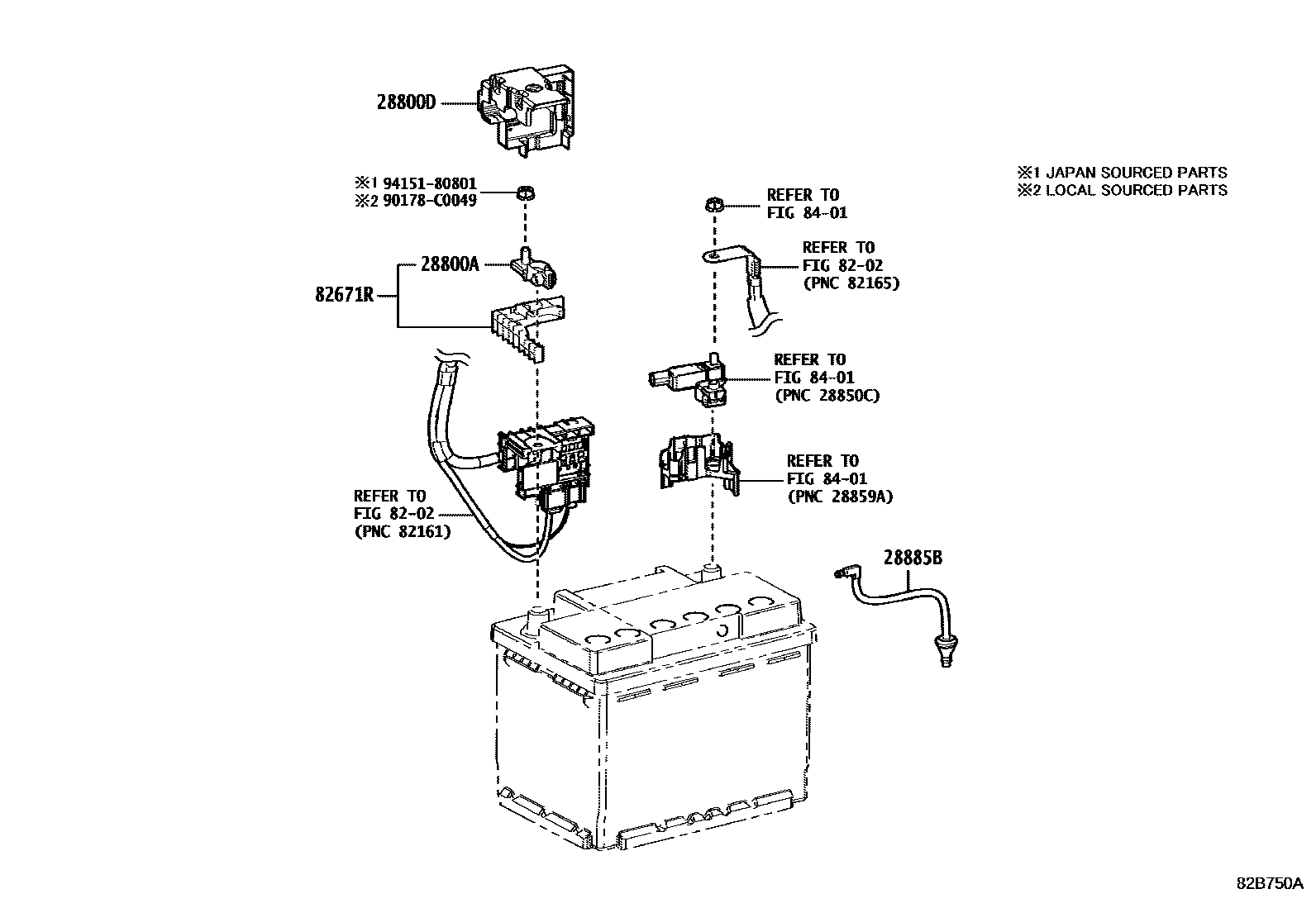

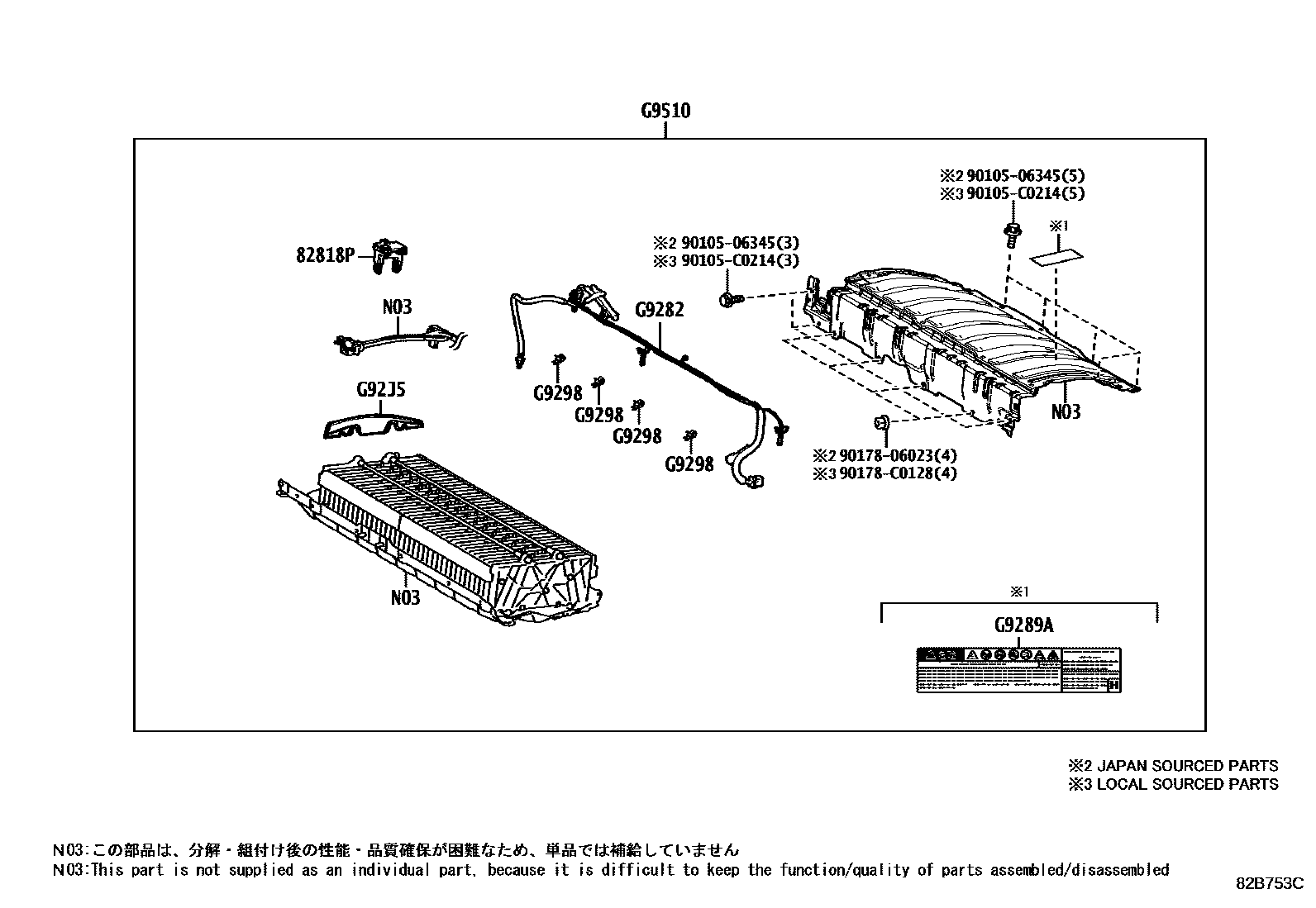

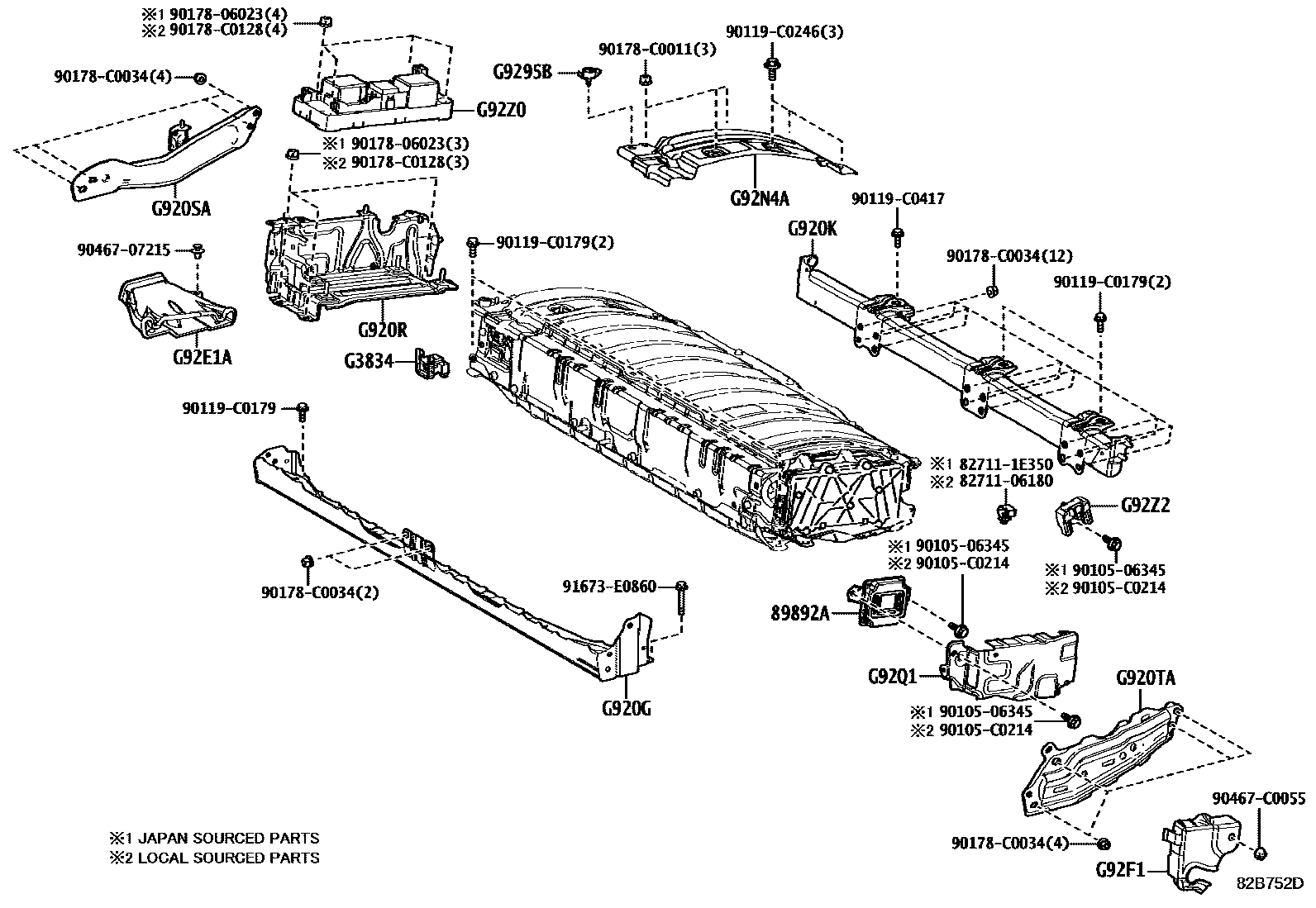

Toyota CAMRY EPC diagram 8201, 蓄电池和蓄电池电缆, with 5 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800A | battery positive terminal | 90982-05053 · 90982-05072 |
| 28800D | Connector cover (for battery terminals) | 82621-06100 · 82621-06101 · 82821-33440 |
| 28885B | battery hose | 28885-25010 · 28885-F0130 |
| 82671R | battery terminal block | 82670-33140 · 82671-33100 |
| 82685F | Main battery No. 1 warning nameplate | 82685-02030 · 82685-02031 |
| 82818P | Harness protection device | 82817-47Q60 |
| 89892A | battery voltage sensor | 89892-33040 |
| G3834 | Service plug handle | G3834-02010 |
| G920G | No. 4 HV battery end plate sub-assembly | G920G-06010 |
| G920K | No. 5 HV battery end plate sub-assembly | G920K-06010 |
| G920R | No. 2 HV battery shielding sub-assembly | G920R-33030 |
| G920SA | HV battery No. 3 shielding sub-assembly | G920S-33020 |
| G920TA | EV battery No. 4 shielding sub-assembly | G920T-33020 |
| G9230 | Battery cooling blower assembly | G9230-06010 · G9230-33050 |
| G923B | Battery cooling blower bracket | G923B-06020 |
| G9282 | HV battery thermistor | G9282-06010 · G9282-33030 |
| G9289A | battery warning label | G9288-02020 · G9288-02021 |
| G9295B | Battery cover lock | G9295-02010 |
| G9298 | HV battery clip | G928E-47010 |
| G92D1 | No. 1 HV battery air inlet | G92D1-06170 |
| G92DH | No. 1 HV battery air intake filter | G92DH-33050 |
| G92E1A | No. 1 HV battery left air inlet | G92E1-33020 |
| G92F1 | No. 1 HV battery exhaust duct | G92F1-06040 |
| G92J5 | No. 1 HV battery seal | G92J5-02020 · G92J5-47030 |
| G92N4A | No. 1 cover on the right side of the HV battery | G92N4-33040 |
| G92Q1 | HV battery No. 1 shielding plate | G92Q1-33050 |
| G92Z0 | HV battery junction box assembly | G92Z0-02010 |
| G92Z2 | HV battery terminal box | G92Z2-47070 |
| G9510 | HV power supply battery assembly | G9510-06010 |
