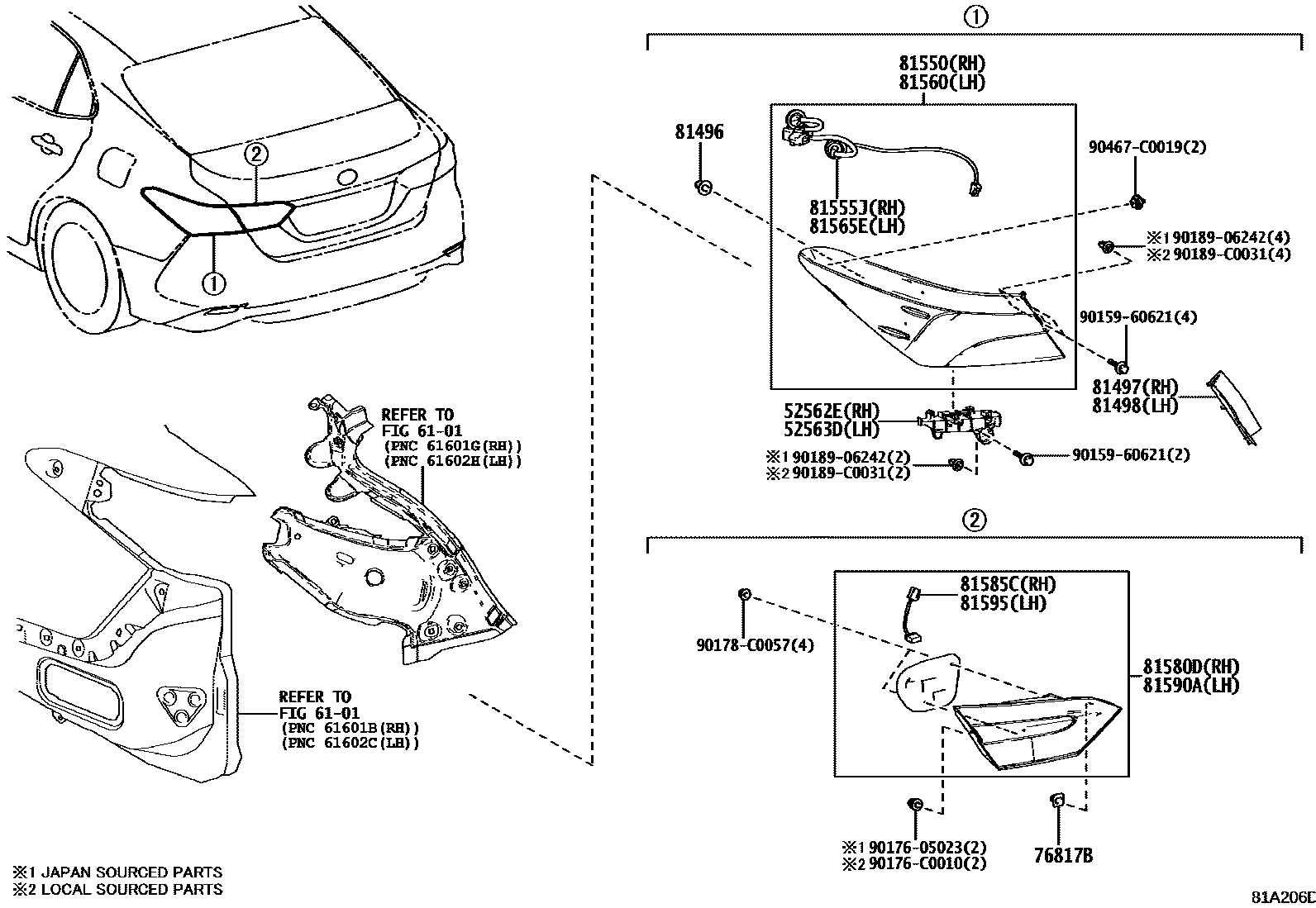

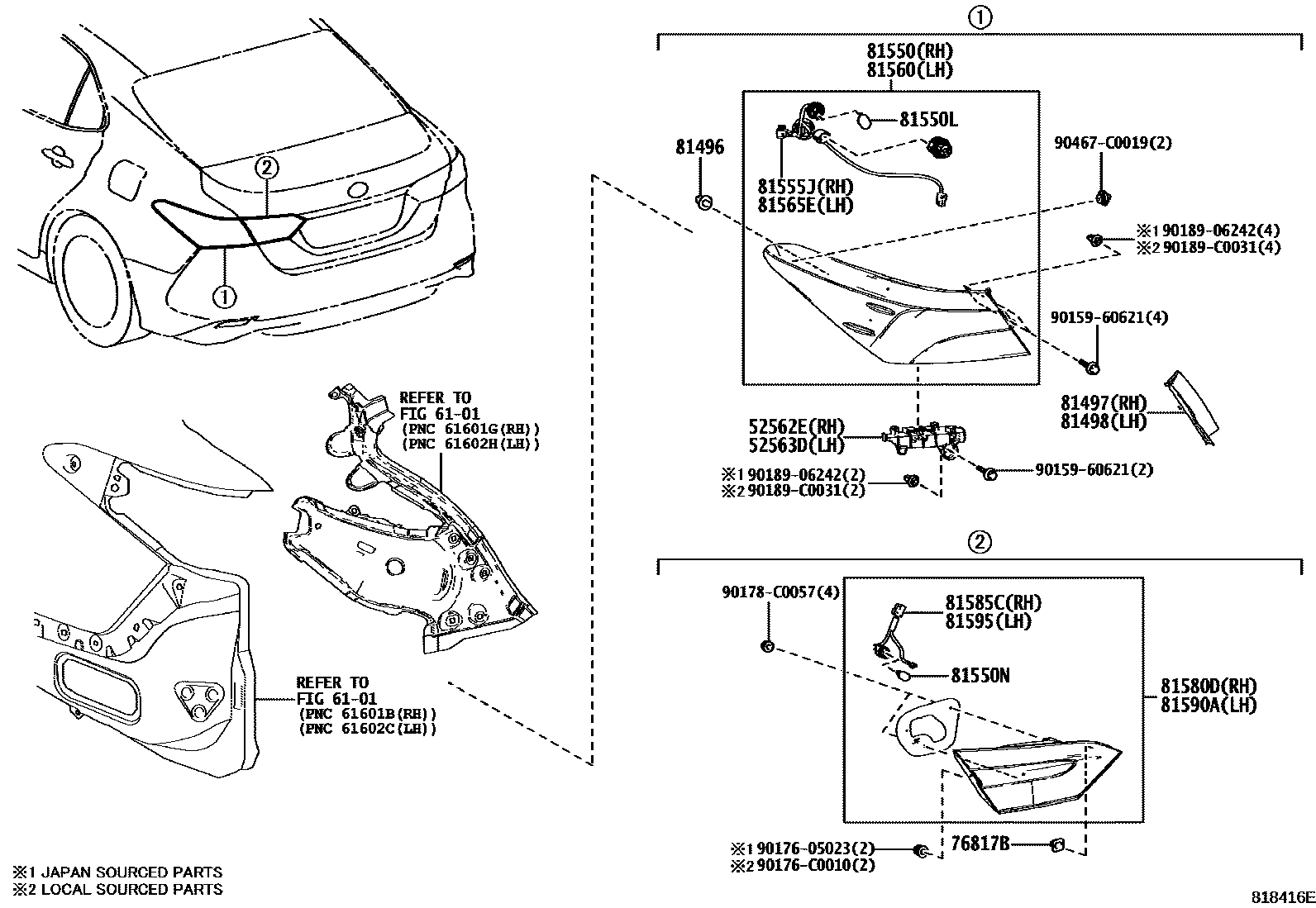

Toyota CAMRY 后组合灯 — Figure 8111
Toyota CAMRY EPC diagram 8111, 后组合灯, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52562E | Rear bumper upper right fixing bracket | 52562-06170 |
| 52563D | Rear bumper upper left fixing bracket | 52563-06170 |
| 76817B | Rear light clip | 76817-26040 |
| 81496 | Rear combination light guide block | 81496-0D030 |
| 81497 | Right rear combination lamp cover | 81497-06030 |
| 81498 | Left rear combination lamp cover | 81498-06030 |
| 81550 | Right rear combination light assembly | 81550-06740 · 81550-06760 · 81550-06870 · 81550-06880 · 81550-06890 · 81550-06A00 · 81550-06B20 |
| 81550L | Rear turn signal light bulb | 90981-15021 |
| 81550N | reversing light bulb | 90981-11059 |
| 81555J | Right rear combination lamp holder and wiring harness | 81555-06740 · 81555-06760 |
| 81560 | Left rear combination light assembly | 81560-06740 · 81560-06760 · 81560-06870 · 81560-06880 · 81560-06890 · 81560-06A00 · 81560-06B20 |
| 81565E | Left rear combination lamp holder and wiring harness | 81555-06740 · 81555-06760 |
| 81580D | Right rear light assembly | 81580-06640 · 81580-06660 · 81580-06670 · 81580-06790 · 81580-06A10 |
| 81585C | Right rear light lamp holder and wiring harness | 81585-06640 · 81585-06660 |
| 81590A | Left rear light assembly | 81590-06640 · 81590-06660 · 81590-06670 · 81590-06790 · 81590-06A10 |
| 81595 | Left rear light lamp holder and wiring harness | 81585-06640 · 81585-06660 |
