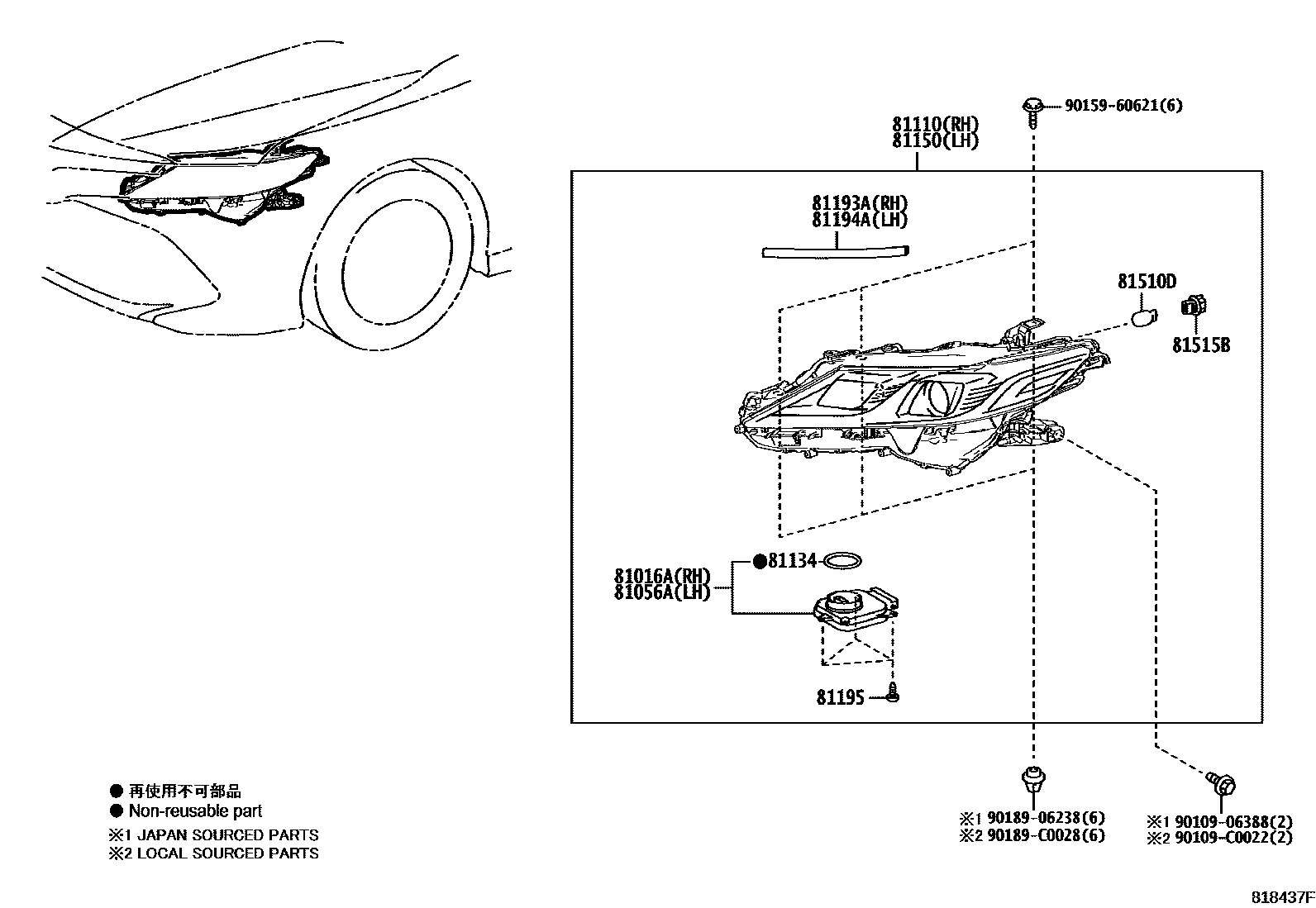

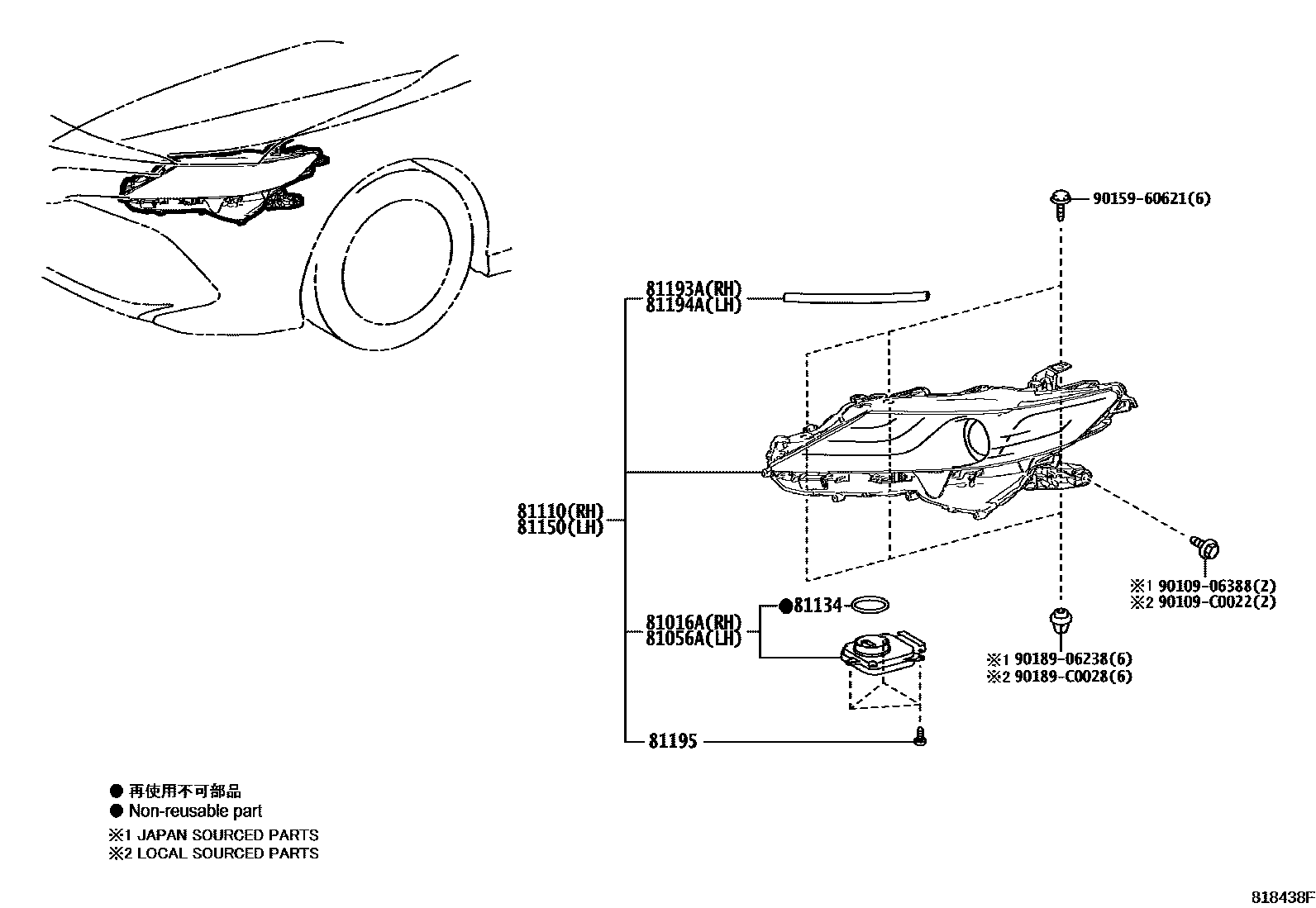

Toyota CAMRY Headlamp — Figure 8101
Toyota CAMRY EPC diagram 8101, Headlamp, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81016A | Right headlight ECU sub-assembly | 81016-06E20 · 81016-06E50 · 81016-06G20 |
| 81056A | Left headlight ECU sub-assembly | 81056-06E20 · 81056-06E50 · 81056-06G20 |
| 81110 | Right headlight assembly | 81110-06E20 · 81110-06E21 · 81110-06E50 · 81110-06E51 · 81110-06E60 · 81110-06E61 · 81110-06E70 · 81110-06E71 · 81110-06G20 |
| 81134 | headlight gasket | 90075-23003 |
| 81150 | Left headlight assembly | 81150-06E20 · 81150-06E21 · 81150-06E50 · 81150-06E51 · 81150-06E60 · 81150-06E61 · 81150-06E70 · 81150-06E71 · 81150-06G20 |
| 81193A | Right headlight protective cover | 81117-06E20 |
| 81194A | Left headlight protective cover | 81157-06E20 |
| 81195 | headlight screw | 90075-02056 |
| 81510D | Bulb (for front turn signal lamp) | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
