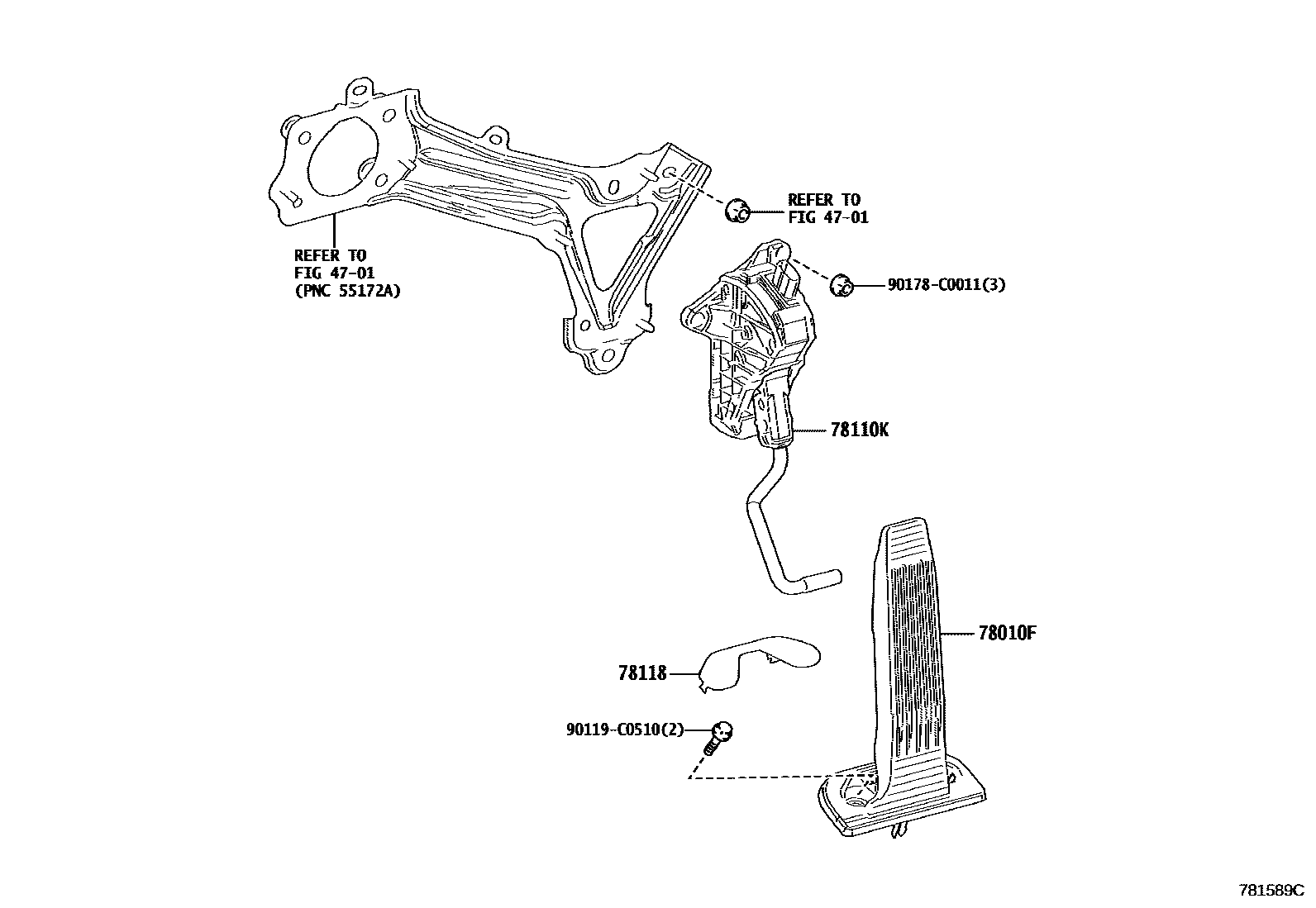

Toyota CAMRY accelerator pedal connecting rod — Figure 7801
Toyota CAMRY EPC diagram 7801, accelerator pedal connecting rod, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78010F | Accelerator pedal assembly | 78101-06020 · 78101-06021 |
| 78110K | Accelerator pedal connecting rod assembly with sensor | 78110-06170 · 78110-06171 · 78110-06210 · 78110-06211 |
| 78118 | accelerator pedal pad | 78117-06020 |
