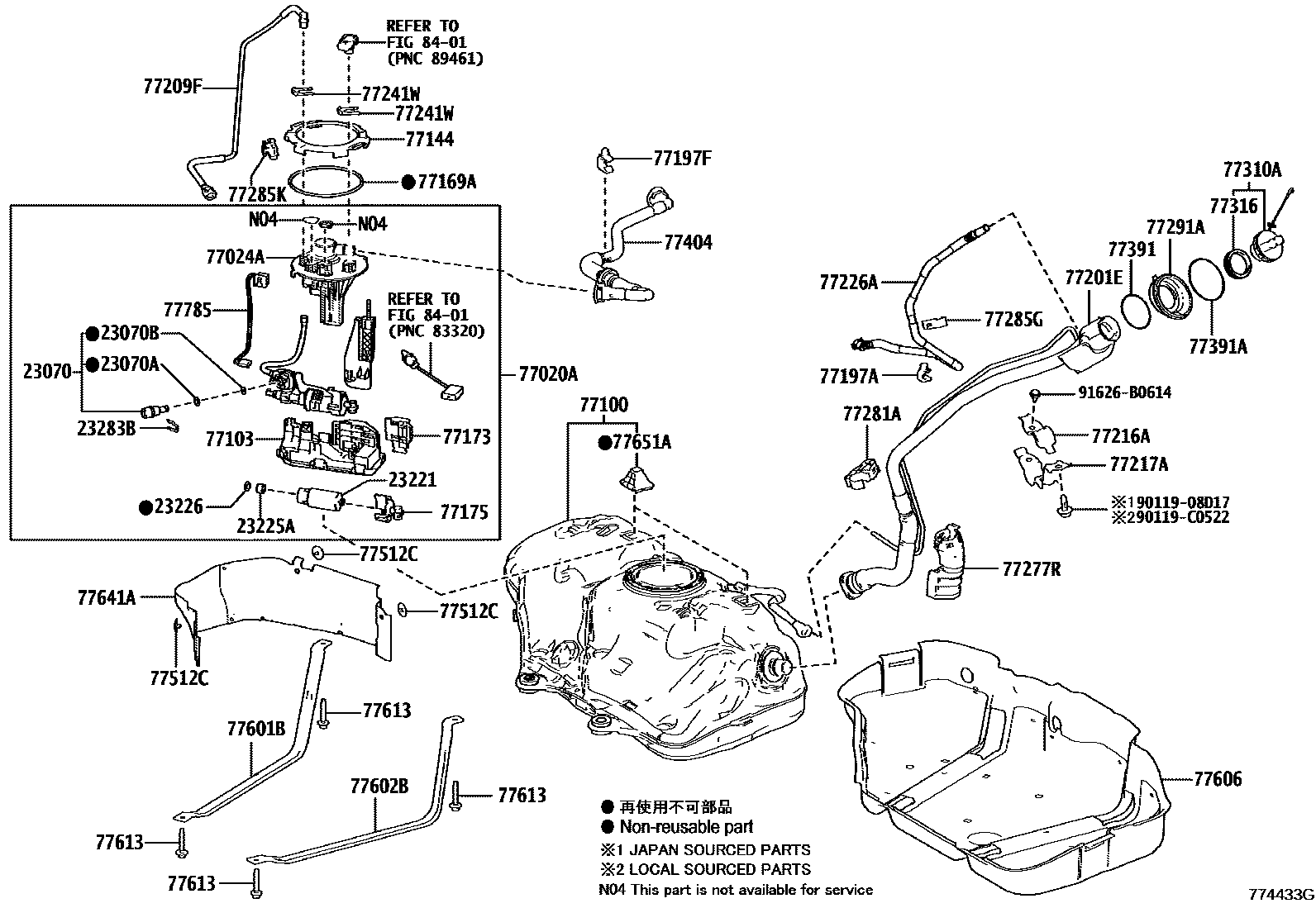

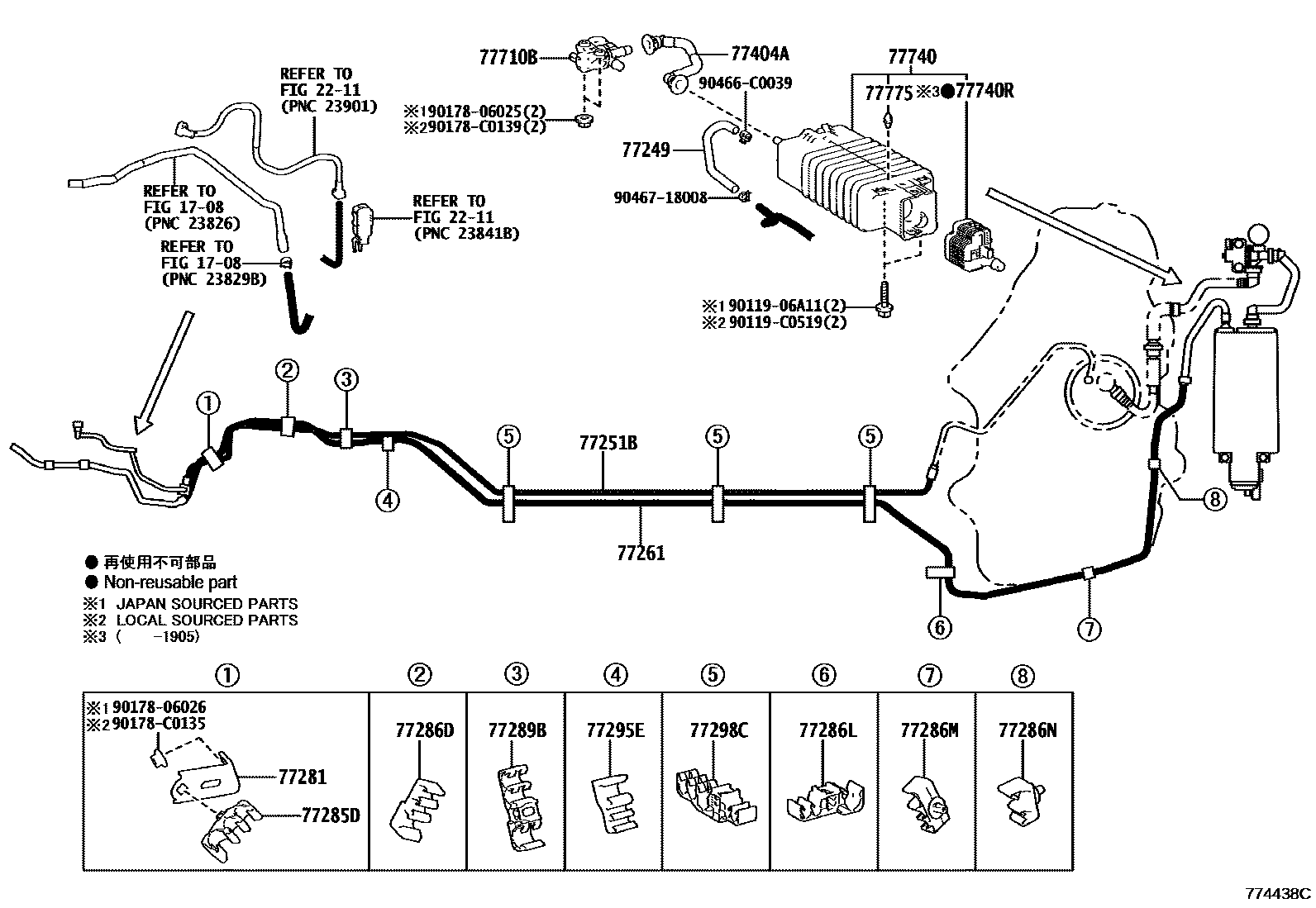

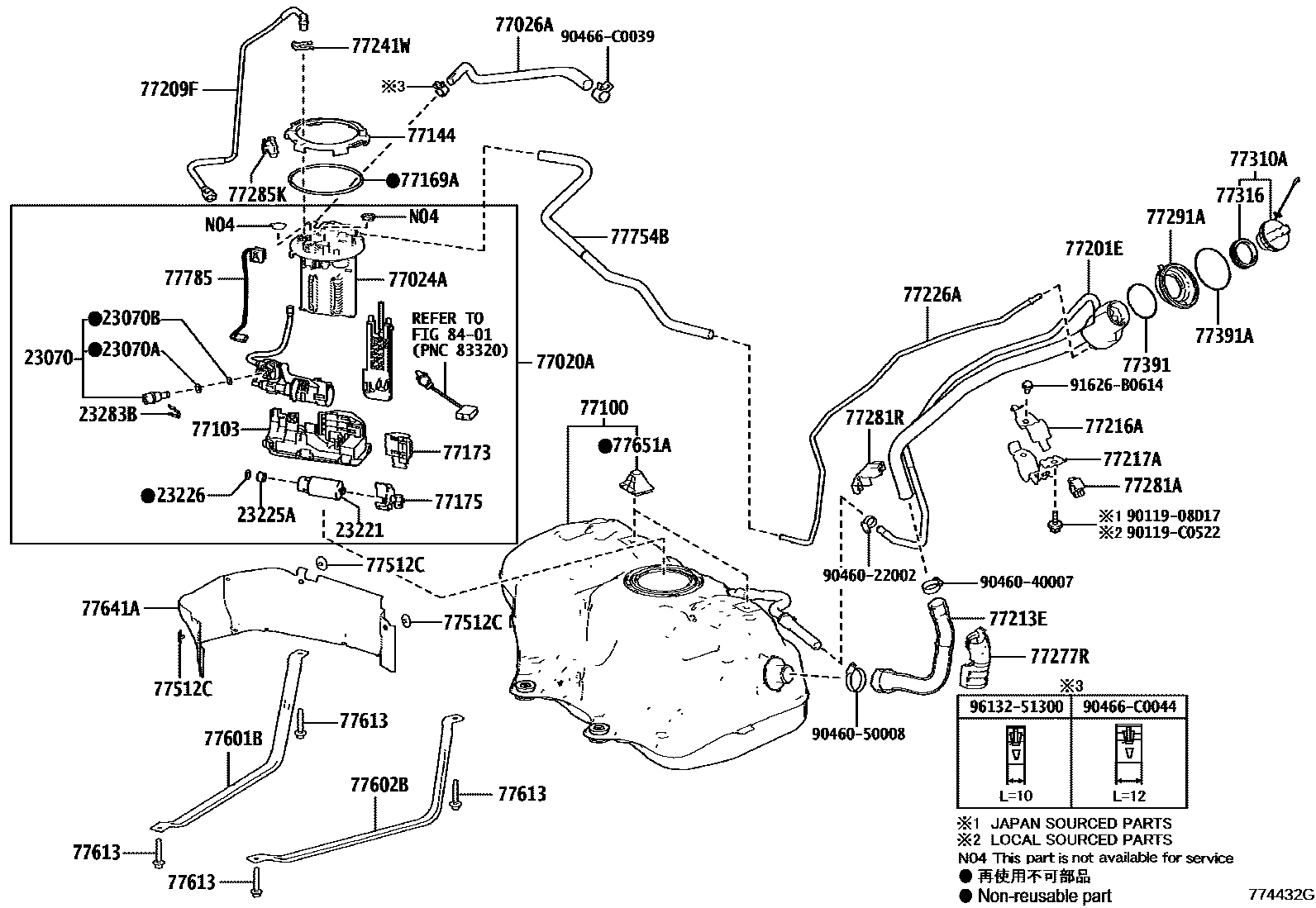

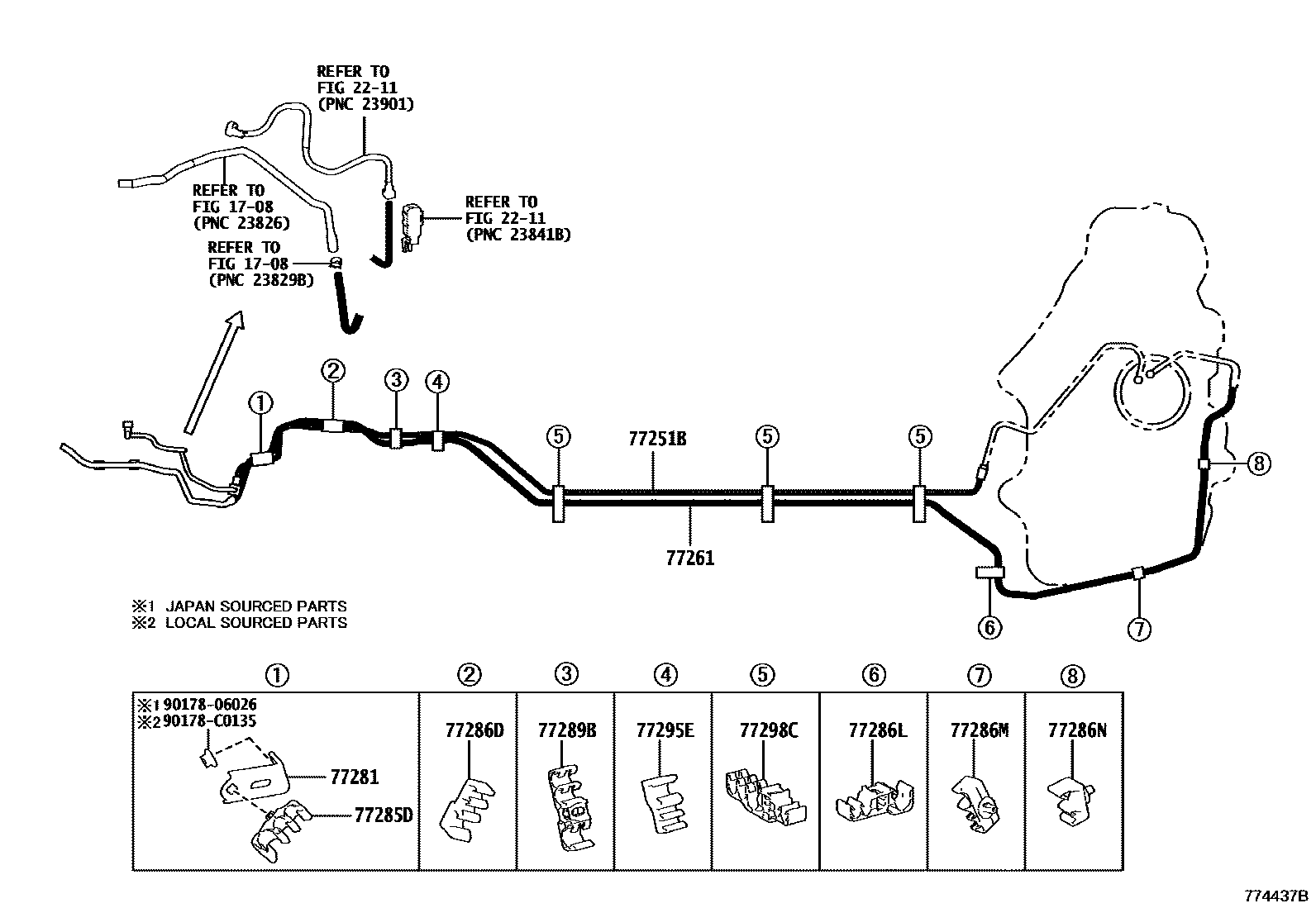

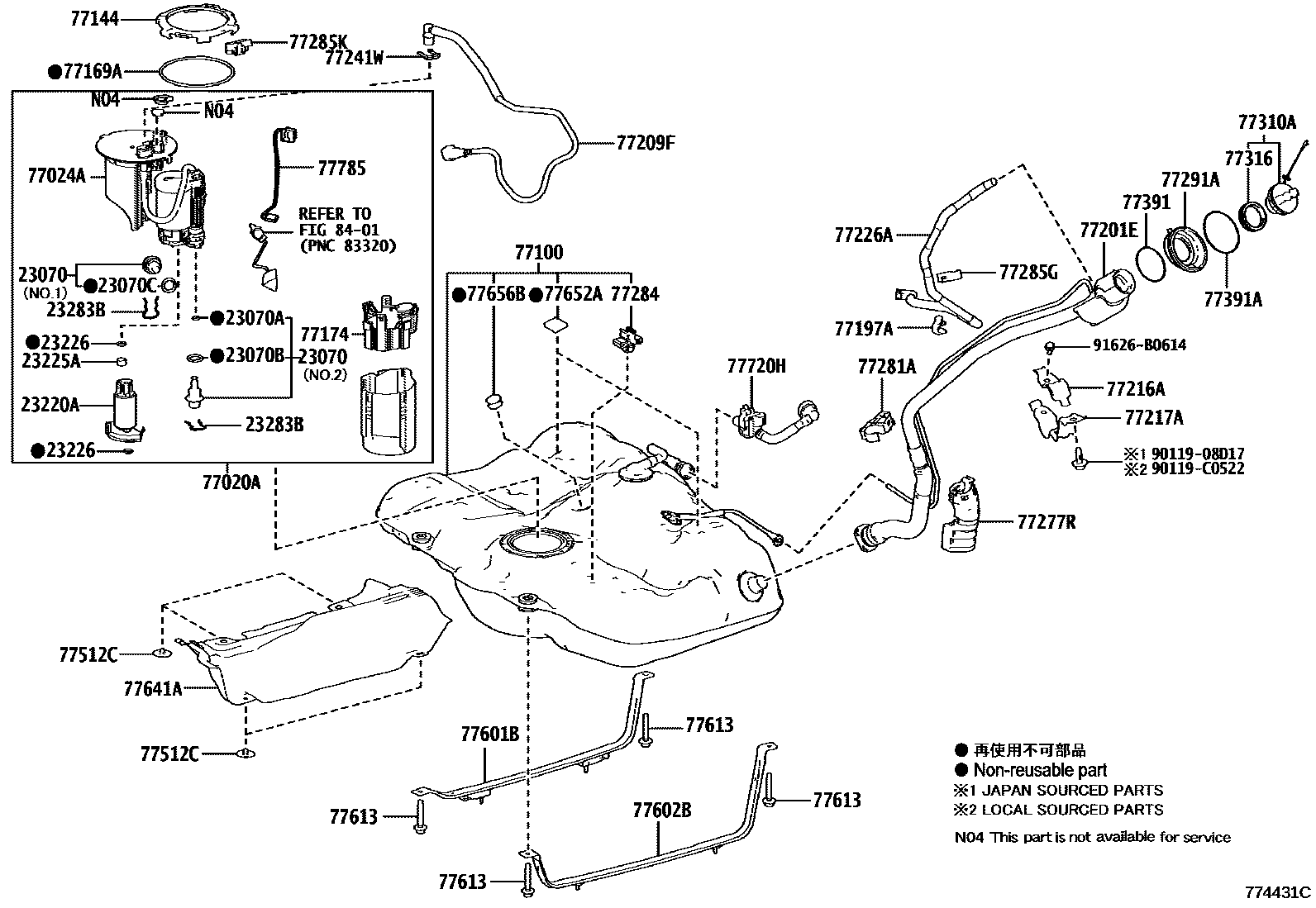

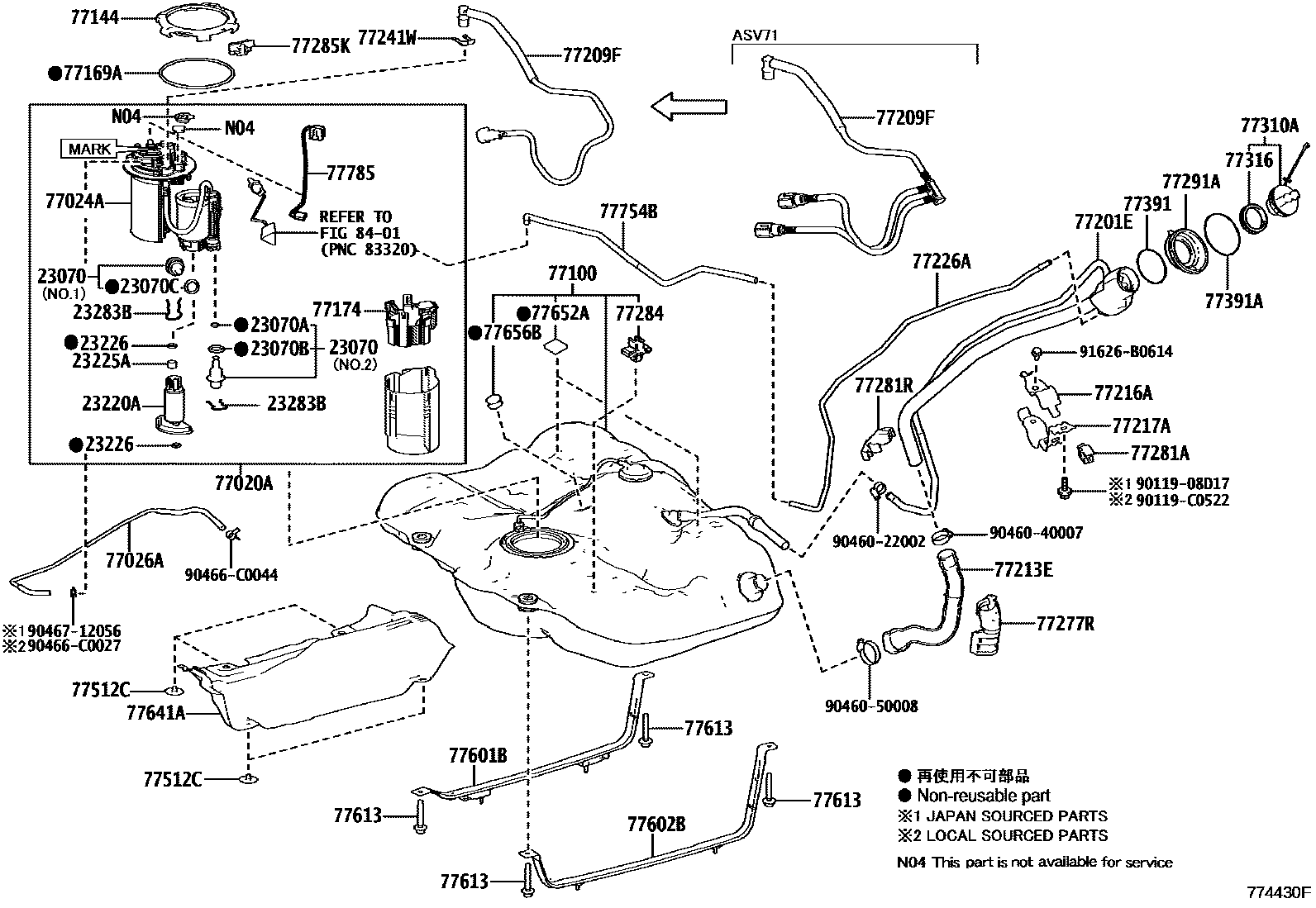

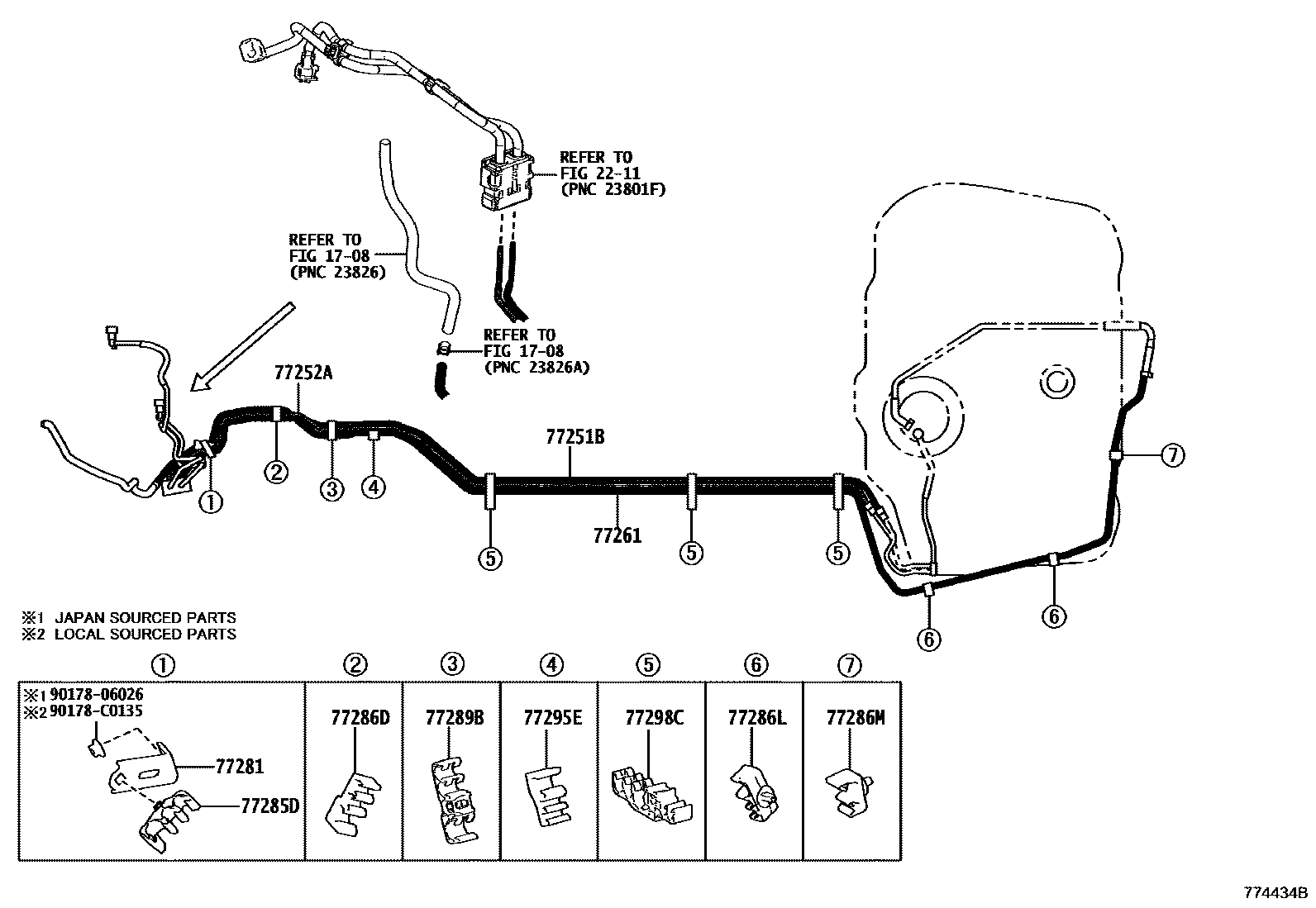

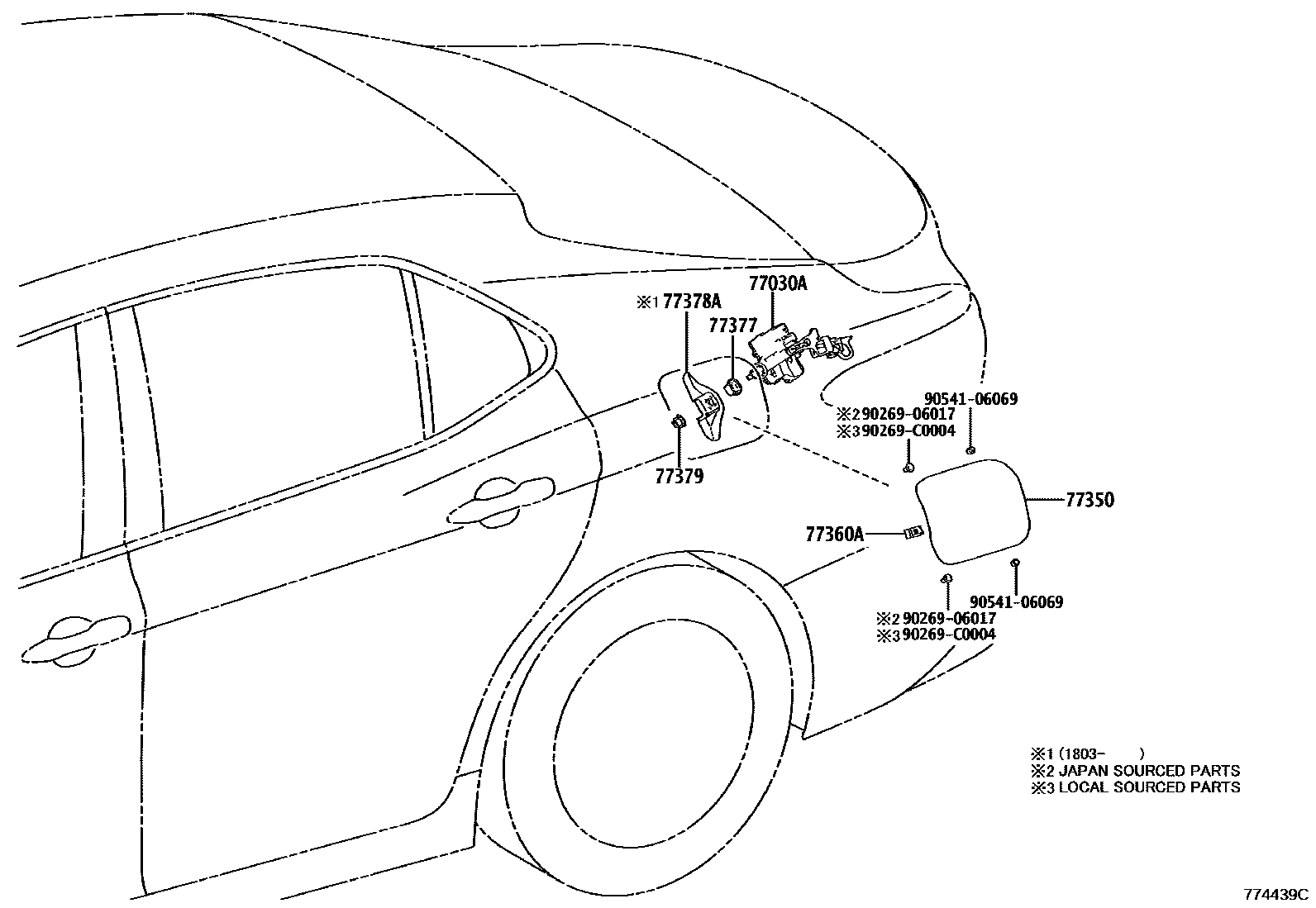

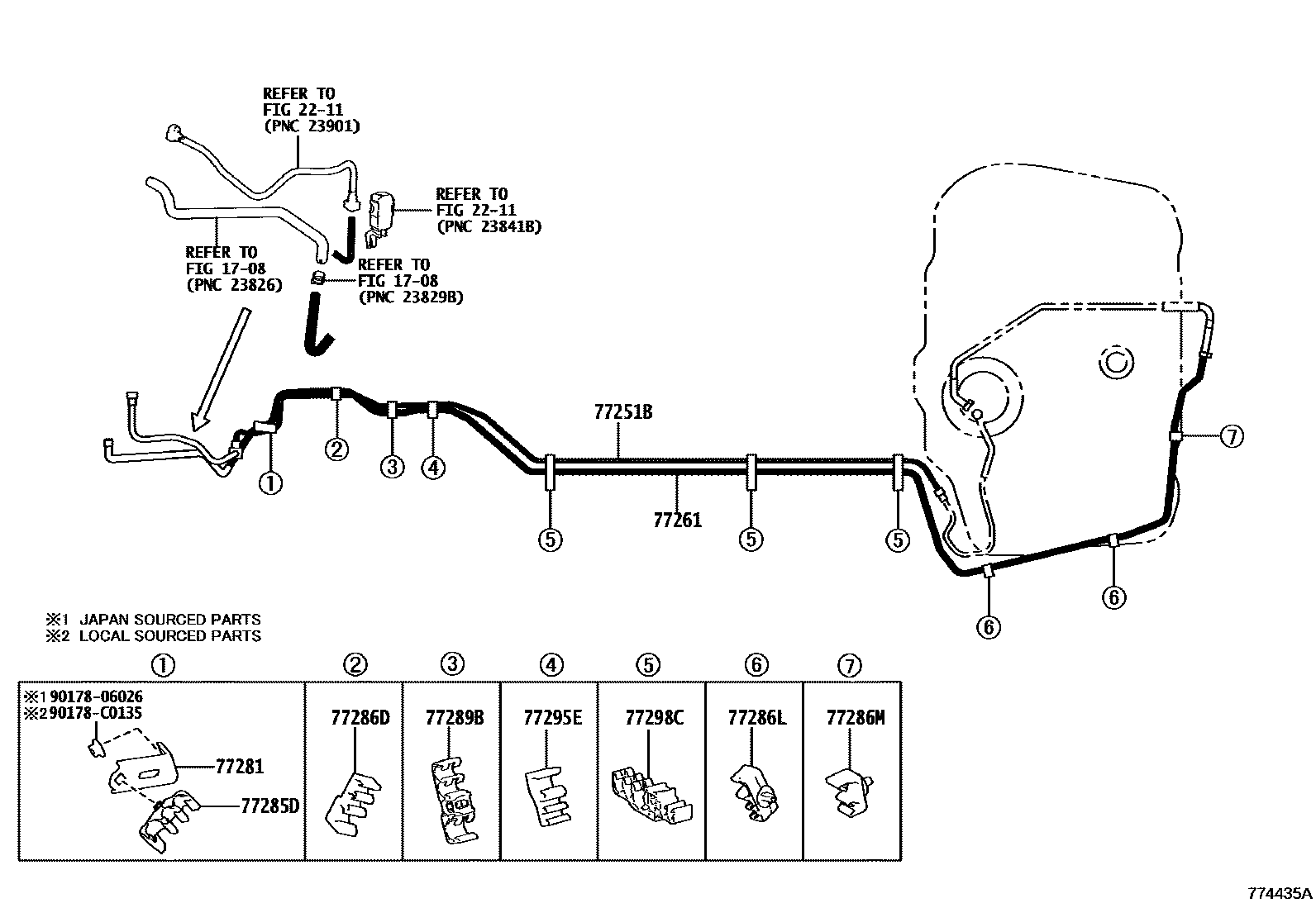

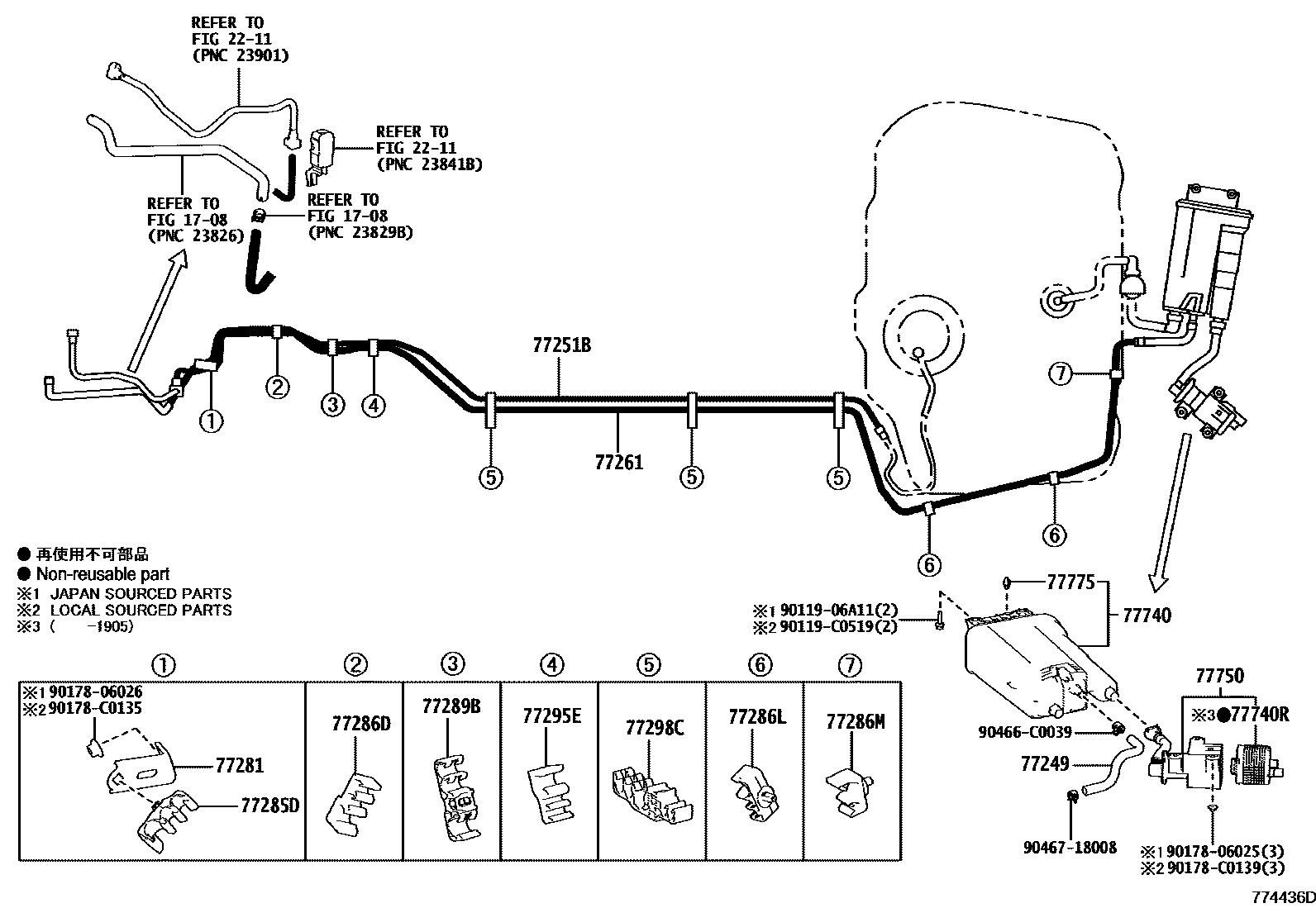

Toyota CAMRY 燃油箱和燃油管 — Figure 7701
Toyota CAMRY EPC diagram 7701, 燃油箱和燃油管, with 10 images and 77 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23070 | Main fuel valve assembly | 23070-25020 · 23070-31030 · 23070-36010 |
| 23070A | No. 1 O-ring (for main fuel valve) | 90301-04013 |
| 23070B | No. 2 O-ring (for main fuel valve) | 90301-15024 |
| 23070C | No. 3 O-ring (for main fuel valve) | 90301-15024 |
| 23220A | Fuel pump assembly with filter | 23220-25020 · 23220-F0030 |
| 23221 | fuel pump | 23221-25030 |
| 23225A | fuel pump septum | 23225-31020 · 23225-F0030 |
| 23226 | O-ring (for fuel pump) | 90301-08019 · 90301-C0034 |
| 23283B | Fuel pressure regulator mount | 23283-24010 · 23283-36010 |
| 77020A | Fuel suction pipe assembly with fuel pump and oil level gauge | 77020-06481 · 77020-06490 · 77020-06491 · 77020-06650 · 77020-06651 · 77020-06680 · 77020-06681 · 77020-06730 · 77020-33500 · 77020-33510 |
| 77024A | Fuel absorber sub-assembly | 77024-06390 · 77024-06391 · 77024-06441 · 77024-33310 · 77024-33320 · 77024-33340 · 77024-33410 · 77024-33420 · 77024-33430 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-06070 · 77026-06080 · 77026-33030 · 77026-33050 |
| 77030A | Fuel filler cap lock assembly with motor | 77030-06030 · 77030-06040 |
| 77100 | fuel tank assembly | 77001-06230 · 77001-06240 · 77001-06380 · 77001-06390 · 77001-33270 · 77001-33280 |
| 77103 | Auxiliary fuel tank sub-assembly | 77103-12150 · 77103-33060 |
| 77144 | Fuel pump instrument fixture | 77144-30030 |
| 77169A | Fuel suction pipe fixed gasket | 77169-47030 · 77169-47040 |
| 77173 | Fuel gauge bracket | 77173-12010 |
| 77174 | No. 1 oil suction pipe bracket | 77174-06120 · 77174-33060 |
| 77175 | No. 2 oil suction pipe bracket | 77175-12030 · 77175-33030 |
| 77197A | No. 2 evaporation vent pipe clamp | 77197-06100 |
| 77197F | No. 2 evaporation vent pipe clamp | 77197-33080 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-06310 · 77201-06340 |
| 77209F | Fuel tank main pipe sub-assembly | 77209-06080 · 77209-06090 · 77209-06180 · 77209-06230 · 77209-06240 · 77209-33140 · 77209-33160 · 77209-33190 |
| 77213E | Fuel tank to filler pipe hose | 77213-06210 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-06120 · 77216-06210 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-06110 · 77217-06200 |
| 77226A | No. 6 fuel tank breather pipe | 77226-06150 · 77226-06200 · 77226-06280 · 77226-33140 · 77226-33150 |
| 77241W | Pipe joint clip | 77241-02020 · 77241-33011 |
| 77249 | fuel drain hose | 77249-06120 · 77249-06130 |
| 77251B | main fuel pipe | 77251-06260 · 77251-06320 · 77251-06321 · 77251-06330 · 77251-06331 · 77251-06480 · 77251-06481 |
| 77252A | No. 2 main fuel pipe | 77252-06070 |
| 77261 | Fuel evaporation exhaust pipe sub-assembly | 77261-06320 · 77261-06380 · 77261-06390 · 77261-06540 · 77261-06550 |
| 77277R | Fuel tank filler pipe protection device | 77277-06150 |
| 77281 | No. 1 main fuel pipe bracket | 77281-06120 |
| 77281A | Fuel filler pipe clamp | 77281-06420 · 77281-06440 |
| 77281R | No. 2 fuel filler pipe clamp | 77281-06430 |
| 77284 | Fuel pipe clamp | 77289-06190 |
| 77285D | No. 1 fuel pipe clamp | 77285-06110 · 77285-06140 |
| 77285G | No. 1 fuel pipe clamp | 77285-06580 |
| 77285K | No. 1 fuel pipe clamp | 77285-30350 |
| 77286D | No. 2 fuel pipe clamp | 77285-0E040 · 77286-06070 |
| 77286L | No. 5 fuel pipe clamp | 77285-06120 · 77285-06290 · 77298-06130 |
| 77286M | No. 6 fuel pipe clamp | 77285-06290 · 77286-06100 · 77286-06110 |
| 77286N | No. 7 fuel pipe clamp | 77286-06110 |
| 77289B | No. 3 fuel pipe clamp | 77298-06300 · 77298-06410 · 77298-33130 · 77298-33140 |
| 77291A | Fuel tank filler pipe cover | 77291-06210 · 77291-06211 |
| 77295E | Fuel pipe retaining ring | 77295-06060 · 77295-0E050 |
| 77298C | No. 4 fuel pipe clamp | 77298-06110 · 77298-06120 · 77298-33150 · 77298-33160 |
| 77310A | Fuel tank cap assembly | 77300-02030 · 77300-06100 · 77300-06110 · 77300-0R010 · 77300-11010 |
| 77316 | fuel tank cap gasket | 77316-0F020 · 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-06190 |
| 77360A | Fuel filler cap spring assembly | 77360-30080 |
| 77377 | Fuel filler cap lock retainer | 77377-33040 |
| 77378A | Fuel filler cap lock cover | 77378-33010 |
| 77379 | No. 2 fuel inlet cap gasket | 77379-06030 |
| 77391 | fuel inlet ring | 77391-0R080 · 77391-12020 |
| 77391A | fuel inlet ring | 77391-20040 · 77391-33060 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-33200 |
| 77404A | Fuel tank vent hose sub-assembly | 77404-06300 · 77404-33210 |
| 77512C | fuel tank bracket | 77512-06040 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-06160 · 77601-06170 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-06170 · 77602-06200 |
| 77606 | No. 1 fuel tank protective shell sub-assembly | 77606-06100 · 77606-33040 |
| 77613 | Fuel tank strap fixing bolts | 90119-10995 · 90119-C0526 |
| 77641A | No. 1 fuel tank protective shell | 77606-06040 · 77641-06020 |
| 77651A | No. 1 fuel tank liner | 77651-06190 · 77651-33060 |
| 77652A | No. 2 fuel tank liner | 77652-33060 |
| 77656B | No. 6 fuel tank liner | 77656-06050 · 77656-33010 |
| 77710B | Fuel tank solenoid valve main valve assembly | 77710-47020 |
| 77720H | Fuel delivery valve assembly | 77720-33010 |
| 77740 | Carbon canister assembly | 77740-06300 · 77740-F4030 |
| 77740R | Leak detection pump sub-assembly | 90910-CF001 · 90910-CF002 |
| 77750 | Carbon canister assembly | 77730-06050 · 77730-06051 |
| 77754B | Carbon canister outlet hose | 77754-06100 · 77754-06110 · 77754-33070 · 77754-33080 |
| 77775 | Carbon canister outlet duct | 77775-33010 |
| 77785 | fuel pump wiring harness | 77785-06210 · 77785-33140 · 77785-33180 · 77785-33190 · 77785-42070 |
