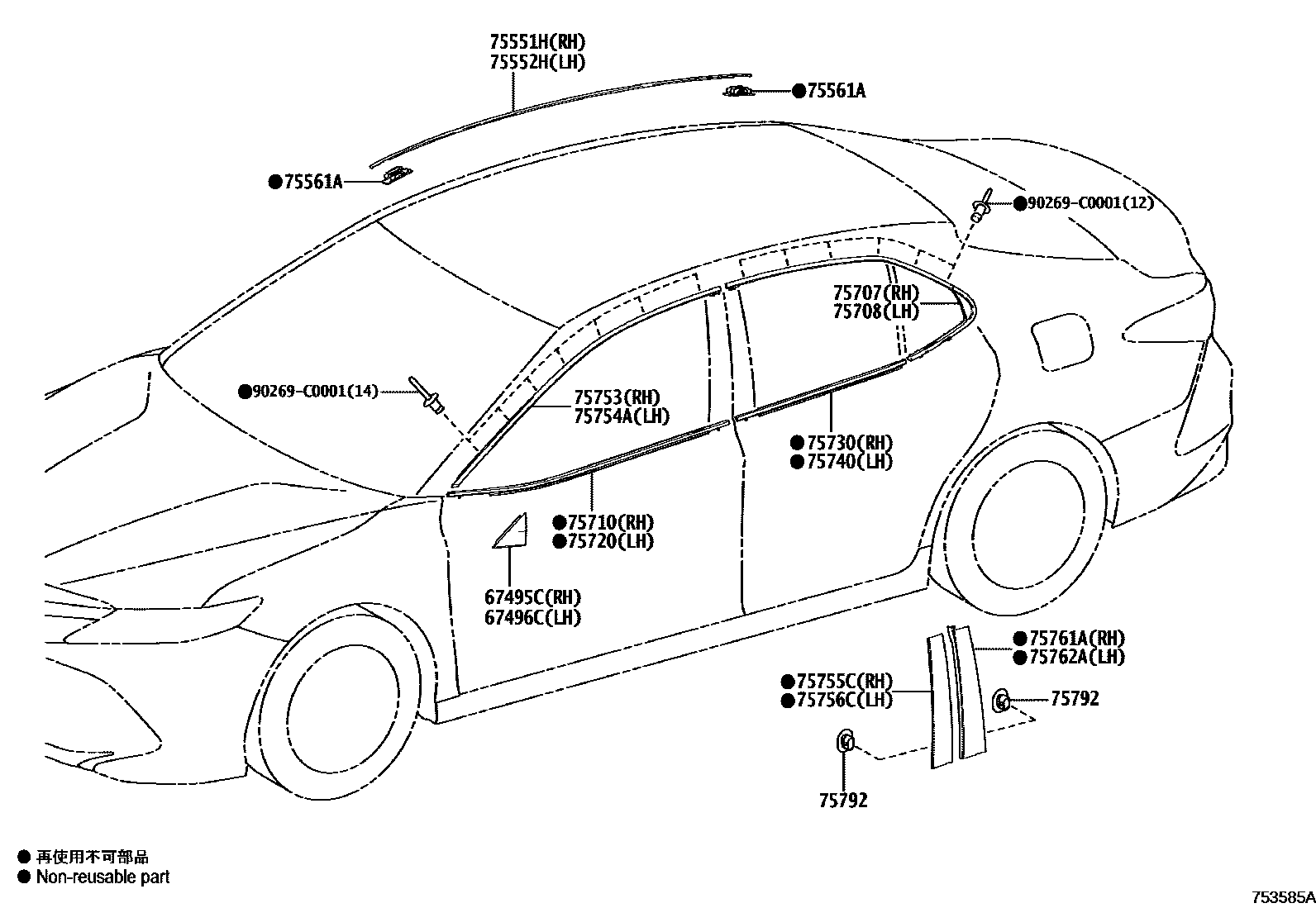

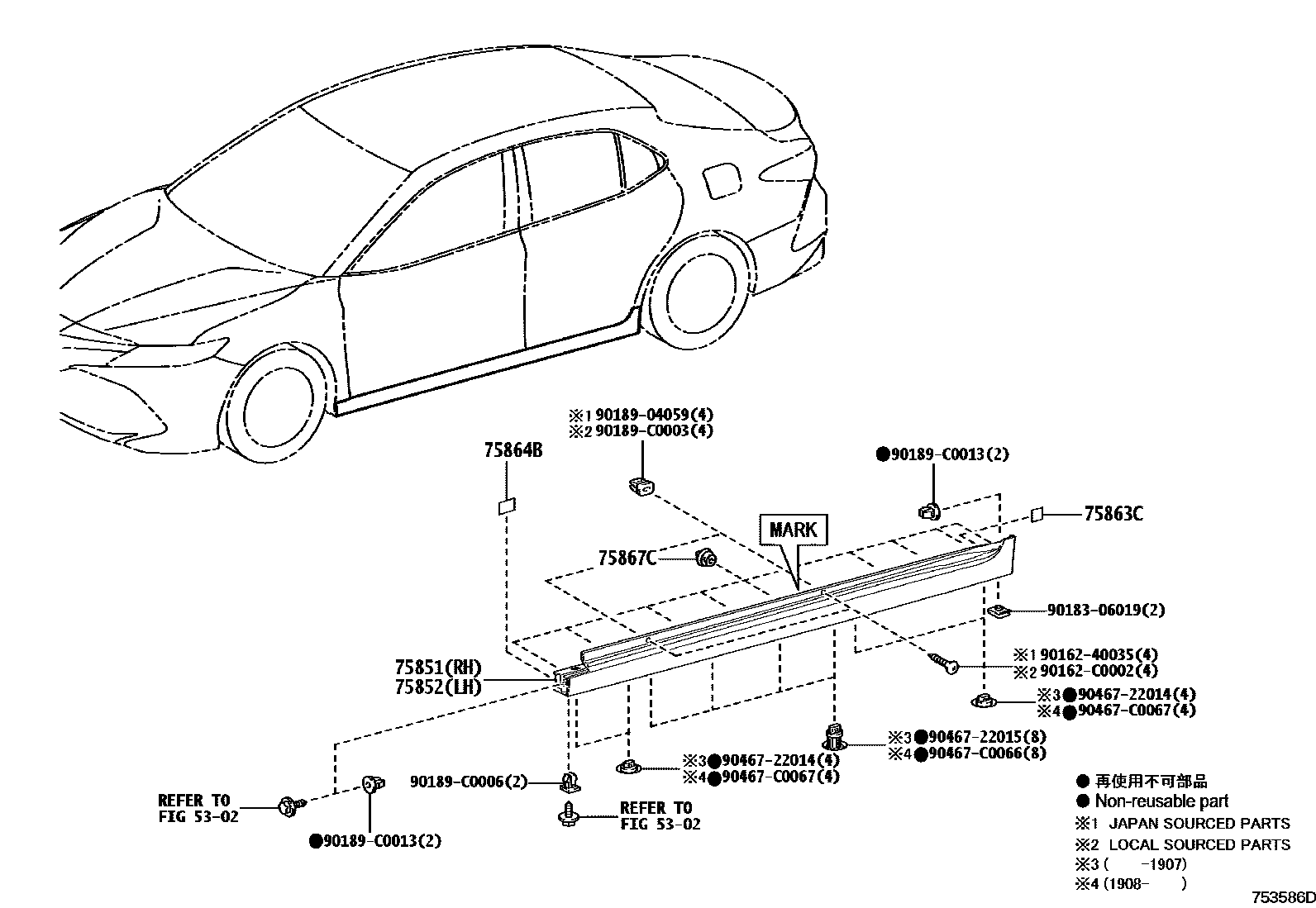

Toyota CAMRY 侧防护条 — Figure 7503
Toyota CAMRY EPC diagram 7503, 侧防护条, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67495C | Right front door front lower door frame upper cover | 67495-06030 |
| 67496C | Left front door front lower door frame upper cover | 67496-06030 |
| 75551H | Drainage groove side on the right side of the roof | 75555-06130 · 75555-06190 |
| 75552H | Drainage channel side protection strip on the left side of the roof | 75556-06130 · 75556-06190 |
| 75561A | Roof drain channel side decorative strip clip | 75561-52040 |
| 75707 | Right rear door window frame protective strip sub-assembly | 75707-06050 · 75707-06100 · 75707-33070 |
| 75708 | Left rear door window frame protective strip sub-assembly | 75708-06050 · 75708-06100 · 75708-33070 |
| 75710 | Right front door waistline protection strip assembly | 75710-06230 · 75710-06280 · 75710-33180 |
| 75720 | Left front door waistline protection strip assembly | 75720-06230 · 75720-06280 · 75720-33180 |
| 75730 | Right rear door waistline protection strip assembly | 75730-06210 · 75730-06260 · 75730-33180 |
| 75740 | Left rear door waistline protection strip assembly | 75740-06210 · 75740-06260 · 75740-33180 |
| 75753 | Protective strip on right front door window frame | 75753-06160 · 75753-06210 · 75753-33110 |
| 75754A | Protective strip on left front door window frame | 75754-06160 · 75754-06210 · 75754-33110 |
| 75755C | Right front door window frame rear protective strip | 75755-06170 |
| 75756C | Left front door window frame rear protective strip | 75756-06170 |
| 75761A | Right rear door window frame front protective strip | 75761-06170 |
| 75762A | Left rear door window frame front protective strip | 75762-06170 |
| 75792 | Car door window frame protective strip clip | 75792-47010 |
| 75851 | Right side door sill panel protective strip | 75851-06939 · 75851-06940 · 75851-06946 · 75851-06947 |
| 75852 | Left side door sill panel protective strip | 75852-06939 · 75852-06940 · 75852-06946 · 75852-06947 |
| 75863C | No. 3 rocker panel protective strip protective cover | 75863-06250 |
| 75864B | No. 4 door sill panel protective strip protective cover | 75864-06230 |
| 75867C | Door sill panel protective strip clip | 75867-06050 · 75867-06080 |
