Toyota CAMRY 丰田徽标和铭牌(车外和车内) — Figure 7501

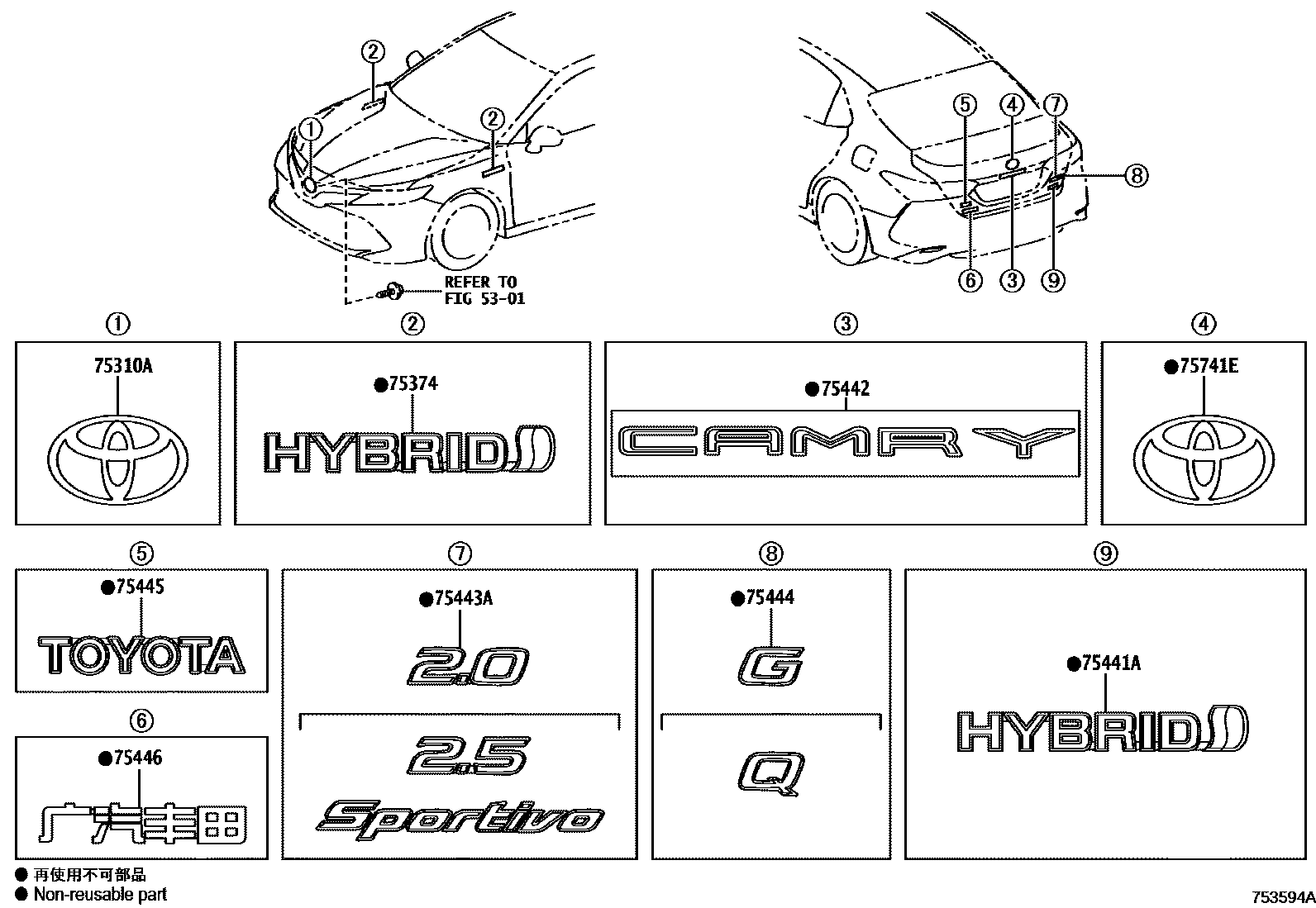

Toyota CAMRY EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75310A | Radiator grille plate assembly | 53141-33130 · 53141-33140 · 75310-06020 · 75310-06030 · 75310-06050 · 75310-06160 · 75310-33050 · 75310-33060 · 90975-02161 · 90975-C2023 · 90975-C2024 · 90975-C2025 · 90975-C2027 |
| 75374 | side panel sign | 75374-06170 · 75374-06180 |
| 75441A | Trunk door No. 1 name plate | 75441-06110 |
| 75442 | Trunk door number plate No. 2 | 75442-06310 · 75442-06350 · 75442-06400 |
| 75443A | Trunk door No. 3 nameplate | 75443-06E50 · 75443-06E60 · 75443-06E70 · 75443-06F00 |
| 75444 | Trunk door No. 4 nameplate | 75444-06380 · 75444-06390 |
| 75445 | Trunk door No. 5 name plate | 75447-06110 |
| 75446 | Trunk door No. 6 nameplate | 75446-06040 · 75446-06050 · 75446-06060 |
| 75741E | logo | 75403-06120 · 75446-YY130 · 90975-C2010 |
