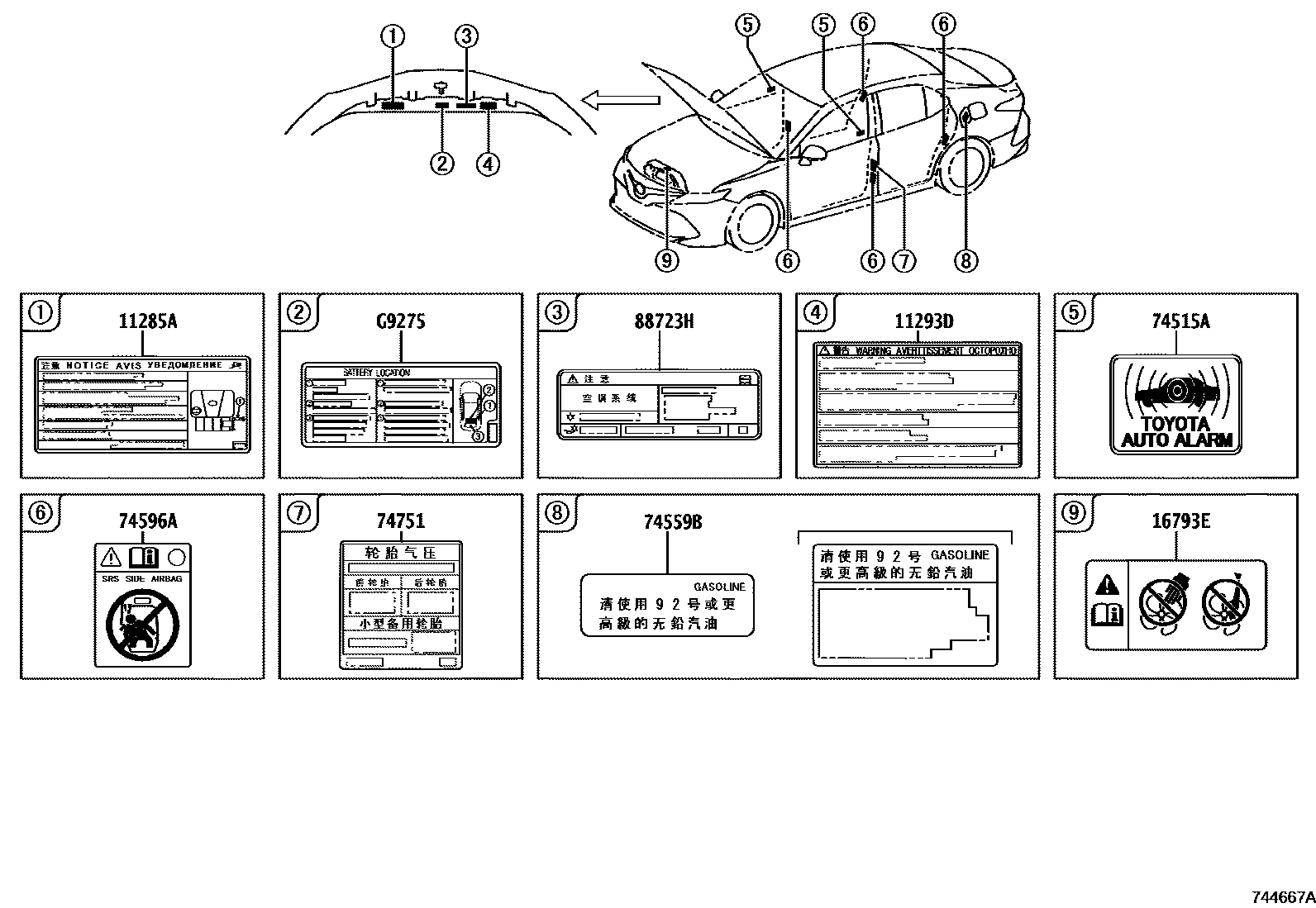

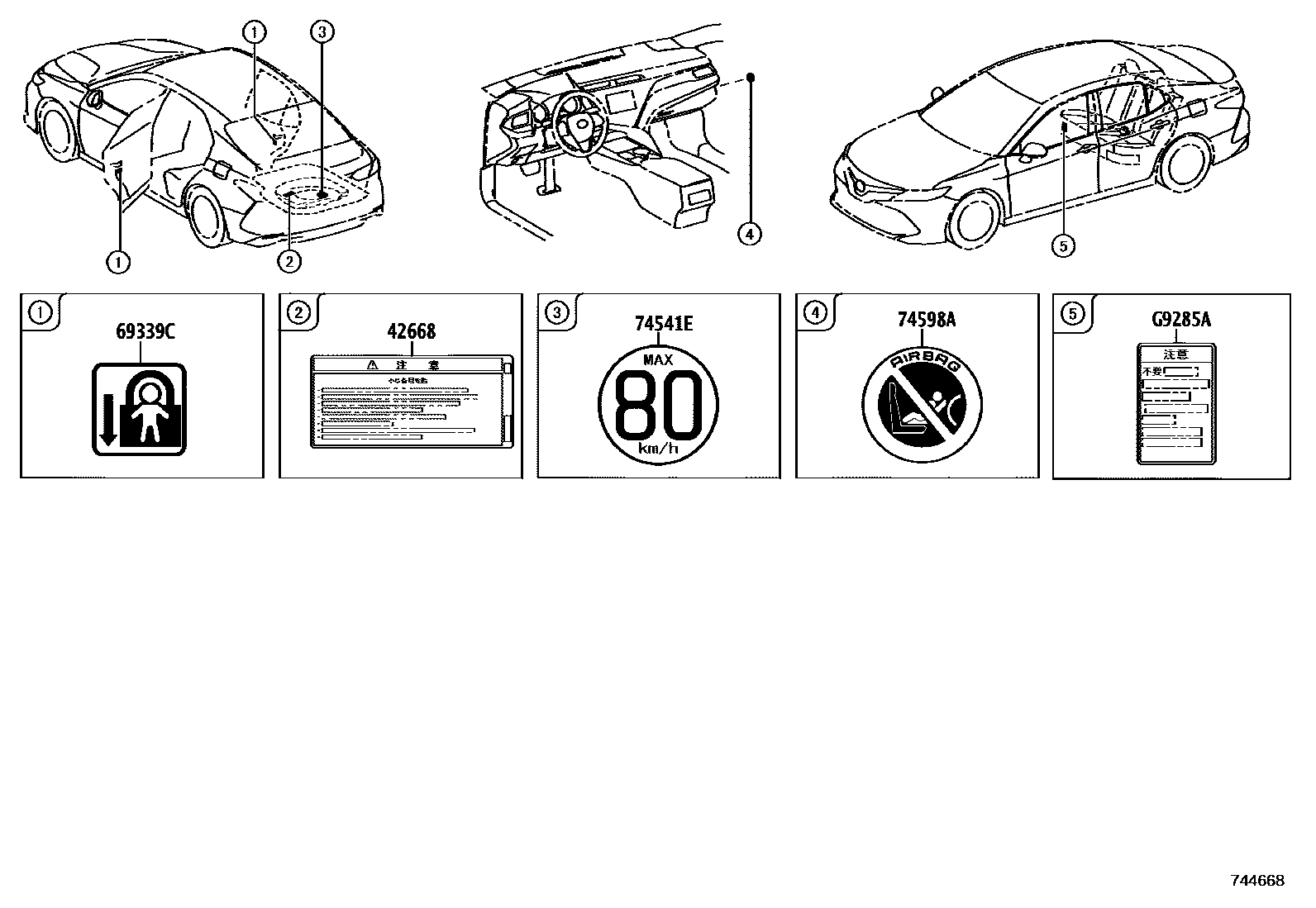

Toyota CAMRY 警示铭牌(车外和车内) — Figure 7403
Toyota CAMRY EPC diagram 7403, 警示铭牌(车外和车内), with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-F0030 |
| 11293D | engine warning label | 11293-36070 |
| 16793E | Cooling fan warning label | 16793-36030 |
| 42668 | Small spare tire warning label | 42668-06060 |
| 69339C | Child Restraint Information Label | 69339-06080 |
| 74515A | Anti-theft warning nameplate | 74515-06020 |
| 74541E | Small spare tire warning plate | 42668-20020 |
| 74559B | fuel information label | 74559-33060 · 74579-0D010 · 74579-26011 |
| 74596A | Side air bag warning label | 74596-0G010 |
| 74598A | Passenger air bag warning label | 74598-06040 |
| 74751 | tire pressure information label | 42661-06B80 · 42661-06B90 · 42661-06C00 |
| 88723H | Cooler maintenance warning label | 88723-06200 · 88723-06210 |
| G9275 | No. 1 battery warning label | G9275-06020 |
| G9285A | HV Battery No. 1 Warning Label | G928L-02010 |
