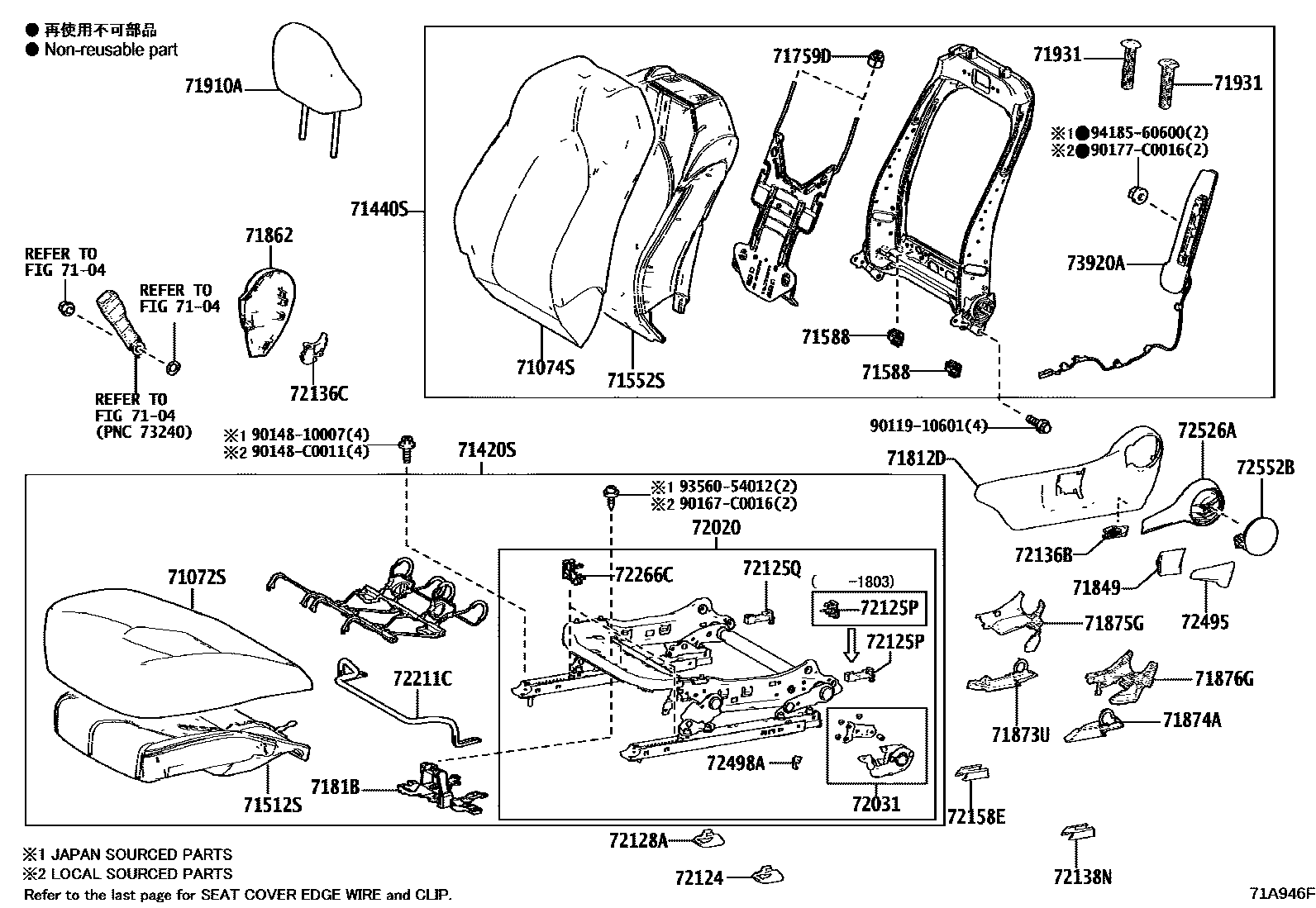

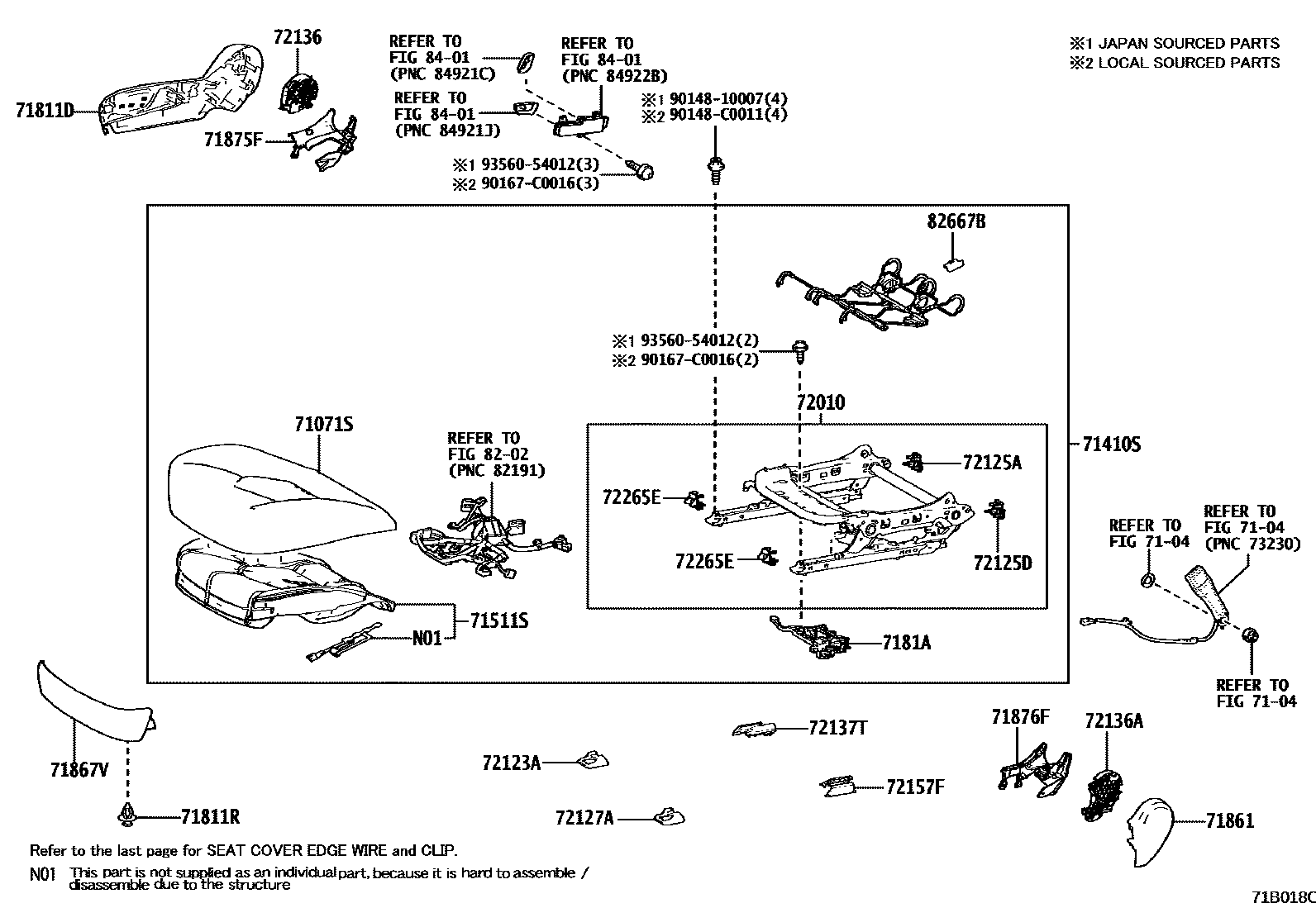

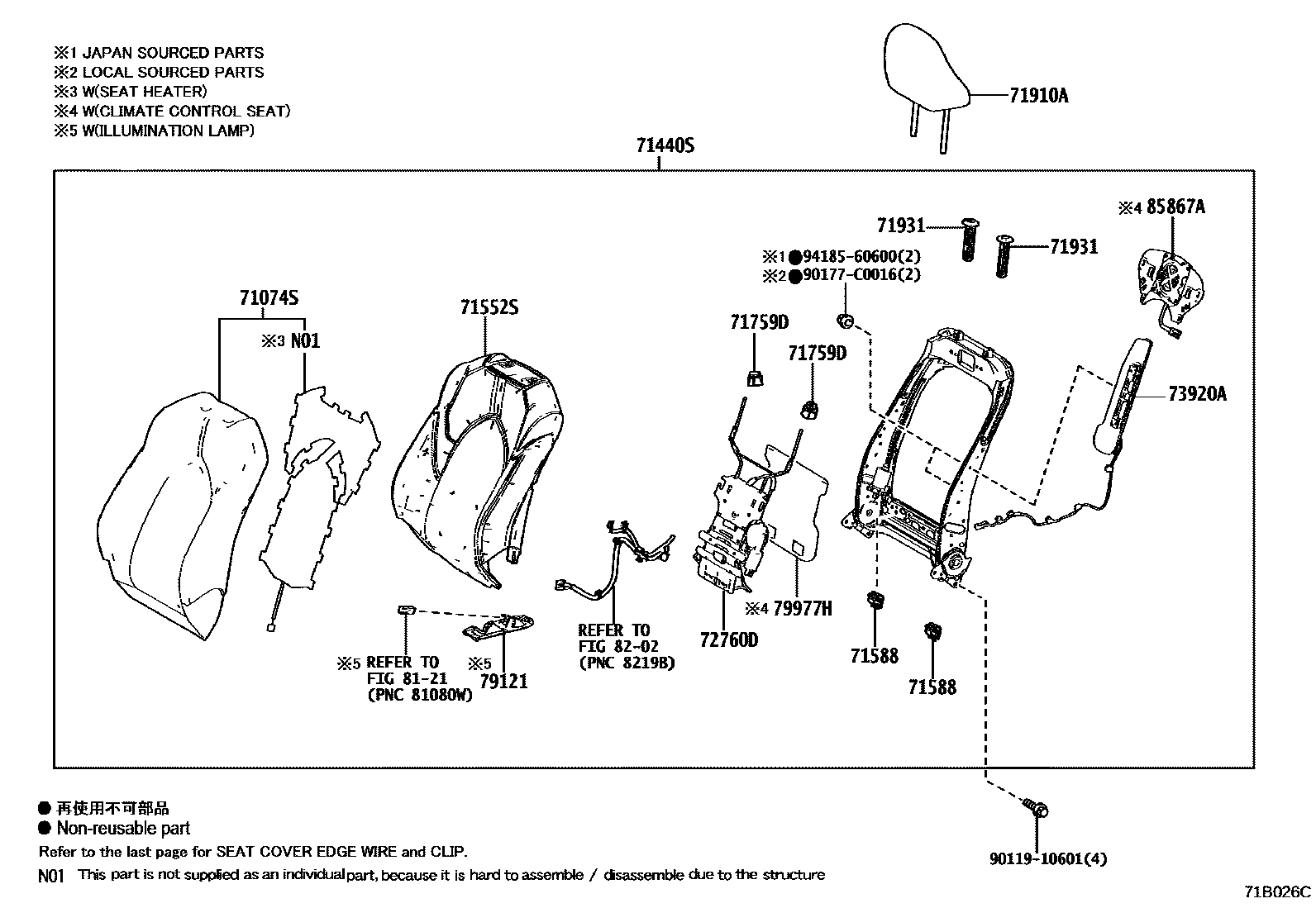

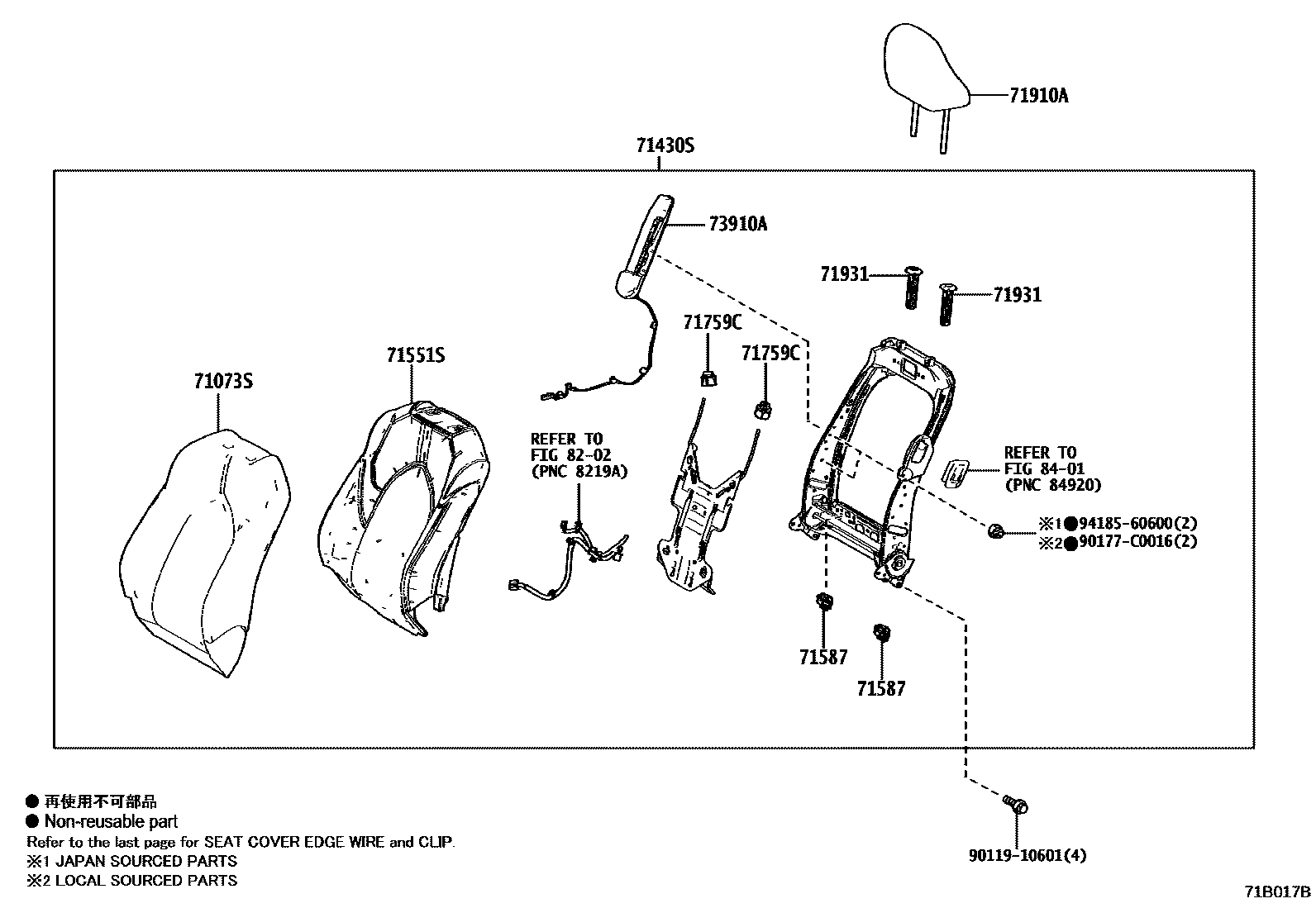

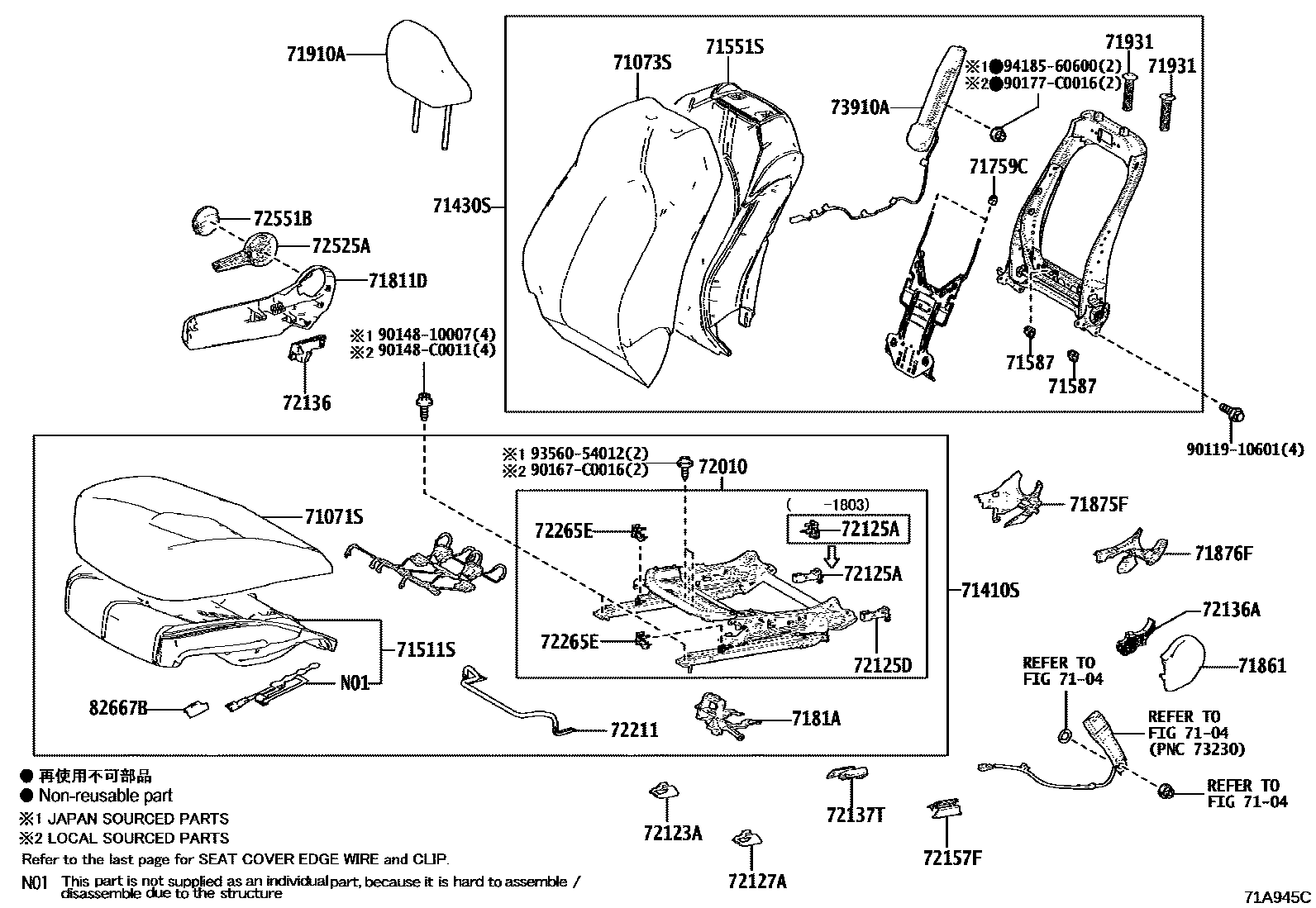

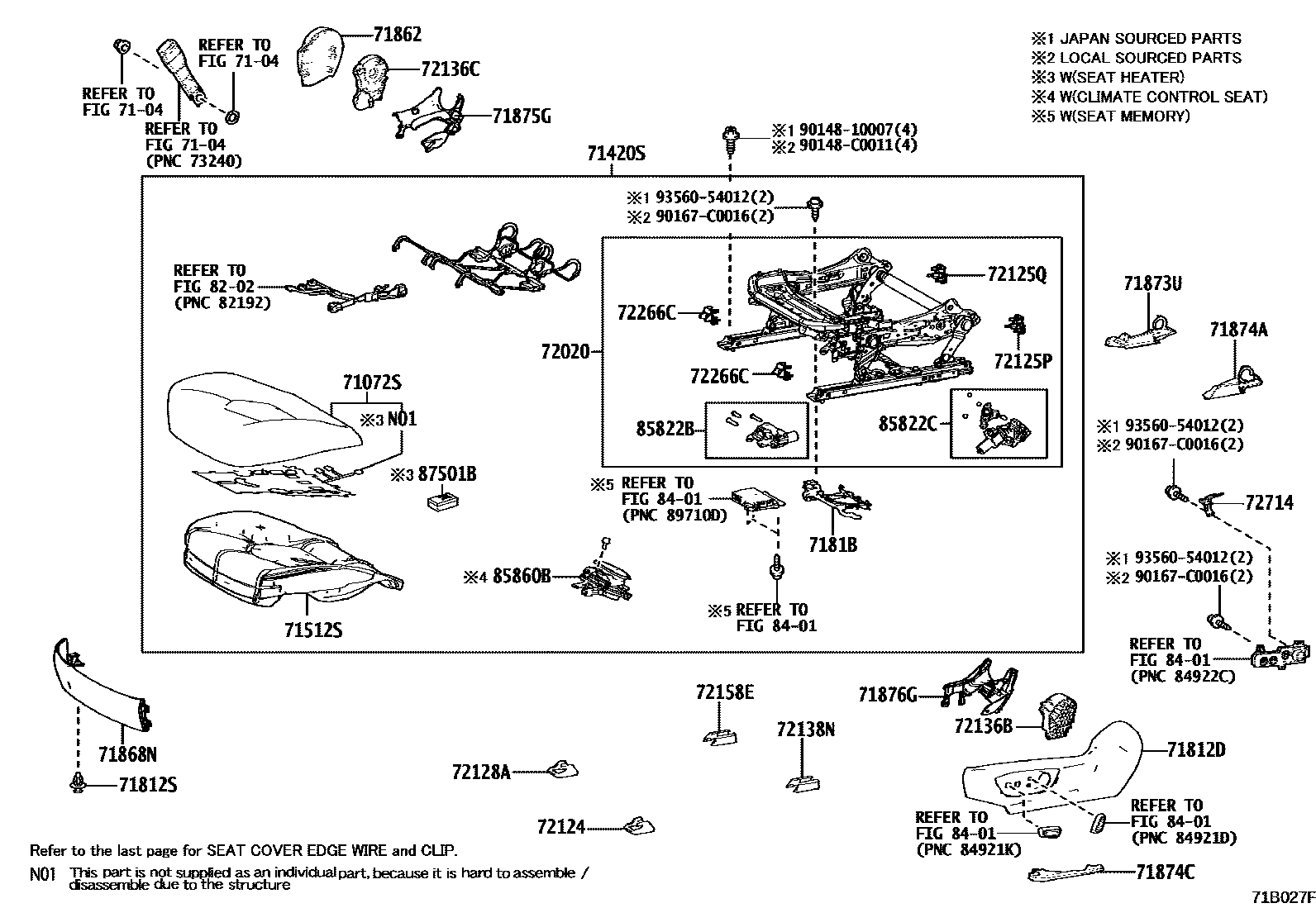

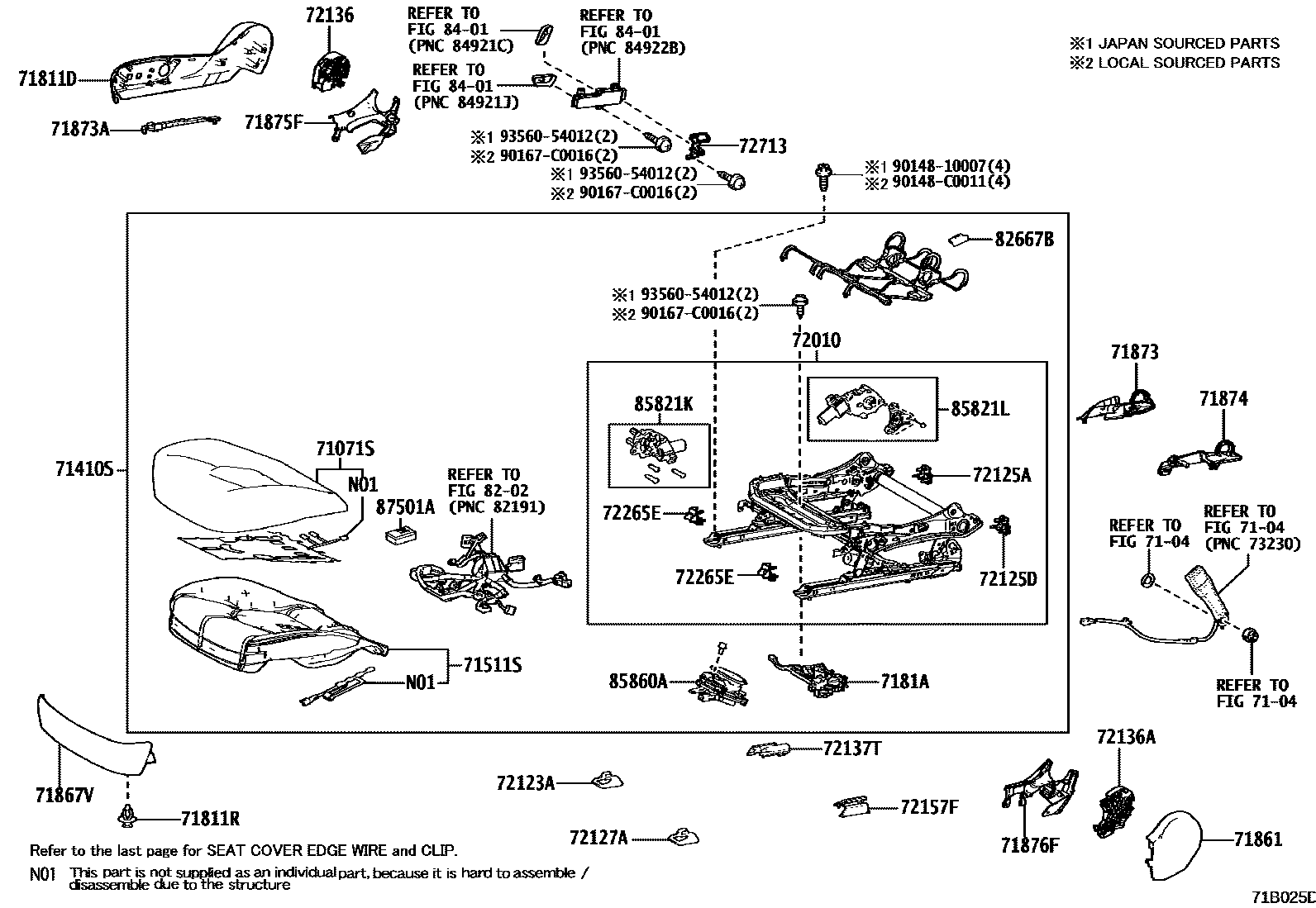

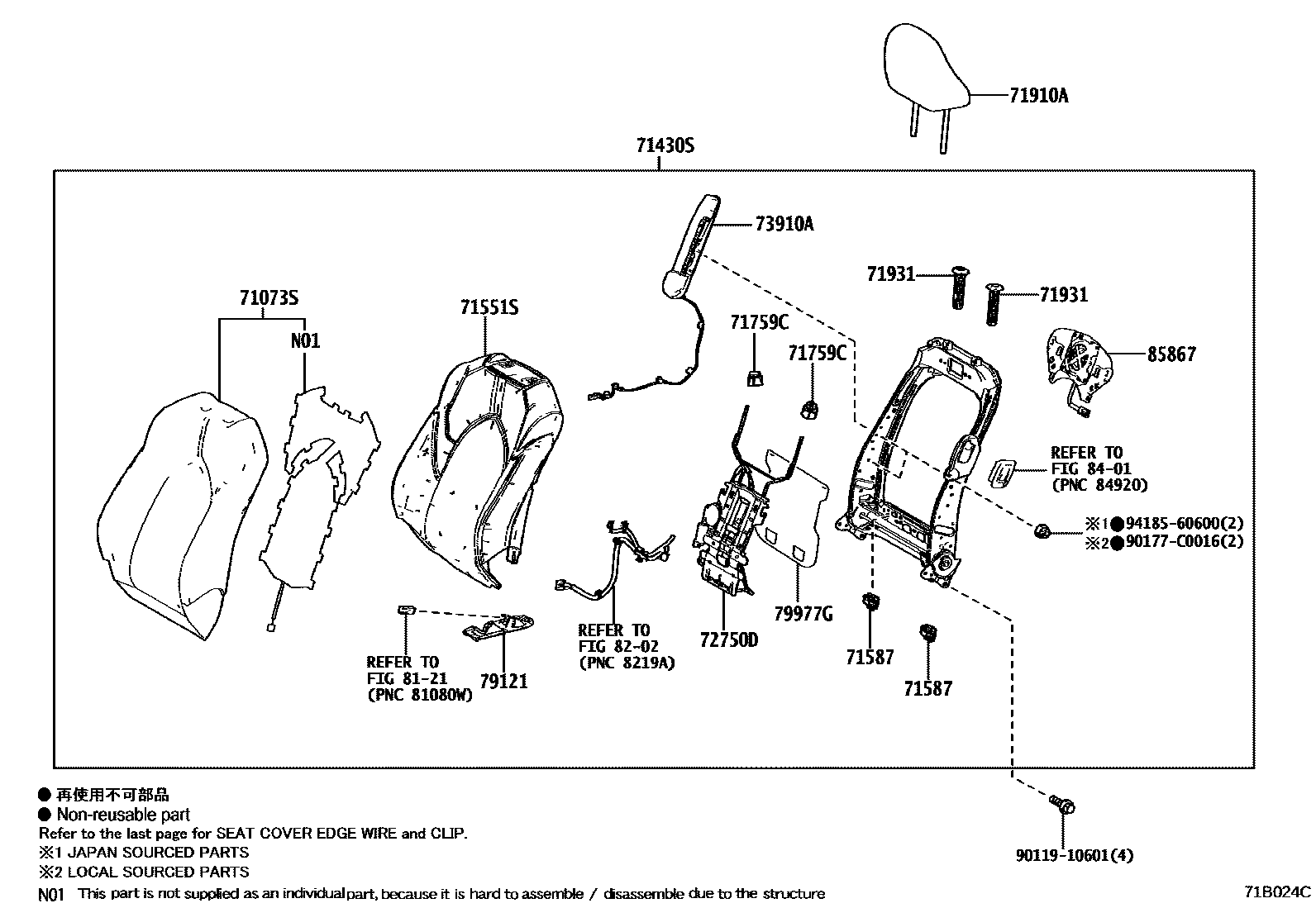

Toyota CAMRY 前排座椅和座椅滑轨 — Figure 7101
Toyota CAMRY EPC diagram 7101, 前排座椅和座椅滑轨, with 9 images and 62 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71511S | Front right seat cushion cushion (for split seats) | 71501-06350 · 71501-06400 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-06760 · 71512-06770 · 71512-06790 |
| 71551S | Front right seat back cushion (for split seats) | 71551-06780 · 71551-06800 · 71551-06890 |
| 71552S | Front left seat back cushion (for split seats) | 71552-06670 · 71552-06690 |
| 71587 | Front seat back edge protective cover | 71587-06010 |
| 71588 | Front seat back edge protective cover No. 2 | 71587-06010 |
| 71759C | Front seat back hook No. 1 | 71759-06030 |
| 71759D | Front seat back hook 2 | 71759-06030 |
| 71811R | Front seat cushion right guard panel clip | 90467-07215 |
| 71812S | Front seat cushion left guard panel clip | 90467-07215 |
| 7181A | Front right seat cushion harness holder | 7181A-06010 · 7181A-06020 |
| 7181B | Front left seat cushion harness holder | 7181B-06010 · 7181B-06020 |
| 71873 | Front right seat cushion lower guard panel | 71873-06400 |
| 71873A | Front seat cushion lower guard | 71873-06380 |
| 71873U | Front right seat cushion lower guard panel | 71874-06400 |
| 71874 | Front left seat cushion lower guard | 71873-06410 |
| 71874A | Front left seat cushion lower guard | 71874-06390 |
| 71874C | Front seat cushion lower guard | 71874-06410 |
| 72010 | Front right seat adjuster assembly | 72010-06330 · 72010-06360 · 72010-06400 |
| 72020 | Front left seat adjuster assembly | 72020-06370 · 72020-06371 · 72020-06372 · 72020-06380 · 72020-06540 |
| 72031 | Front seat height adjuster assembly | 72443-47020 · 72443-47021 |
| 72123A | Front right seat outer slide rail bracket cover | 72123-06110 |
| 72124 | Front left seat outer slide rail bracket cover | 72123-06110 |
| 72125A | Rear seat upper slide rail cover | 72125-06050 · 72125-06060 |
| 72125D | Slide rail cover on rear seat No. 2 | 72125-06050 · 72125-06060 |
| 72125P | Slide rail cover on rear seat 3 | 72125-06050 · 72125-06060 |
| 72125Q | Slide rail cover on rear seat No. 4 | 72125-06050 · 72125-06060 |
| 72127A | Front right seat inner slide rail bracket cover | 72123-06110 |
| 72128A | Front left seat inner slide rail bracket cover | 72123-06110 |
| 72136 | No. 1 seat slide rail lower rail | 72136-06560 · 72136-06570 |
| 72136A | No. 2 seat slide rail lower rail | 72136-06590 · 72136-06640 |
| 72136B | No. 3 seat slide rail lower rail | 72136-06600 · 72136-06620 |
| 72136C | No. 4 seat slide rail lower rail | 72136-06610 · 72136-06630 |
| 72137T | Rear right seat outer slide rail bracket cover | 72137-06130 |
| 72138N | Rear left seat outer slide rail bracket cover | 72137-06130 |
| 72157F | Rear right seat inner slide rail bracket cover | 72157-06200 |
| 72158E | Rear left seat inner slide rail bracket cover | 72158-06200 |
| 72211 | Seat slide adjustment handle | 72211-06140 |
| 72211C | Seat slide adjustment handle | 72211-06140 |
| 72265E | Right seat rail upper rail cover | 72265-06020 · 72265-06030 |
| 72266C | Left seat rail upper rail cover | 72265-06020 · 72265-06030 |
| 72498A | Left height adjuster bracket cover | 72498-06050 |
| 72713 | Right seat adjuster protective clip bracket | 72713-06010 |
| 72714 | Left seat adjuster protective clip bracket | 72714-06010 |
| 72750D | Right lumbar support adjuster assembly | 72750-11010 |
| 72760D | Left lumbar support adjuster assembly | 72760-11010 · 72760-47030 |
| 73910A | Front right seat airbag assembly | 73910-06200 |
| 73920A | Front left seat airbag assembly | 73920-06210 |
| 79121 | Seat Cushion Bracket No. 1 | 79121-06040 · 79122-06040 |
| 79977G | Front seat back right felt pad | 79977-06080 · 79977-33030 |
| 79977H | Felt pad, left side of front seat backrest | 79977-06080 · 79977-33030 |
| 82667B | Connector holder | 82666-06160 |
| 85821K | Right electric seat tilt adjustment motor assembly | 85801-47020 |
| 85821L | Right electric seat height adjustment motor assembly | 85801-47010 |
| 85822B | Left electric seat tilt adjustment motor assembly | 85801-11040 · 85801-47040 |
| 85822C | Left electric seat height adjustment motor assembly | 85801-11050 · 85801-47030 |
| 85860A | Right seat cushion temperature control blower assembly | 85801-11010 |
| 85860B | Left seat cushion temperature control blower assembly | 85802-11010 |
| 85867 | Right seat back temperature control blower | 85867-11010 |
| 85867A | Left-hand seat back temperature control blower | 85867-11010 |
| 87501A | Right seat heater control sub-assembly | 87501-06020 |
| 87501B | Left side seat heater control sub-assembly | 87501-06020 |
