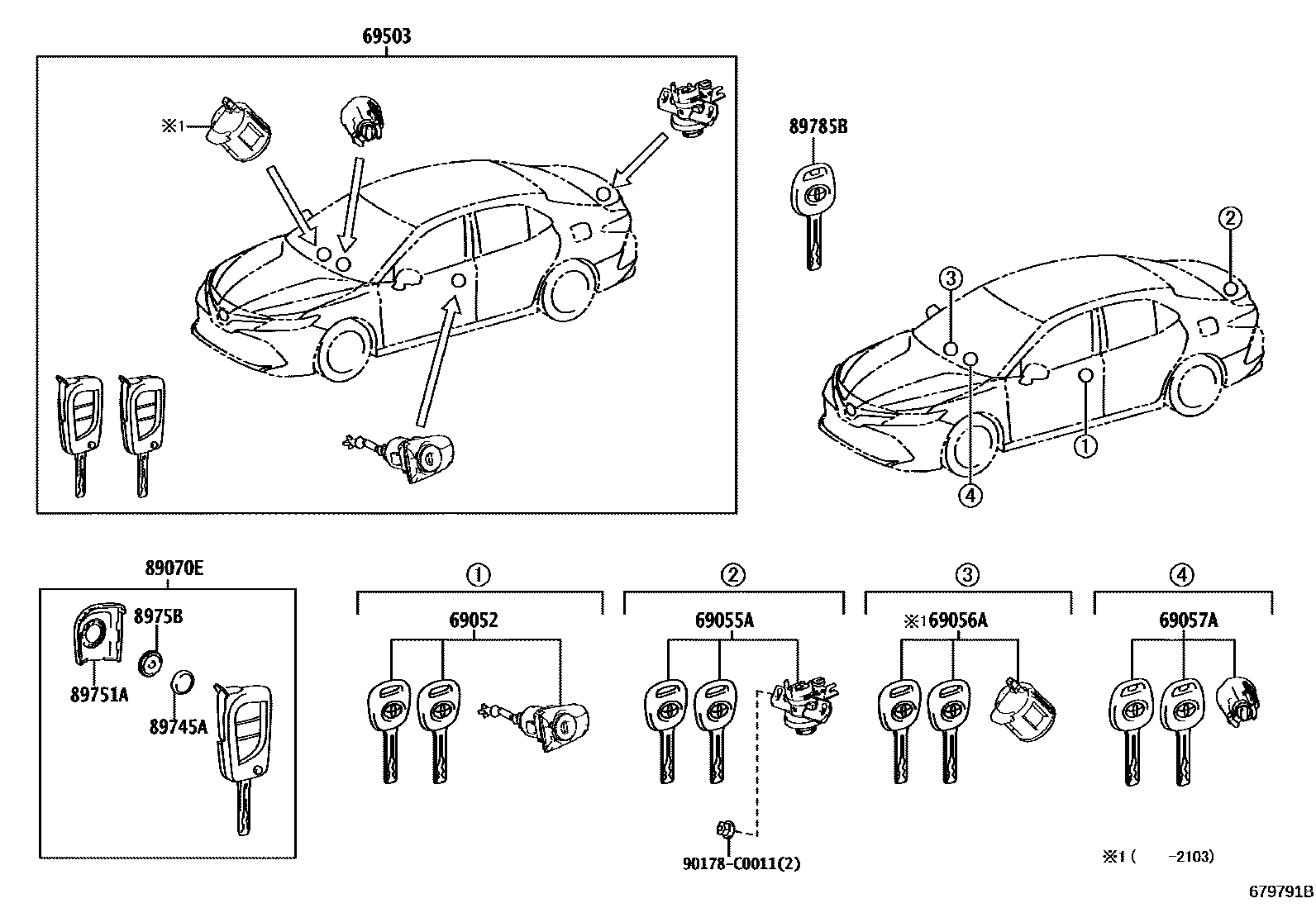

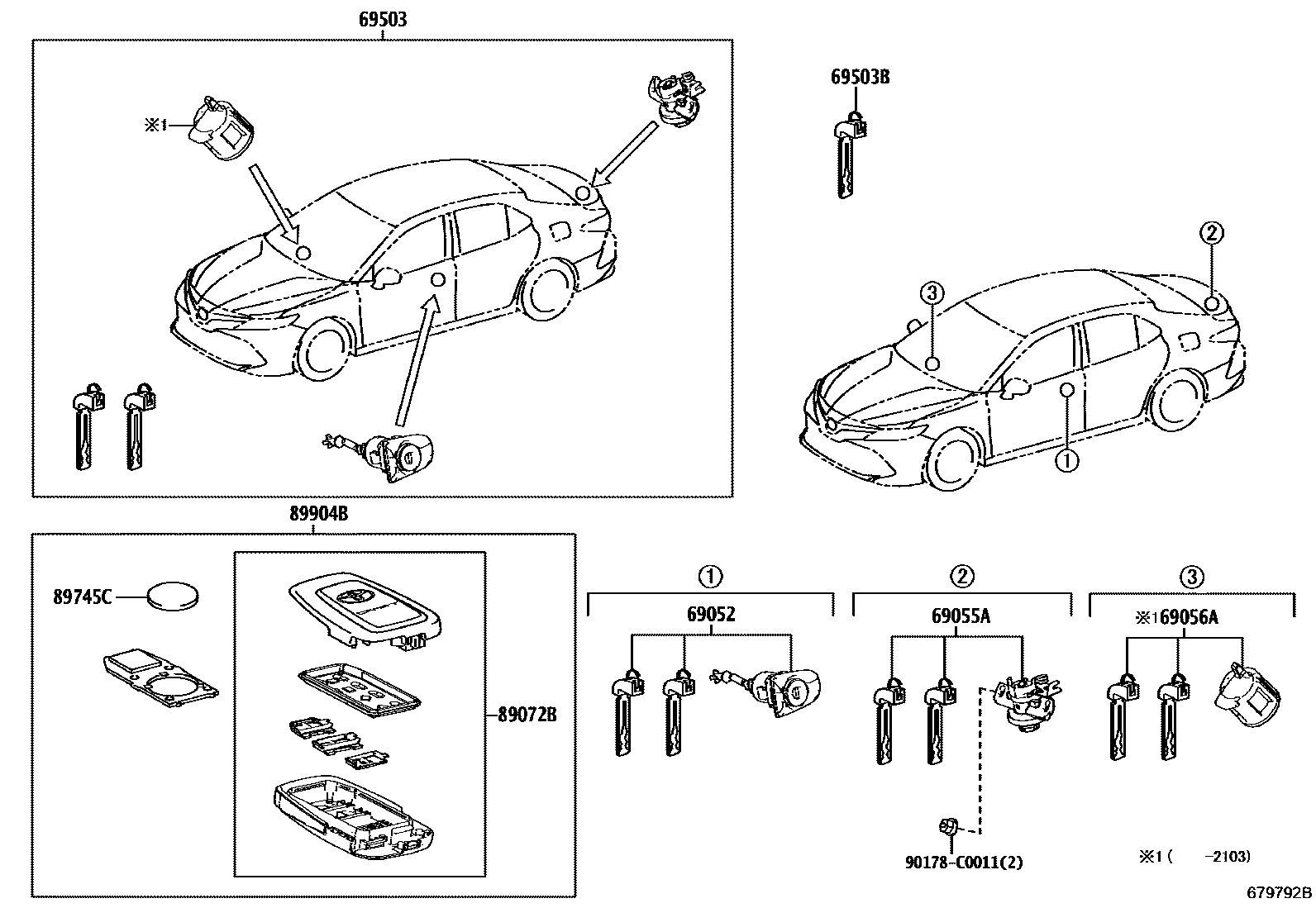

Toyota CAMRY 锁芯组件 — Figure 6712
Toyota CAMRY EPC diagram 6712, 锁芯组件, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-06280 · 69052-06290 |
| 69055A | Luggage lock cylinder and key assembly | 69055-06190 · 69055-06200 |
| 69056A | Glove box lock cylinder and key assembly | 69056-06130 · 69056-06250 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-06350 |
| 69503 | Door lock cylinder components | 69005-06800 · 69005-06801 · 89704-06630 · 89704-06670 · 89704-06671 |
| 69503B | internal tooth key | 69515-16100 · 69515-47020 |
| 89070E | Remote key assembly | 89070-06830 · 89070-06890 |
| 89072B | Remote key shell assembly (for smart key) | 89072-06510 · 89072-06520 |
| 89745A | Transmitter battery | 89745-06010 |
| 89745C | Transmitter battery | 89745-45010 |
| 89751A | Transmitter housing cover | 89751-06130 |
| 8975B | Remote control battery case cover | 8975B-33050 |
| 89785B | transceiver key master transmitter | 89785-06060 |
| 89904B | Electronic key transmitter sub-assembly | 89904-06180 · 89904-06250 |
