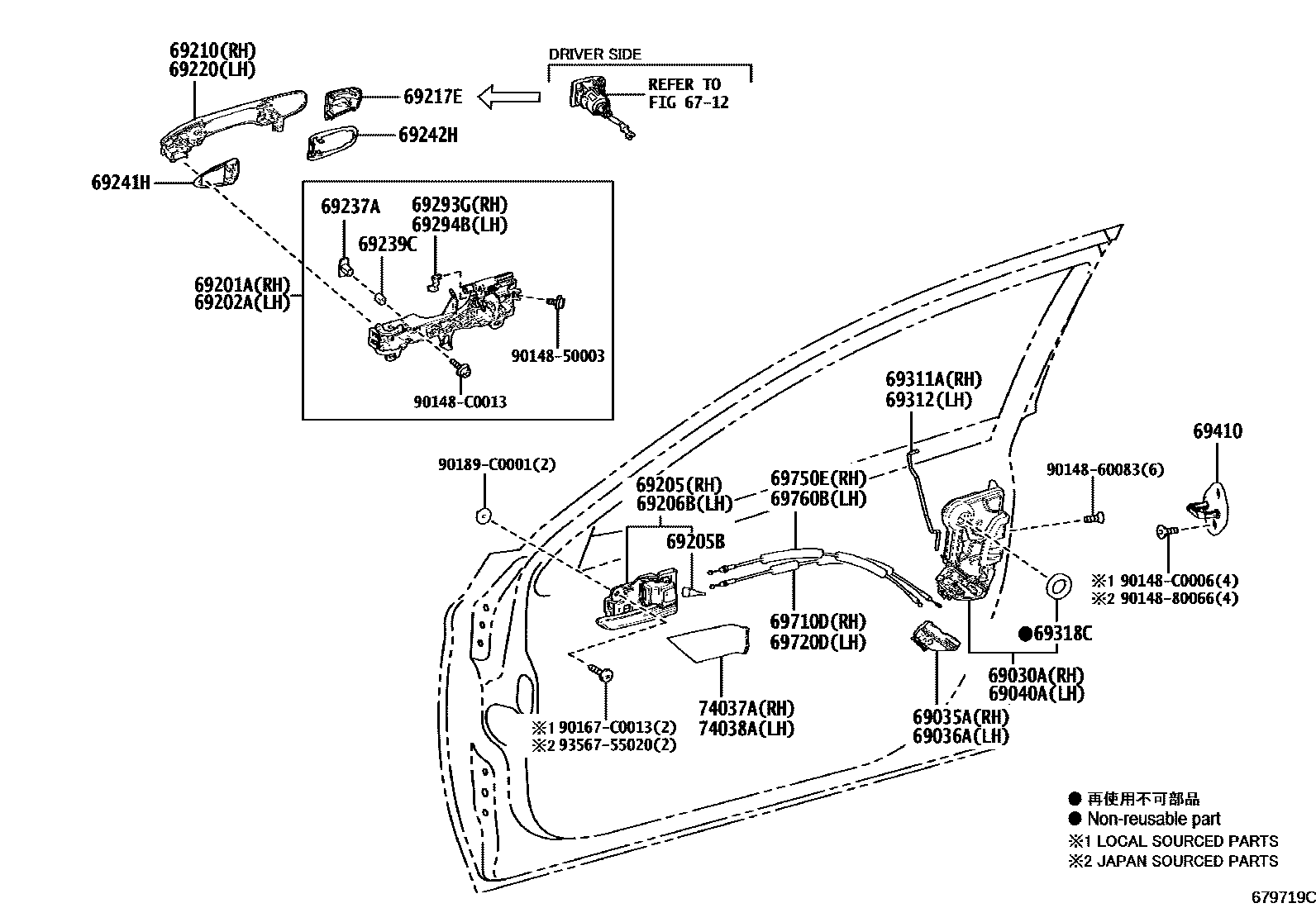

Toyota CAMRY 前门锁和车门把手 — Figure 6703
Toyota CAMRY EPC diagram 6703, 前门锁和车门把手, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-02640 |
| 69035A | Right front door lock cover sub-assembly | 69035-02070 |
| 69036A | Left front door lock cover sub-assembly | 69036-02070 |
| 69040A | Left front door door lock assembly with motor | 69040-02600 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-06150 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-06150 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04014 |
| 69210 | Right front door outer handle assembly | 69211-06160 |
| 69217E | Right front door outer handle cover | 69217-06180 |
| 69220 | Left front door outer handle assembly | 69210-06190 · 69210-06191 |
| 69237A | Front door handle nut | 69237-62010 |
| 69239C | Front door handle bushing | 69239-06050 |
| 69241H | Front door exterior handle pad | 69241-06120 |
| 69242H | Front door rear outer handle pad | 69242-06120 |
| 69293G | Right front door outer handle buckle | 69293-06050 · 69293-33030 |
| 69294B | Left front door outer handle buckle | 69293-06060 · 69293-33040 |
| 69311A | Right front door lock opening lever | 69311-06200 |
| 69312 | Left front door lock opening lever | 69312-06200 |
| 69318C | door lock harness seal | 69318-51010 |
| 69410 | Front door lock plate assembly | 69410-0D020 |
| 69710D | Right front door lock remote control cable (for opening lever) | 69710-06210 |
| 69720D | Left front door lock remote control cable (for opening lever) | 69710-06210 |
| 69750E | Right front door inner locking cable (for locking/unlocking handle) | 69750-06200 |
| 69760B | Left front door inner locking cable (for locking/unlocking handle) | 69750-06200 |
| 74037A | Right front door armrest cover sub-assembly | 74037-06020 |
| 74038A | Left front door armrest cover sub-assembly | 74038-06020 |
