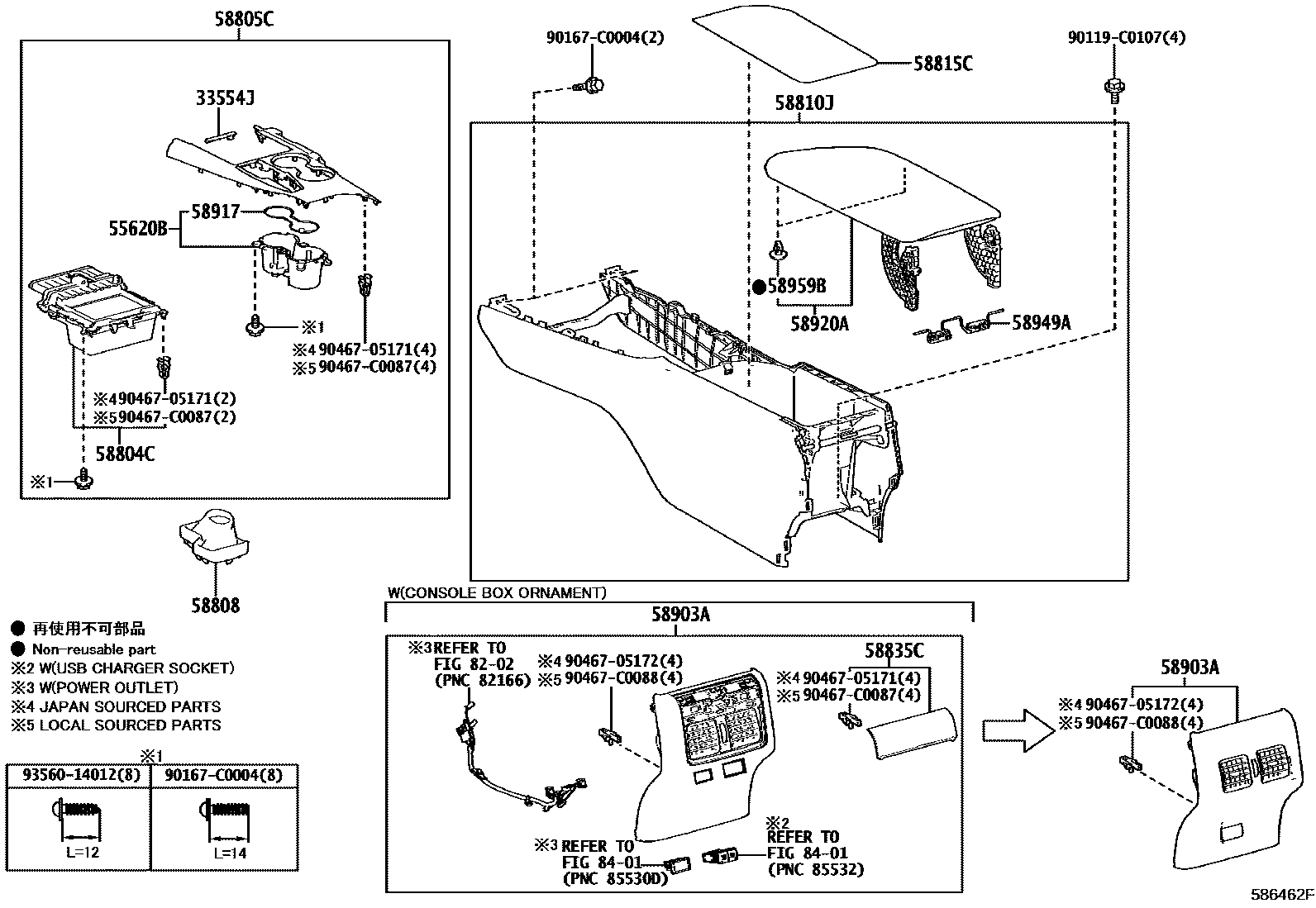

Toyota CAMRY 中央扶手箱和支架 — Figure 5806
Toyota CAMRY EPC diagram 5806, 中央扶手箱和支架, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33554J | Shift lock release button cover | 33554-06090 |
| 55620B | Dashboard cup holder | 55620-06530 |
| 58804C | Front armrest box insert sub-assembly | 58804-06460 |
| 58805C | Rear armrest box upper panel sub-assembly | 58805-06770 · 58805-06A70 · 58805-06E80 · 58805-06E90 · 58805-06F00 |
| 58815C | Armrest box felt pad | 58815-06200 |
| 58835C | Armrest box decorative parts | 58835-06160 · 58835-06170 |
| 58917 | Armrest box bottom pad No. 2 | 58917-06150 |
| 58949A | Armrest box mounting bracket spring | 58949-06030 |
| 58959B | Armrest box cover cushion | 58959-35010 |
