Toyota CAMRY 前围板和挡风玻璃 — Figure 5503

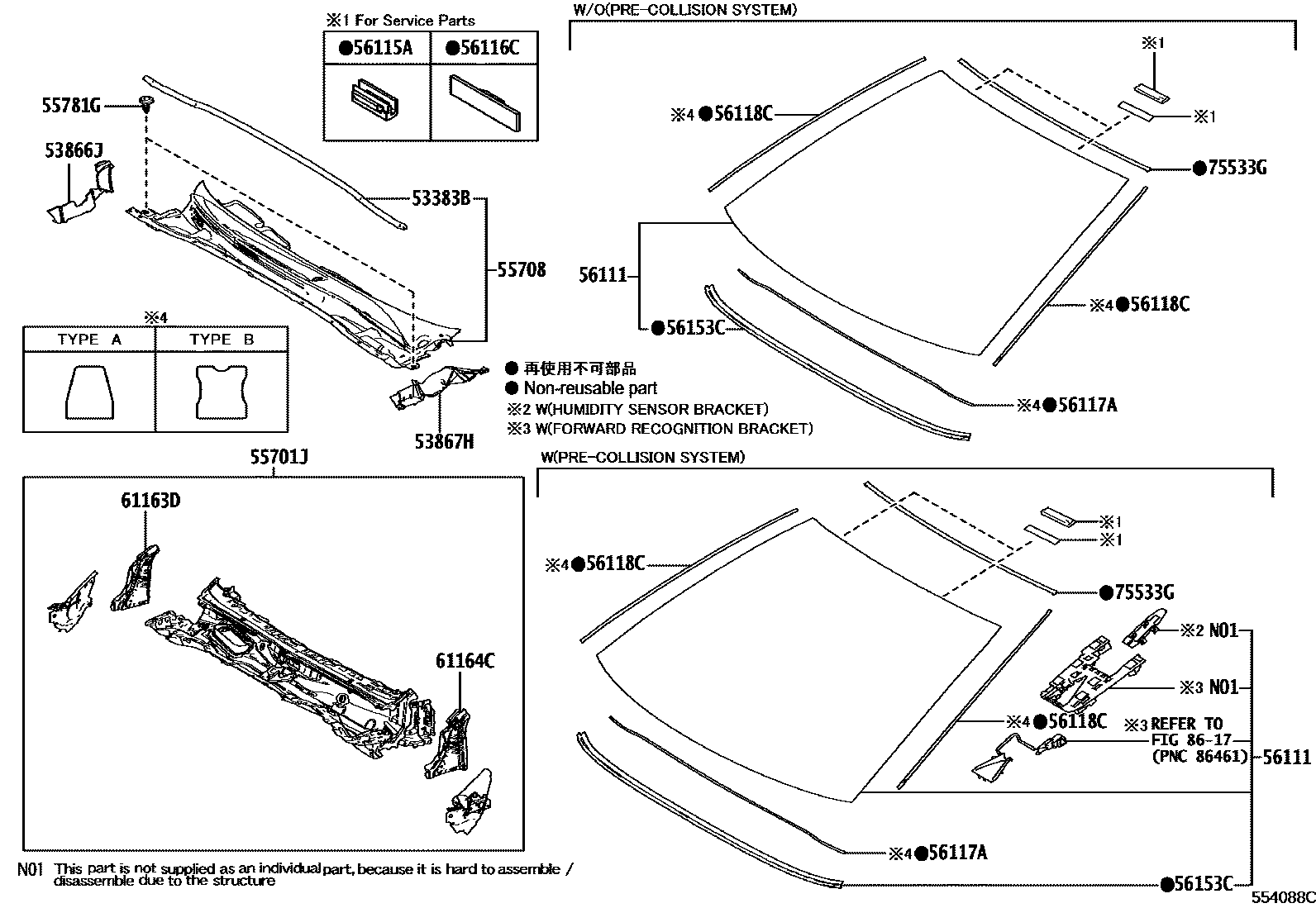

Toyota CAMRY EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-06210 |
| 53866J | Right front fender to cowl side seal | 53866-06150 |
| 53867H | Left front fender to cowl side seal | 53867-06150 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-06360 |
| 55708 | Ventilation grille sub-assembly on front apron | 55708-06290 |
| 55781G | Ventilation grille clips on front apron | 90467-09242 · 90467-C0037 |
| 56111 | windshield | 56101-06982 · 56101-06983 · 56101-06984 · 56101-06985 · 56101-0X901 · 56101-0X902 · 56101-0X903 · 56101-0X920 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-06210 · 56117-06250 |
| 56118C | Windshield limiter No. 2 | 56118-06060 · 56118-06080 |
| 56153C | Front center window inner protective strip | 56153-06030 |
| 61163D | Right body inner front lower pillar | 61163-06020 |
| 61164C | Left side inner front lower pillar | 61164-06020 |
| 75533G | Windshield outer protective strip | 75531-06230 |
