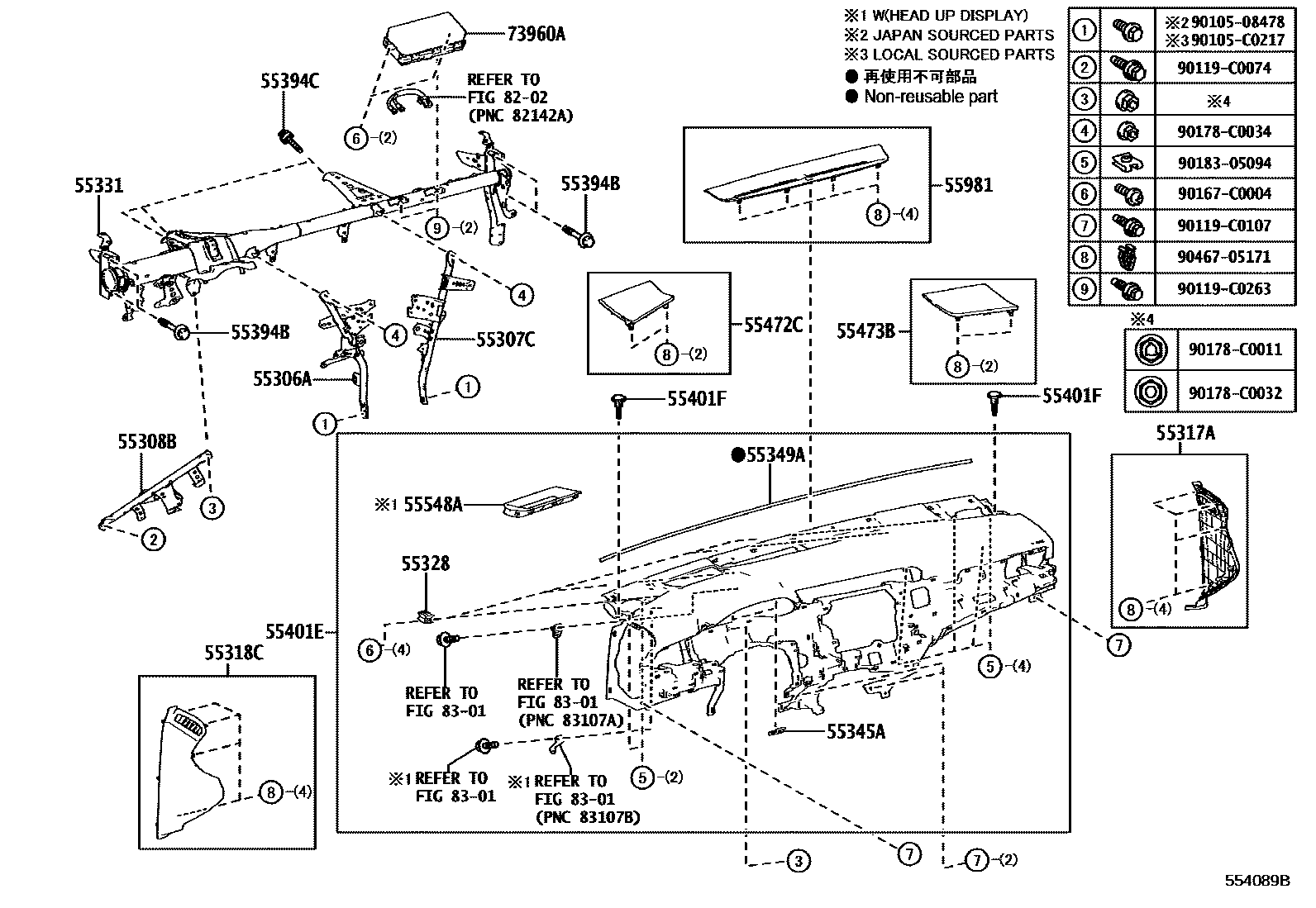

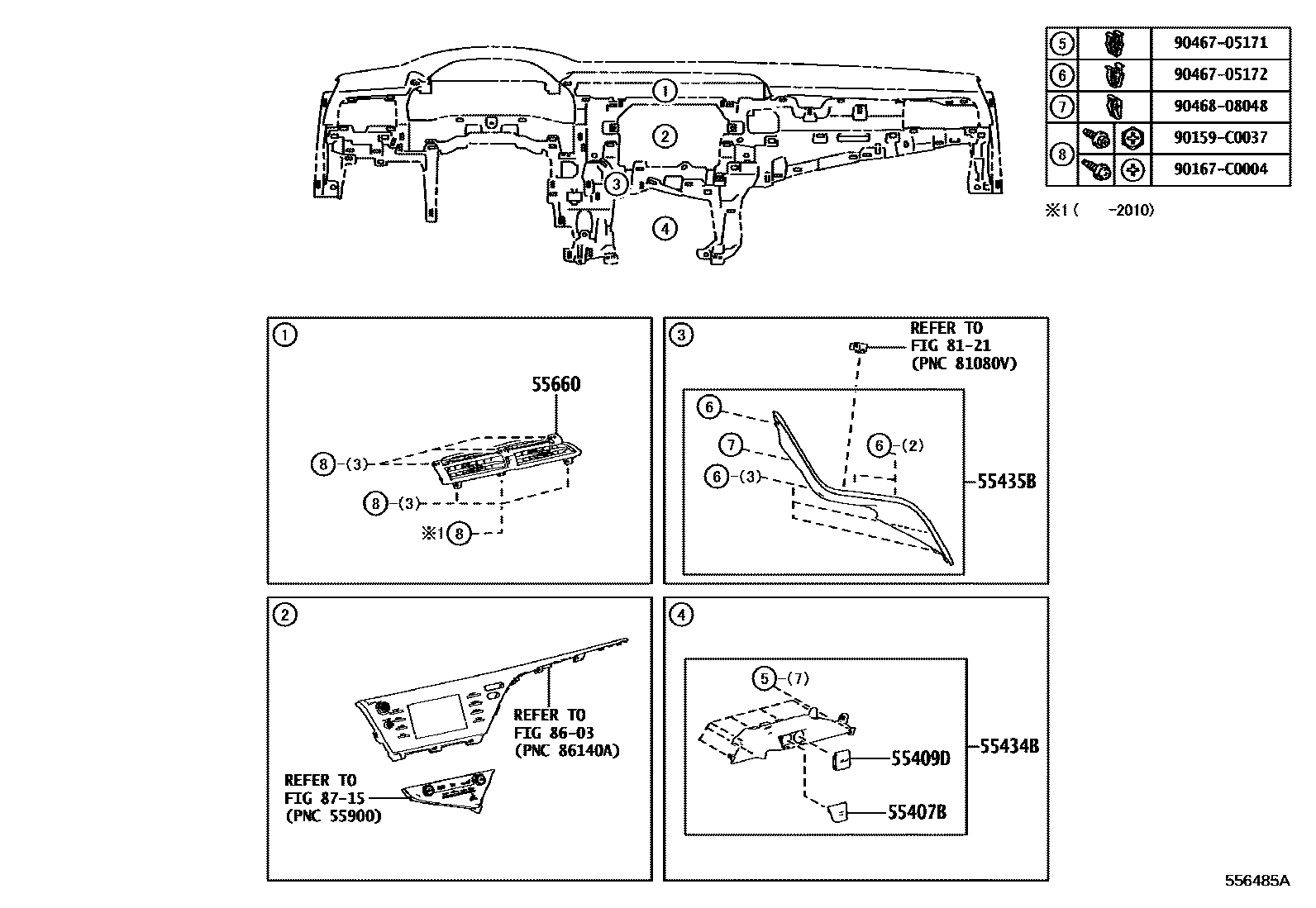

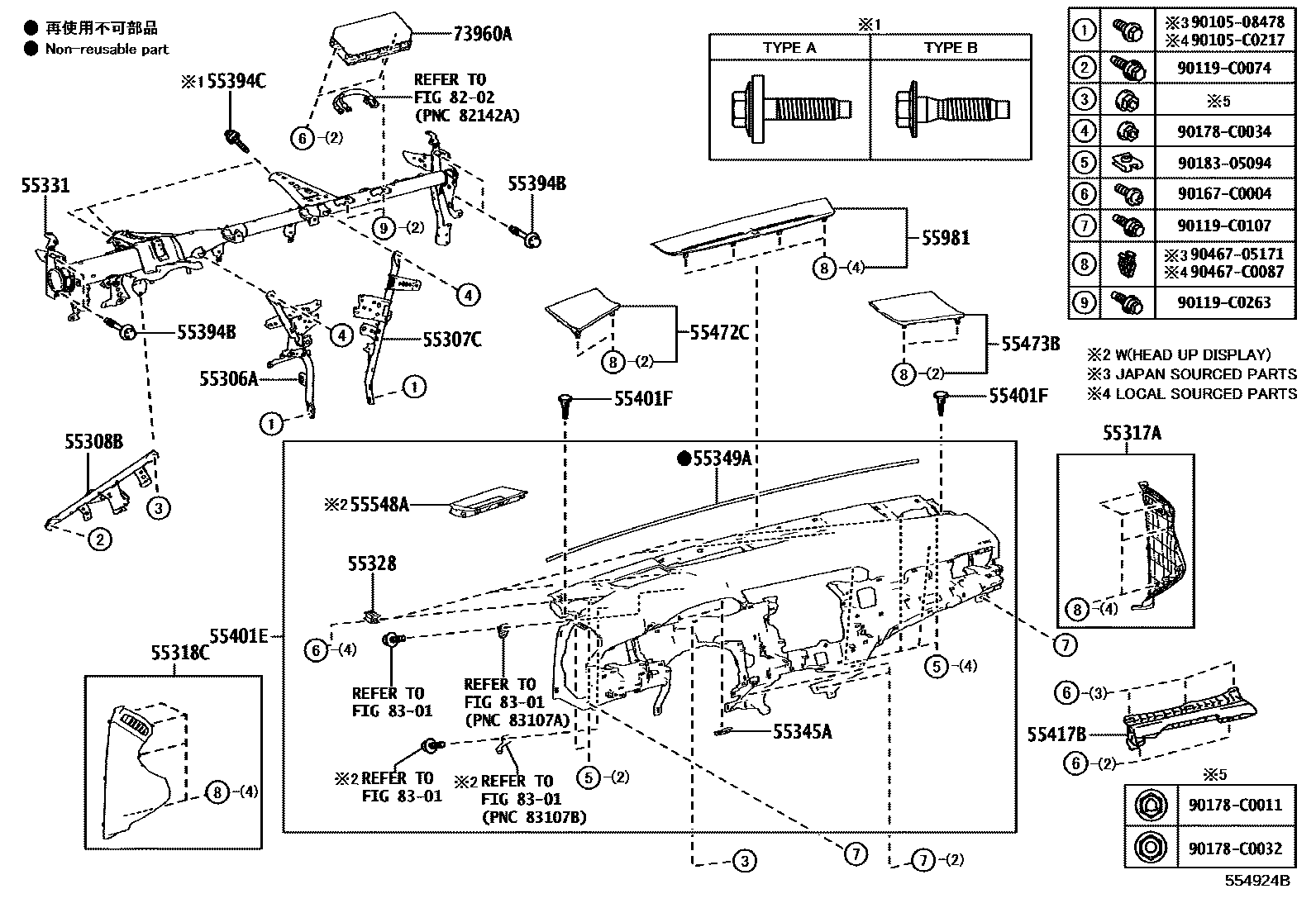

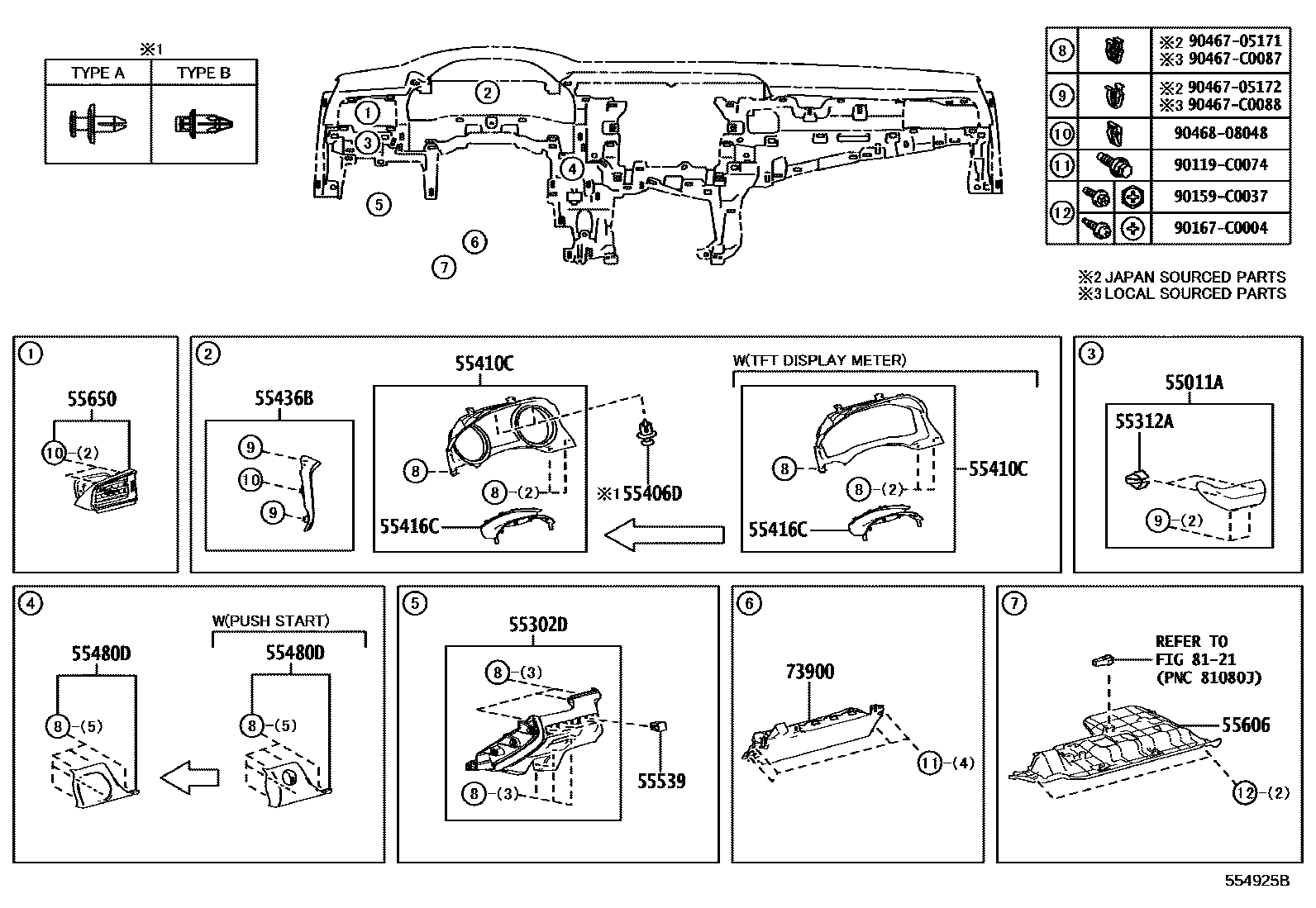

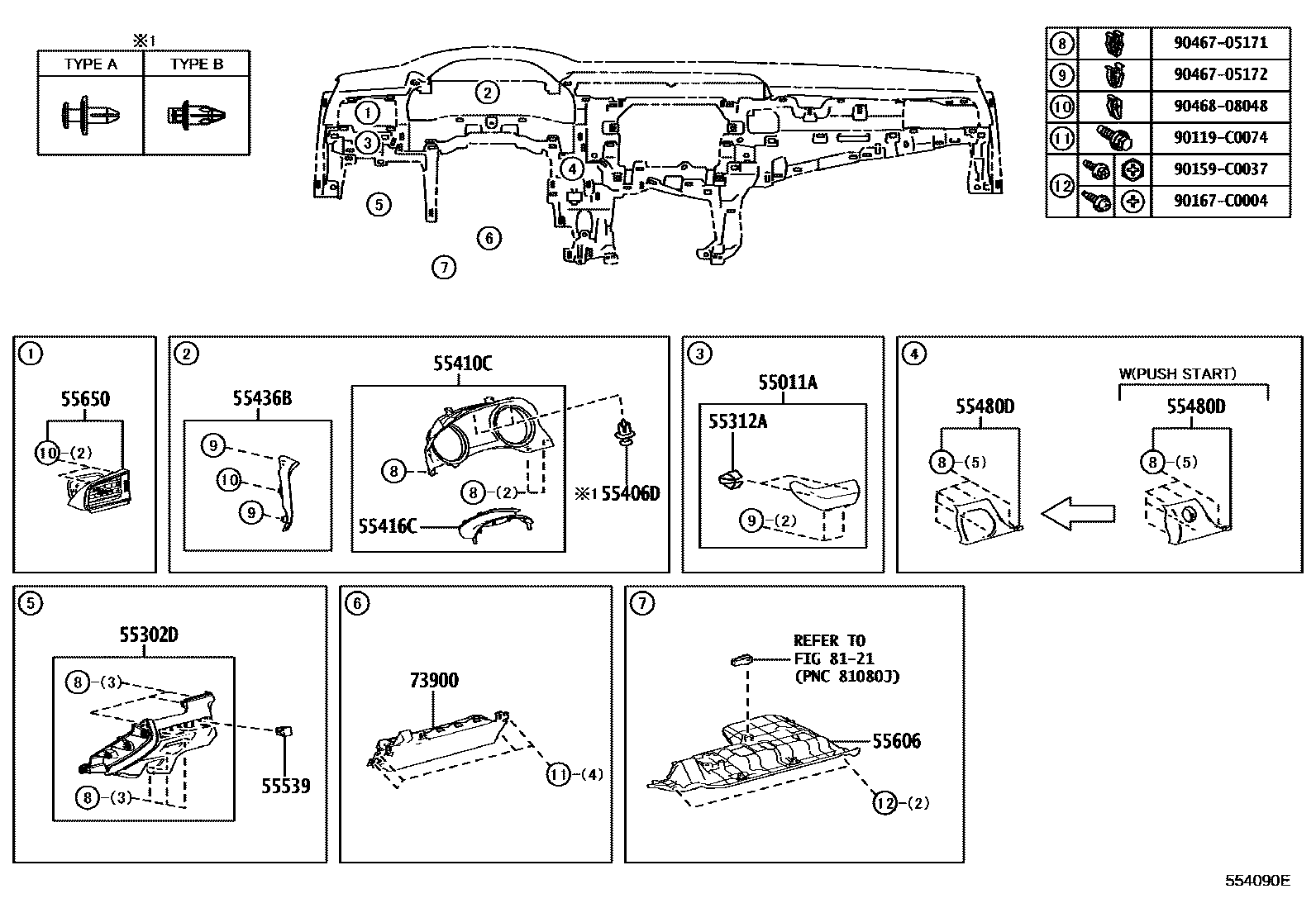

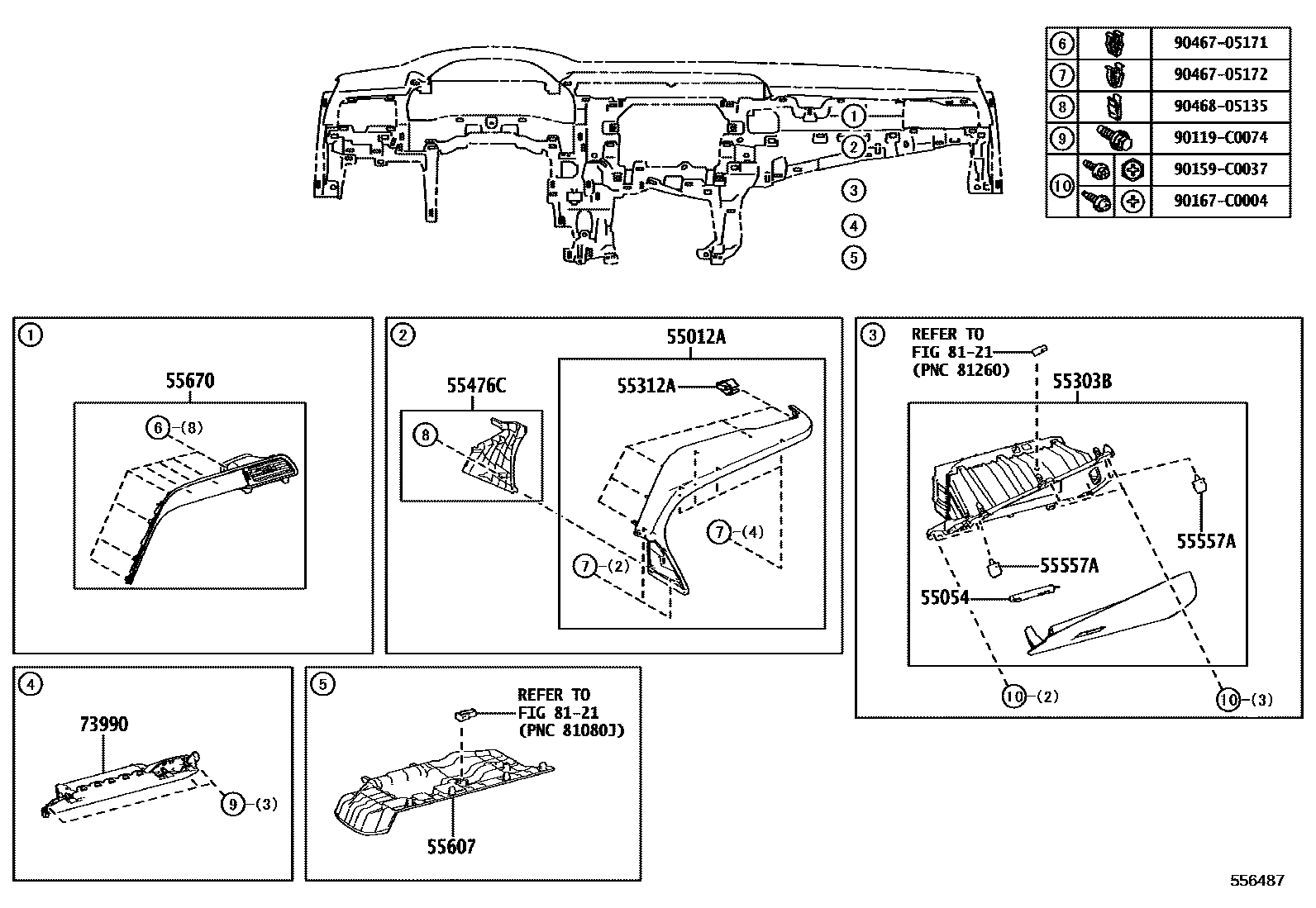

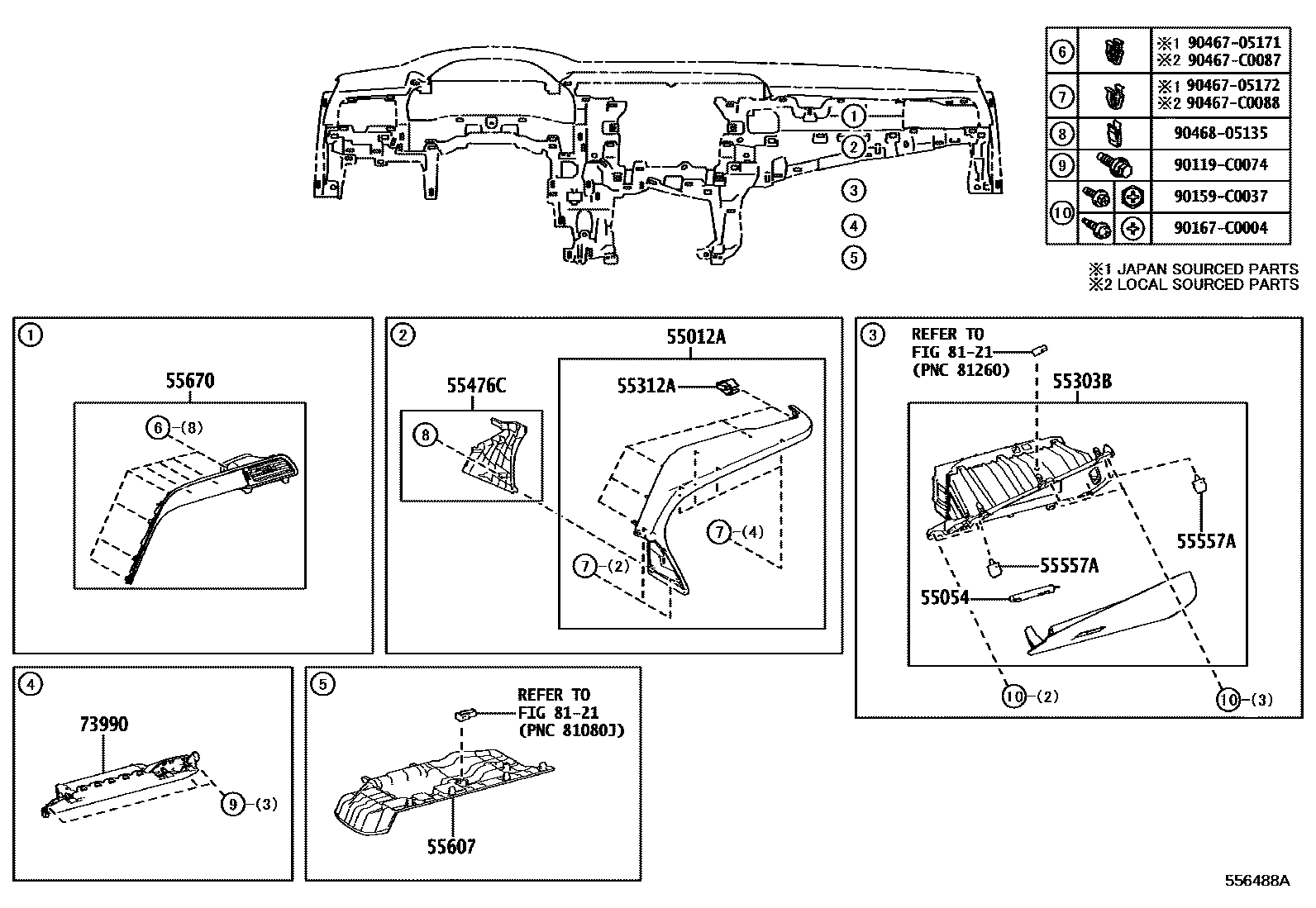

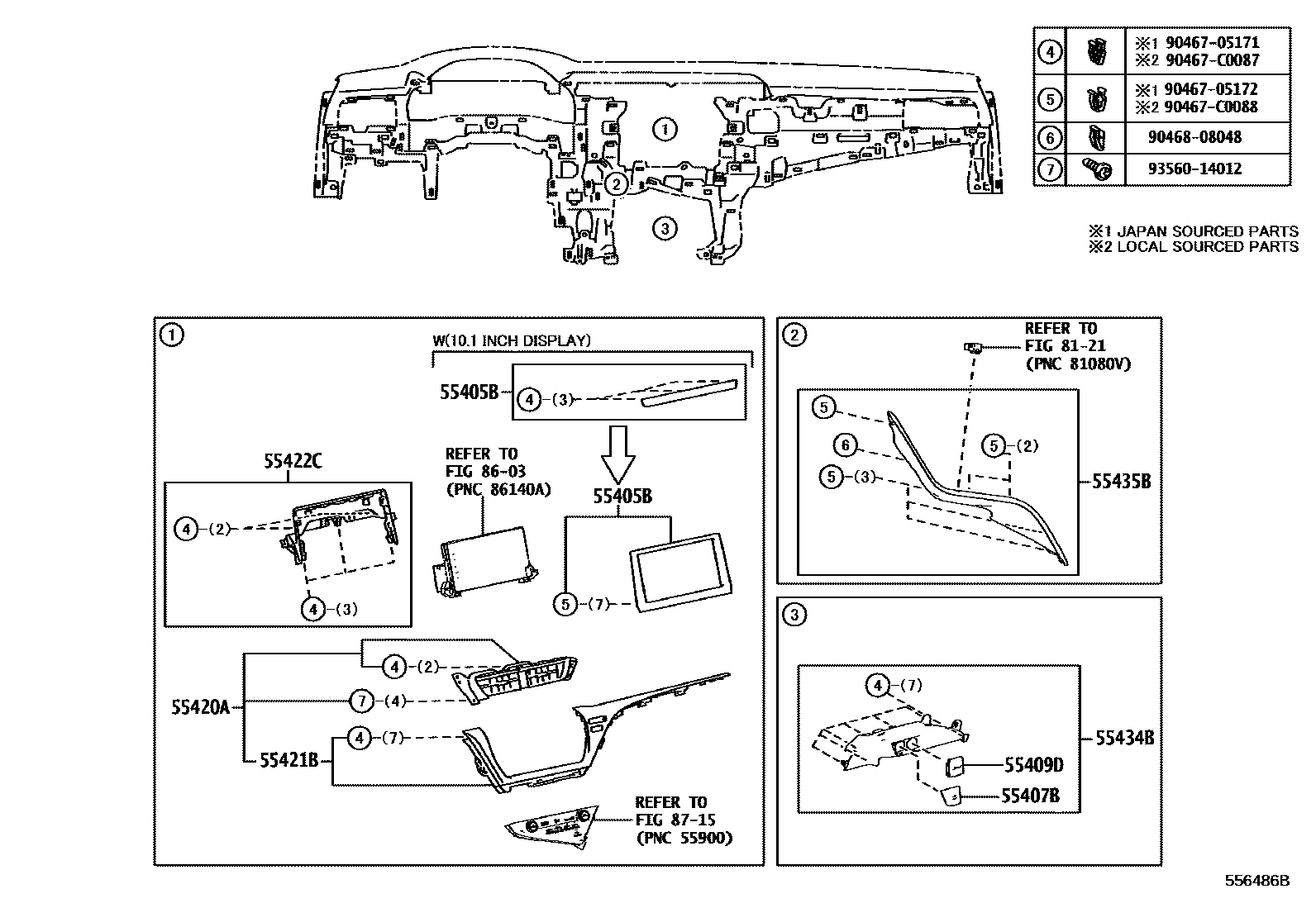

Toyota CAMRY 仪表板和手套箱 — Figure 5501
Toyota CAMRY EPC diagram 5501, 仪表板和手套箱, with 8 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-06030 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-06170 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-06120 |
| 55308B | Dashboard to cowl No. 3 bracket sub-assembly | 55308-06080 |
| 55328 | Instrument panel pin 1 | 55328-0E100 |
| 55331 | Dashboard reinforcement | 55330-06400 · 55330-06470 |
| 55345A | Dashboard Clip No. 1 | 55345-12060 |
| 55349A | Dashboard cushion | 55349-06230 |
| 55394B | Dashboard bolts | 90105-08473 · 90105-C0318 |
| 55394C | Dashboard bolts | 90105-08526 · 90105-C0407 · 90119-08D16 · 90119-C0223 |
| 55401F | Clip (for safety mat) | 52161-02040 · 52161-16010 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-06230 · 55405-06250 |
| 55406D | Clip (for instrument cluster decorative panel) | 90467-C0014 |
| 55410C | Instrument cluster decorative panel assembly | 55410-06150 · 55410-06200 · 55410-06290 · 55410-06300 |
| 55416C | Instrument cluster decorative panel fixings | 55416-06120 · 55416-06150 |
| 55417B | Radio tuner trim panel fixing | 55417-06030 |
| 55420A | Center instrument cluster decorative panel assembly | 55420-06070 |
| 55421B | Decorative panel on instrument cluster | 55421-06020 |
| 55422C | Center instrument cluster upper decorative panel | 55422-06060 |
| 55435B | Instrument cluster No. 1 instrument cover | 55435-06260 · 55435-06360 |
| 55436B | Instrument cluster No. 2 instrument cover | 55436-06230 · 55436-06340 |
| 55539 | Spare switch hole cover | 55539-06120 |
| 55557A | Glove box cover limit pad | 55557-47050 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-06090 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-06310 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-06490 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-06270 |
| 55670 | Instrument panel No. 3 air regulator assembly | 55670-06A10 · 55670-06A20 · 55670-06A30 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-06240 |
