Toyota CAMRY 前翼子板挡泥板和前围板 — Figure 5304

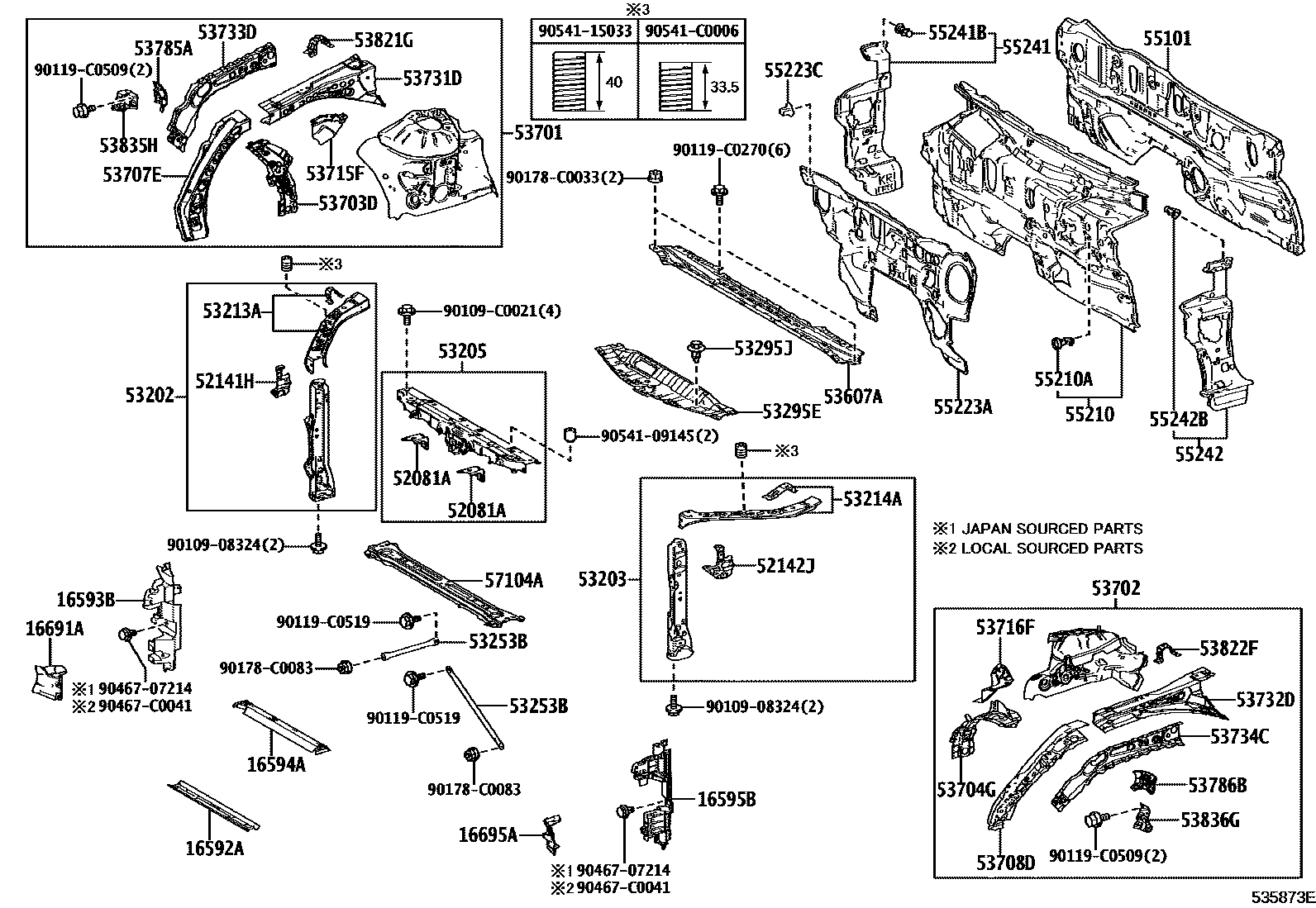

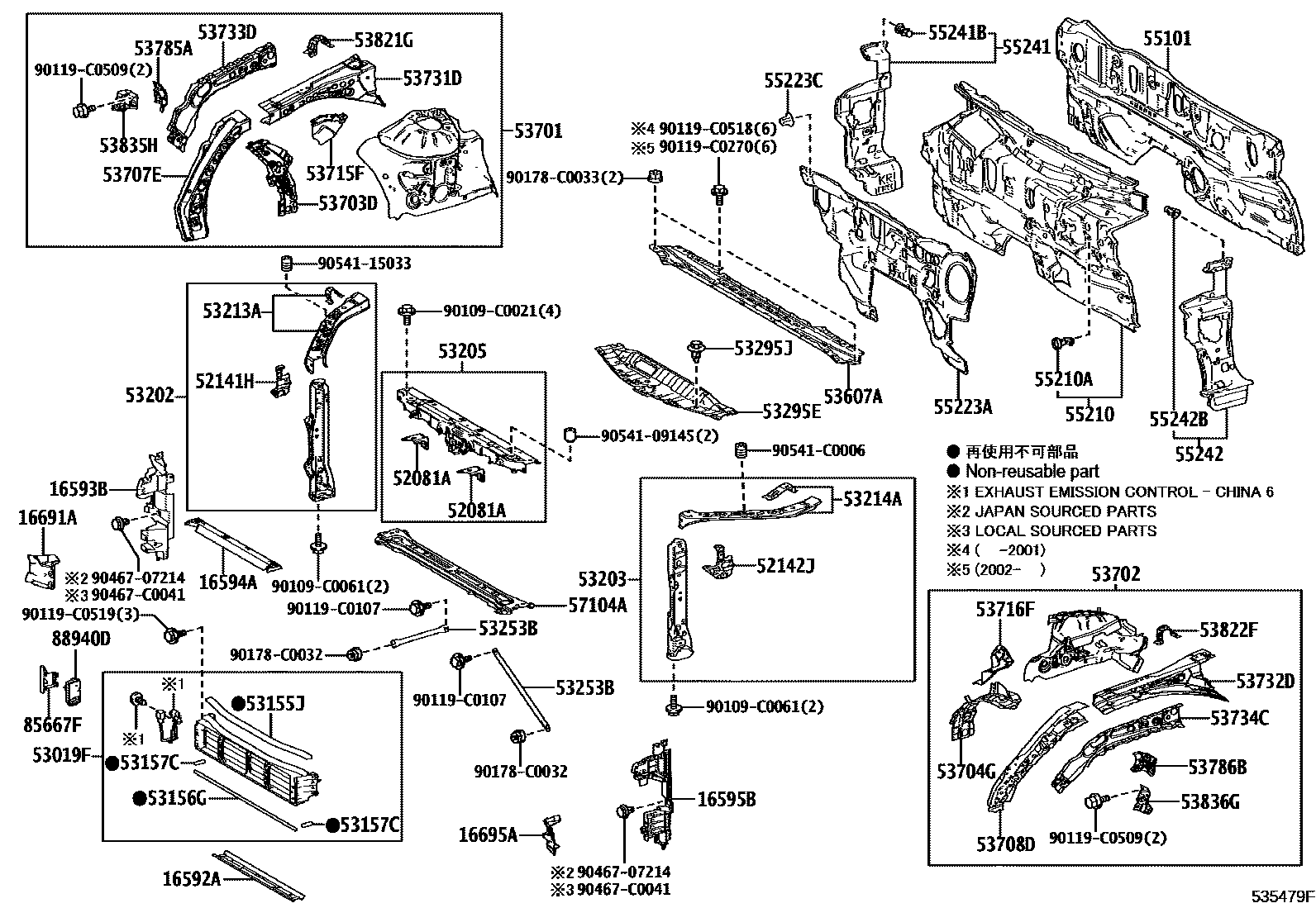

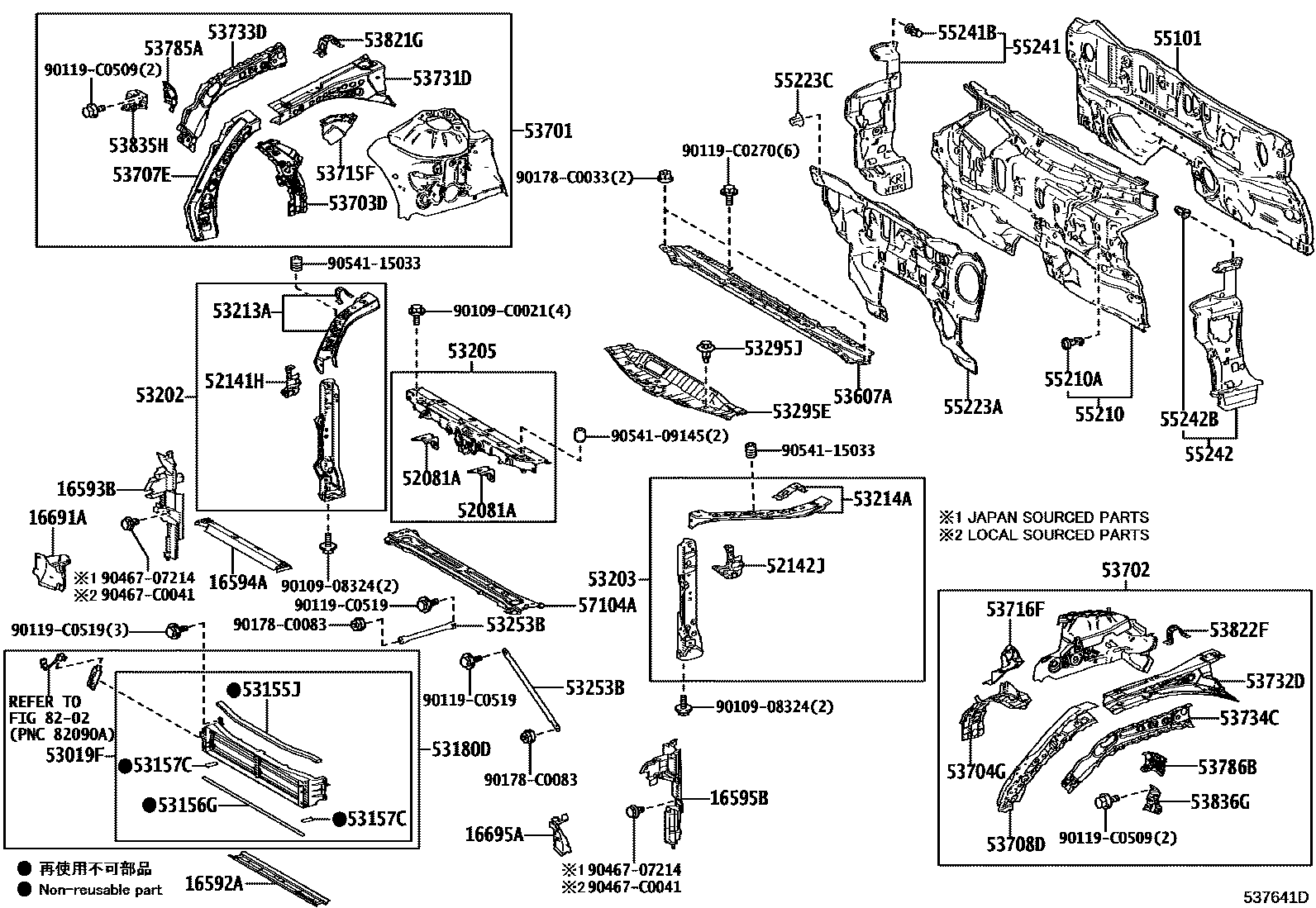

Toyota CAMRY EPC diagram 5304, 前翼子板挡泥板和前围板, with 3 images and 53 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16592A | Radiator deflector No. 3 | 16592-F0020 |
| 16593B | No. 1 radiator right deflector | 16593-F0020 · 16593-F0090 · 16593-F0100 · 16593-F0150 · 16593-F0390 · 16593-F0400 · 16593-F0410 · 16593-F0420 |
| 16594A | Radiator deflector No. 2 | 16594-F0020 |
| 16595B | No. 1 radiator left deflector | 16595-F0020 · 16595-F0090 · 16595-F0100 · 16595-F0150 · 16595-F0410 · 16595-F0420 · 16595-F0430 · 16595-F0440 |
| 16691A | Radiator right front side deflector | 16691-F0050 · 16691-F0060 · 16691-F0160 · 16691-F0170 |
| 16695A | Radiator left front deflector | 16695-F0050 · 16695-F0060 · 16695-F0180 · 16695-F0190 |
| 52081A | Front bumper right side stay sub-assembly | 52081-06020 |
| 52141H | Front bumper right upper arm | 52141-06180 |
| 52142J | Front bumper left upper arm | 52142-06170 |
| 53019F | Radiator louver sub-assembly | 53019-06030 · 53019-06031 · 53019-06050 · 53019-06051 · 53019-06060 |
| 53155J | Radiator grille seal No. 1 | 53155-06050 · 53155-06140 |
| 53156G | Radiator grille seal No. 2 | 53156-06040 |
| 53157C | Radiator grille seal No. 3 | 53157-06060 |
| 53180D | Radiator shutter assembly | 53180-06100 · 53180-06101 |
| 53202 | Radiator right side bracket sub-assembly | 53202-06900 |
| 53203 | Radiator left bracket sub-assembly | 53203-06900 |
| 53205 | Radiator upper bracket sub-assembly | 53205-06902 |
| 53213A | Radiator upper right bracket | 53213-06901 |
| 53214A | Radiator upper left bracket | 53214-06901 |
| 53253B | Radiator mounting bracket | 53253-06030 |
| 53295E | Cold air intake pipe seal | 53295-06200 |
| 53295J | Cold air intake pipe clip | 90467-07217 · 90467-C0051 |
| 53607A | Front suspension center upper bracket sub-assembly | 53607-06030 |
| 53701 | Right front fender fender sub-assembly | 53701-06270 |
| 53702 | Left front fender fender sub-assembly | 53702-06250 · 53702-06320 |
| 53703D | No. 2 right front fender fender sub-assembly | 53703-06160 |
| 53704G | No. 2 left front fender fender sub-assembly | 53704-06170 |
| 53707E | Fender right fender sub-assembly | 53707-06070 |
| 53708D | Fender left fender sub-assembly | 53708-06020 |
| 53715F | Right fender fender | 53715-06020 |
| 53716F | Left fender fender | 53716-06020 |
| 53731D | Right front fender to cowl side upper beam | 53731-06200 |
| 53732D | Left front fender to cowl side upper beam | 53732-06190 |
| 53733D | Right front fender to cowl side front lower beam | 53733-06220 |
| 53734C | Left front fender to cowl side front lower beam | 53734-06220 |
| 53785A | Right front fender corner plate | 53785-06020 |
| 53786B | Left front fender corner plate | 53786-06020 |
| 53821G | Right front fender rear support | 53821-06150 |
| 53822F | Left front fender rear support | 53822-06140 |
| 53835H | Right front fender to extension stay | 53835-06140 |
| 53836G | Left front fender to extension stay | 53836-06150 |
| 55101 | Front apron sub-assembly | 55101-06560 |
| 55210 | Front wall insulation pad assembly | 55210-06430 |
| 55210A | clip | 90467-11122 · 90467-C0094 |
| 55223A | Front wall outer heat insulation pad | 55223-06510 |
| 55223C | clip | 90467-06197 · 90467-C0080 |
| 55241 | Front panel No. 1 right side silencer | 55241-06050 |
| 55241B | Front panel side muffler clip | 90467-13079 · 90467-C0093 |
| 55242 | Front panel No. 1 left side silencer | 55242-06060 |
| 55242B | Front panel side muffler clip | 90467-13079 · 90467-C0093 |
| 57104A | Front cross member sub-assembly | 57104-06070 |
| 85667F | Motor cover | 85667-06030 · 85667-06040 |
| 88940D | Swing grille actuator assembly | 88940-06020 · 88940-06030 · 88940-06040 |
